Collision Repair System for Car
Xian Foreign Trade and Economic Development Corporation- Type：Frame-type
- Certification：CE
- Standard：Standard
- Condition：New
- Bluetooth：Not Support Bluetooth
Base Info
- Production Capacity：1000
Description
Basic Info.
Production Capacity 1000Product Description

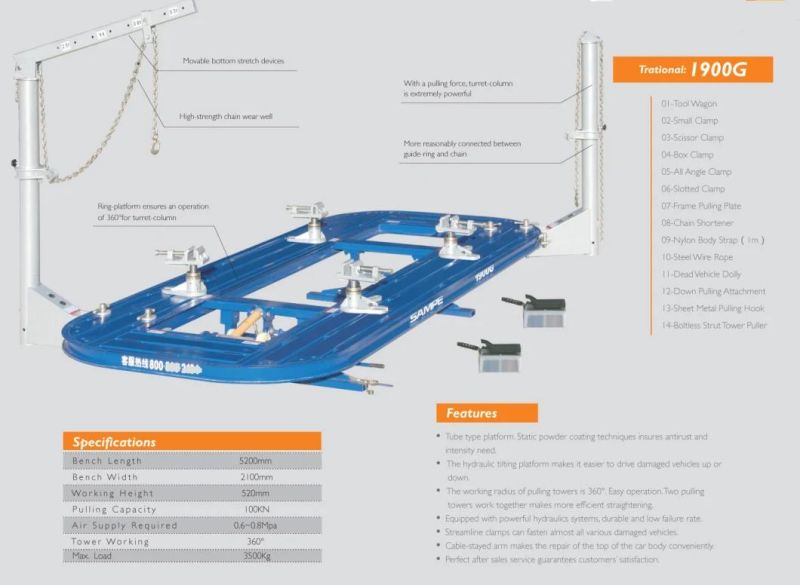

SAMPE1900G
Product Features
1. Towers move 360 degrees around the frame bed;
2. Tubular steel construction for maximum strength;
3. Adjustable collar on tower performs both straight and angle pulls;
4. Tilting platform for easier loading and unloading;
5. Deck length :5200mm, Deck width :2100mm, Deck height : 520mm;
6. Lifting capacity : 3500Kg;
7. 10 tons of pulling tower;
8. Comes with 2 pneumatic pumps, loading ramps and clamping system.
Specifications
LENGTH^^^^^^^^^^^^^^^^^^^^.5200MM
WIDTH^^^^^^^^^^^^^^^^^^^^^2100MM
HEIGHT^^^^^^^^^^^^^^^^^^^^^520MM
PULLING CAPACITY^^^^^^^^^^^^^^^.100KN
AIR SUPPLIED REQUIRED^^^^^^^^^^^^0.8MPA
RADIUS OF PULLING^^^^^^^^^^^^^^^^360°
MAX. LOAD^^^^^^^^^^^^^^^^^^..3500KG
TOTAL WEIGHT^^^^^^^^^^^^^^^^..2200KG
