• Model NO.：BY-3
• Brand：Baoyues
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Inside Dimension：6900*3900*2650 mm
• Function：Baking and Painting
• Design：European Design
• Lights：LED
• Control System：Schneider
• Transport Package：Export Professional Package
• Specification：CE, SGS
• Trademark：Baoyues
• Origin：Guangdong, China
• HS Code：84198990
• Production Capacity：90 Sets,Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3500.000kg


Intake and Exhaust   systemInlet: 2×3KW double-intake centrifugalfans, model YDW4.5M1,air capacity for each fan: 10500m 3 /h.Outlet: 1×4KW double-intake centrifugalfan, model YDW4.5L1, air capacity: 12500m 3 /h.Heating systemRIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 200000kcal/h, Max temperature: 80 degree.Purification systemPre-filter, ceiling filter, fibreglass filter, activated carbon filterRoofGalvanized steel.Control systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, temperature limit controller, exhaust with manual damper, all motors are normal start.Total Power12KW

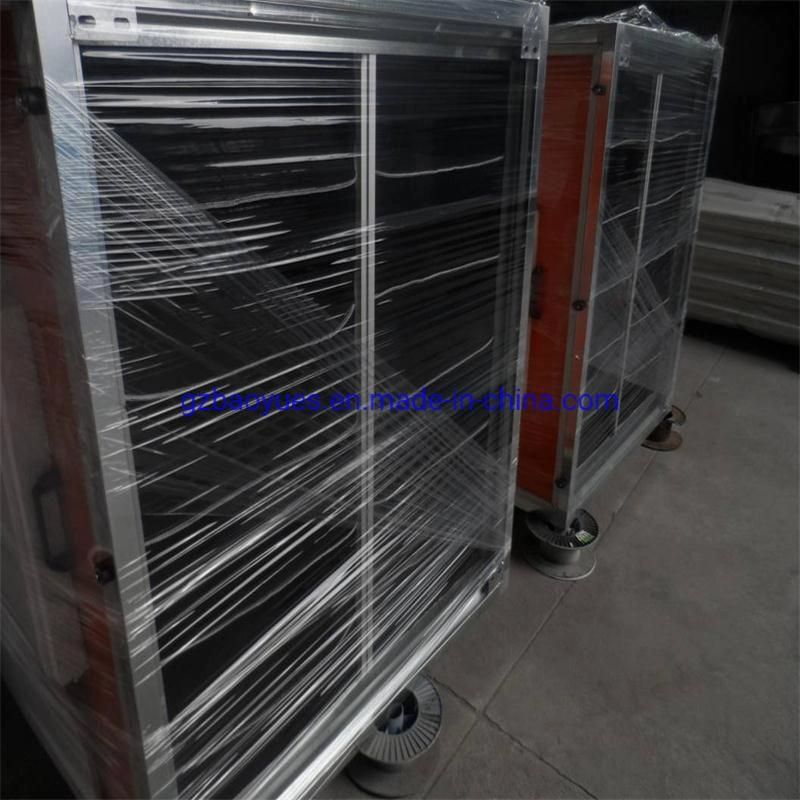

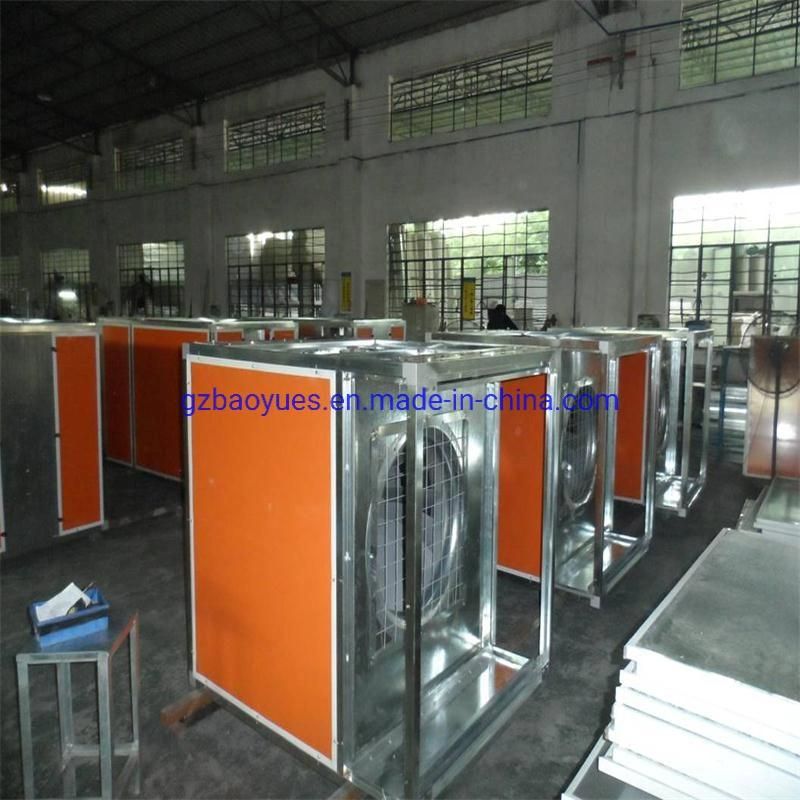

Parts details:







What customer saying:

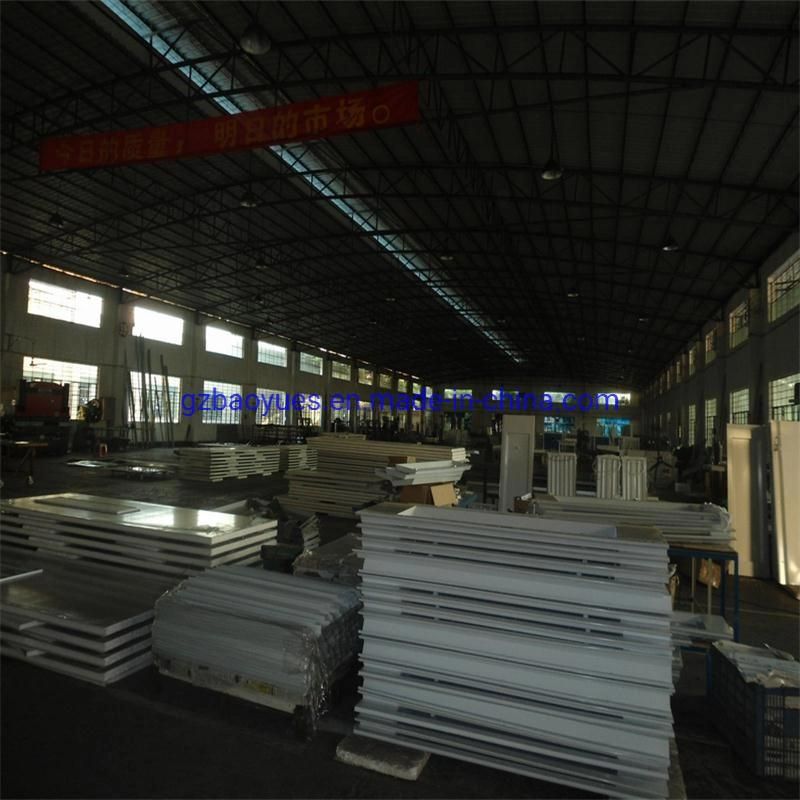

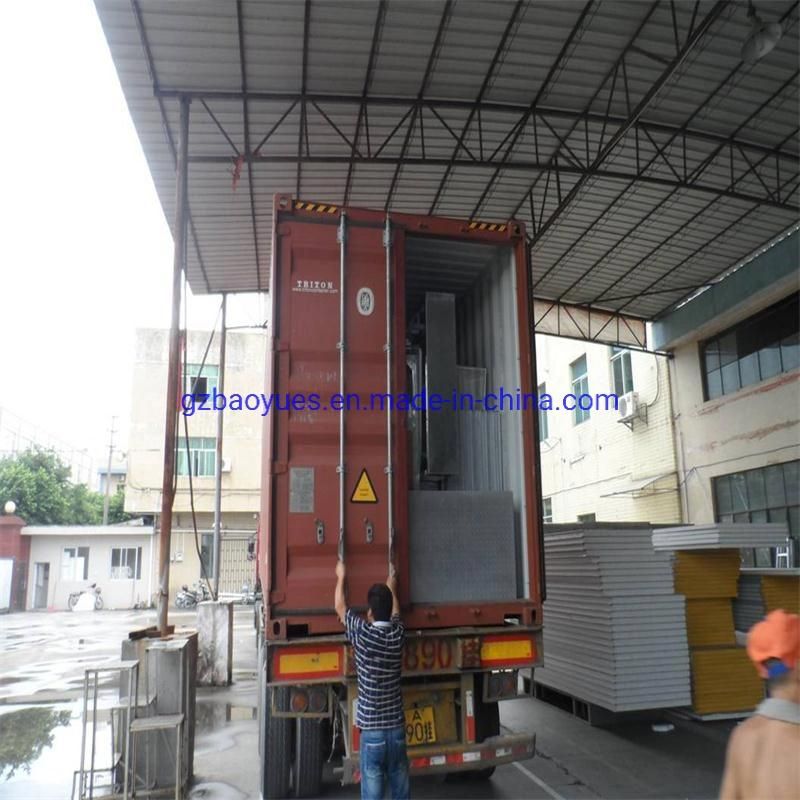

Factory show:

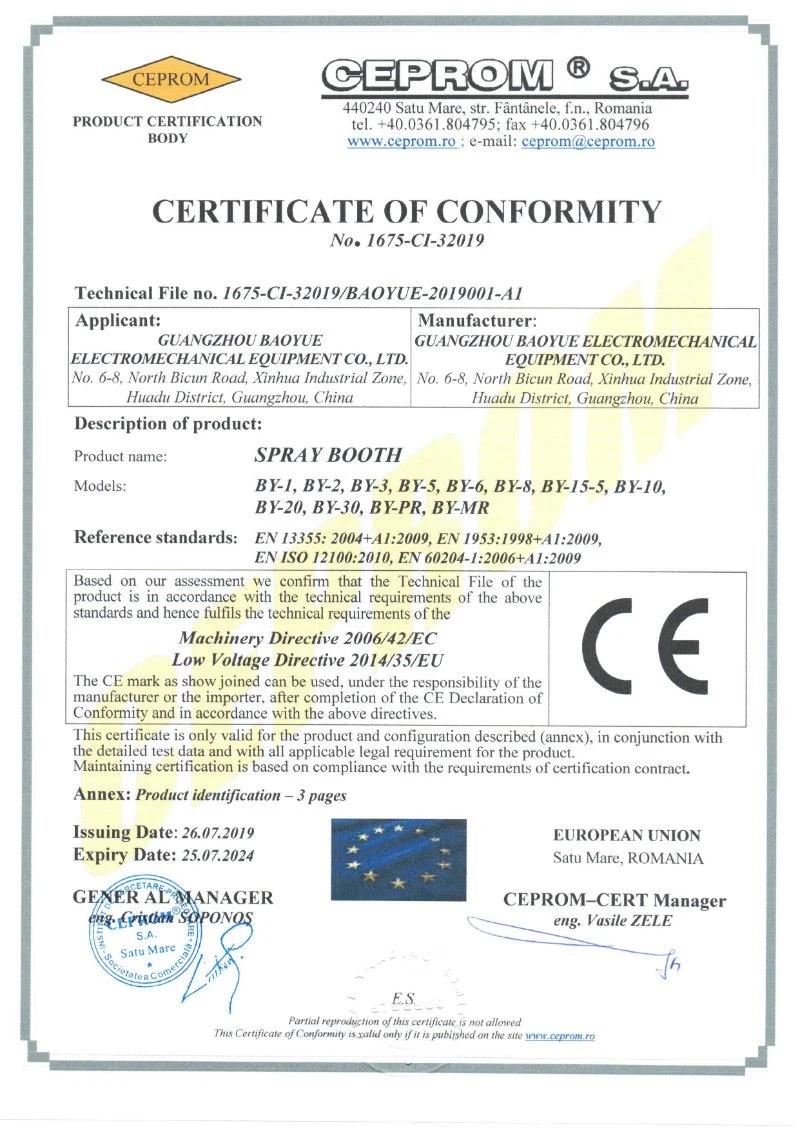

CE certificate:
