• Model NO.：GL
• Coating：Powder Coating
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Model：Gl-L4
• Painting Line Length(M)：36.4
• External Size(M)：8.3X8.4X5.5
• Painting Booth Internal Size(M)：6.9X3.9X2.8
• Baking Booth Internal Size(M)：6.9X3.9X2.8
• Painting Booth Air Flow(M3/H)：25000
• Baking Booth Air Flow(M3/H)：18000
• Total Power(Kw)：40
• Standard Movable Jacks(Sets)：4
• Rail(M)：5X36.4
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：Standard
• Trademark：GL
• Origin：Gz, Cn
• Production Capacity：800 Units,Month

Basic Info.

Model NO. GL Coating Powder Coating Airflow Direction Cross-flow Type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Model Gl-L4 Painting Line Length(M) 36.4 External Size(M) 8.3X8.4X5.5 Painting Booth Internal Size(M) 6.9X3.9X2.8 Baking Booth Internal Size(M) 6.9X3.9X2.8 Painting Booth Air Flow(M3/H) 25000 Baking Booth Air Flow(M3/H) 18000 Total Power(Kw) 40 Standard Movable Jacks(Sets) 4 Rail(M) 5X36.4 Transport Package Iron Frame Packing and Carton Packing Specification Standard Trademark GL Origin Gz, Cn Production Capacity 800 Units/Month

Product Description

China Factory Bulk Price Paint Booth Systems for 4S Shop Fast repair Maintanence

Auto Works Painting Line Feature

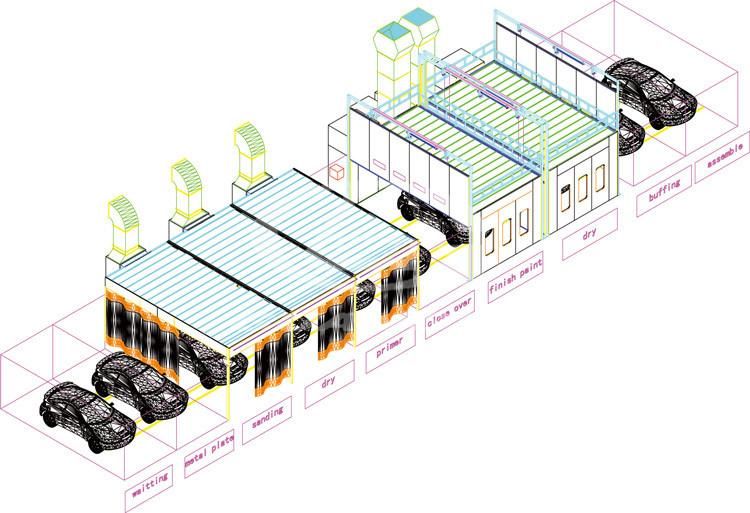

Multi-baysLines:Prepstation+Paintingbooth+Bakingbooth+Polishingarea

Working process

1. Park the vehicle on the four movable jacks in the waiting area.
2. Push the vehicle to the wanted working area in order, and then carry out Body works, Sanding, Priming, Masking, finishing paint, Drying, Polishing and Assembly in this line.
3. The transition in different areas is realized by moving vehicles along the jacks.

Structure:

1. Painting and baking are working separately in this line, vehicle can through from the moving door in side wall.With close curtain at two side of optional prep station.
2. This line consists of painting room, barking room, rails and movable jacks.Prep station and infrared light are for option.
3. Painting room and baking room are connected in parallel. Ventilation and heating system placed at rear.
4. The transition in different area is realized by moving vehicle along the jacks.
5. Pull& Push Folding Door is standard, automatic control vertical suspending door and sectional suspending door for option.
6. If specified with vertical suspending door, the height of workshop should be at least 5.8M.
7. A small spray booth can be installed outside the line to the painting and backing for parts.

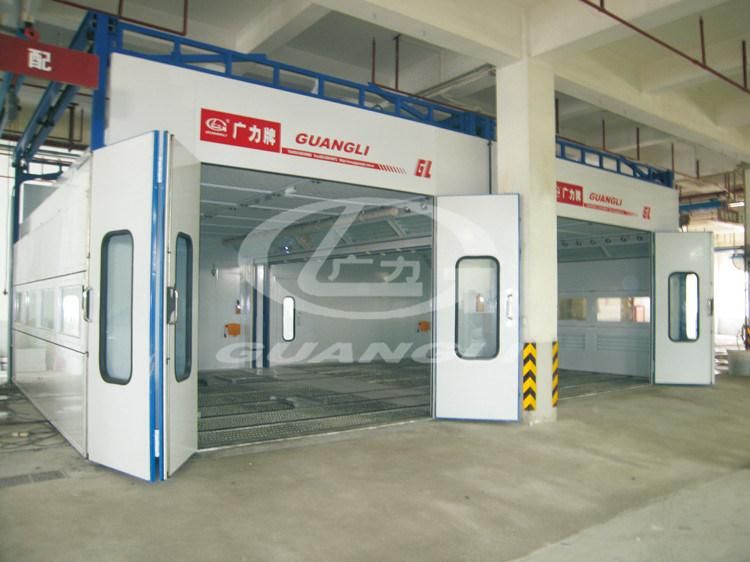

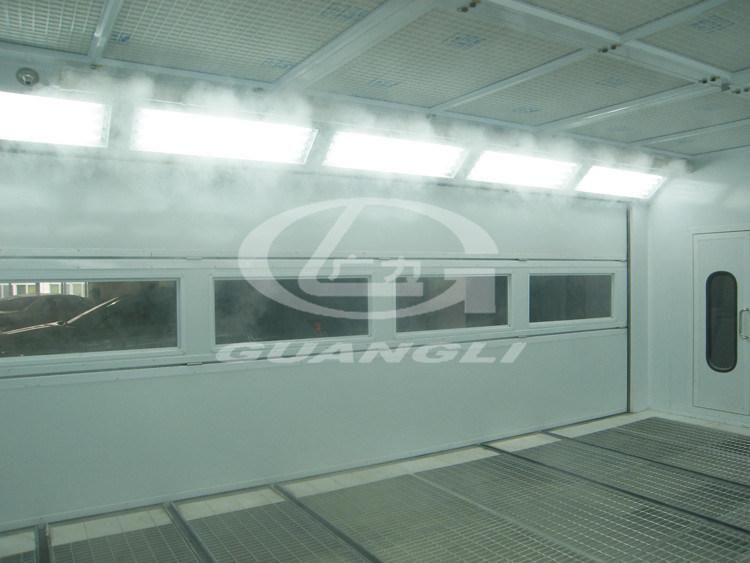

Auto Works Painting Line Show

Technical Specifications	GL-L4
Painting line Length(m)	36.4
External Size Internal Size	8.3x8.4x5.5
Painting booth Internal Size	6.9x3.9x2.8
Baking Booth Internal Size	6.9x3.9x2.8
Painting booth Air Flow(m³/h)	25000
Baking Booth Air Flow(m³/h)	18000
Total Power(kw)	40
Standard Movable Jacks(sets)	4
Rail(m)	5x36.4

Remark:

1. Dry sand, vertical suspend door with exhaust system.
2. The model above are suitable for saloon car, concrete basement made by user.
3. Nonstandard design plan can be made as requirement.

Why Choose Us

1.More than 20-year experience in Spray booth and car lift field.

2.Superb unique technology and Automatic production line.

3.Large order can be placed.

4.Advanced equipment and exquisite workmanship.

5.Durable and reliable.

6.Good pre-sales and after-sales service.

Company Information

 GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.

GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience.
Founded in 1994, Guangli has our own enterprise headquarters and factory, which covers 58,000M²of grounding area and 36,000M²of building area.

Certificate
Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001.

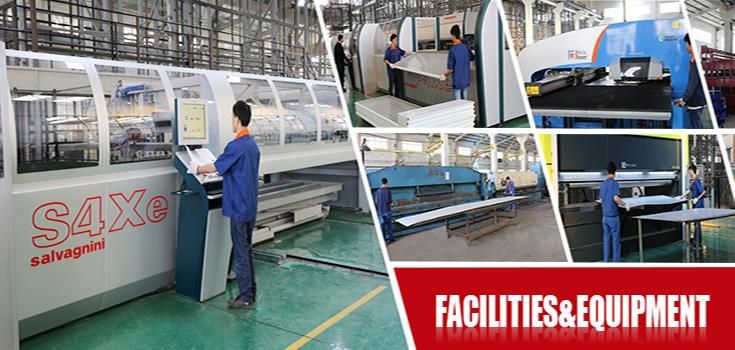

Equipment
We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

Exhibition

FAQ

1.Q:Are you Manufacturer or Trading company?

A:We are a professional manufacturer with our own export department. So you can get best price from us.

2.Q:Where is your company located? How can I visit there?

A:Our company is located in Guangzhou.All clients, from home and abroad,  are warmly welcomed to visit
us.

3.Q:How about the quality of the products?

A:With the advanced machines, strong and professional R&D team and material sources,
our products are excellent in performance and craftsmanship.

4.Q:Can we customize our product?

A:Yes,you can.Customized material and standard are acceptable. We can

provide different standards according to your market and favor.

5.Q:What's the MOQ for each items?

A:We accept one piece/set each time.

6.Q:What's the delivery time?

A:If the product you ordered is our standard configurations, it's 7 workdays.
