• Model NO.：CR318-PRO
• Standard：Standard
• Transport Package：Standard Wooden Package
• Specification：1460*970*1610mm
• Trademark：Crystal
• Origin：China
• HS Code：9031200090
• Production Capacity：100sets,Month

Basic Info.

Model NO. CR318-PRO Standard Standard Transport Package Standard Wooden Package Specification 1460*970*1610mm Trademark Crystal Origin China HS Code 9031200090 Production Capacity 100sets/Month

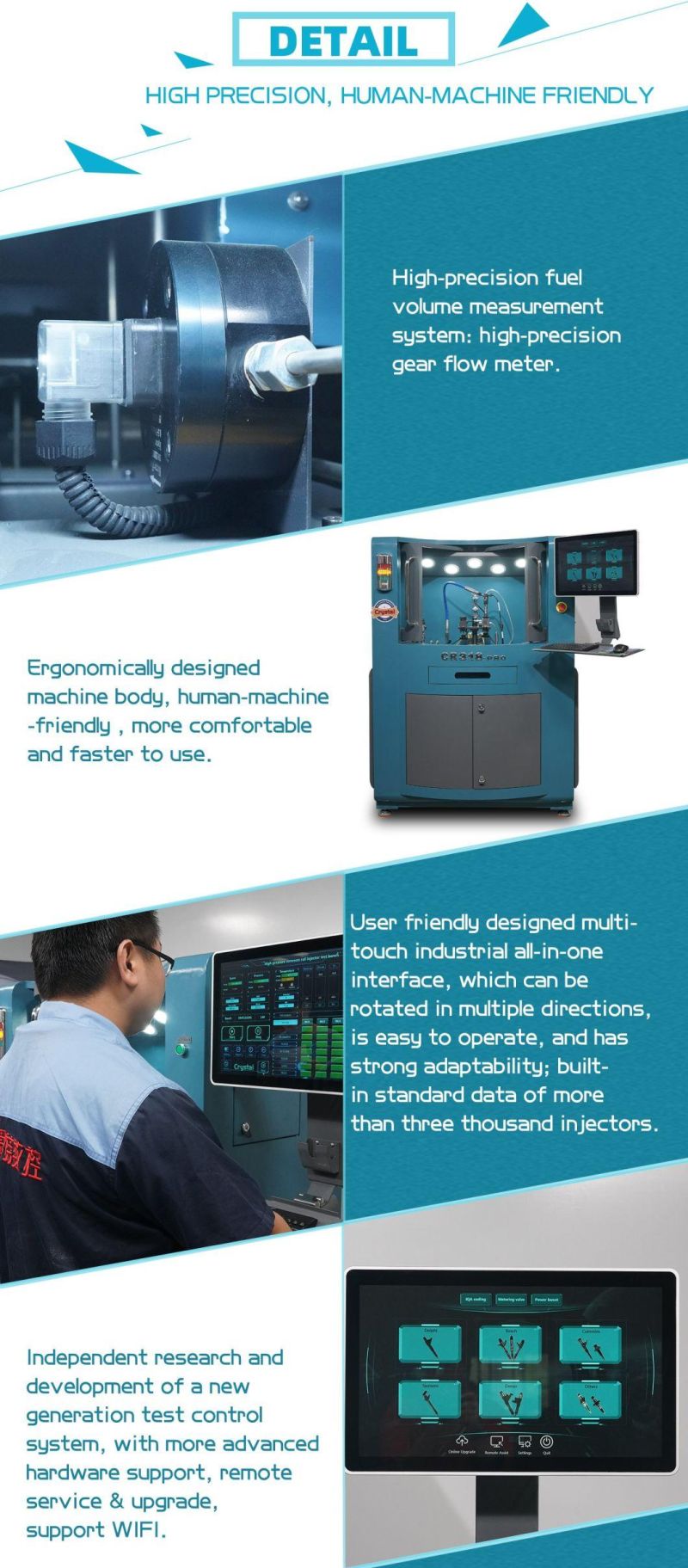

Product Description

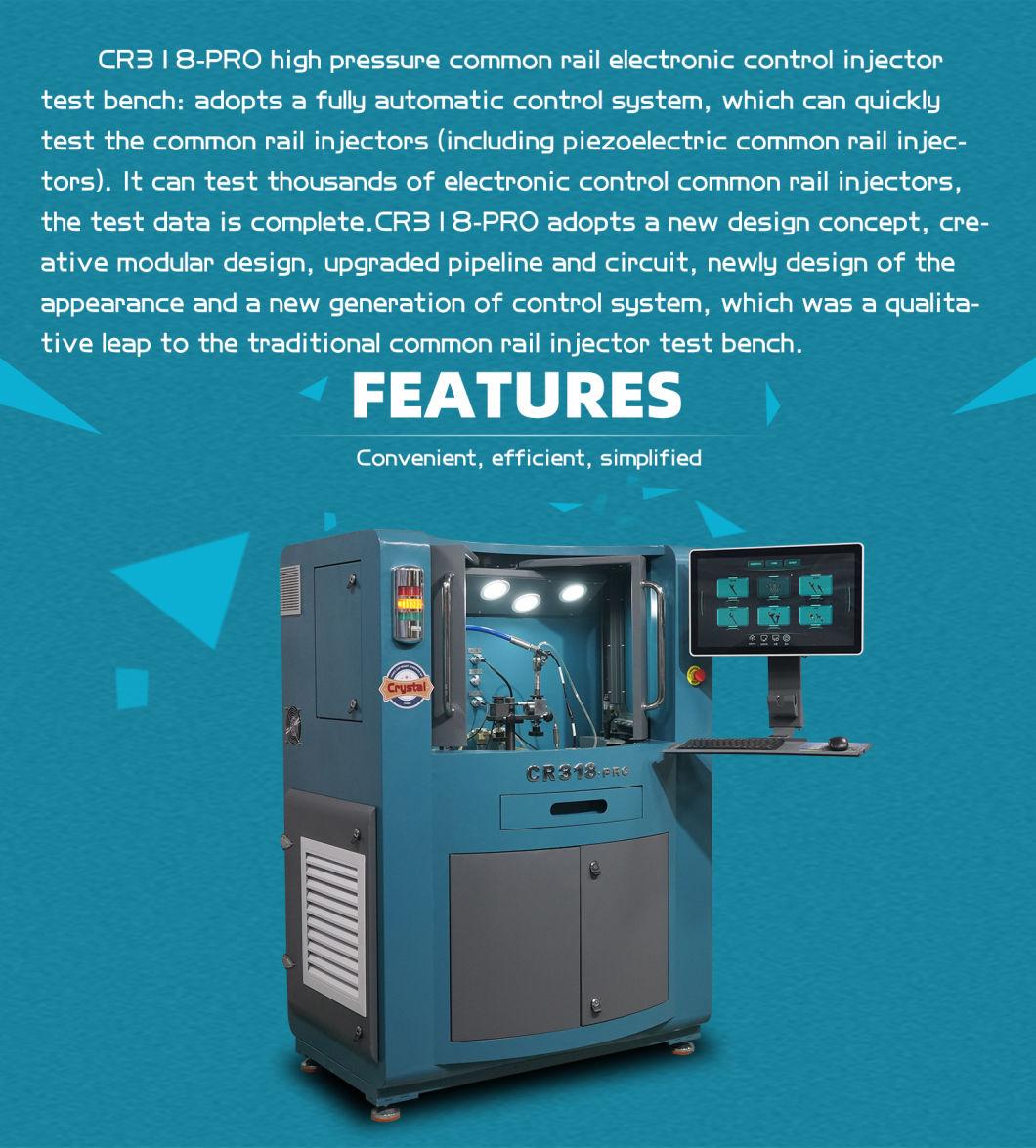

(1) Electric control common rail injector brands that can be tested: BOSCH, DENSO, DELPHI, CATERPILLAR, CUMMINS, SIMENS.

(2) Upgraded one-key clean the fuel injector function, convenient, efficient and simplifies the test process.

(3) It can accurately test the high-pressure sealing, full-load fuel injection volume, fuel return volume, discharge point fuel injection volume, idle fuel injection volume, pre-injection volume, and pre-injection fuel return volume.

(4) It can automatically generate fuel quantity correction codes for common rail injectors: QR, IQA, IMA, ISA, c2i, c3i, (VD0) ICC.

(5) Armature lift test of the solenoid valve of the injector.

(6) The electric control common rail injector opening pressure test, the opening pulse width test, and the response time test.

(7) Test of resistance value and inductance value of solenoid valve of electronically controlled common rail injector.

(8) It can manually edit the injection characteristics of the injector to be tested.

(9) The test process can be selected according to the actual situation, and the test data report can be automatically generated.

(10) It can display 6 sets of test data at the same time, which is convenient for data comparison.

(11) Judging the damaged parts of the electrically controlled common rail injector by itself according to the information of fuel quantity at various working points and interface prompts.

(12) Engine power modification function by generate new ECU identification code, which is convenient, fast and useful.
