Advanced Mutrade Parking Two Pallet 4 Four Post Parking Floor Car Parking Lift
Qingdao Mutrade Co., Ltd.- Type：One Cylinder Hydraulic Lift
- Lifting Capacity：3.6 Tons
- Driving Type：Hydraulic
- Certification：CE, ISO
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Single Cylinder
Base Info
- Model NO.：HydroPark2236,2336
- Shearing Lift Type：4 Post Type
- Condition：New
- Brand：Hydropark
- Design：Four Post
- Capacity：3600kg,8000lb
- Lifting Height：1800mm,2100mm
- Total Width：2540mm
- Total Height：2140mm
- Total Length：4454mm
- Gross Weight：900kg
- Drive Mode：Hydraulic Cylinder + Steel Cable
- Container Load：12 Units,20FT Container; 24 Units,40FT Container
- Surface Treatment：Powder Coating
- Processing Method：Laser Cutting & Robotic Welding
- Transport Package：Standard Export Packing
- Specification：ISO9001 , CE
- Trademark：Mutrade Parking
- Origin：Qingdao, China
- HS Code：84289020
- Production Capacity：1400 Units,Month

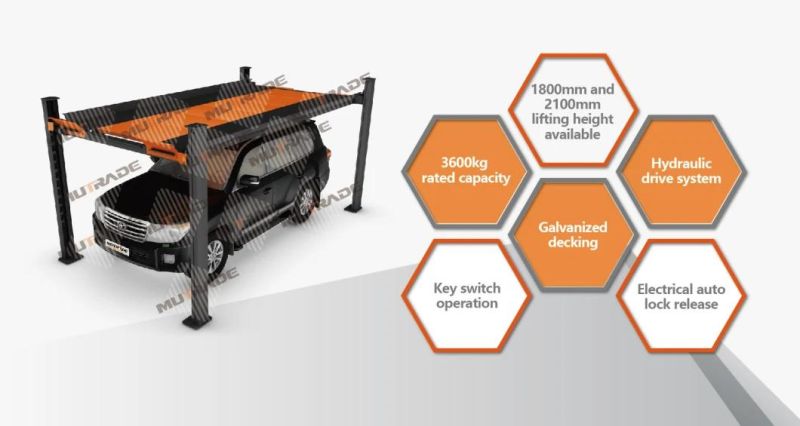

Description
Hydraulic Smart Car Parking Lift with 3600 KG CapacityMode Hydro-Park 2236/2336 Lifting capacity 3600kg Lifting height 1800mm/2100mm Usable platform width 2100mm Control Power 24V Power pack 2.2kw Available car size 5m*1.85m*1.75m/2.05m Operation Key switch Lock device Dynamic Locking release Auto Lifting/lowing time <40s Finishing Powder coating Warranty 5 years on structure, 1 year for the whole machine.
- 3600kg capacity makes it possible for heavy duty vehicles.
- 2100mm usable platform width makes it much easier for parking and retrieve.
- Unique mechanical steel ropes detection will stop platform at once in case steel rope is loosen or cut off.
- Anti-slip diamond plates as drive way
- Lateral protection wings at two sides of platform will prevent vehicles going out.
- Hydraulic cylinder and steel rope drive system for smooth operation
- Dynamic mechanical locks as anti-falling device hold the platform in place
- Platform can be stopped at different heights to park for various vehicles and ceiling heights
Advantages
- 3600kg capacity makes it possible for heavy duty vehicles.- 2100mm usable platform width makes it much easier for parking and retrieve.
- Unique mechanical steel ropes detection will stop platform at once in case steel rope is loosen or cut off.
- Anti-slip diamond plates as drive way
- Lateral protection wings at two sides of platform will prevent vehicles going out.
- Hydraulic cylinder and steel rope drive system for smooth operation
- Dynamic mechanical locks as anti-falling device hold the platform in place
- Platform can be stopped at different heights to park for various vehicles and ceiling heights
