• Model NO.：GL4000-A1
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：30000
• Lighting System：Upper Light and Side Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Warranty：Yes
• Heating System：Riello Brand Diesel Burner,Gas Burner
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL4000-A1 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 30000 Lighting System Upper Light and Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Heating System Riello Brand Diesel Burner/Gas Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

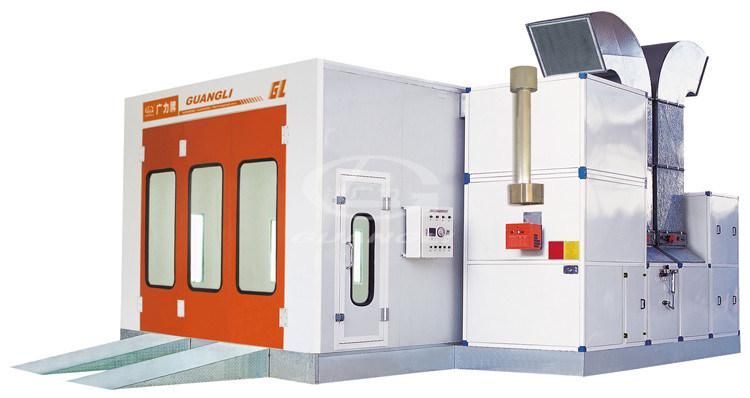

CE Approved Constant Temperature Sparying Car Spray Paint Booth (GL4000-A1)

GL4000-A1 Spray Booth Description
--Wall panel :sandwich style,δ=50mm,rock wool.(Polystyrene is optional)
--Basement :steel strucutre,full grids .ramp:2 pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--Lengthened room as optional :out side :7.6*5.6*3.5(m) inside size:7.5*3.9*2.7(m)
--One unit of 11kw intake fan and one unit of 11kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--1 manual VCD exhaust damper,electrical VCD as optional. One pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 burner/Gas Burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light :10sets,4*40W per set. Side light:8sets,2*40w.
--Control box:components is import,overload,overheat,phase-lacking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying
--Environmental filter: the equipment can be adopted M style activated carbon or drawer style activated carbon as optional.


Model	GL4000-A1
External size (m)(LxWxH)	7.0x5.6x3.5
Internal size (m)(LxWxH)	6.9x3.9x2.7
Entrance width(m)	3.0
Entrance height(m)	2.66
Fan capacity( m 3 /h )	30000
Air velocity (m/s)	0.3-0.5
Drying Temperature(ºC)	20-80
Oil consumption (L/unit)	6-8
Power (kw)	25
Customization	Available
Water-based Paint Device	As option
Suitable Automobile Type	Saloon Car

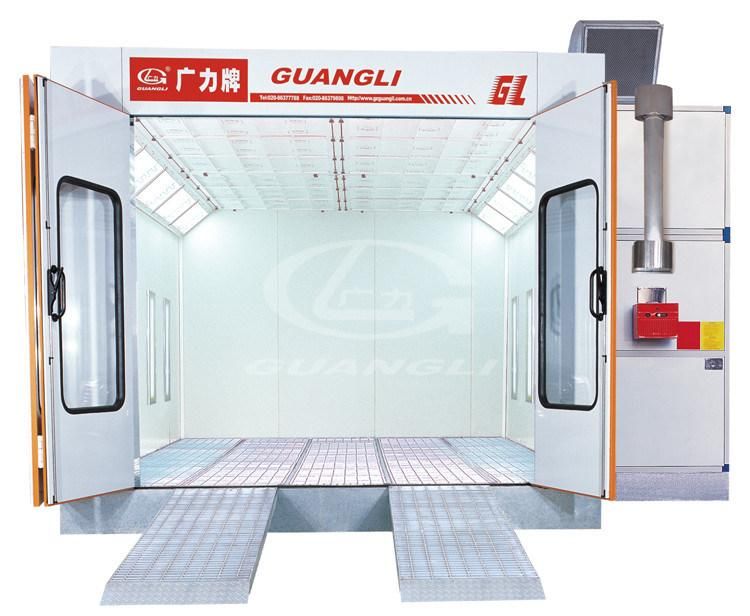

Guangli Spray Booth Show

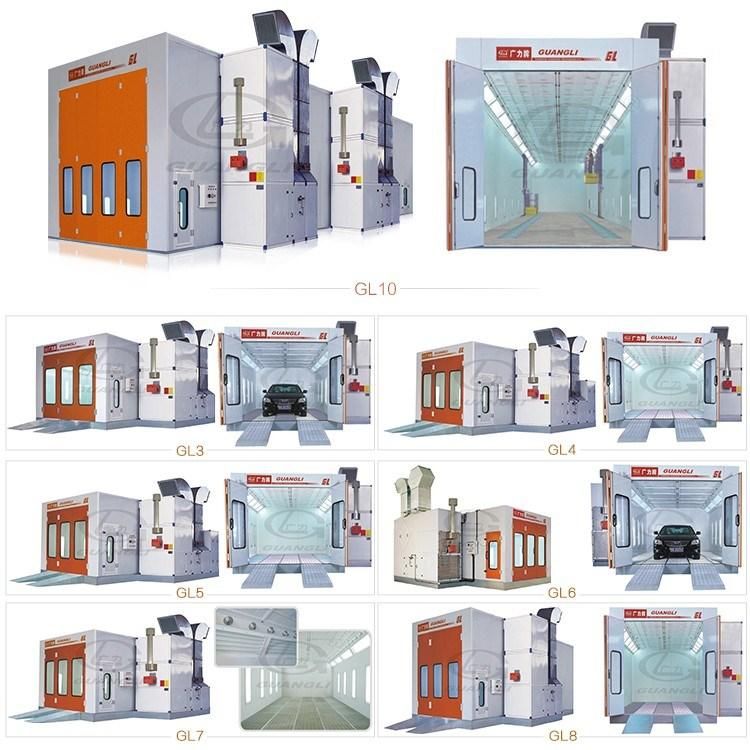

Guangli Spray Booth Series

Equipment
We have the mostadvanced sheet metal production line imported from Europe and have achieved the world-class production level among this industrial.


Exhibition



Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ

1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
 different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.Warmly welcome feel free to contact:
