• Model NO.：CPL-2
• Standard：Standard
• Certification：CE, ISO
• Condition：New
• Lifting Capacity：2000kg
• Lifting Height：1650mm
• Uper：1650mm
• Pit：1700mm
• Power：5.5kw, 380V
• Rise/Drop Time：1 Min
• Transport Package：Standard Exporting Package
• Specification：1100*950*950
• Trademark：Cherish
• Origin：China
• HS Code：84289020
• Production Capacity：1000sets,Per Month

Basic Info.

Model NO. CPL-2 Standard Standard Certification CE, ISO Condition New Lifting Capacity 2000kg Lifting Height 1650mm Uper 1650mm Pit 1700mm Power 5.5kw, 380V Rise/Drop Time 1 Min Transport Package Standard Exporting Package Specification 1100*950*950 Trademark Cherish Origin China HS Code 84289020 Production Capacity 1000sets/Per Month

Product Description

Main Features:

1. CE certified according to EC machinery directive 2006/42/CE.

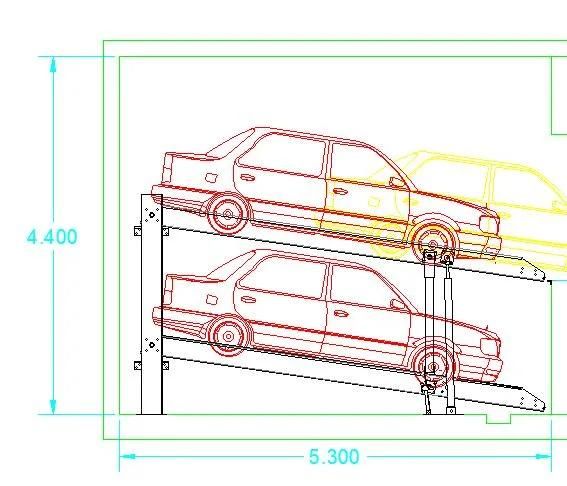

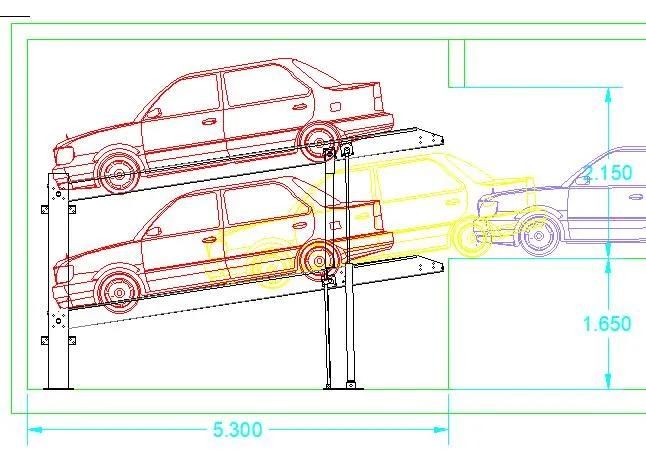

2. CPL-2 pit parking system providing independent parking spaces for 2 cars (EB), 2X2 cars (DB),on one on top of the other each , the parking bay are accessed inclined (by appro x 7.5 degree).
3. Even in case of smaller installation heights, two cars can be parked easily on top of each other.
4. Inclined lower platform with lower pit height.
5. Powder spray coating surface treatment for indoor use hot galvanizing for outdoor use.

 Technical Parameter:

Model No.	Parking Vehicles	Lifting Capacity	Lifting Height	Upper	Pit	Rise/Drop Time	Power Supply
CPL-2	2 cars	2000kgs/5000lbs	1650mm	1650mm	1700mm	60s	380V
CPL-4	4 cars	2000kgs/5000lbs	1650mm	1650mm	1700mm	60s	380V

Customers:

Certificate:
Package & Delivery

FAQ:
Q1: Are you a manufacturer?
A: Yes, we have own factory and engineer .

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q5.How long is the warranty period?
A:Steel structure 5 years,all spare parts 1 year.
