• Model NO.：YA401
• Item Type：Obdii Scanner
• Item Weight：0.56kg
• Item Size：7.91"*3.47"*1.18"
• Color：Black
• Material：Plastic
• Voltage：12V
• Screen：2.8 Inch TFT Color Screen
• Connection：Obdii Standard Connector
• Update：Free Update for Lifetime
• Warranty：1 Year′s Warranty
• Car Model Coverage：Almost All Car Models That Support Obdii
• Transport Package：Carton
• Specification：0.56kg; 7.91"*3.47"*1.18"
• Trademark：kingbolen
• Origin：China
• HS Code：9031809090
• Production Capacity：1000000

Basic Info.

Model NO. YA401 Item Type Obdii Scanner Item Weight 0.56kg Item Size 7.91"*3.47"*1.18" Color Black Material Plastic Voltage 12V Screen 2.8 Inch TFT Color Screen Connection Obdii Standard Connector Update Free Update for Lifetime Warranty 1 Year′s Warranty Car Model Coverage Almost All Car Models That Support Obdii Transport Package Carton Specification 0.56kg; 7.91"*3.47"*1.18" Trademark kingbolen Origin China HS Code 9031809090 Production Capacity 1000000

Product Description

Why choose our products?
1. All products in our company are 100% original Kingbolen products.
2. The lowest price in whole Made-in-China.
3.Overseas warehouse: Fast shipping & Seller paying customs tax for EU countries.
4.Countries with local free return: United States, Canada, Australia, United Kingdom, France, Spain, Germany, Russia, Brazil, Israel, South Korea, Saudi Arabia, UAE, Poland, Netherlands, Italy. ( Note: If products are blamed of any quality problem, free return service to local country will be open. )

Product Introduction:

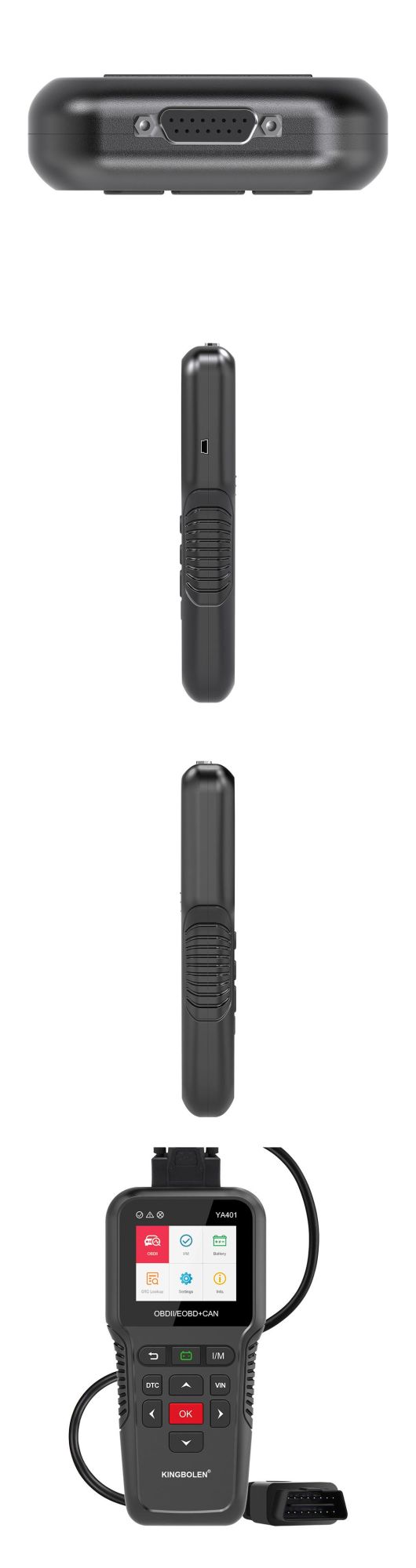

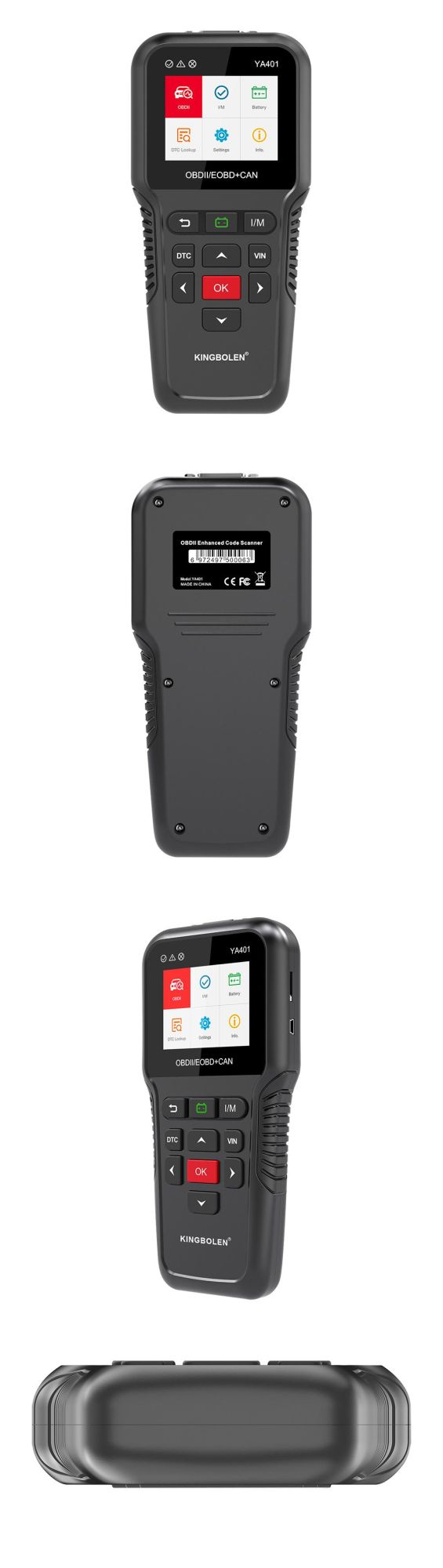

     YA401 is the latest car code readerscanner developped by Kingbolen technology company.

    It the most powerful auto diagnostic scanner over the  YA- serials.

    It provides all 10 modes of OBDII/EOBD diagnostic functions and10 kinds of common languages. In addition, it covers 90% car models that support OBDII and meets 8 kinds of protocols, including ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4.
    SKU:SC106



Product Advantages :
The most important addition is the shortcut VAG vehicle detection
(No other card readers have this feature) 2.8 inch TFT color screen
 Free update for life time
 Freeze frame function to work out the PIDs when trouble code came on


Support 8 types dfferent protocols
 Live data record and replay function
 Live data graph display
 Live data PIDS sort function
 DTC definition and possible cause
 One key VIN to function
 One key dlagnostic trouble code clear fault code.
 One key IM readness functlon
 One key battery detection




Product Functions :

Graph Display: Show the live data via graph mode, selecte PIDs by "OK" key, enter the graph by "Return"key switch the PIDs by "UP"and "Down"key.

Read Codes: Reads DTCs from vehicle's computer with KOEO or KOER.

Erase Codes: Deletes DTCs from vehicle's memory.

Live Data: Live Data menu lets you view, record and playback real time PIDs data from the electronic control module. In live data menu, you can insert the selected item to front by holding pressing the  key for 3 seconds.

Freeze Frame: Displays a snapshot of operating conditions at the time of a fault.

Vehicle Info: Scan tool displays the vehicle's VIN number, Calibration ID (s) and CVN that identify the software version in the vehicles control modules.The tool also displays In-Use Performance Tracking of important readiness monitors.

Component Test: Tool will display a list of components and their locations on the vehicle.This function will always appear on the Main Menu .This selection will appear on the Diagnostic Menu only when the tool has a list of component locations for the currently selected vehicle.

On-Board Monitoring: Scan tool controls the operation of vehicle components, tests or systems.

O2 Sensor Test: Displays oxygen sensor monitoring test results from the vehicle's memory,the O2 Monitor Test is NOT an ON-DEMAND TEST.

I/M Readiness: Displays a snapshot of the state of the vehicle's OBDII Monitors.

DTC Look Up: Looks up definitions of DTCs stored in scan tool, and shows the possible causes of the DTC. (NOT every DTC with possible causes reason)

Voltage Test: This function is used to monitor the voltage present on pin 16 of the OBDII Data Link Connector.

Data Logging: Turn on /off the data log function to record the device data through vehicle.

Self-test: Display Test.  Used to check the display screen. Keyboard Test. Verifies that the keys are working correctly.

Multi-language: English,France,Deutsch,Japanese,Spanish,Italian,Russian,Portuguese, Traditional Chinese,Simplified Chinese.

Update:  Install update tool from Official webiste, and copy the newest firmware.

  NOTE:
* Not all monitors are supported by all vehicles.There are two types of l/M Readiness tests.
* since DTCs Cleared -shows status of the monitors since the DTCs werelast cleared.
* This Drive Cycle-shows status of monitors since the start of the currentdrive cycle.
* To review I/M Readiness status,make sure that the ignition key is switched to ON with the engine off.



Features :
Support vehicles 1996 &newer (OBDII &CAN)
Support Protocol IOS9141-2, IOS14230-4, SAEJ1850, IOS15765-4
Coverage for the latest models 1 though 10
Read & Clear DTC
Read Live Data
Identify VIN information
Views freeze frame data
Turns off Malfunction indicator Light(MIL)
Display monitor test and I/M readiness test
O2 sensor &Evap system test
On-board monitor test (Mode 6)
Read pending fault code
DTC code look-up

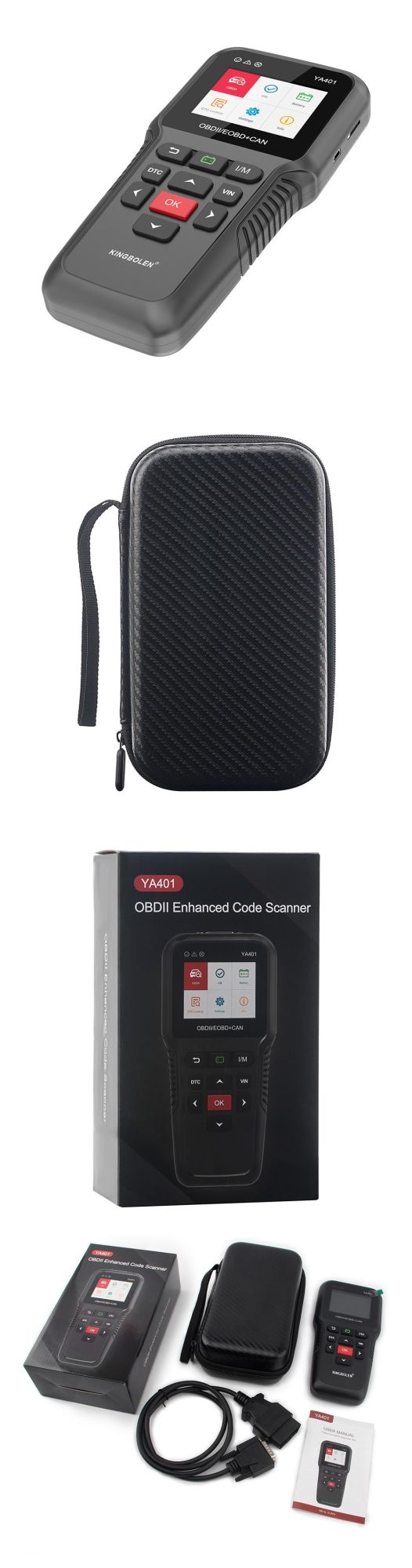

Packing List :
EDIAG YA401 scanner main unit  * 1
User manual  * 1
Package Box * 1
