CE Approved Massive Industrial Preparation and Sanding Booth for Large Machinery

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.
  • Type：Spray Booth
  • Certification：CE
  • Substrate：Steel
  • Coating：Powder Coating
  • Airflow Direction：Side Downdraft
  • Paint Mist Treatment：Dry-type

Base Info

  • Condition：New
  • Plenum (Height)：800mm
  • Side Walls：60mm Rock Wool Walls
  • Brightness：>1,000lux
  • Noise：<72dB
  • Warranty：2 Years
  • Inverter：Schneider
  • Extraction Area：26.4m2
  • Air Volume：4*28,000m3,H
  • Rated Power：65kw
  • Heats：Option
  • Empty Loaded Air Speed：0.32m,S
  • Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
  • Specification：16000 X 6000 X 5000mm (L X W X H)
  • Trademark：INFITECH
  • Origin：Guangzhou, China
  • HS Code：8419899090
  • Production Capacity：1000 Sets,Year

Description

TRUCK PREP BOOTHITEMSSPECIFICATIONSProductTruck Prep Booth with Dust Extraction UnitDesign standardBS EN 13355: 2004+A1:2009

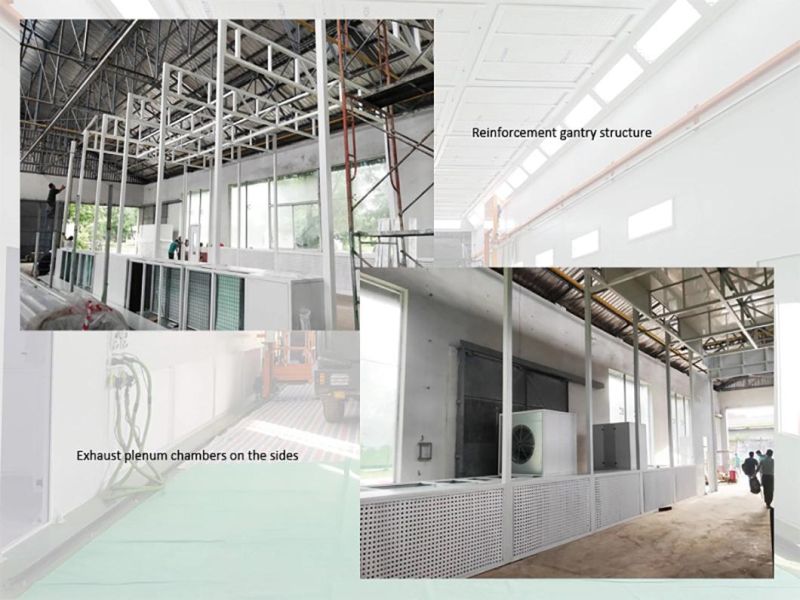

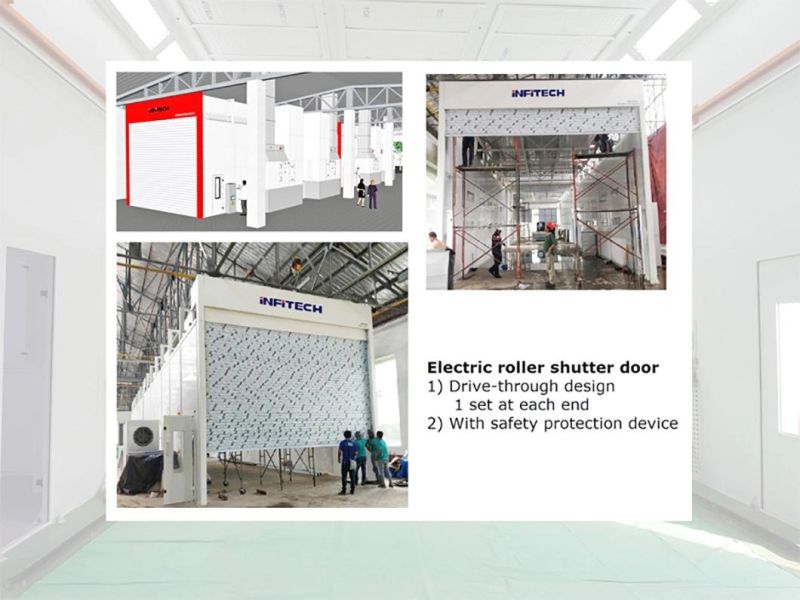

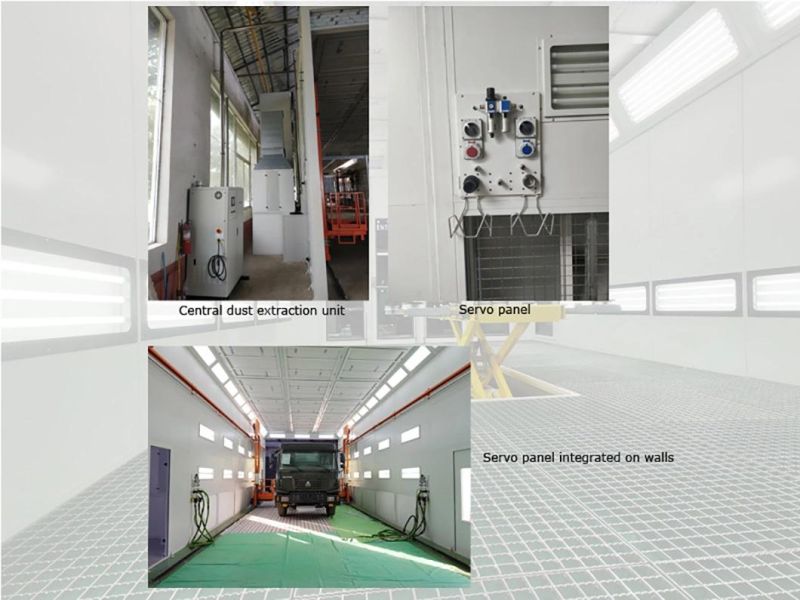

BS EN 60204: 2006+A1:2009Internal dimensions 16000 X 6000 X 5000mm (L X W X H)External dimensions16200 X 9120 X 5860mm (L X W X H)AirflowSide DowndraftPlenum (height)800mmExtractionExhaust plenum chambers on both sides of the boothExtraction area26.4m2Entrance door5500x4500mm (WxH), electric roller shutter door, 2 setsService door800x2300mm(WxH), 4 setsWalls60mm rock wool wallsCeiling lights (LED)28 sets, each 4 X 18W, 2,018W totalSidewall lights (LED)20 sets, each 4 X 18W, 1,440W totalBrightness>1,000LUXFiltersBag filter, high efficiency ceiling filter, filter at exhaust plenum chambers, exhaust filterIntake/Exhaust unitDirect-type turbine fan, 4* 2x7.5KW, SIEMENS motorAir volume4*28,000m3/hEmpty loaded air speed0.32m/sHeatsOptionControlsCE standard control boxInverterSCHNEIDER inverterRated power65KW CENTRAL DUST EXTRACTION UNITITEMSSPECIFICATIONSPower supply380V, 50Hz, 3 phaseRated power12.5kWMax airflow1,300 m3/hMax. negative pressure- 30 kpa (-300mbar)Filter area18.72m2Filtration accuracy<1μmFilter efficiency99.99%Dust removal modeAutomaticControlsPLC control, with the inverterLCD display 7-inch LCD touch screenDimensions1200 X 700 X 1800mm (L X W X H)Weight400kgNoise<72dB
3.DETAILS
