• Model NO.：ATB-200
• Testing：Turbo Speed, Flow, Pressure, Lubrication Status
• Output Power：7.5kw
• Voltage：380V 220V 415V
• Power Phase：3-Phase
• Equipment：Automobile Turbocharger Test Bench
• Transport Package：Plywood Box
• Specification：ISO9001
• Trademark：12PSDW
• Origin：China
• HS Code：9031809090
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. ATB-200 Testing Turbo Speed, Flow, Pressure, Lubrication Status Output Power 7.5kw Voltage 380V 220V 415V Power Phase 3-Phase Equipment Automobile Turbocharger Test Bench Transport Package Plywood Box Specification ISO9001 Trademark 12PSDW Origin China HS Code 9031809090 Production Capacity 5000PCS/Year

Product Description

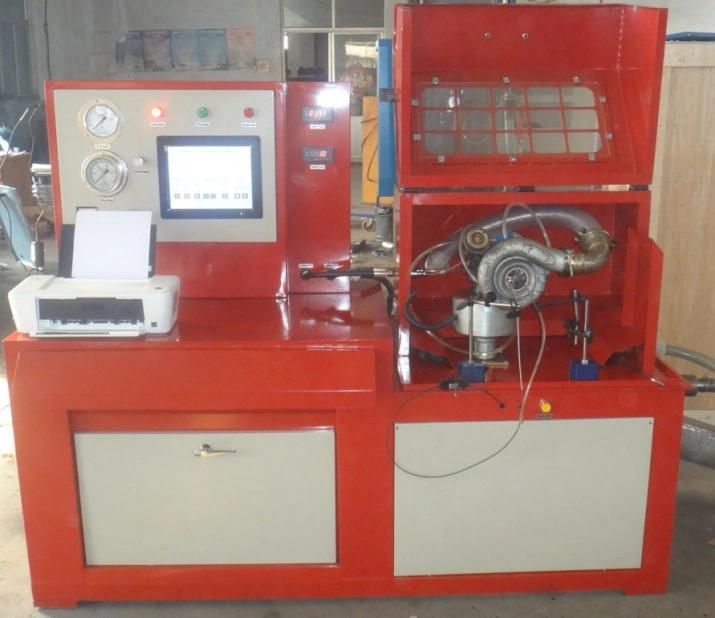

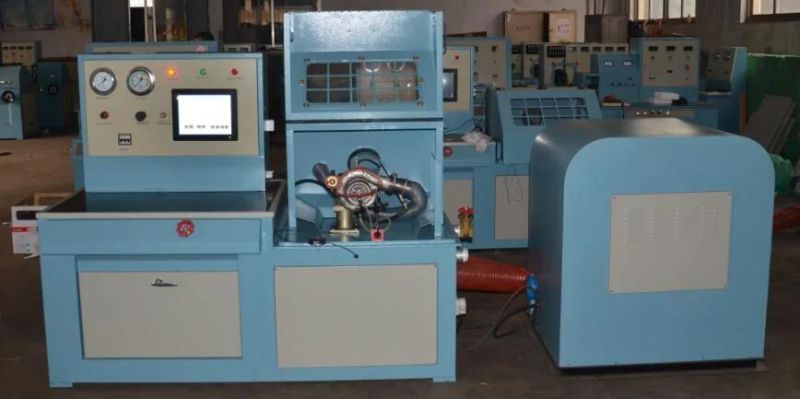

ATB-200 Automobile Turbocharger Test Bench, Computer Control. Air Heating System

1. Introduce
This test bench is applicable for testing performance of turbocharger on various models truck engines and can carry out dynamic test of boost pressure, air flow and lubrication of turbocharger and display measured data by digital instrument.
It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values
It can be matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models turbochargers.

2. Test function:
1. Test the speed of turbocharger
2. Test the air flow of of turbocharger
3. Test the boost pressure of turbocharger
4. Test inlet pressure of turbocharger
5. Test the lubrication state of turbocharger

3. Technical Parameter
 Power: AC AC380V 50HZ (made to Measure)
 Power of airflow generator: 5.5KW (made to order)
 Frequency converter: 7.5KW
 RPM of airflow generator: 0--20000r/min(If it requires high speed, it will be customized.)
 Maximum air pressure of airflow generator: 5KPa
 Maximum flow of of airflow generator: 1500cbm/h
 Power of oil pump: 370W
 Rated pressure of oil pump: 0-1.6Mpa
