• Standard：Standard
• Transport Package：Standard
• Specification：standard
• Trademark：Xhorse
• Origin：China
• HS Code：8301700000
• Production Capacity：5000

Basic Info.

Standard Standard Transport Package Standard Specification standard Trademark Xhorse Origin China HS Code 8301700000 Production Capacity 5000

Product Description

Xhorse VVDI MB BGA TOOL Highlights:
1.Support BE key, read password and prepare new key via IR.
2. All NEC keys support on board write and erase
NEC V051,V057 support on board get password
3. Password calculate:Read EIS under OBD mode will check car power automatically.
Avoid lost data in EIS
support BGA keys,NEC keys(include 51,57version)etc.,work fast.
4. Support renew EIS and ELV
5. Support write EIS and ELV
6. Support online generate key file
7. Unlock ELV function
8. Renew other control modules function will support soon
9.Latest Version: V5.1.1, Free update lifetime
VVDI MB BGA TOOL Using Notice:

Notice:1. If you have XC-Mini Condor key cutting machine (SL273 Original iKeycutter CONDOR XC-MINI or
SL273-C Ikeycutter XC-MINI Condor Plus),you can get A Free Token everyday
2. If you have Condor Key Cutting Machine (SL355 Condor XC-002 or SL437 Condor Dolphin)
you can also get A Free Token everyday
3. It Supports Password Calculator Function. Each time will cost 15.99USD.
It takes 4 minutes to collect data, and 2 minutes to calculate. this is the token link: VVDI MB BGA Tool Password Calculation4.EIS/ELV Test Line adding 3 more new cables support VVDI MB:
Gearbox computer refresh diagnostic lineHanging lever computer refresh diagnostic line.
5.Tech Support: VVDI MB Tool User Manual Download
 Now support all key lost : W202, W203, w204, w207, W208, W166, W197, W212, W218, W246,
W206, W210, W463, W639, W246, W212, W212(old),
some W216,W164 2009-,W164,W221, W215, W220, W230 and future will add more
 VVDI MB Tool Power adapter work with VVDI Mercedes W164 W204 for Data Acquisition is no in the package,
if you want it, you need to order
 Password Calculation: Read EIS under OBD mode will check car power automatically. Avoid lost data in EIS

Xhorse VVDI MB BGA TOOL Function Introduction:
 1.Read write keyIdentification key, IR read & write BE keyRed V51,V57 version's key password by NEC adapterRead activate blank BGA(OCF4)key,key current Hash(repair)Renew, write into the used NEC KEYWrite smart key ect. 2.Password calculationOBD read and calculate all(FBS3) can protocol EIS passwordsupport BGA Key, NEC Key,V51,V57 version password calculationsupport all key lost W164, W216, W166, W211, W212, W246, W212(OLD), W204, W207 ECTonline calculation key password,work fast. 3.ESL TOOLSOBD(K line) read data, renew ESL, replace ESL(no need to renew EIS)check ESL damage, repair W204 ESL 4.Read/Write Gatewaysupport OBD repair KM:W204, W207, W211, W251, W154, W212, W221, W216, W166, W172, W232, W205 etc.Support reading & writing gateway EEPROM and Flash:W211, W164, W204, W207, W212, W221, W216 etc. 5.EIS toolsRead & write EIS by OBD or IR,OBD auto detect, access to W164,W209,W211 without gatewayread the old Motorola EIS (K-Line)'s passwordrenew EIS, replace EIS, enable key, disable key, personalize W204 ESLtest EIS status, working key etc. 6.Prepare key FileOnline generate V11,V41,V51 version's key filesupport Motorola EIS EEPROM file, with high efficiency, 100% successfully generate 7.Program ECU/Gearbox/ISMSupport renew ECU, gearbox and ISM, write VIN, personalized etc.

8. Unlock ELV function will be released soon.
 9. Renew other control modules function will support soon
Latest Technical Details:
VVDI MB BGA tool update goes well, the following workable models are for reference only.  Tokens Need for VVDI MB Tool:
1.For W166, W212, W246, W212(old), W204, W207, W216, W164 2009-      all key lost,need two tokens when calculate successfully 2.For W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212(old),W216,W221,W639 2009-     add key, one token/every calculation

VVDI MB TOOL latest software version V5.1.1 update
***        2021-07-13
***        Require firmware V5.0.1
************************************************************************
=====        BENZ V5.1.1                        =====
1. Release user manual V2.1 version
2. Bufix

VVDI MB TOOL latest software version V5.1.0 update
***    2021-04-06
***    Require firmware V5.0.1
************************************************************************
=====    BENZ V5.1.0    =====
1. Bugfix for write Kline EIS
2. Bugfix for write ECU(272) VIN, only for test purpose
3. Add Setting option(Menu->File->Setting), spport deactivate voltage limit function, Read passord via IR
4. Bufix

VVDI MB TOOL latest software version V5.0.6 update
V5.0.6 VVDI MB Tool Update(2020-07-30) Require firmware V5.0.1
BENZ V5.0.6
1. Improvement for VVDI smart key(FBS3) get bonus points
2. Bugfix

VVDI MB TOOL latest software version V5.0.5 update
************************************************************************
*** 2020-05-26
*** Require firmware V5.0.1
************************************************************************
===== BENZ V5.0.5 =====
1. Support VVDI smart key(FBS3) get bonus points
2. Support synchronize device time manually from menu
3. Bugfix

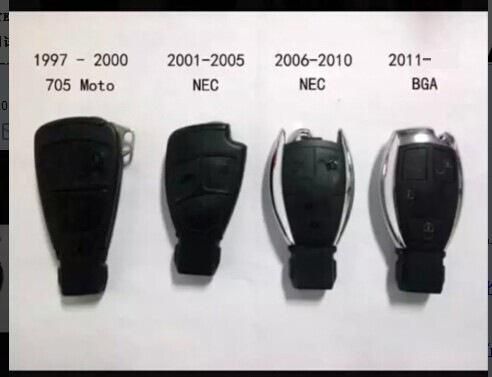

 VVDI MB Tool Support Key Types Display:
 1997-200 705 Moto
2001-2005 NEC
2006-2010 NEC
2011-BGA

Model Support IR/OBD: W164, W164 2009+A166, W197,W212, W218, A246A169, W209, W211W172, W204, A207W203W204, W207, W212 only by dumpW209 only by dumpW210W215, W220W230W216W221W906 Keys Version Supported:
 v03, v06, v08v05, v07, v09v59,v61

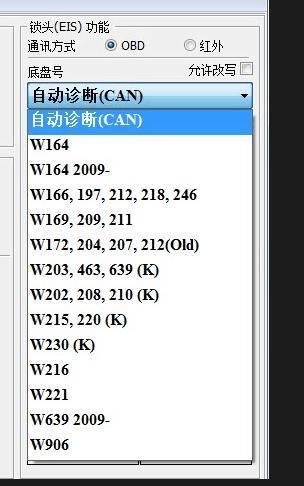

EIS function list:

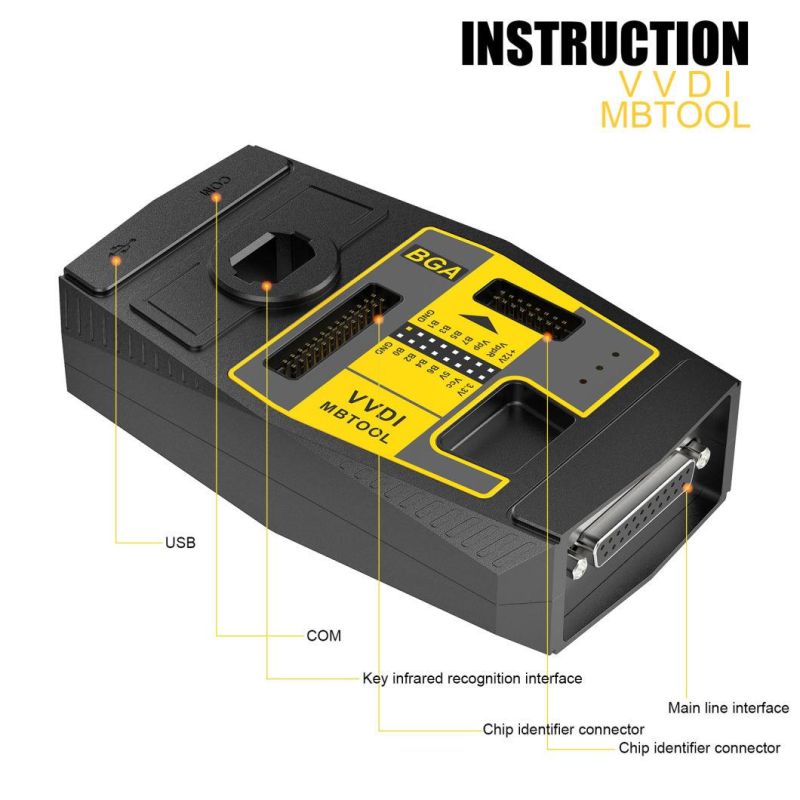

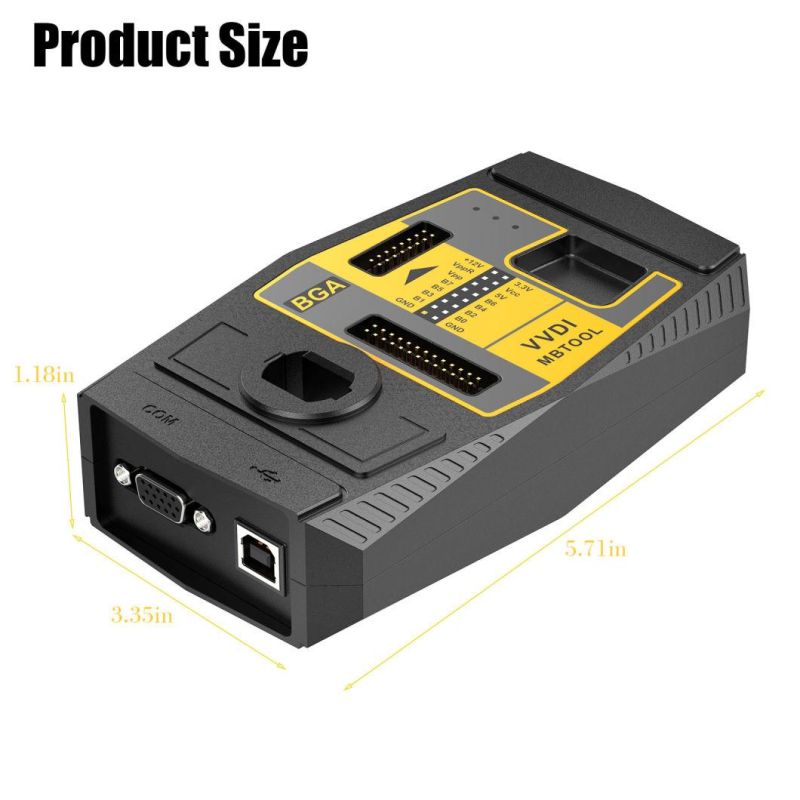

VVDI MB Tool Display:

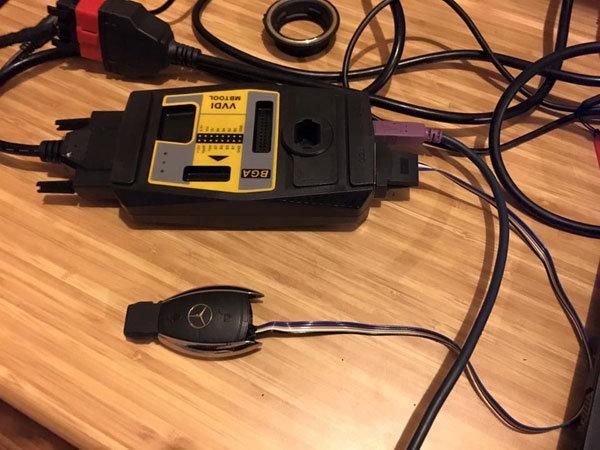

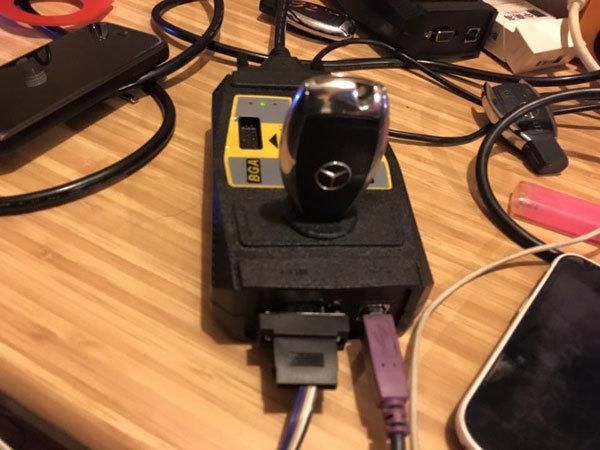

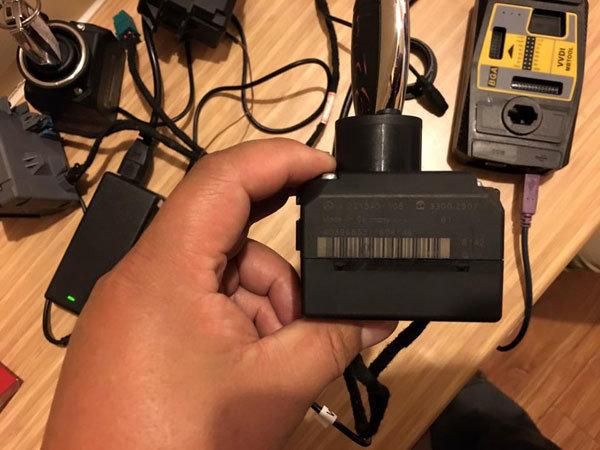

 VVDI MB Tool Connection Display:

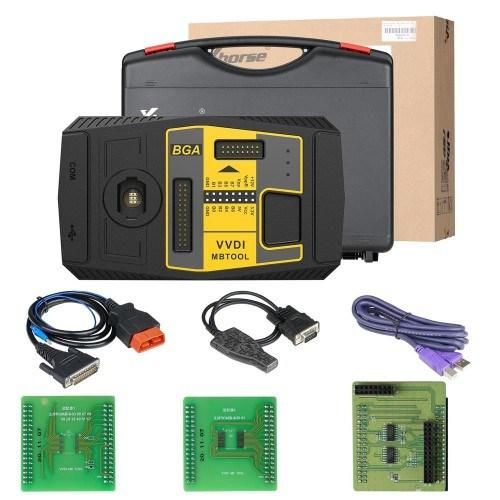

VVDI MB Tool Package List:

1. VVDI-MB TOOL device
2. IR adaptor
3. USB cable
4. NEC adaptor 1
5. NEC adaptor 2
6. NEC adaptor base PCB
7. K Line in OBD line
8. OBD line
