Portable Can Bus Test Tool USB to Can Bus Analyzer

Sinoped (Liaoning) Optronic Technology Co., Ltd.
  • After-sales Service：Supplier Warranty
  • Warranty：12 Months
  • Certification：CE
  • Condition：New
  • Standard：Standard
  • Language：Spanish, Japanese, German, French, English

Base Info

  • Model NO.：USBCAN-II C
  • Update Method：by Internet
  • Type：Engine analyzer
  • PC Side：USB Port,Types of a
  • Can Side：Open 6 Phoenix Terminal
  • USB Interface：USB 2.0 Full Speed Interface,Compatible with USB 1
  • Can Interface：Follow ISO 11898 Standard,Support Can 2.0A,B
  • Can Baud Rate：5kbit,S~1mbit,S
  • Electrical Isolation：1500V,DC-DC
  • Supply Voltage：5V DC (USB Interface)
  • Supply Current：Max 130mA
  • Protection Level：IP 20
  • Weight：100g
  • Transport Package：Carton
  • Specification：102x63x27mm
  • Trademark：GCAN
  • Origin：China
  • HS Code：8543709990
  • Production Capacity：10000

Description

Basic informationDemensions95mm*65mm*26mmWeight100g
Fonction
1,Typical application
2,CAN-bus network diagnosis and test.
3,Automotive electronics applications.
4,Electric power communication network.
5,Industrial control equipment.
6,High-speed, large data communication.
 Portable Can Bus Test Tool USB to Can Bus AnalyzerPortable Can Bus Test Tool USB to Can Bus AnalyzerPortable Can Bus Test Tool USB to Can Bus AnalyzerPortable Can Bus Test Tool USB to Can Bus AnalyzerPortable Can Bus Test Tool USB to Can Bus Analyzer

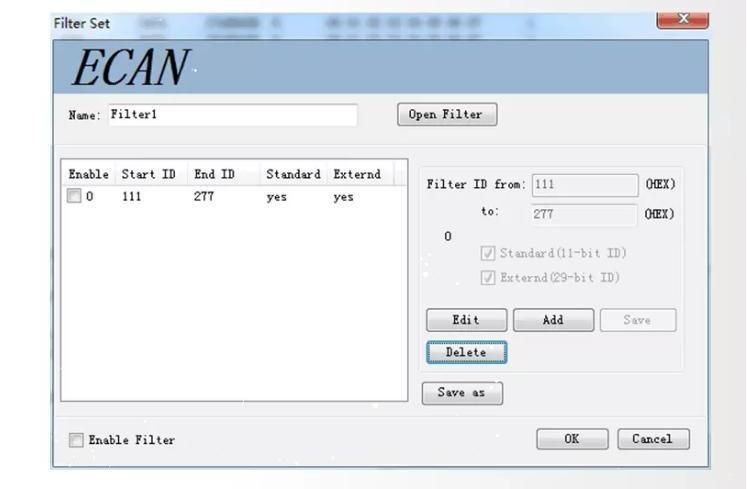

Multi-filters
 The supporting software of the product can set the receiving filter. You can specify the display of data beginning with certain
 frame IDs by setting the receiving filter list. By setting the frame ID filtering range, you can reach the frame ID data in the display range and block the data outside the range.

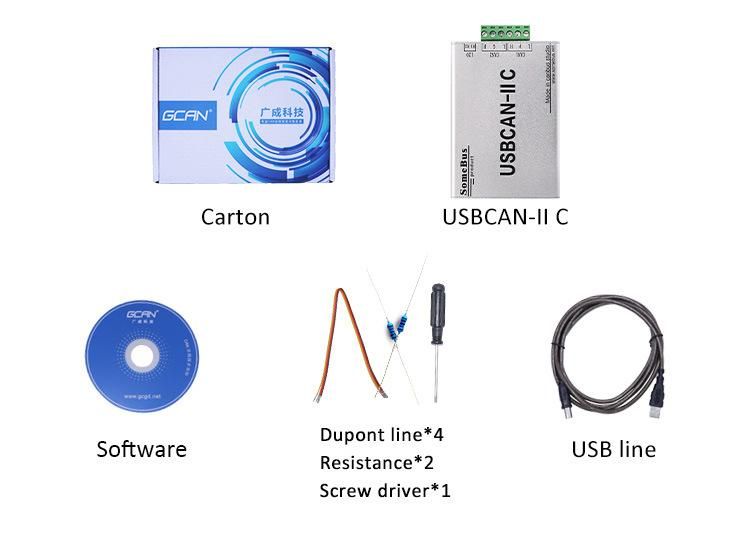

Packing
Portable Can Bus Test Tool USB to Can Bus AnalyzerAfter-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question,our after-sales engineer will answer for you,please feel free to purchase.
Portable Can Bus Test Tool USB to Can Bus AnalyzerPortable Can Bus Test Tool USB to Can Bus AnalyzerFAQ
1. who are we?
We are based in Liaoning, China, start from 2010,sell to Domestic Market(00.00%),Southeast Asia(00.00%),South America(00.00%),Mid East(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),Africa(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Controller,Data Analyzer,Converter

4. why should you buy from us not from other suppliers?
Our company has more 20 own intellectual-property rights with all of main products developed by ourselves, which is a leading supplier and service provider of industrial interconnection equipment in the country.

5. what services can we provide?
Accepted Delivery Terms: null;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: PayPal,Cash;
Language Spoken:English,Chinese
