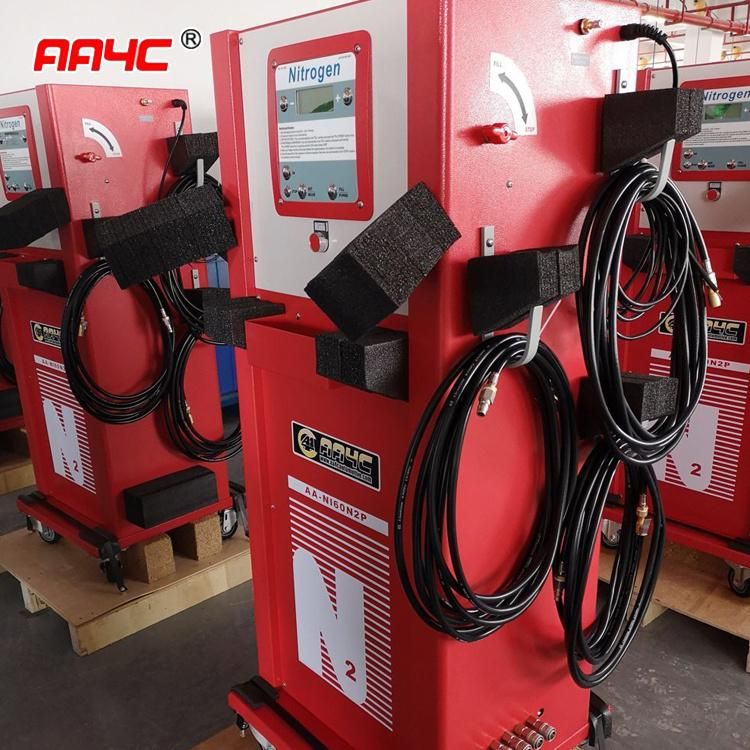

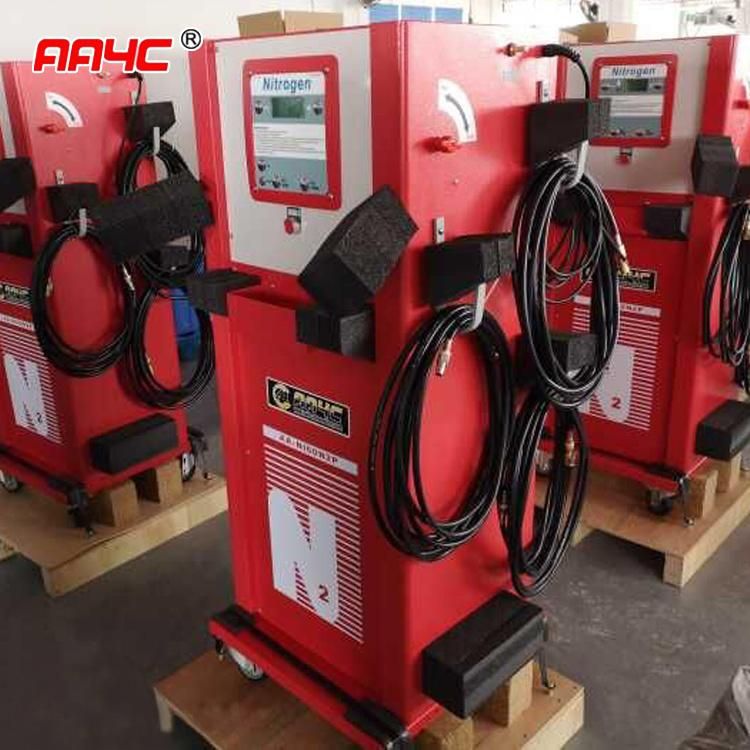

• Model NO.：AA-NI1160N2P
• Trademark：AA4C
• Origin：China

Basic Info.

Model NO. AA-NI1160N2P Trademark AA4C Origin China

Product Description

Detailed Product Description

Technical Data Summary

Dimensions: 100-240Vac 24Vdc

Height 1260mm/49.6" 1344mm/52.9"

Width 620mm/24.4" 620mm/24.4"

Depth 430mm/16.9" 430mm/16.9"

Power Requirement 100-240Vac 50/60HZ

24Vdc(2 pcs 12Vdc internal batteries and

100-240Vac 50 HZ/60HZ charger included)

Power Consumption 35VA

Operating Temperature Range -20/-4 Degree F to 70 / 158DegreeF

Compressed Air Input Range 87-145PSI/6-10bar /600-1000kPa

Nitrogen Purity ≥95%

Nitrogen Output 85L/min(3cfm)@116PSI/8bar/800kPa

Absorption pressure

Maximum Nitrogen Pressure in Tank 102PSI/7bar/700kPa

Operating Range 5-90PSI/0.3-6.2bar/35-620kPa

Over Pressure Setting Range 0-29PSI/0-2.0bar/0-200kPa

Nitrogen Purges 0-9

Inflator Accuracy +/- 1PSI/0.07bar/7kPa

Resolution 1PSI/0.1bar/5kPa

Units of Measurement PSI/bar/kPa

Specifications:

Generates nitrogen from your compressed air

Auto Shut-Off

2 Pre-Filters

50L/13.2gal(us)internal nitrogen storage tank

Adjustable over pressure setting(OPS)

Nitrogen purge and fill cycle (N2P)

Adjustable number of cycles

Adjustable lower purge pressure limit

Standard inflate to target

4 air outlets allow simultaneous inflation of up to 4 tires

Auto-Start inflation

Automatic zero drift adjustment

Remain at last setting

Comprehensive diagnostics and error reporting

Audible and visual end of the cycle signal indicators

Large backlight LCD display

Vandal resistant mechanical switches

2 Nos. *10M/32.8ft standard hoses with single clip-on open type chuck
