• Model NO.：AWR32H
• Transport Package：Wooden Case
• Specification：CE, SGS
• Trademark：Crystal
• Origin：China
• HS Code：84581100
• Production Capacity：25 Sets,Month

Basic Info.

Model NO. AWR32H Transport Package Wooden Case Specification CE, SGS Trademark Crystal Origin China HS Code 84581100 Production Capacity 25 Sets/Month

Product Description

CNC alloy wheel lathe machines are designed for repair and refurbish alloy wheel. Be applied to the full face and lip of the wheel. The machine is very easy to operate. Operator don't need to learn complicated programme and do higher efficiency and spectacular finishes.

CNC alloy wheel lathe machine Features:

1. Cuts wheel up to 32".

2. With CE, SGS, ISO, BV certificates.

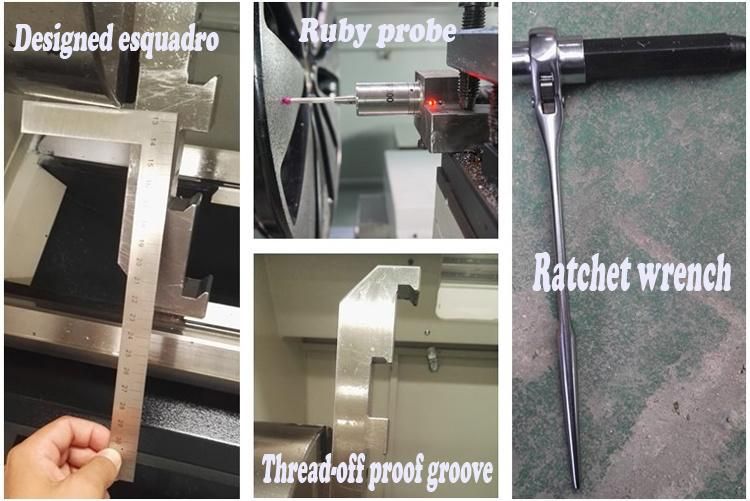

3. Automatic ruby probe system.

4. Easy operation.

5. Self-developed optimization software.

6. Free training video and manual instructions.

7. 7x24 hours technology support.

8. 2 USB interface.

9. High efficiency and economic.

10. Two-year warranty.

11. Free factory hand-to-hand training.

12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.






ITEMS	Specifications
Max. swing over bed	Φ880(34')
Max. Size of alloy wheel	Φ820(32')
Adjustable stroke of carrier in X direction	100mm
Cross slide travel (mm)	450
Width of the machine	400
Length of the rail	1650
Size of three-jaw chuck	16'
Range of spindle speed	50~1800
Spindle speed control	Automatic
Spindle bore	Φ82
Taper of spindle bore	1:20(Φ90)
Stations of tool carrier	4 Station
Max. size of tool post	25×25mm
Min. setting unit of motor	(Z) long  0.001mm, (X) cross  0.001mm
Moving speed of post	(Z) long   8 m/min, (X) cross  6 m/min
Machine base (cast iron base)	Separate
Motor power	7.5KW
Machine size	2970×1660×2080
Packing size(length ×width ×height)	3120×1810×2350
Net weight	3200kgs
