• Model NO.：GL
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：30000
• Inside No-Load Air Speed(M/S)：0.3-0.5
• Power (Kw)：25
• Product Brand：Gunagli
• Filters：High Efficiency Filter
• Lighting System：Ceiling Light+Side Light
• Color：Red White Orange Blue
• Heating System：Italy Riello Diesel Burner
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：Standard
• Trademark：Guangli
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：800 PCS,Month

Basic Info.

Model NO. GL Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 30000 Inside No-Load Air Speed(M/S) 0.3-0.5 Power (Kw) 25 Product Brand Gunagli Filters High Efficiency Filter Lighting System Ceiling Light+Side Light Color Red White Orange Blue Heating System Italy Riello Diesel Burner Transport Package Iron Frame Packing and Carton Packing Specification Standard Trademark Guangli Origin Guangzhou, China HS Code 84198990 Production Capacity 800 PCS/Month

Product Description

Powder coating paint booths for sale

Product Description

GuangLi Spray booth Feature

--Wall panel: sandwich style, δ=50mm, rock wool,polystyrene is available as required.
--Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
--Door: 3 pcs of sheet metal front door without aluminum side cover. 1pc of emergency door with pressure lock.
--Ramp: 2 pcs of vein board.
--One 7.5kw intake fan and one 5.5kw exhaust fan.
--4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. Riello G20 burner. Riello FS20 gas burner as option.
--Roof filter: 4 pcs of filter, mounted above support frame,which is made of steel and powder coated.
--2 pcs of floor filter and 1 pc of outlet filter.
--Upper light: 10 sets, 4*18w per set. side lights: 8sets,2*18w. LED lamp
--Control box: components is import, overload, overheat, phase-lacking protection, engine Y star-delta start.
--Automatically stop when preset time is up.Constant temperature spraying.
--Environmental filter: either M style or drawer style active carbon equipment can be adopted.

Technical Specifications	GL2000-A1
External size(m)	7.0×5.6×3.5
Internal size(m)	6.9×3.9×2.7
Door width(m)	3.0
Door height(m)	2.66
Air flow (m3/h)	30000
Inside no-load air speed(m/s)	0.3-0.5
Power (kw)	25
Water-based device	As option
Vehicle suited	Saloon car

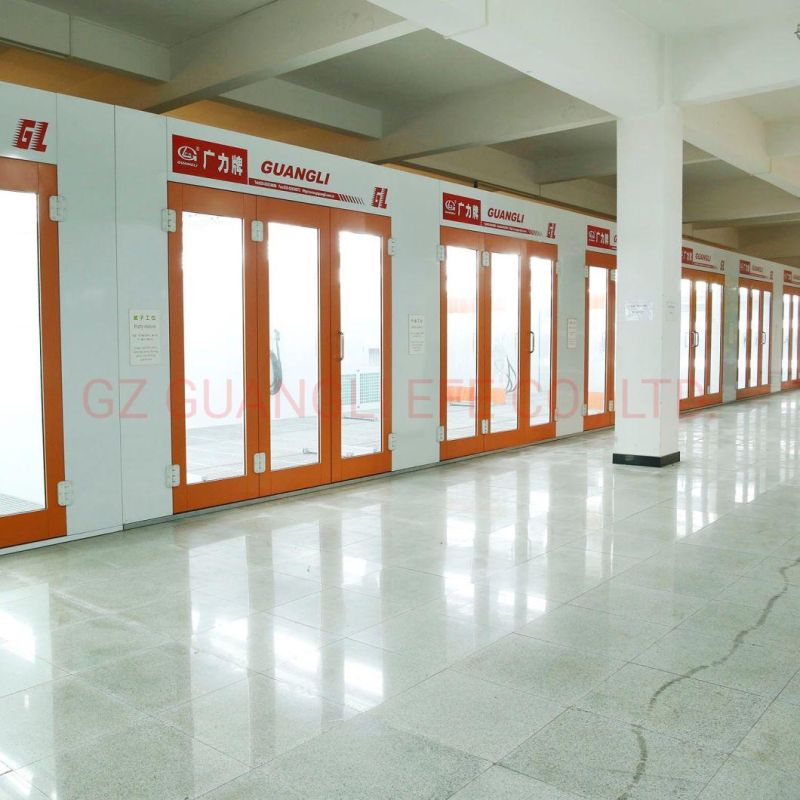

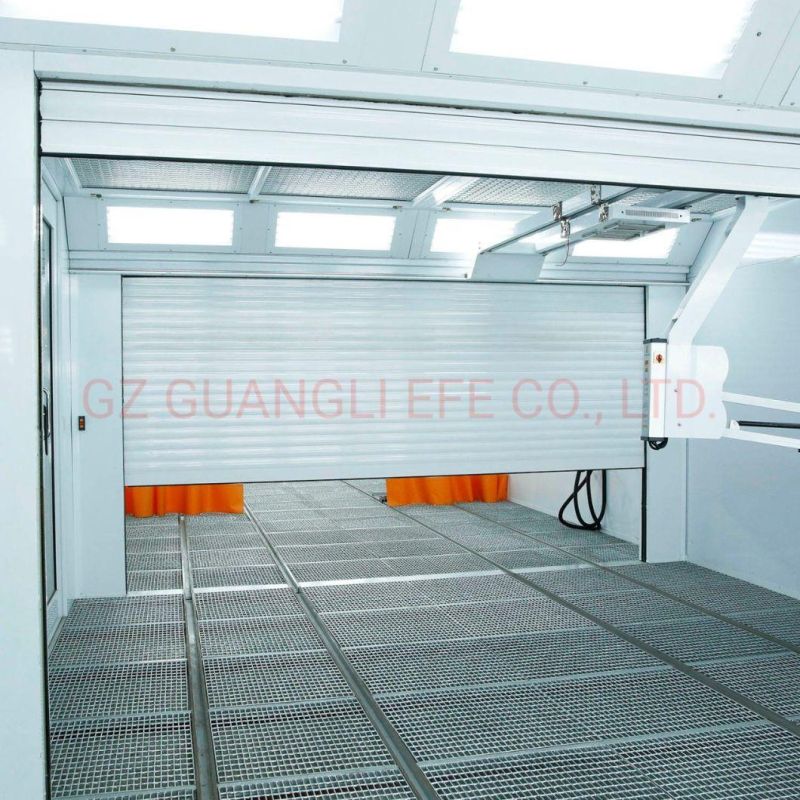

GuangLi Spray booth Show

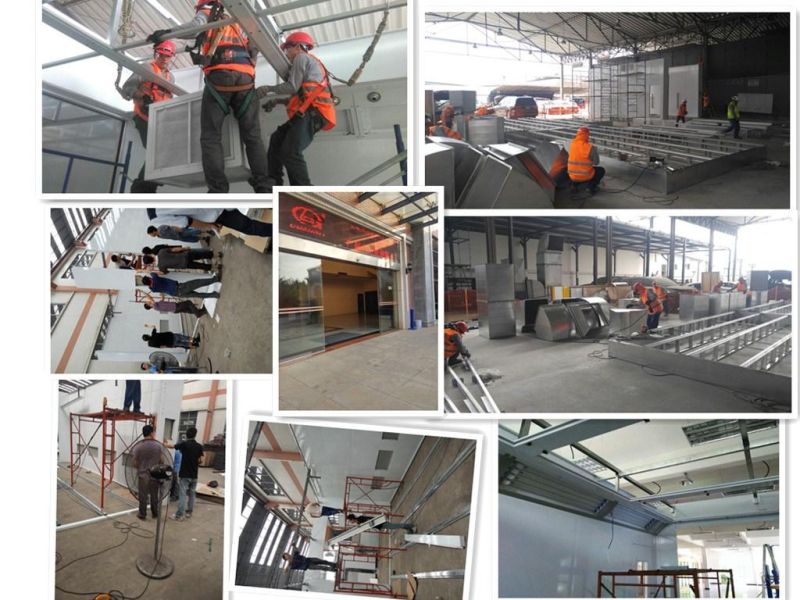

Real Case


Why choose us

1. More than 20-year experience in Spray booth and car lift field.
2. Competitive price can be offered.
3. Large order can be placed.
4. Advanced equipment and exquisite workmanship.
5. Durable and reliable.
6. Good pre-sales and after-sales service

Company Profile

GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer in China for more than

20 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters and new factory in 2005,

which covers 58,000M² of grounding area and 36,000M² of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having

a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks

top in this field over years.

Equipment

Exhibition


FAQ

Q:Where is your company located? How can I visit there?

A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.

Q:How about the quality of the products?

A:With the advanced machines, strong and professional R&D team and material sources,our products are

excellent in performance and craftsmanship.

Q:Can we customize our product?

A:Yes,you can.Customized material and standard are acceptable. We can provide different standards

according to your market and favor.

Q:What's the MOQ for each items?

A:We accept one piece/set each time.

Q:What's the delivery time?

A:If the product you ordered is our standard configurations, it's 7 workdays.
