• Model NO.：GL9-CE
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：3.35
• Air Flow (M3/H)：36000
• Heating System：Riello Brand Diesel Burner,Gas Burner
• Lighting System：Upper Light and Side Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Midsize Bus
• Warranty：Yes
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL9-CE Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 3.35 Air Flow (M3/H) 36000 Heating System Riello Brand Diesel Burner/Gas Burner Lighting System Upper Light and Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Midsize Bus Warranty Yes Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

China Factory Supply High Quality Midsize Bus Spray Booth for Car Garage (GL9-CE)
GL9-CE Description
--Wall panel :sandwich style,δ=50mm,polystyrene.(Rock wool as optional.)
--Basement:steel structure,full grids.
--Ramp:2pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--Frame:steel,powder coated.
--One 11kw intake fan.One 7.5kw exhaust fan.11kw exhaust fan as optional. Intake duct as optional.
--5m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--Spraying/baking transition damper:automatically air controlled.
--Heat exchanger:stainless steel.Burner: RIELLO /G20S Burner.
--Roof filter:8pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5pcs of floor filter and 2pcs of M style air mouth filter .
--Upper light:12sets,4*40w per set.Side light:10sets,4*40w per set.
--Control box: imported components,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.
--Constant temperature spraying.
-- 22.5kw power.

Model	GL9-CE
External size (m)(LxWxH)	8.7x5.63x4.23
Internal size (m)(LxWxH)	8.6x4.0x3.4
Entrance width(m)	3.0
Entrance height(m)	3.35
Fan capacity( m 3 /h )	36000
Air velocity (m/s)	0.25-0.35
Oil consumption (L/unit)	6-8
Power (kw)	22.5
Exhaust type	Full-undershot,Bilateral,Semi-down,Unilateral etc
Drying Temperature(ºC)	20-80
Water-based paint device	As option
Color	Orange,Blue,Red,White,or Client's Requirements
Suitable Automobile Type	Midsize Bus

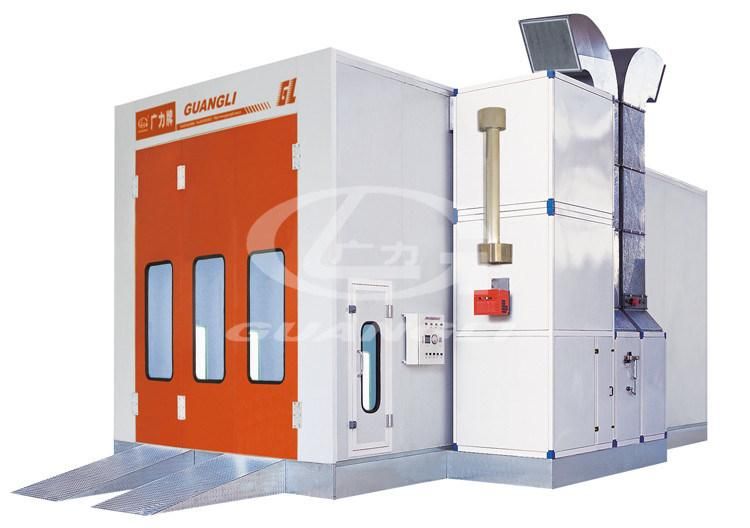

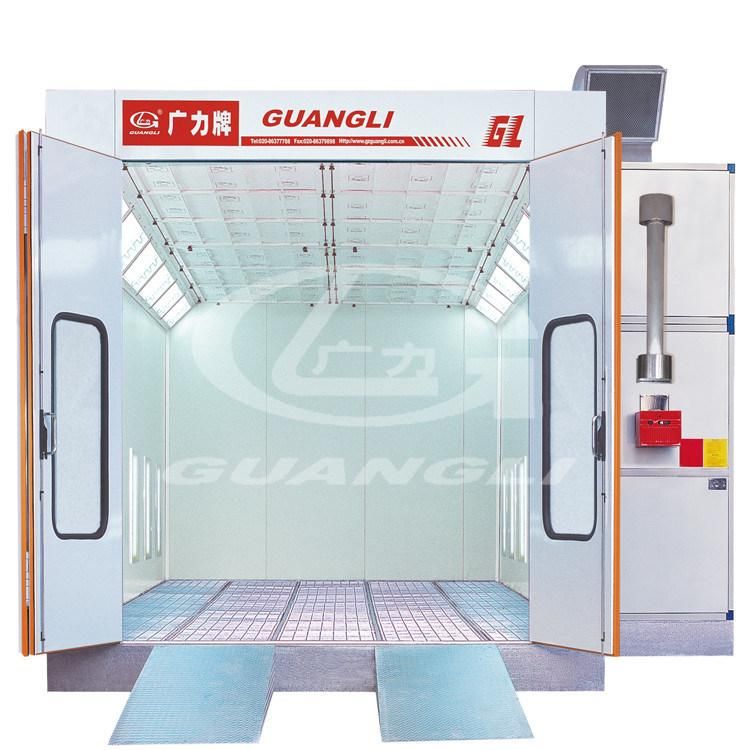

GL9-CE Spray Booth Show

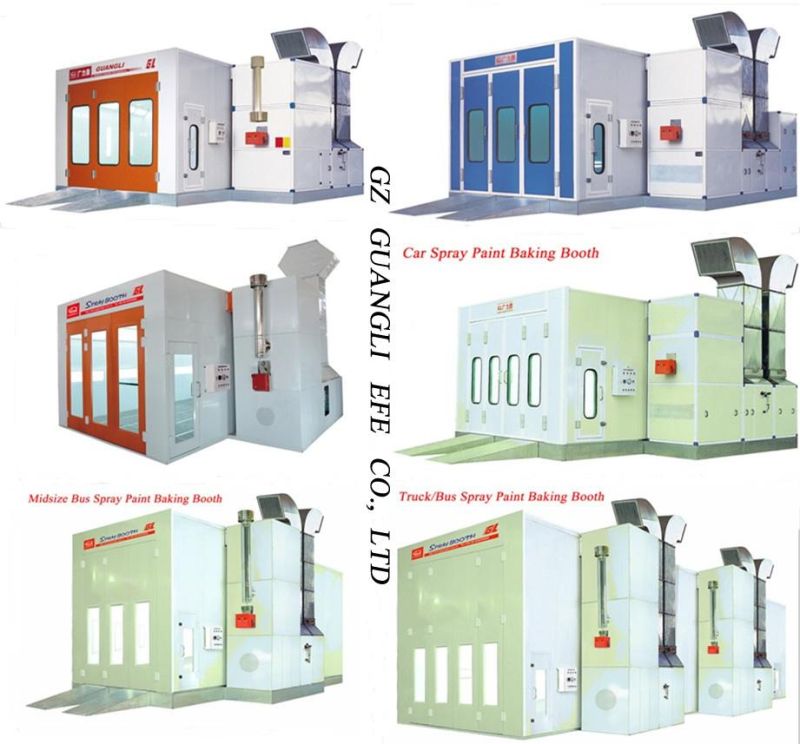

Guangli Spray Booth Designs

Company profile
GZ GUANGLI EFE Co., Ltd is professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience. Founded in 1994, Guangli has our own enterprise headquarters and new factory, which covers 58, 000M² of grounding area and 36, 000M² of building area.
All our Spray booth, painting booths and car lifts have passed the CE certificate, CCS certificate and our company has passed ISO9001.
Our products have been used in many car manufacturers' and thought highly of: Guangzhou Honda,
Dongfeng Honda, FAW Toyota, Dongfeng Peugeot, Dongfeng Nissan, BMW South China etc.


Equipment
We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

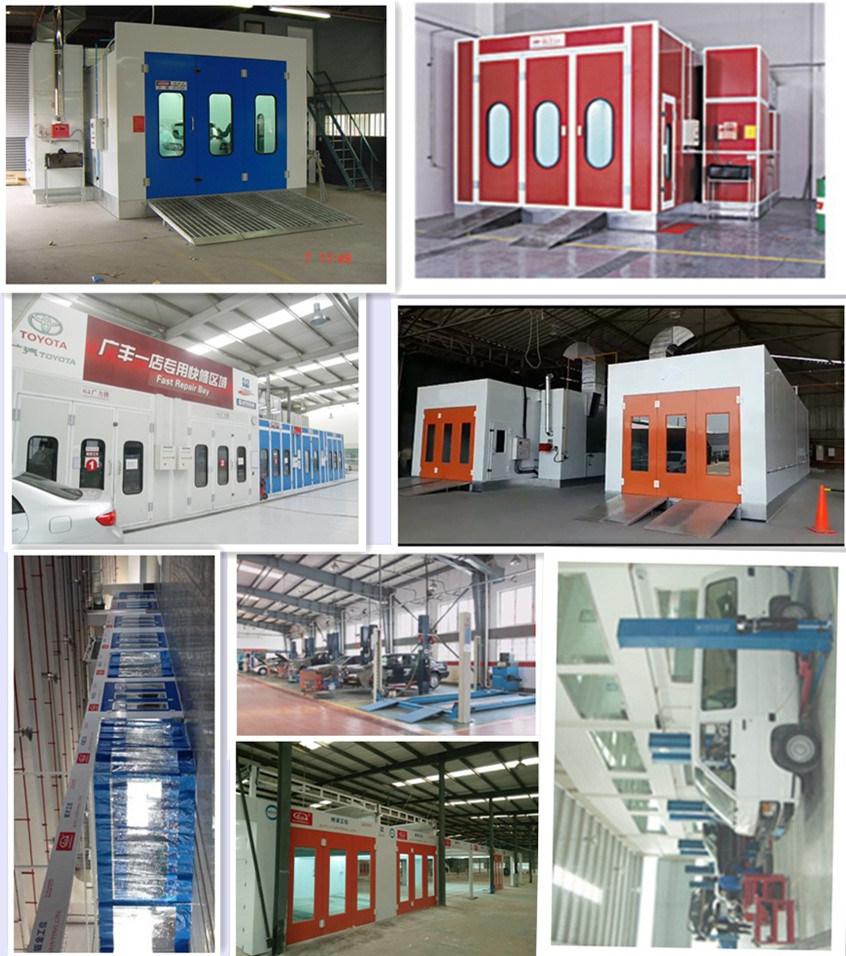

Successful Projects



Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.
