• Model NO.：BY-15-5
• Brand：Baoyue
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Brand Name：Baoyues
• Color：Optional
• Diesel Burner：Riello Rg 5s
• Purification：≥95%
• Noise：≤70 Db
• Voltage：220V,380V,50Hz
• Free Air Speed：≥0.24m,S
• Power：60kw
• Certificate：CE,ISO,CCC
• Warranty：1 Years
• Transport Package：Spray Booth Standard Export Package
• Specification：CE
• Trademark：Bauyues
• Origin：Guangdong, China
• HS Code：8419899090
• Production Capacity：30set,Month
• Package size per unit product：1500.00cm * 500.00cm * 500.00cm
• Gross weight per unit product：15000.000kg

Intake and exhaust  system(2 sets)Inlet: 2 sets, in total 4×7.5KW double-intake centrifugal fans, model YDW4.5M, air capacity is 21000m3/h for each fan;
Outlet: 2×11KW double-intake centrifugal fans, with motor outside, belt-drive, model TAE-710H, air capacity is 36000m3/h for each fan. Equip manual dampers for exhaust.
Heating system(2 sets)
2 units RIELLO RG5S diesel burners, heating productivity: 520000 Kcal/h, stainless steel heat exchanger, pneumatic dampers actuate from spraying to baking cycle.
Purification system
Pre-filter, high efficiency filter(ceiling filter), exhaust fiberglass fiter, activated carbon filter.Roof
50mm thick EPS heat preservation panels.Control system
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter,hours meter, temperature limit controller, pressure gauge. Exhaust star-delta motor start.Total power60KW
Parts Details:

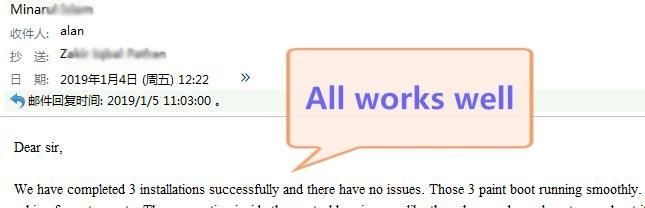

What customer saying:

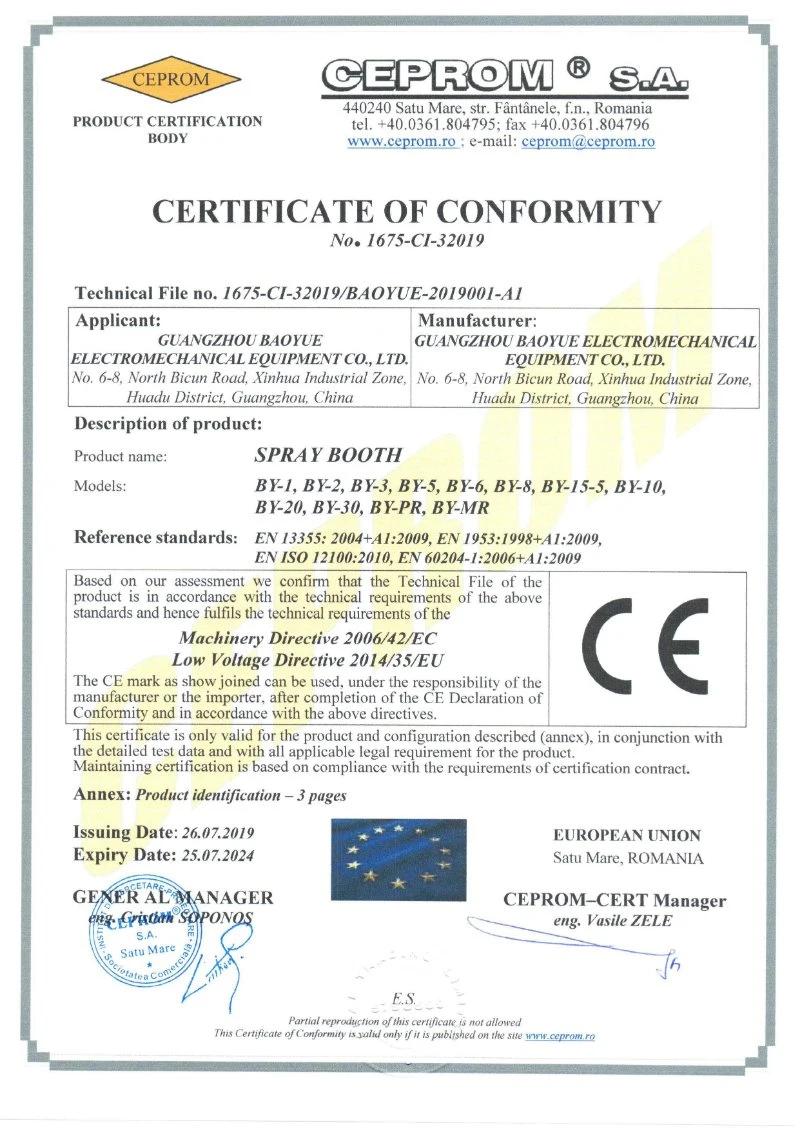

Certificate:
