• Model NO.：CS-1000
• Heating Mode：Electric
• Paint Mist Treatment：Dry-type
• Condition：New
• Transport Package：Wood Carton
• Specification：other
• Trademark：Leantro
• Origin：China
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. CS-1000 Heating Mode Electric Paint Mist Treatment Dry-type Condition New Transport Package Wood Carton Specification other Trademark Leantro Origin China Production Capacity 100 Sets/Year

Product Description

New Car Spray Booth Suppliers Made In China

1. High-cost performance
2. Professional manufacturer of the car paint booth.
3. Not the lowest price, but the moderate one.
4. Professional sales & after-sales team.
5. Timely delivery.

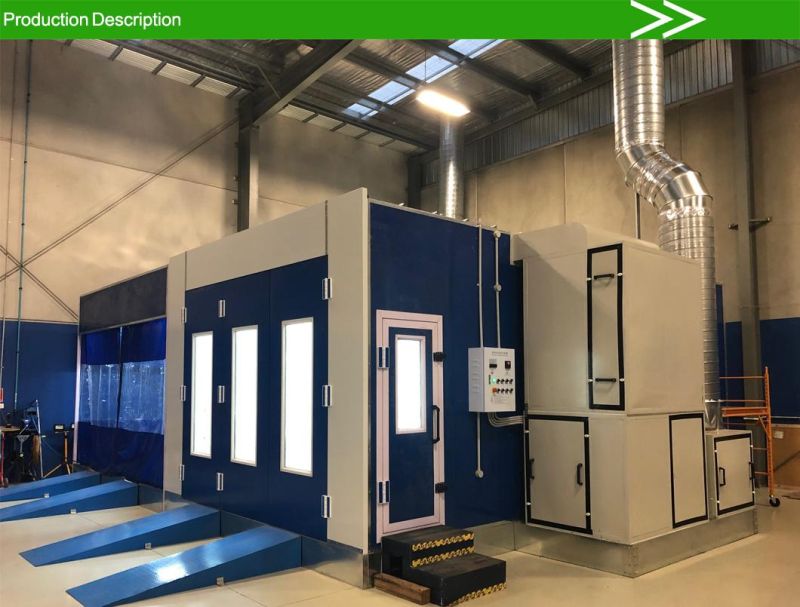

The car spray booth is used for painting and baking the paint on the car. It could provide a closed clear painting environment for painting operators. There are two processes in total:
- 1. Painting Mode: The fresh air comes into the plenum after filtering by the air intake filter system. Then will be pressure averaged by the ceiling filter, and flow down to the cabin at the speed of 0.2~0.3m/s. The airflow could take the painting mist out of the cabin by the exhaust fan.
- 2. Baking Mode: The air damp will adjust to baking position. The air exhaust fan stops running, only the air intake fan is running at this time. The hot air will flow up to the roof and flow down to be a circle process. Generally the baking temperature is 40~60ºC.

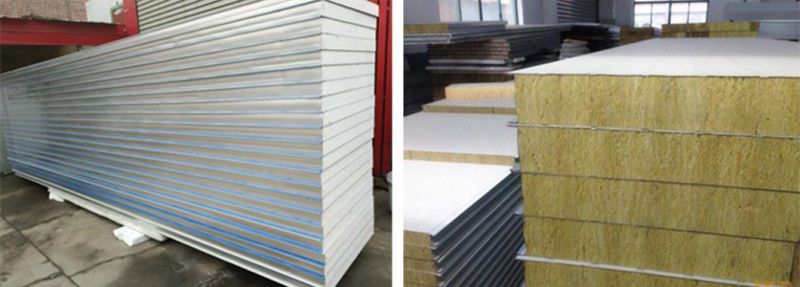

EPS colorful steel and rock wool sandwich panel are available, the thickness is 50mm and 75mm

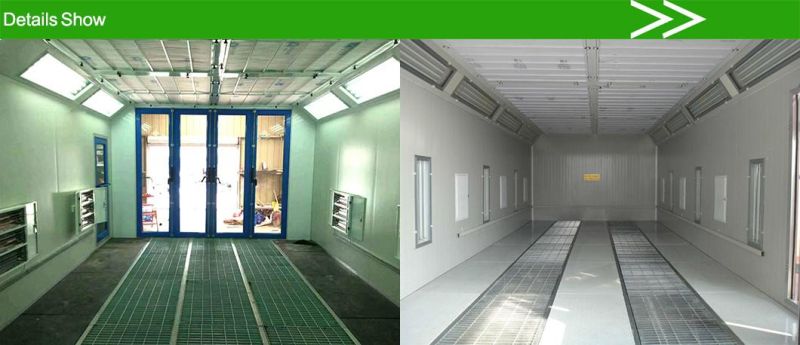

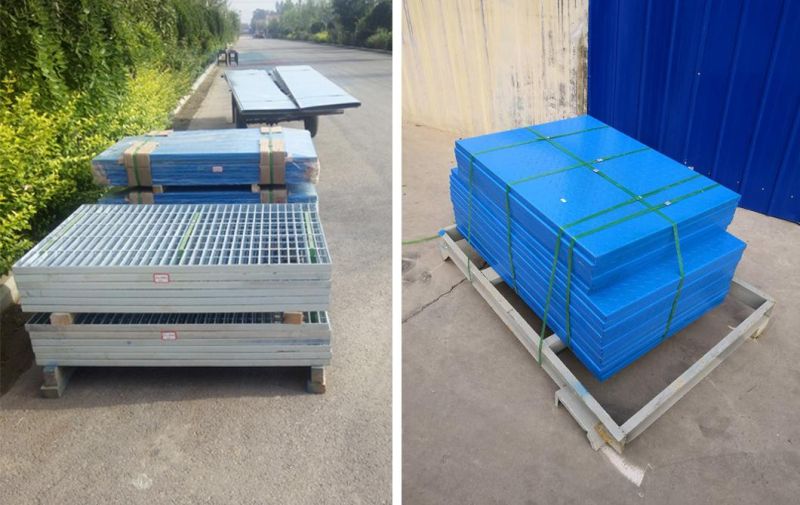

2 rows of steel gratings, size: 30*4mm. 3 rows of diamond plates, galvanized steel.

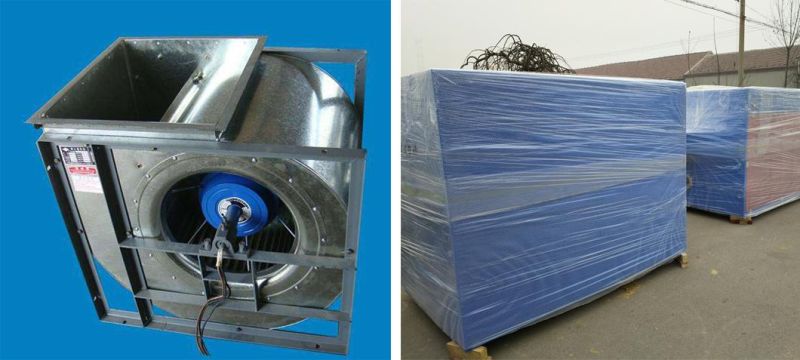

Air circulation system: YDW centrifugal air intake and exhaust fan. Fan cabinet is made of galvanized steel, powder-coated on the surface.


- Intake air filter: Capture the particles larger than 10μm
- Ceiling filter: Capture the articles larger than 5μm

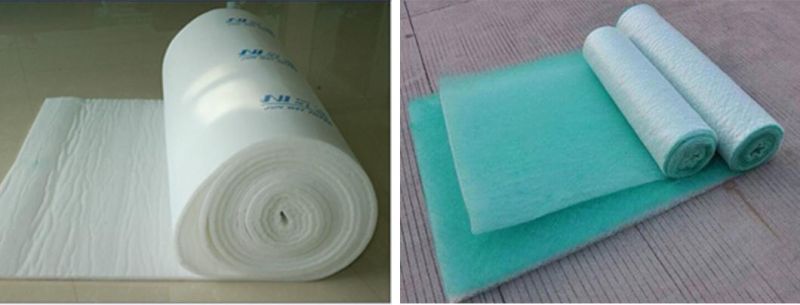

- Floor filter: Fiberglass filter, TSP≤14mg/m³


Shandong Leantro Green-Tech Co., Ltd is located in Zouping County, one of China's top 100 counties. Since its establishment, the company has been committed to the research and development of spray paint booth, dust collector, electrostatic powder spraying equipment and waste gas treatment and relevant production work.

We have always pursued and implemented the business philosophy of "innovation, green, environmental protection, energy-saving", and develop high-end products in strict accordance with international standards of ISO9001 and CE. In the fierce competition market, it has established a mature professional sales and after-sales team. Its products are exported to Australia, Saudi Arabia, Oman, Qatar, Russia, Germany, the United Kingdom, the United States, Brazil, and many other countries and regions.




Q1. Where are your factory and company?
        We are located at Mingji Industry Zone, Zouping City, Shandong Province, China
        Welcome to have a visit.
Q2. How do you control your quality?
      Our factory is ISO and SGS certified. We have our own QA and QC team.
      They will check on the site and finished products to ensure all details to meet our highest standard and the customer's requirements.
Q3. What is your payment terms?
         We accept T/T, L/C, Western Union, etc.
Q4. How about your lead time and terms of delivery?
        Our lead time is 7 to 15 days after your deposit.
        Normally our quotation is under  FOB Qingdao.
Q5. Can you produce according to the technical drawings?
        Yes, we can produce by your technical drawings or requirements.
        We can make drawings for you
