Leverless Tire Balance Machines Changer Tyre Balancer Wheel Balancer Combo in Car Workshop
Yingkou Jaray Machinery Co., Ltd.- After-sales Service：18
- Warranty：18
- Certification：CE
- Condition：New
- Transport Package：Mood
- Specification：1150*980*860
Base Info
- Model NO.：F-596+F-650
- Trademark：Jaray
- Origin：China
- HS Code：8425429000
- Production Capacity：1000,M
Description
Basic Info.
Model NO. F-596+F-650 Trademark Jaray Origin China HS Code 8425429000 Production Capacity 1000/MProduct Description

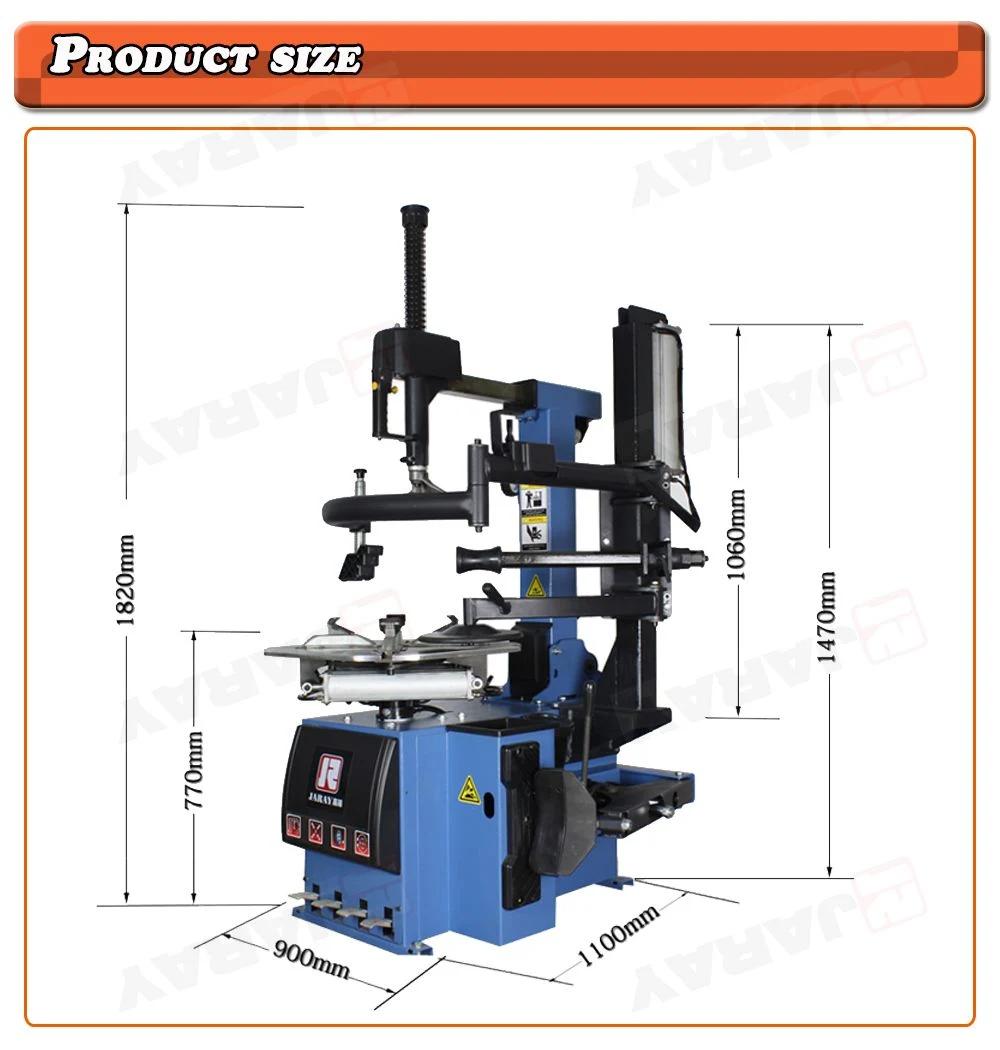

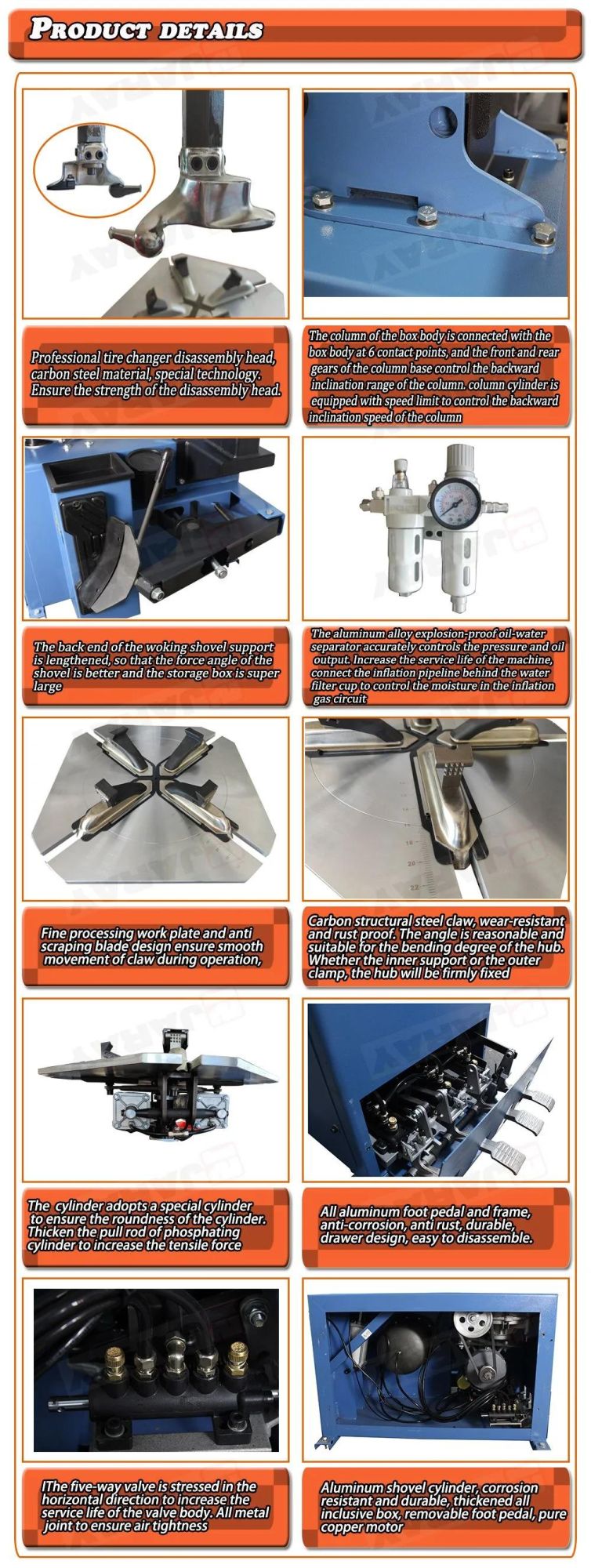

| Product name | Right helper arm backward tire changer | Product model | F-596 |
| Outer Clamp | 10-20 | Inter Clamp | 12-24 |
| Max.Wheel Width | 345mm | Max.Wheel Diameter | 1040mm |
| Motor voltage | 220v/380v | Motor power | 1.1kw/0.75kw |
| Working noise | <70db | Operating air pressure | 8-10bar |
| Net weight | 270kg | Gross weight | 320kg |
| Equipment size | 1100mm×900mm×1820mm | Packing dimensions | 1180mm×920mm×1770mm |

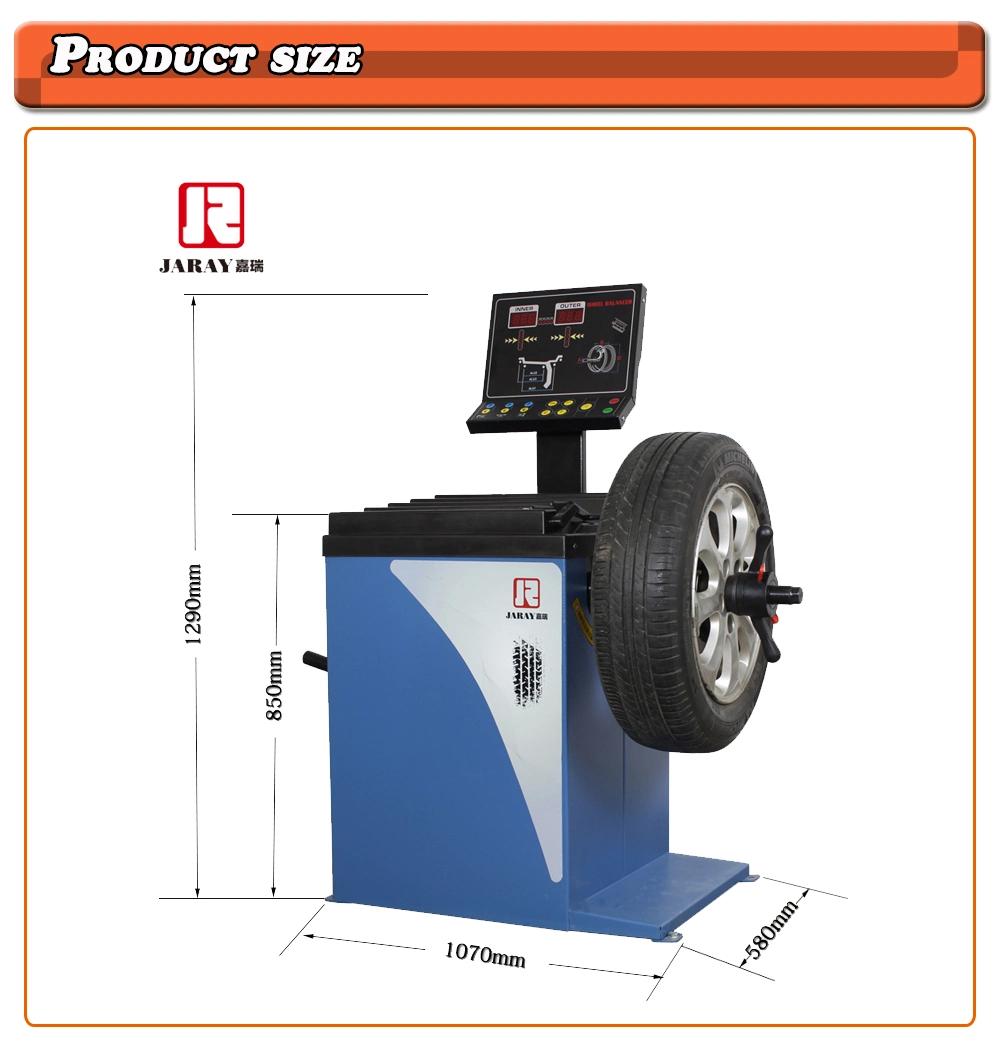

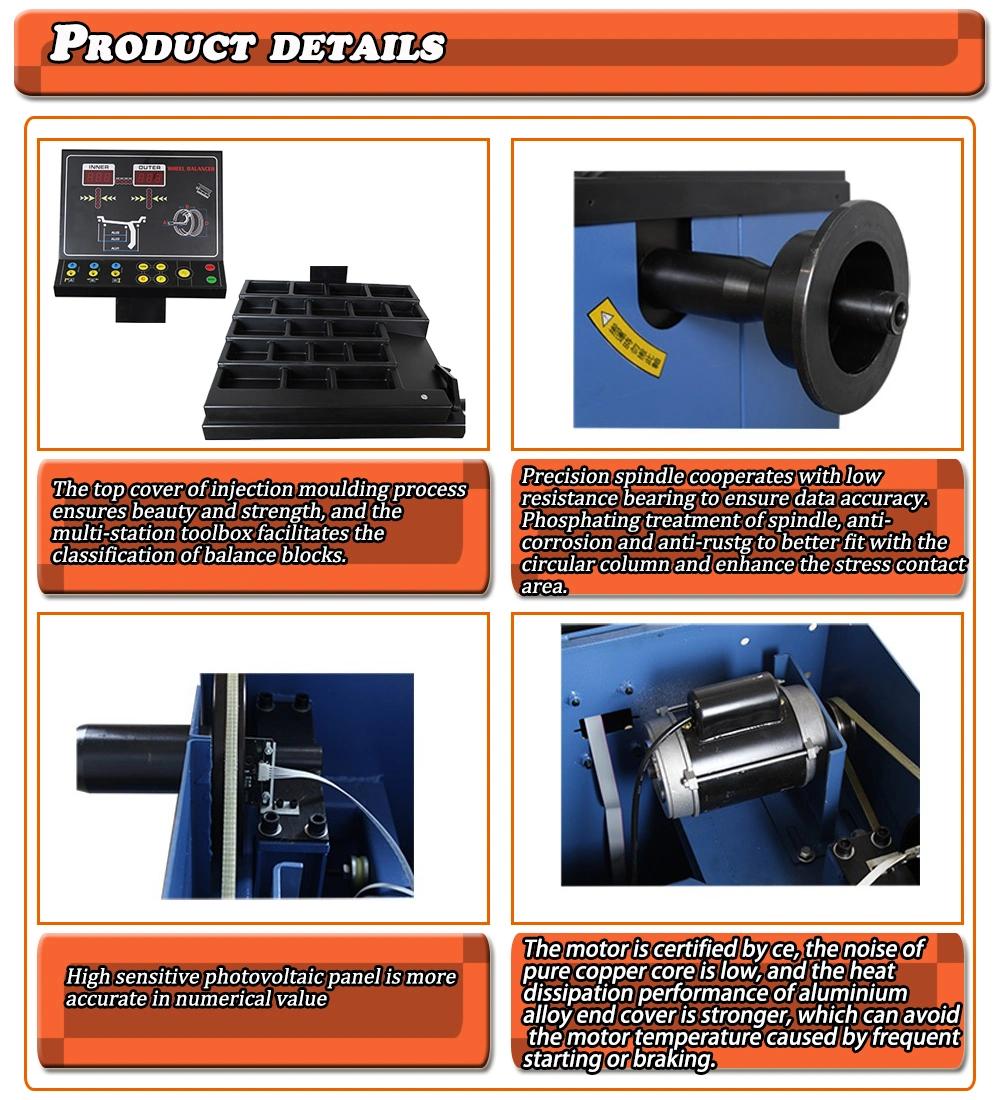

| Product name | Medium wheel balancer | Product model | F-650 |
| Motor voltage | 220v | Motor power | 0.25kw |
| Max.wheel diameter | 1000mm | Maxi.wheel weight | 65kg |
| Measuring time | 6-8s | Balancing accuracy | ±1g |
| Rim width | 1.5-16 | Rim diameter | 13-24 |
| Spindle speed | ≤200r/min | Gross weight | 110kg |
| Equipment size | 1070mm×580mm×1290mm | Packing dimensions | 1000mm×680mm×1060mm |
