Alignment Scissor Lift (Model: ORS-40A)

Yancheng Sunrise Import & Export Co., Ltd.
  • Lifting Capacity：4000kgs
  • Driving Type：Hydraulic
  • Certification：CE, ISO
  • Driving Motor Number of Mechanical Lift：1
  • Condition：New
  • Brand：Orient

Base Info

  • Model NO.：ORS-40A
  • Design：Scissor
  • Max Lifting Height：2160mm
  • Min Height：320mm
  • Transport Package：Standard Export Packaging
  • Specification：CE & ISO
  • Trademark：Orient
  • Origin：China
  • HS Code：84254290
  • Production Capacity：500units, Month

Description

Basic Info.

Model NO. ORS-40A Design Scissor Max Lifting Height 2160mm Min Height 320mm Transport Package Standard Export Packaging Specification CE & ISO Trademark Orient Origin China HS Code 84254290 Production Capacity 500units/ Month

Product Description

alignment scissor lift


Alignment Scissor Lift (Model: ORS-40A)
                                                                                                                                       MODEL: ORS-40A



FEATURES:



*Suitable used in the car 4S shop for alignment, repairing and maintain service.
*In-ground installation.

*3000kg/4000kg/5000kg lifting capacity.

*Function with the second lifting jack with lifting height 450mm, and the lifting platform span can be extended for easily operating, and make the machine suit for logn vehicle maintenance service longer.

*Long rear turn-talbe,positioning of angle plate can be adjusted.

*Aluminum shell motor prevents overheated.

*Operating control system with 24V safety voltage.

*24V height limit switch provided.

*The automatic mechanical lock engaged during process to ensure the vehicles lifting safety.

*Runway synchronizer system provided for preventing vehicles from tilt possibly.
The hydraulic system is equipped with over-load prevention device.

Assistant manual releasing facility provided for vehicle lowering in case of electrical power losing (option function).

Routine testing with 115% dynamic and 150% static loading.

CE approved.

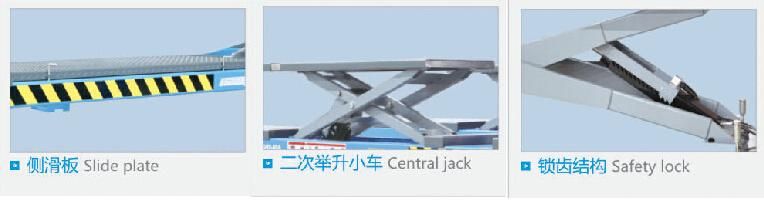

Accessories:
Alignment Scissor Lift (Model: ORS-40A)

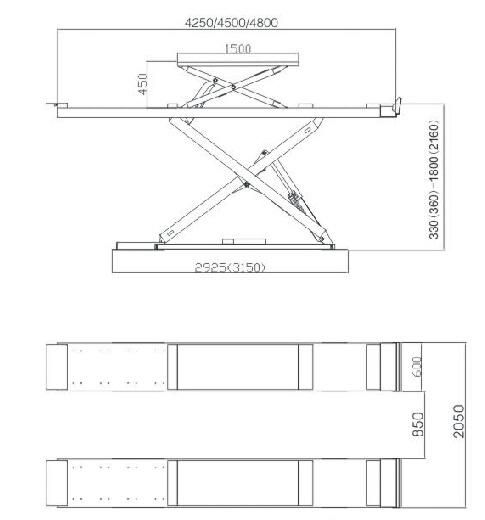

Overall Dimensions:

Alignment Scissor Lift (Model: ORS-40A)

Liftting Capacity 4000kg/
Lifting Height2160mm
Jack Capacity2500kg
Central Jack Raised Height450mm
Min. Height320mm
Runway Length4200mm
Runway Width 600mm
Lifting Time60s
Rated Oil Pressure20Mpa
Air Pressure 0.6-0.8Mpa
Motor Power2.2kw
Power Supply220V/240V/380V/415V
Weight2050kg
Packing Size4400/5000*600*800+520*430*1100mm
