Wld15000 Hot Truck Bus Paint Oven with Ce
Guangzhou Weilongda Electromechanical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：EPS
- Brand：Weilongda
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
Base Info
- Model NO.：WLD15000
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Model：Wld15000
- External Size：15150*8850*5600mm
- Internal Size：15000*5000*4800mm
- Air Flow：24000m3,H*3
- Air Speed：0.3-0.5m,S
- Power：47kw
- Vehicle Suited：Saloon Car,Jeep,SUV
- Transport Package：Export Standard
- Specification：CE, TUV
- Trademark：WeiLongDa
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：2, 000 Sets,Year
Description
Basic Info.
Model NO. WLD15000 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Model Wld15000 External Size 15150*8850*5600mm Internal Size 15000*5000*4800mm Air Flow 24000m3/H*3 Air Speed 0.3-0.5m/S Power 47kw Vehicle Suited Saloon Car/Jeep/SUV Transport Package Export Standard Specification CE, TUV Trademark WeiLongDa Origin Guangzhou, China HS Code 8419899090 Production Capacity 2, 000 Sets/YearProduct Description

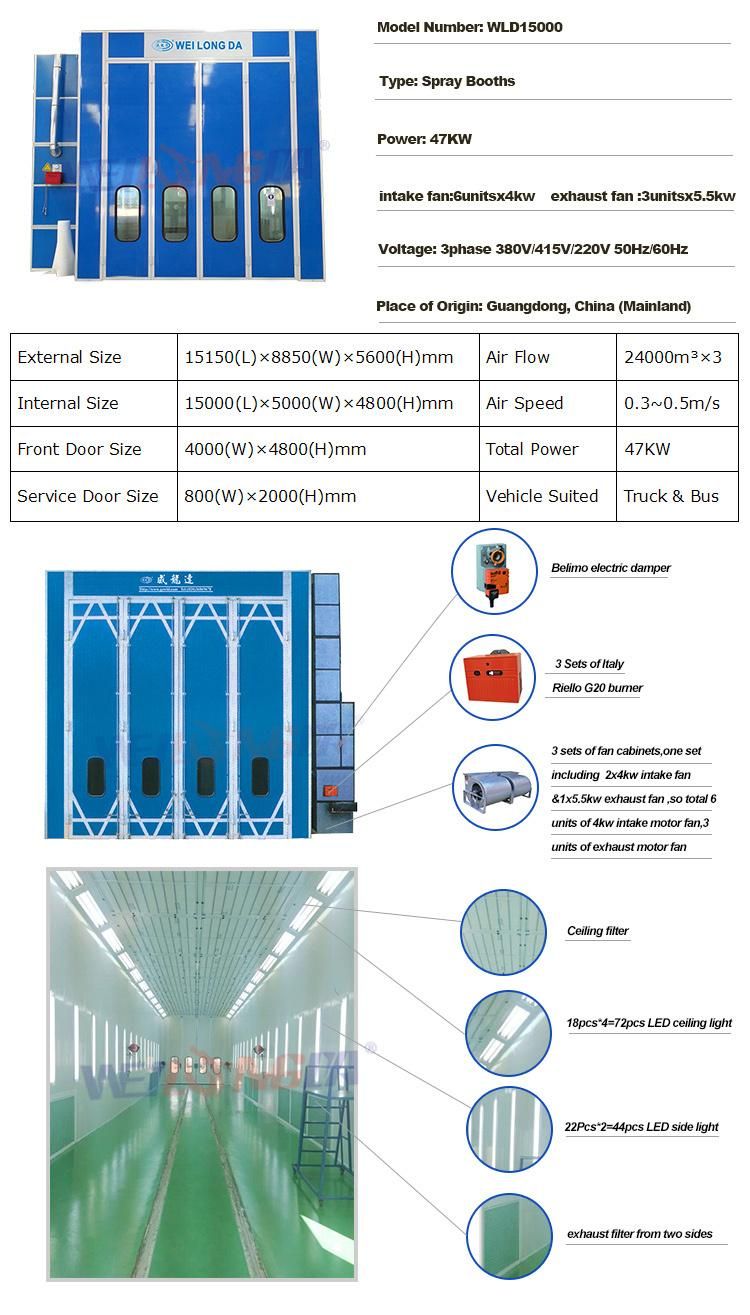

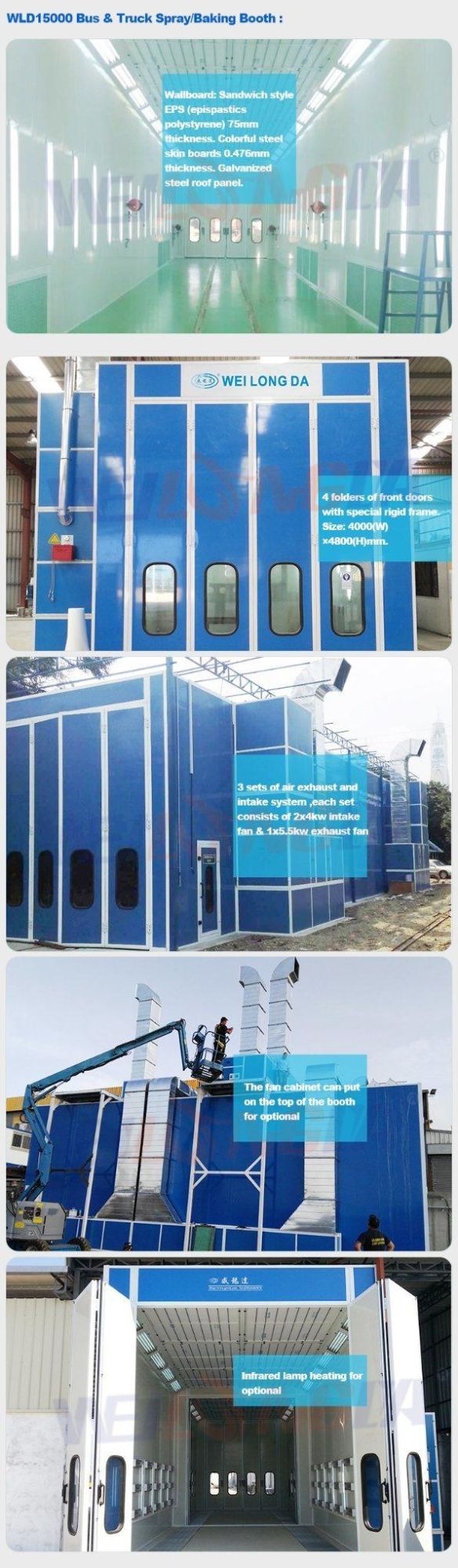

Wld15000 Hot Truck Bus Paint Oven with Ce Specifications:- Wallboard: Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
- Door: 4 pcs of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 pc of emergency door.
- Air Intake System (3sets): Each set consists of 2x4kw intake fan. Total 6 units of 4kw intake fan. BELIMO 20N electric damper.
- Air Exhaust System (3set): Each set consists of 1x5.5kw exhaust fan. Total 3 units of 5.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.
- Heating System (3set): Each set consists of 1 unit Italy Riello G20 diesel burner 200000Kcal/h. Total 3units of burners,600000Kcal/h.The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.
- Lighting System: Ceiling light has 18units x 4pcs of 36w lamps. Side light has 22 units x 2pcs of 36 w lamps. Total 116 pcs of 36 W lamps. 900 Lux.
- Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
| Model | External Size (m) | Internal Size (m) | Air Flow (m3/h) | Air Speed (m/s) | Power (kw) | Vehicle Suited |
| WLD15000 | 15.15x8.85x5.6 | 15x5x4.8 | 24000 x3 | 0.3-0.5 | 46 | Bus&Truck |
