• Model NO.：AA-LA4800
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：AA4c
• Design：Single Post
• Max.Lifting Height：1850mm
• Raising/Lowering Time：40-60sec
• Supply Votage：380V,50Hz
• Transport Package：Metal Frame
• Specification：CE
• Trademark：AA4C
• Origin：China
• HS Code：8425429000
• Production Capacity：100units,Month

Basic Info.

Model NO. AA-LA4800 Shearing Lift Type Big Shear Type Condition New Brand AA4c Design Single Post Max.Lifting Height 1850mm Raising/Lowering Time 40-60sec Supply Votage 380V/50Hz Transport Package Metal Frame Specification CE Trademark AA4C Origin China HS Code 8425429000 Production Capacity 100units/Month

Product Description

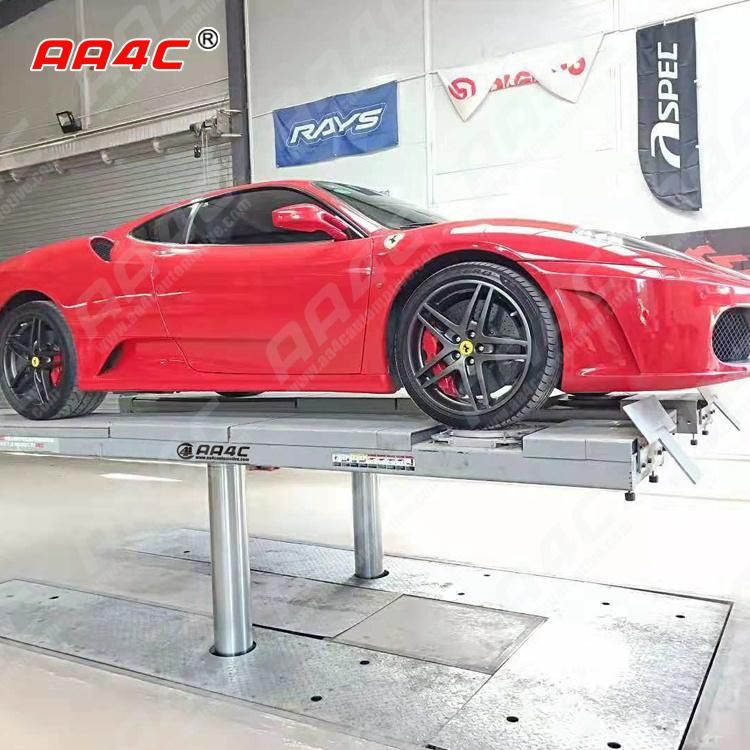

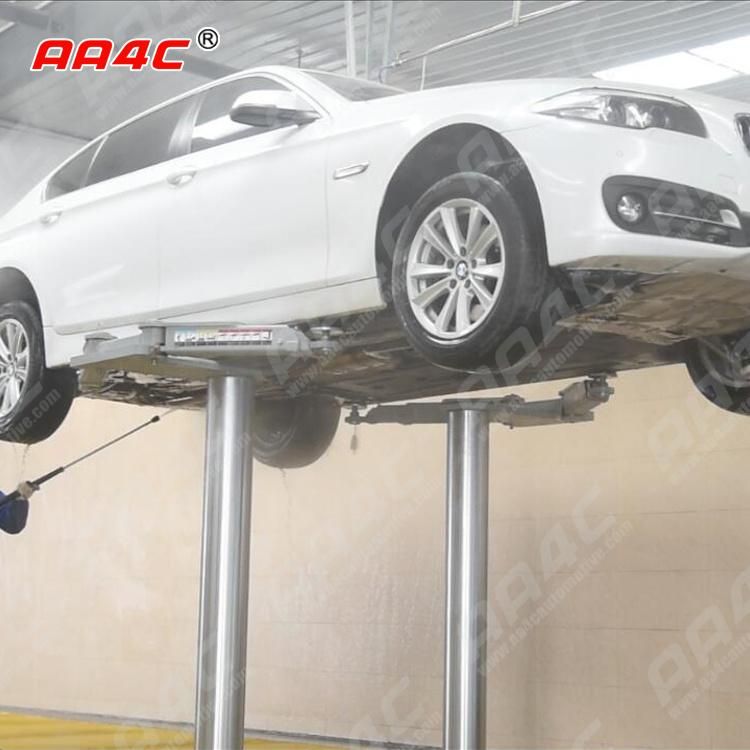

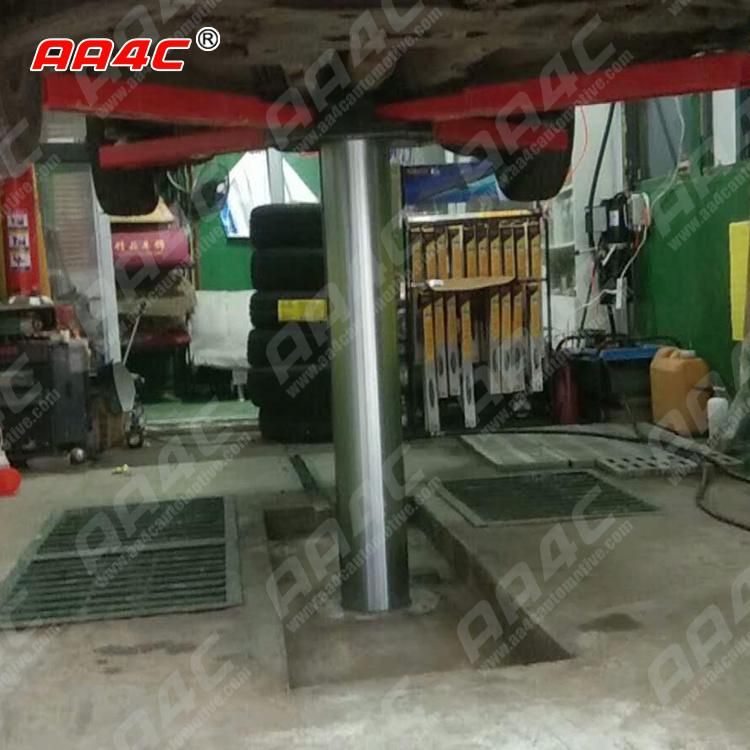

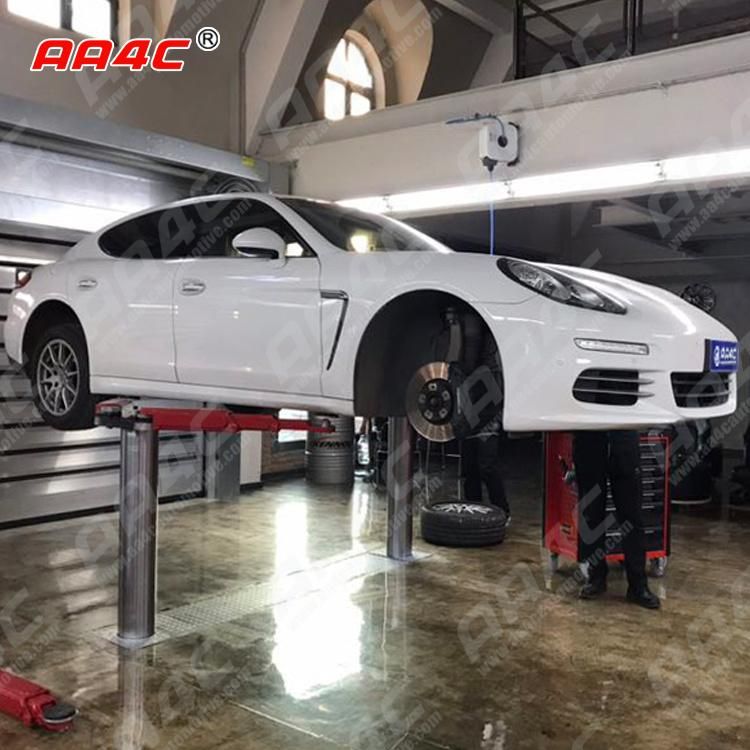

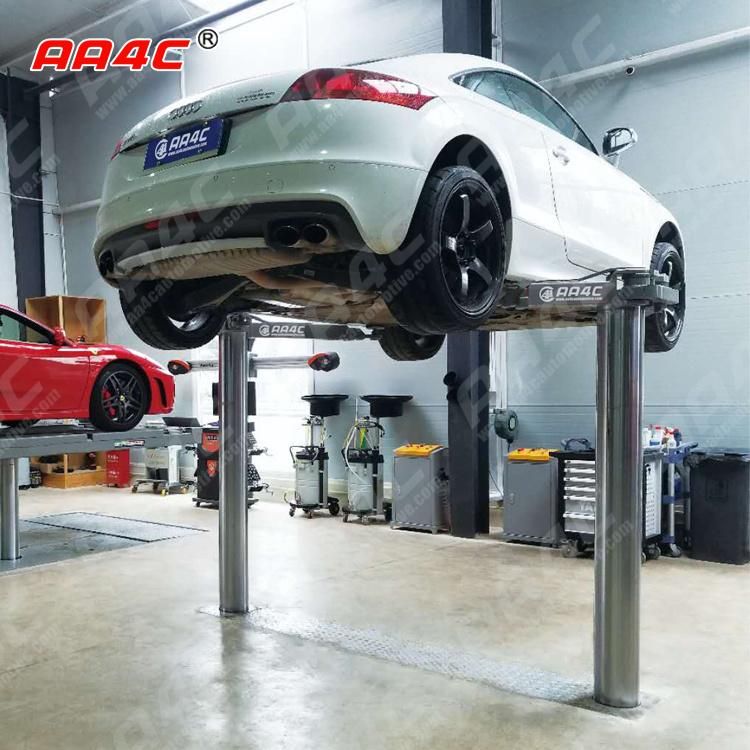

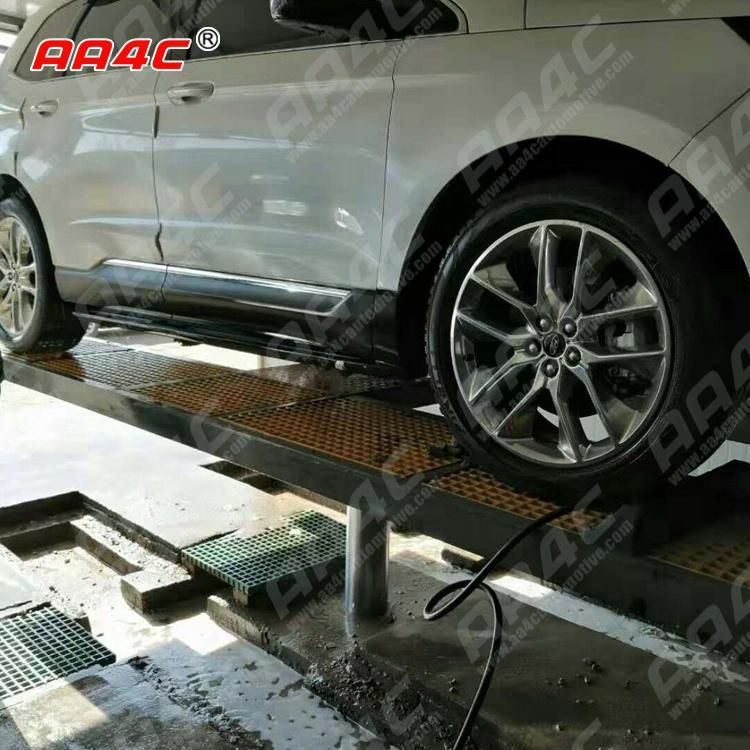

AA4C inground 2 post lift inground two post car lift pit installed 2 post auto hoist

1.2 post extensive lifting arm
2.Lifting capacity:3.5T
3.Lifting height :1850mm
4.With mechanical lock,with hydraulic throttle valveblock,control cabinet
5. 12L hydro oil
6. default voltage 380V/50HZ,3PH
7. CE certificate valid


Technical Data:

Lifting Capacity 3500KG

Max.Lifting Height 1850mm

Raising/Lowering time 40-60sec

Supply Votage AC220/380V/50Hz; AC230/400V/50Hz

The pressure of the air source 0.6-0.8Mpa

Main Unit Length 1700mm

Main Unit width 415mm

Main Unit height 2514mm

Motor Speed 2850 rounds/min

Output of oil pump 13.3Ml/round

Set pressure of the overflow valve 10MPa

Solenoid valve pressure AC220 V /50 Hz

Power 2.2kw

Sound level (measured at control console) ≤75 dBA

N.W. 1540KG
