• Model NO.：GL Series
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Prep Station Internal Size：6.9X3.6X2.7 M
• Spray Booth Internal Size：6.9X3.9X2.7 M
• Prep Station Air Flow：18000 M3,H
• Spray Booth Air Flow：25000m3,H
• Rail for Both：5 X 7.6 M
• Heating for Spray Booth：Riello G20 Gas Burner, Stainless Steel
• Total Power：16.5 Kw
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：6.9x3.9x2.7 M
• Trademark：Guangli
• Origin：Guangzhou
• HS Code：84198990
• Production Capacity：10000sets,Year

Basic Info.

Model NO. GL Series Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Prep Station Internal Size 6.9X3.6X2.7 M Spray Booth Internal Size 6.9X3.9X2.7 M Prep Station Air Flow 18000 M3/H Spray Booth Air Flow 25000m3/H Rail for Both 5 X 7.6 M Heating for Spray Booth Riello G20 Gas Burner, Stainless Steel Total Power 16.5 Kw Transport Package Iron Frame Packing and Carton Packing Specification 6.9x3.9x2.7 M Trademark Guangli Origin Guangzhou HS Code 84198990 Production Capacity 10000sets/Year

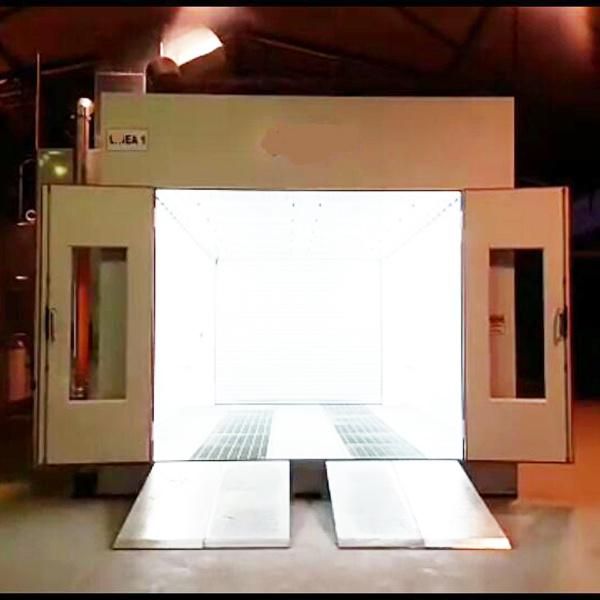

Product Description

Working Process:

• Park the vehicle on four movable jacks in the working area.
• Finish Cleaning -Sanding-Priming paint-Masking in prep station.
• Finish finishing paint& Baking in SPray booth.
• Vehicles move between prep station and spray booth on the four movable jacks.
• Vehicles move through the folding door between prep station and spray booth.

Structure:

• Painting and baking are working separately in the line, vehicles can move through from folding door inside. With close curtain at two sides of optional prep station.
• This line consists of painting room, baking room, rails and movable jacks. Pre station and infrared light are for option.
• Panting room and baking room are connected in parallel. Ventilation and heating system placed at rear.
• The transition in different area is realized by moving vehicles along the jacks.
• Pull & push folding door is standard door and sectional suspending door for option.
• If specified with vertical suspending door, the height of workshop should be at least 5800mm.




The development history of Guangli Multi-bays painting line:

• In 2007, Guangli R&D department developed the first movable preparation room for vehicle repairing.
• In 2008, Guangli R&D department developed the first Auto body Works painting lines with multi-bays which was revolutionarily innovation and set a typical sample in domestic painting & baking working field. This achievement filled the gap of this field in China and explored an effective way to increase the working efficiency.

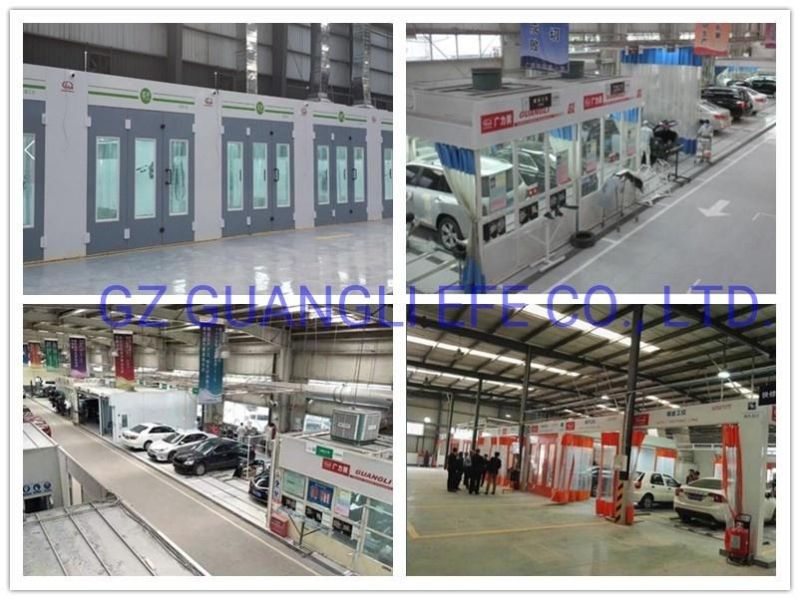

• Guangli Auto body works painting line are applied popularly in large-scale vehicle maintenance center and 4S shops such as Guangzhou Honda, Guangzhou Toyota, Dongfeng Nissan, Ford, BMW Southchina, JAC, etc.
• Guangli also took part in the construction of the biggest vehicle maintenance center -- Chengdu Jingdian center.( 8 lines for low &medium level repairing and 1 line for heavy repairing, maintenance volume reaches 3800pcs/month)

Company Profile
Guangzhou Guangli Electromechanical Facilities Engineering Co.,LTD. is the first auto-spray-booth manufacturer in China, the present largest spray booth maker in China and has good reputation among Chinese auto-maintenance enterprises. We are also the member of China Automobile Maintenance
Equipment Association.

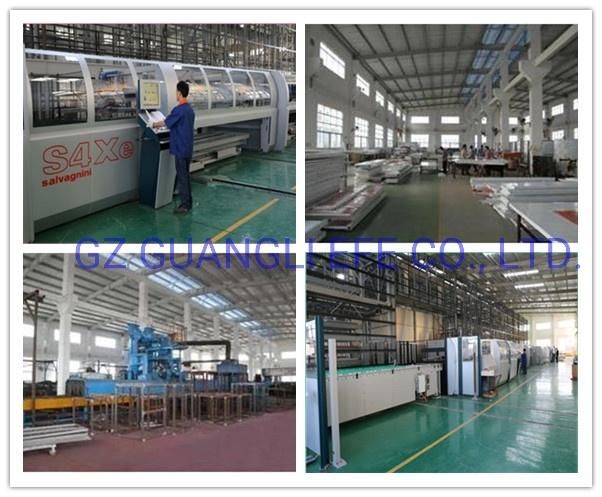

It is founded in 1994 as a solely owned enterprise and started to build the new factory in 2005, which covers 58,000 M² of grounding area and 36,000 M² of building area and are put into manufacturing since 2007. By far, we have more than 20- years experience in spray booth and car lifter field.

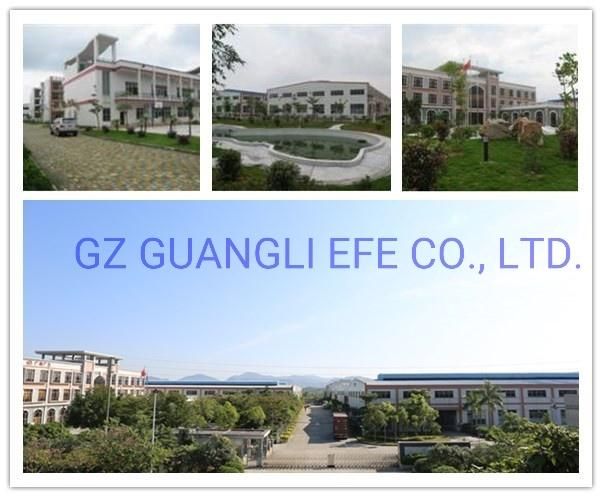

Our beautiful factory


Why Choose Us
 A.Famous brand in businessMore than 20-year experience in Spray booth and car lifter field and two famous brands are created, Guangli and Ritan, which are appointed and recommended by car manufacturers such as GUANGZHOU HONDA, DONGFENG HONDA, DONGFENG CITROEN, KWA TOYOTA, GUANGZHOU TOYOTA, DONGFENG PEUGEOT, CHERY AUTO,  MG, WA MAZDA, FHMS, JAC, DONGFENG NISSAN, SOUTHEASTS AUTO, BMW SOUTHCHINA, HAFEI AUTO ETC.4S (3S) SHOPS.        B. High occupation in domestic and overseas markets for high quality

• Domestic Market: More than 90 agents in major capital cites and other important cities, products distributed and country wide. Successful cases, such as Auto body works painting lines in Chengdu Jingdian second-hand car centre and Melon seed second-hand car centre.
• Oversea Market: More than 40 distributors all over Europe, America, Southeast Asia, Africa, the Middle East area and etc… for selling products and keeping the good after-sale services. Our exporting volume ranks 56% of the whole sales volume of our products and has the good popularity.

  C. Advanced equipment, Automatic production line and super unique technology.We have our own R&D department grouped up by professional technicians and engineers to constantly improve our technology to meet the different special requirement from our customers and spending much money to introduce the sophisticated equipments from Italy with the purpose of increasing the production efficiency and product precision.

D. Large production Capacity.With the auto production line, we have the large annual output for spray booth and car lifter.
It is about 10,000 units for spray booth and 25,000 units for car lifter.
Order with large quantity is acceptable and the delivery time will be satisfied .

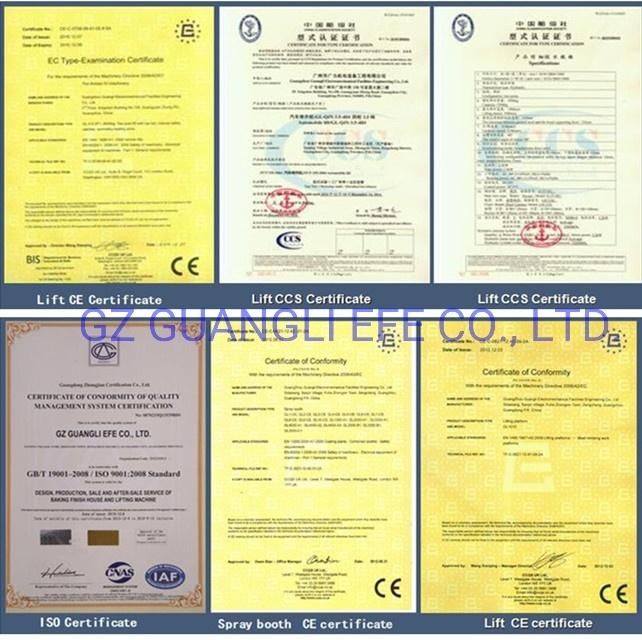

 E. QualificationAll our Spray Booth, Painting Booths have passed the Europe CE certification, CCS certificate and passed the testing by Guangdong Technical Institution.
We formally carry out the ISO quality control system and push it to completely control our quality management. Our company has passed the ISO9001.



Payment term: 30% TT in advance, 70 % balance before shipment.

Delivery time: depends on the order quantity. For standard products, it will be 2 weeks after deposit is receipted.

After sales service : 12 months, warranty for most parts (Consumables (eg filters) are not included)

FAQ
1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
.
Warmly welcome to visit our factory!
