Xtool Kc501 Car Key Programmer Work with Xtool X100 Pad3
Shenzhen Automan Technology Co., Ltd.- Warranty：One Year of Repair Warranty
- Certification：CE
- Condition：New
- Standard：Standard
- Language：Spanish, Japanese, German, French, English
- Update Method：by Internet
Base Info
- Type：Diagnostic Scanner
- Transport Package：Carton Box
- Trademark：XTOOL
- Origin：China
Description
i80, Auto pro pad
PS90, A80 etc
including 94, 98, 88, A8, A9, 39 simulation key generation.

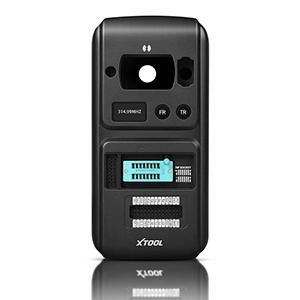

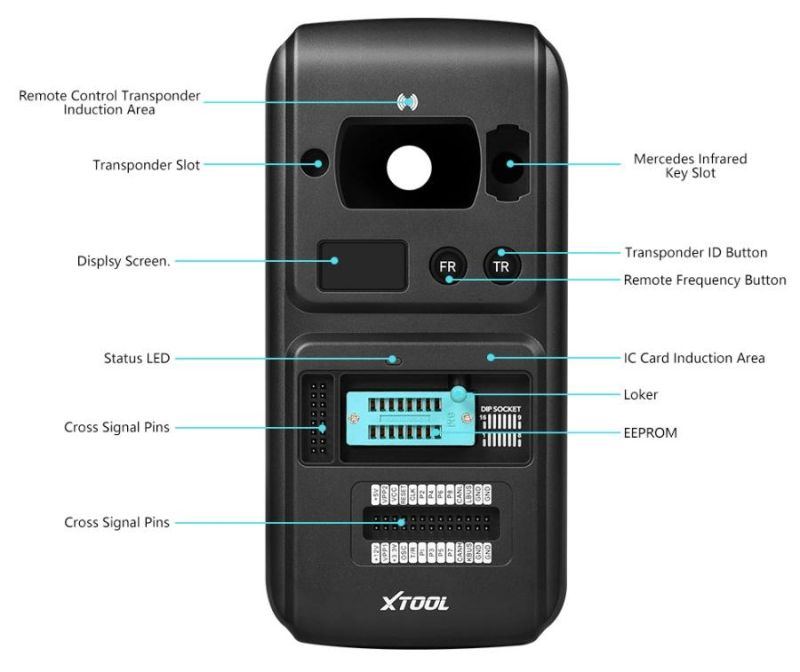

XTOOL KC501 Product Display:

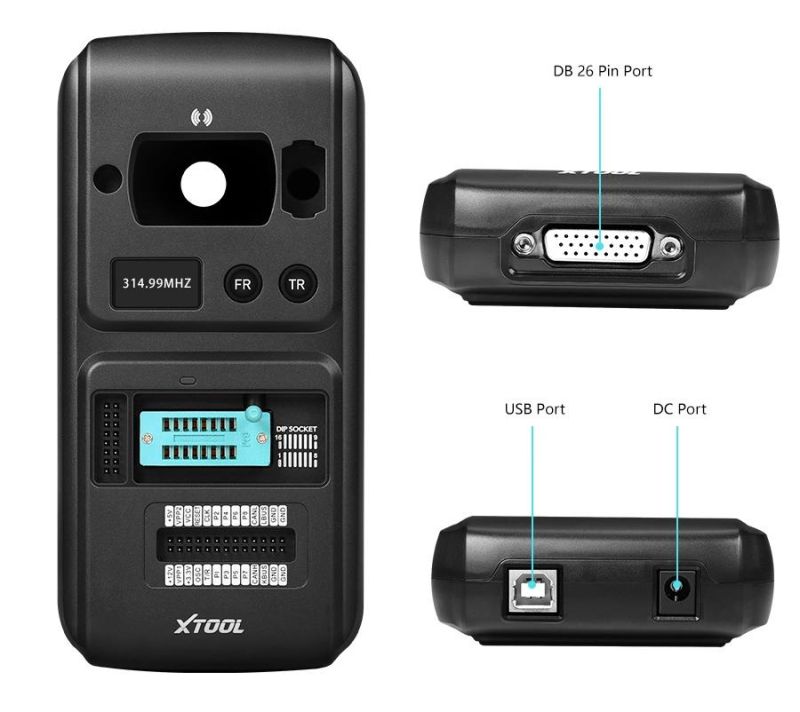

1. DC Port: It provides 12V DC power supply.
2. USB Port: It provides data communication and 5V DC power supply. (The Type B USB port provides data communication and power supply for our device, PC and KC501.)
3. DB 26-Pin Port: It connects with the Mercedes Benz infrared cable, ECU cable, MCU cable, MC9S12 cable.
4. Cross Signal Pins: It holds the MCU board, MCU spare cable or DIY signal interface. (The Cross-shaped signal pin is used to place MCU board, MCU spare cable or DIY signal cable to read or write MCU and ECU chips.)
5. Locker: It locks the EEPROM component transponder slot to ensure proper functioning. (It is used to place EEPROM chip or socket to read or write EEPROM data.)
6. EEPROM Component Transponder Slot: It holds the EEPROM plug-in transponder or EEPROM socket.
7. Status LED: It indicates the current operating status.
8. IC Card Induction Area (It is used to read and write IC card data.)
9. Display Screen (It is used to show remote frequency or transponder ID.)
10. Remote Frequency Button (Press this button to show remote frequency in the display screen.)
11. Transponder ID Button (Press this button to show transponder ID in the display screen.)
12. Transponder Slot: It holds the transponder. (It is used to hold the transponder to read or write transponder data.)
13. Vehicle Key Slot: It holds the vehicle key. (It is used to hold the vehicle key to read or write vehicle key data.)
14. Remote Control Transponder Induction Area (It is used to read and write remote control transponder data.)
15. Mercedes Infrared Key Slot: It holds the Mercedes infrared key. (It is used to hold Mercedes infrared key to read or write Mercedes vehicle key data.)
XTOOL KC501 Latest Update Information:
Add Infrared Key Function List (July 30th, 2020)
Model Years
A Series 2005-2013
B Series 2005-2014
C/CLK Series 2006-2014
CLA Series 2013-2016
CL Series 2006-2013
CLS Series 2006-2013
E Series 2005-2015
G Series 2015
GL/CLG Series 2006-2014
GLC/GLK Series 2008-2015
M/ML Series 2006-2013
R Series 2006-2017
S Series 2006-2017
SLK/SLC Series 2006-2016
Display Screen: 320x480 dpi TFT Colorful ScreenWorking Voltage: 9V-18VWorking Temperature: -10ºC-60ºCStorage Temperature: -20-60ºCPower Supply: 12V DC

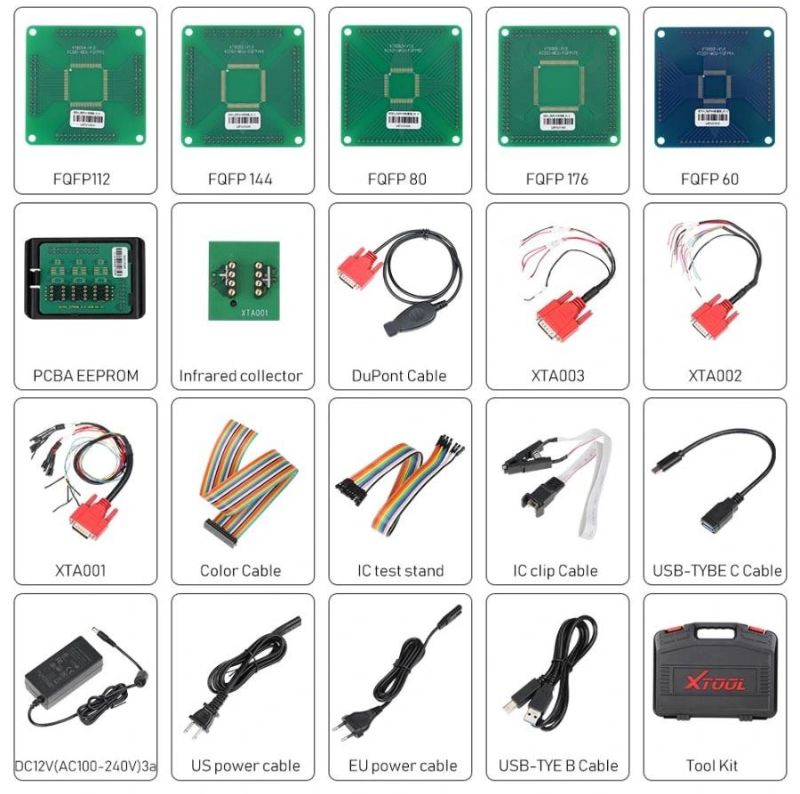

Package includes: 1pc x Accessories1pc x Certificate Of Quality1pc x Packing List1pc x User Manual1pc x Carton1pc x Test Connectors1pc x MCU FQFP1761pc x MCU FQFP641pc x XTA001 Clamp1pc x IC Clamp1pc x MCU FQFP1121pc x MCU FQFP1441pc x MCU FQFP801pc x IC EEPROM Socket1pc x EEPROM Adaptor (With bracket)1pc x XTA002 Clamp1pc x XTA003 Clamp1pc x 26 PIN Cable1pc x 24AWG Cable1pc x Tool Case1pc x Main Units1pc x KC501 Key & Chip Key Programmer1pc x USB_TYPE-B1pc x USB_TYPE-C1pc x Charger (With Power Supply Cable)1pc x Benz Infrared cable
