Base Info
- Model NO.：T8210DX20
- Tire Gauges Type：Cartire Pressure Gauge
- Tire Gauges Carry Way：Portable
- Condition：New
- Update Method：by Email
- Transport Package：Wooden Case
- Specification：SGS
- Trademark：AMCO
- Origin：Shaanxi Xi′an
- Production Capacity：30set,Month
- Package size per unit product：400.00cm * 100.00cm * 172.00cm
- Gross weight per unit product：2500.000kg

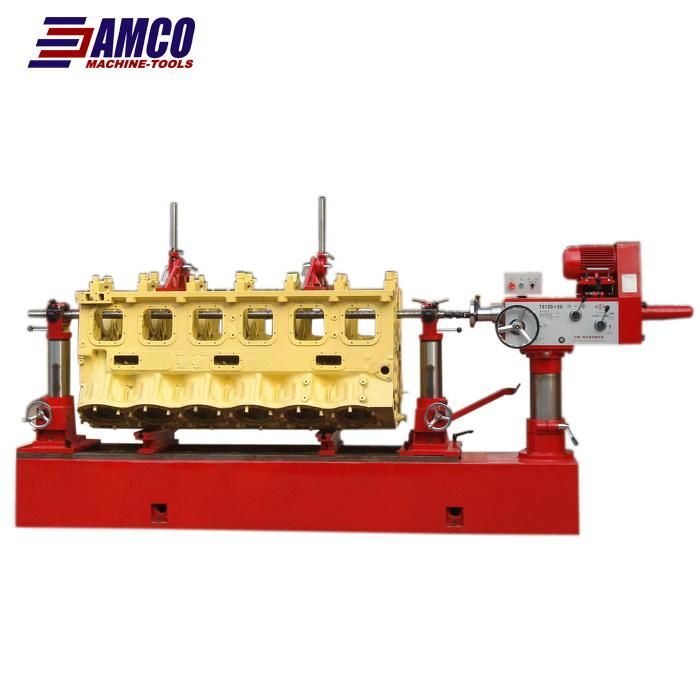

Description
Specification
T8115Bx16
T8120DX20
Range of hole diameter to be bored
φ36-Φ150mm
φ36-φ200mm
Max. length of cylinder body to be bored
1600mm
2000mm
Main shaft max. elongation
300mm
300mm
Main shaft rotating speed(6 steps)
210-945rpm
210-945rpm
Boring shat feed
0.044, 0.167mm/r
0.044, 0.167mm/r
Motor power
0.75/1.1kw
0.75/1.1kw
Overall diemension(LxWxH)
3500x800x1500mm
3900x800x1500mm
Packing diemension(LxWxH)
3650x1000x1600mm
4040x1020x1600mm
N.W/G.W
1900/2200kg
2200/2500kg
