• Type：Diagnostic Scanner
• Transport Package：Carton Box
• Trademark：Launch
• Origin：China

Basic Info.

Type Diagnostic Scanner Transport Package Carton Box Trademark Launch Origin China

Product Description

LAUNCH X431 Creader Elite CRE200 Car Diagnosis Tools ABS SRS OBD2 Automotive Scanner For Car Lifetime Free Update



LAUNCH Creader Elite CRE200 Advantage :



1. smart (Auto-Detect) Diagnosis : Once the tool and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finisned, a diagnostic report will be automatically generated.



2. Manual Diagnosis: If Auto-Detect failure occurs, manual diagnosis is also available. Diagnosis functions include: Version Information, Read DTCs, Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graphand Merged).



3. OBD ll Diagnosis: 10 modes of OBD ll test are supported, including EVAP,O2 Sensor, I/M Readiness, MIL Status, VIN Info, and On-board monitorstesting etc.



4. Reset function: This function allows you to perform different kinds of common specialfunctions !



5. One-Click Update: Let you update your diagnostic software and APK online, Lifetime free Update.



6. Mall: This function allows you to purchase more diagnostic software with full system and full functions that are not pre-installed on this tool ( this function do not open now , will open later )

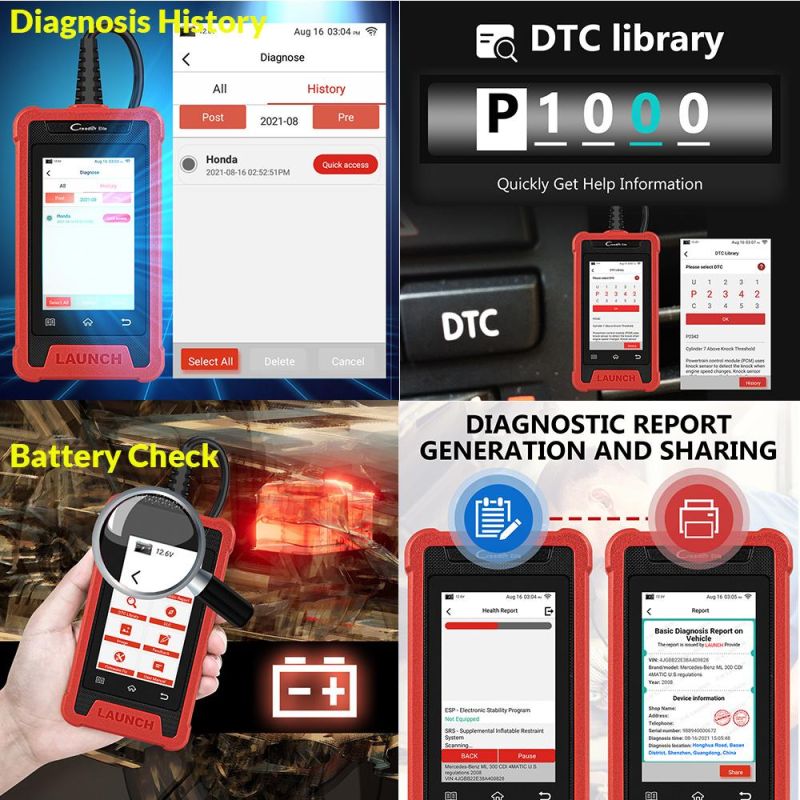

7. Diagnostic History: This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without starting from scratch.



8. Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and troubleshooting.



9. DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.



10. Displays battery real-time voltage once properlv connected to the vehicle.

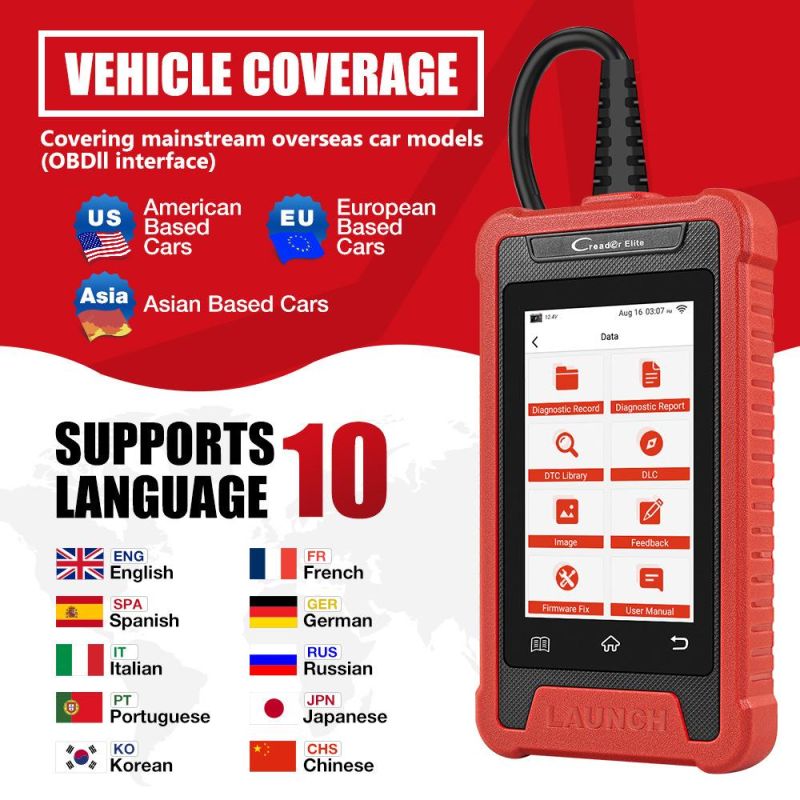

LAUNCH Creader Elite CRE200 Support Langauge :



English , Spanish , French , German , Italian , Russian , Portuguese , Japanese , Korean & Chinese Simplified







LAUNCH X431 Creader Elite CRE200 is an evolutionary smart code reader for professional technicians or DIYers. It only applies to the passenger cars with 12V battery voltage .



LAUNCH X431 Creader Elite 200 is specially designed to work with all OBDII compliant vehicles, including Controller Area Network (CAN). It is required by EPA that all 1996 and newer vehicles ( cars and light trucks ) sold in the United States must be OBD II compliant and this includes all American , Asian and European vehicles .

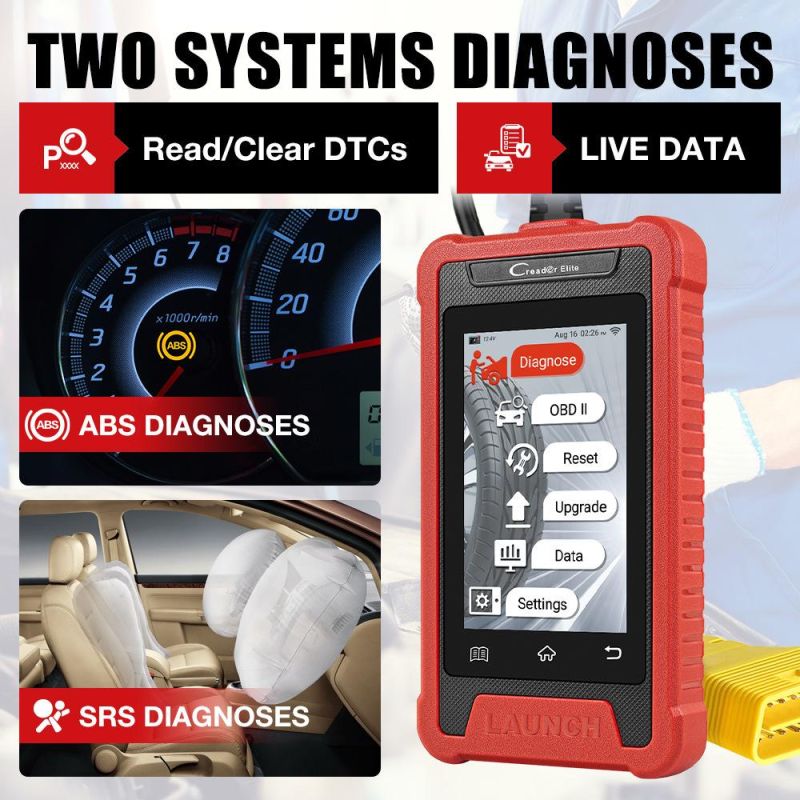

LAUNCH X431 Creader Elite CRE200 Supports ABS , SRS systems Diagnostic Function :



Diagnosis ABS System:



Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this scanner does for you.



Diagnosis SRS Airbag System:



SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status



LAUNCH X431 Creader Elite CRE200 16 Resets Function ( All of them need subscribe ) :



1.Oil Lamp Reset Service



Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.



2.EPB Electronic Park Brake Reset



It is important in the maintenance of electronic braking system's safety and efficiency.



3.BAT battery service



Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.



4.DPF Diesel Particulate Filter Reset



Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.



5.SAS Steering Angel Sensor Reset



Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.



6.TPMS Tire Pressure Monitoring System Reset



Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.



7.IMMO Key Programming



The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.



8.ABS Bleeding



ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.



9.Sunroof Reset



The sunroof needs to be reset when the sunroof control unit have communication problem or changed.



10.Suspension Reset



Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.



11.Gearbox (Transmission )Reset



Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.



12.AFS Headlamp Reset



'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.



13.Injector Coding



Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.



14.Throttle Adaptation



The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.



15.Gear Learning



The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.



16. Air Level calibration

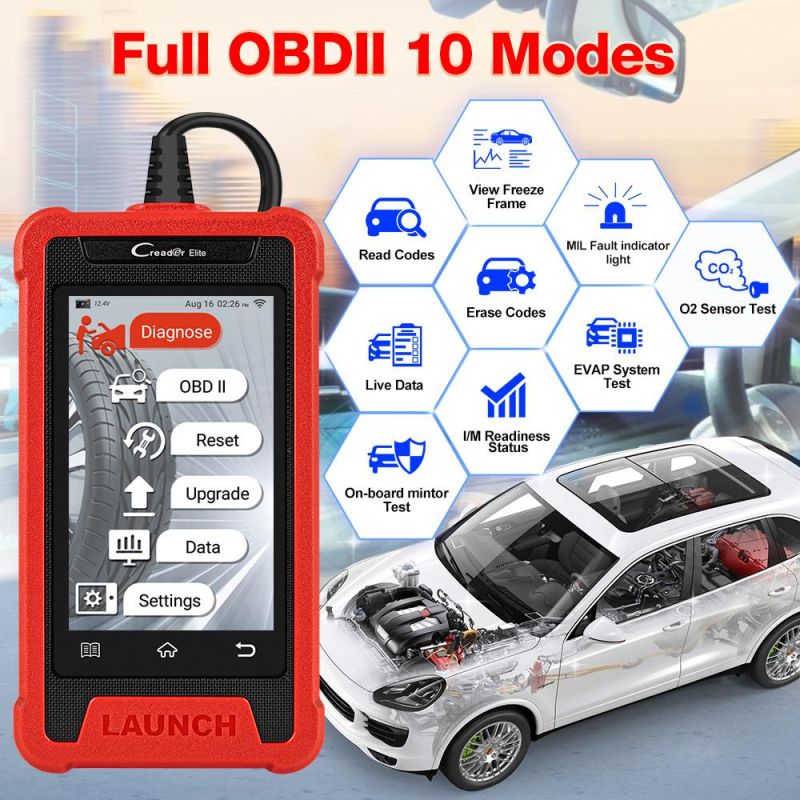

LAUNCH X431 Creader Elite CRE200 Full 10 OBD2 Function :



Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)



Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.



Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.



I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.



Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.



View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.



O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.



On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.



Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.



Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

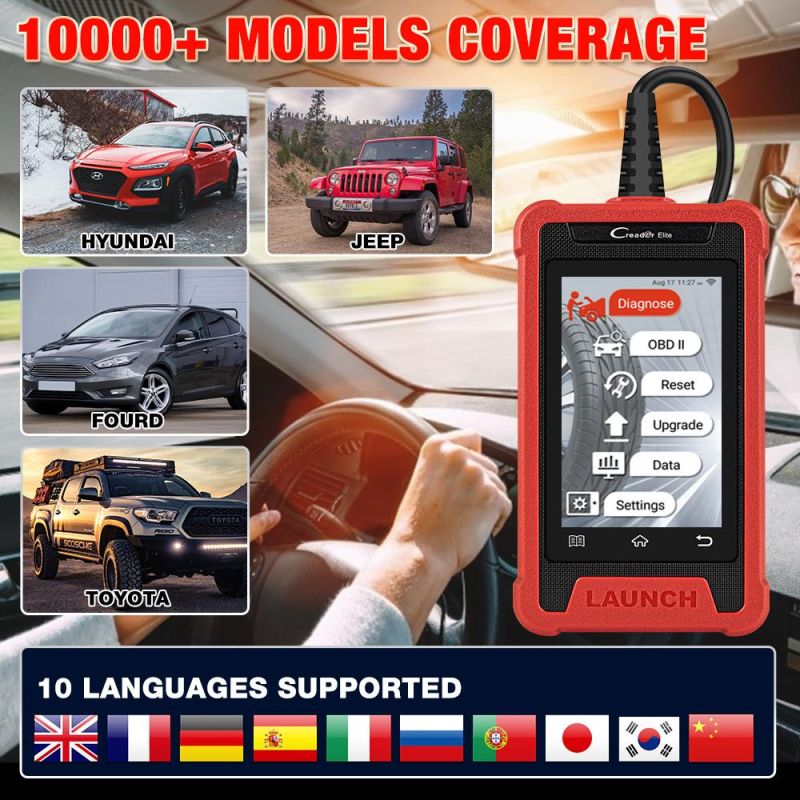

Support Car Brands



for AUDI, for BMW, for ROLLS ROYCE, for MINI, for CHRYSLER, for DODGE, for JEEP, for CITROEN, for DAEWOO,for FIAT, for ABARTH,for ALFA ROMEO, for LANCIA ,for FORD, for LINCOLN,for FORD(EUROPE),for GM, for CHEVROLET, for CADILLAC, for BUICK, for HONDA, for ACURA, for HYUNDAI, for ISUZU, for ISUZU(THAILAND, for KIA, for LAND ROVER/JAGUAR, for MAZDA, for MERCEDES-BENZ, for MAYBACH, for MITSUBISHI, for NISSAN, for INFINITI, for GTR(NISSAN), for GTR, for OPEL, for VAUXHALL, for OPEL(SOUTH AFRICA), for PEUGEOT, for PORCHE, for RENAULT, for DACIA, for SAMSUNG RENAULT, for SAAB, for SEAT, for SKODA, for SMART, for SPRINTER, for SUBARU, for SUZUKI, for TOYOTA/LEXUS, for VOLVO, for VW, for BENTLEY, for BUGATTI, for LAMBORGHINI, for Holden







LAUNCH X431 Creader Elite CRE200 Auto VIN Scan function :



VIN scan quick test and manual diagnosis are available.support all system diagnosis of passenger car

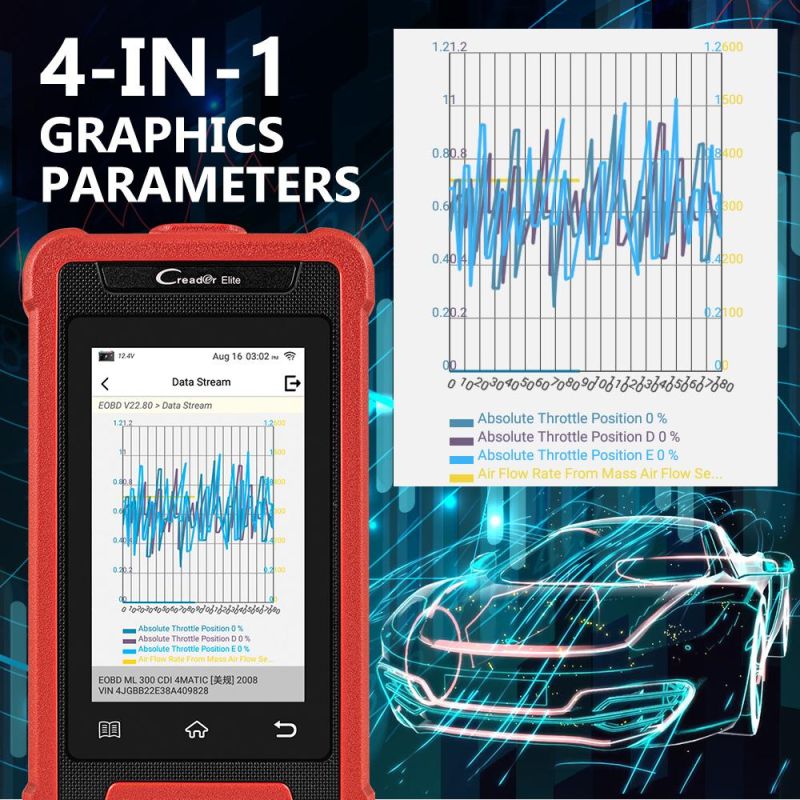

LAUNCH X431 Creader Elite CRE200 4-IN-1 Graphics Parameters :







LAUNCH X431 Creader Elite CRE200 MALL Function :



Think Function allows you to subscribe other vehciles diagnostic software and reset software that are not pre-installed on the tool .



All Diagnostic sofware in the mall covers full systems and full functions ( Excluding online programming and coding etc ). Different Vehicle software is tagged with different price ( about $49.95/vehicles )



( Pls note : the function does not open now , but do not worry , it will open soon ) .



LAUNCH X431 Creader Elite CRE200 other Function :



1. Live Data in Graph - Displays the parameter in waveform graphs .

2. Diagnostic Record - If a user records the runing paramters or waveform graphs while reading data steam , it will be saved as diagnostic records and appear under this tab .

3. Diagnostic Report - This module stores all diagnostic reports generated in process of vehicle diagnosis .

4. DTC Library - This option enables you to retrieve the detailed description of certain DTC from the local DTC database .

5. Feedback - This item allows you to feedback your diagnostic problems to launch company for analysis and troubleshooting .

6. Screen Capture - you can keep the data fast and direct as you want !

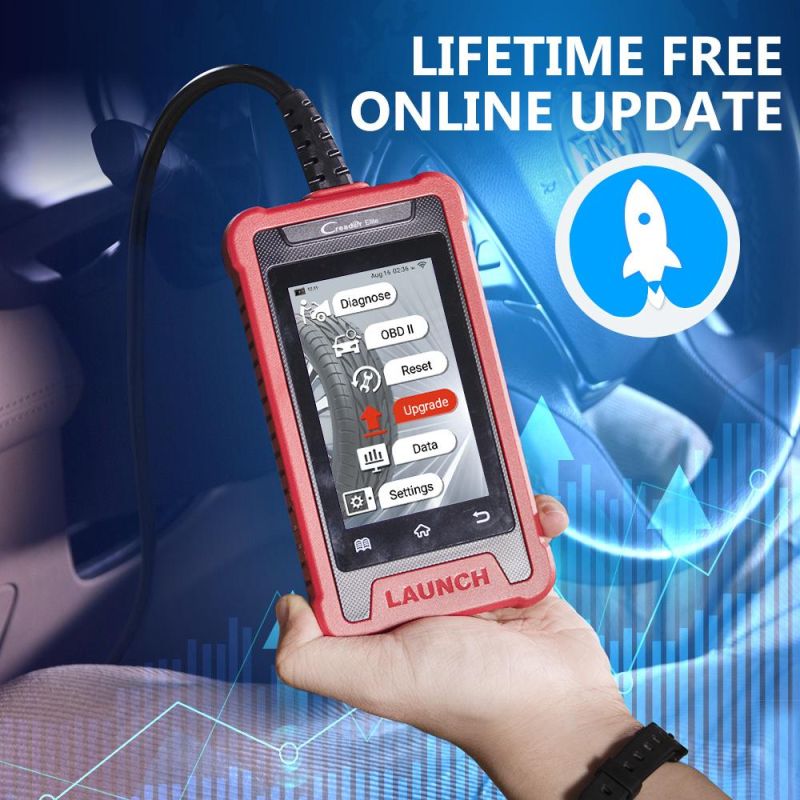

LAUNCH X431 Creader Elite CRE200 is with Lifetime Freee Update , WIFI one-lick Update .





LAUNCH X431 Creader Elite CRE200 Print Function :





LAUNCH X431 Creader Elite CRE200 Technical Specifications :



Screen : 4 inch Touch Screen with a resolution of 480*480

CPU : 4-core 1.3 GHz Processor

Memory : 1GB RAM + 16GB ROM

Wifi : 802.11b/g/n 2.4GHz

USB : Type C

OBDII input voltage range : 9-18V

Working Temperature : -10 to 50 °C ( 14 to 122 °F )

Storage Temperature : -20 to 70 °C ( -4 to 158 °F )

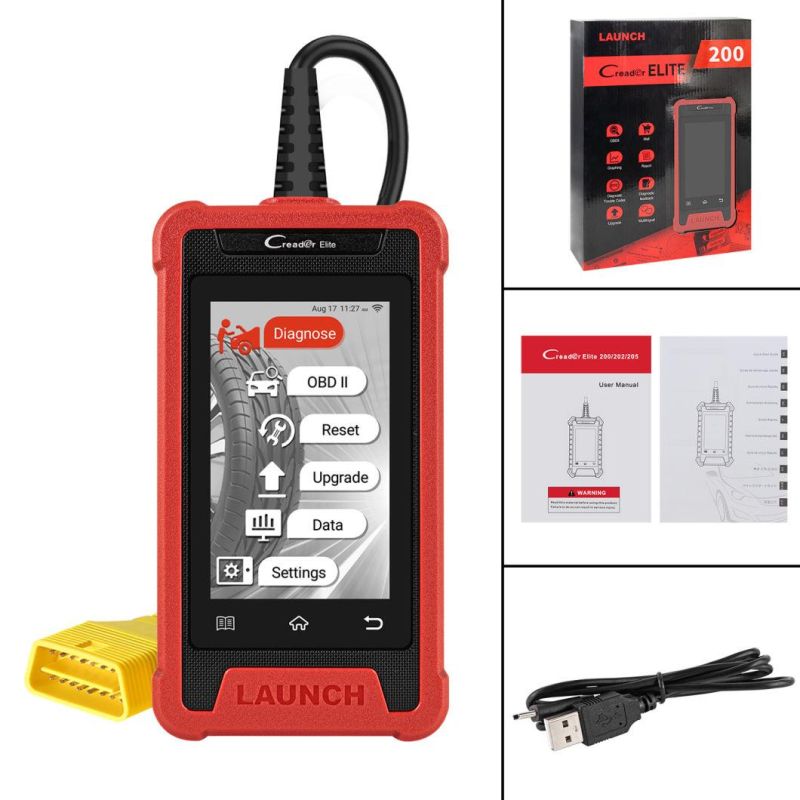

LAUNCH X431 Creader Elite CRE200 Packing List :



1pc * LAUNCH X431 Creader Elite CRE200 Main unit

1pc * USB Cable

2pc * Manual book ( 1 manual is with Multi-langauge )
