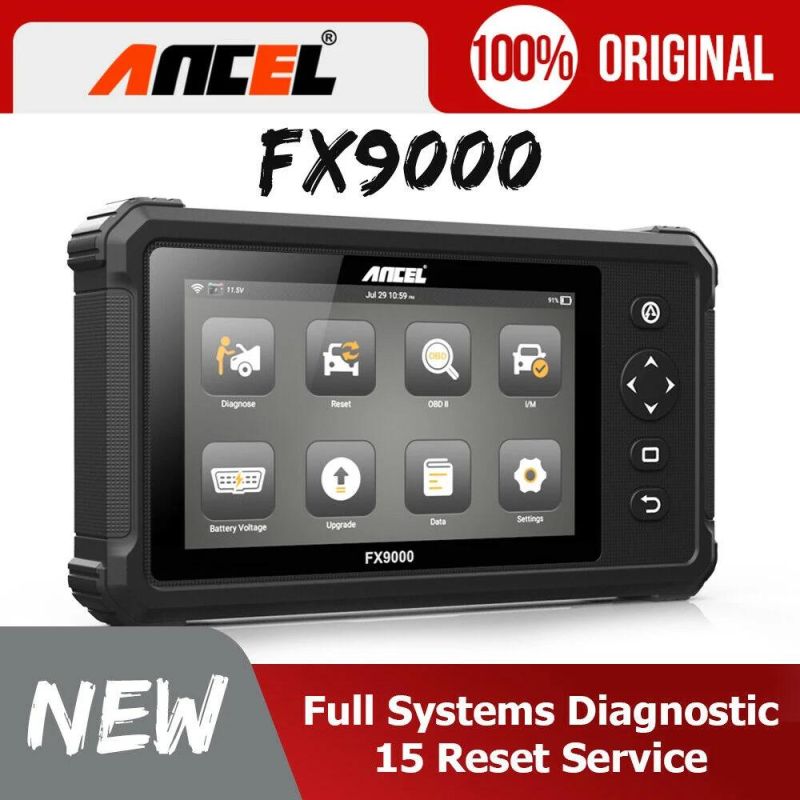

Ancel FX9000 All System OBD2 Scanner DPF ABS EPB IMMO Oil TPS Diagnostic Tool

Ancel FX9000 android scanner can read and erase codes, read ECU information, and display real-time data of all available systems in text, graphics, and simulation. It can be used on most OBD2 protocol cars after 1996 and 2019. It is suitable for diagnosis of 12V passenger cars, light cars and pickup trucks. Multiple car models supported (covering over 68 prevailing models from Asia, America and Europe,Russian). It is an automatic scanner for car owners designed for car repair garages, car beauty service shops, car mechanics and DIY.

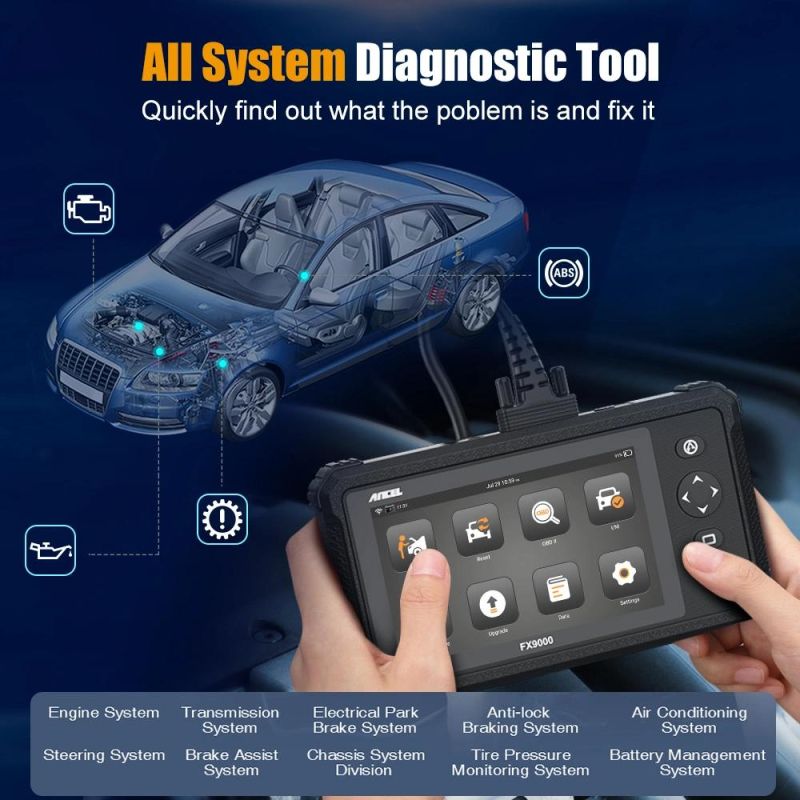

Ancel FX9000 Supports All System Diagnostics:

Diagnose whether all the electronic system parameters of the car are normal. It mainly including
1.Drive System(PCM)
Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more...

2.Chassis System
Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS,and more...

3.Body System(BCM)
SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module,  Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system,Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more...

4.Electrical system
Including Centralized control system for engine and power transmission, Chassis integrated control and safety system,Intelligent body electronic system,Communication and information / entertainment system.

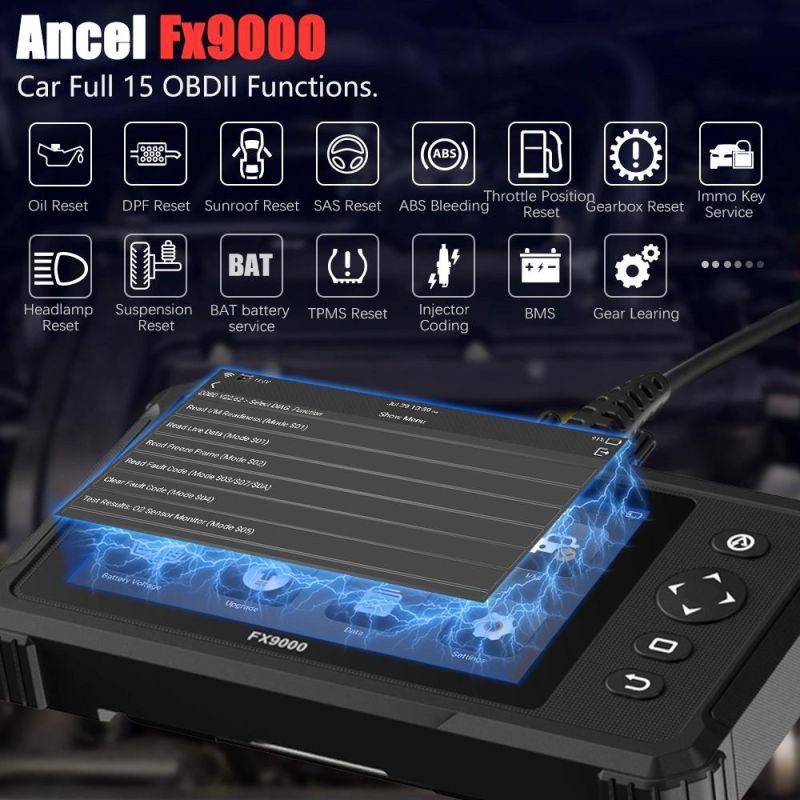

Ancel FX9000 15 Kinds Maintenance Functions:

1.Oil Lamp Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

NOTE:

These special features are not applicable to all car models. If you are confused, please leave a message to our customer service and send me your car brand, model and release year, or send me your car VIN code, and I will help you inquire Does the car support

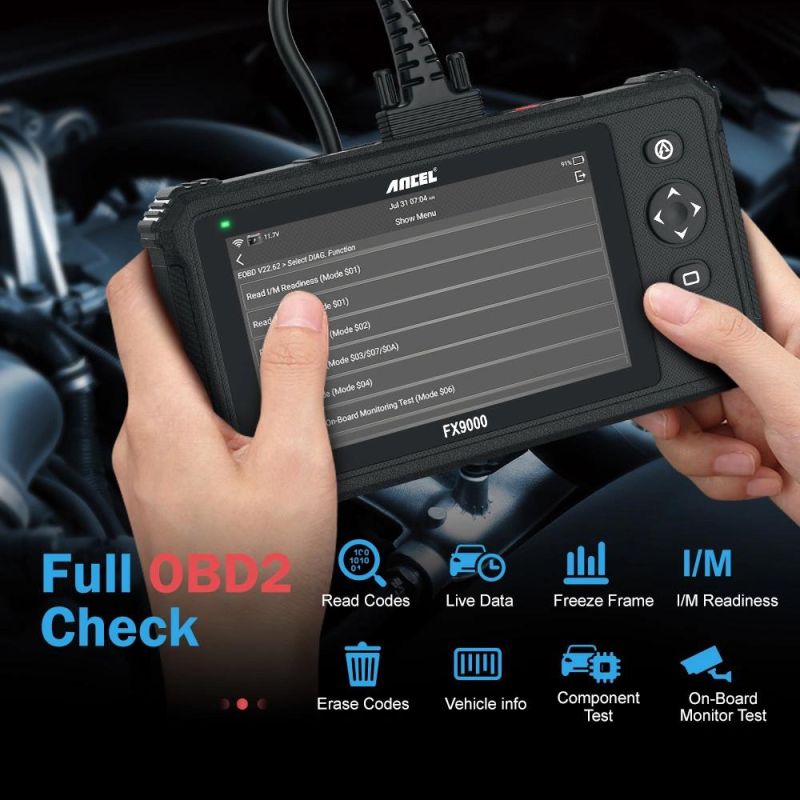

Mode OBDII/EOBD Functions:

1.Reading Codes: Read DTCs(Diagnostic trouble codes)

2.Erasing Codes & Reset: Clear DTCs

3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7.Oxygen sensor monitoring

8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9.Read Vehicle Information(VIN)

10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

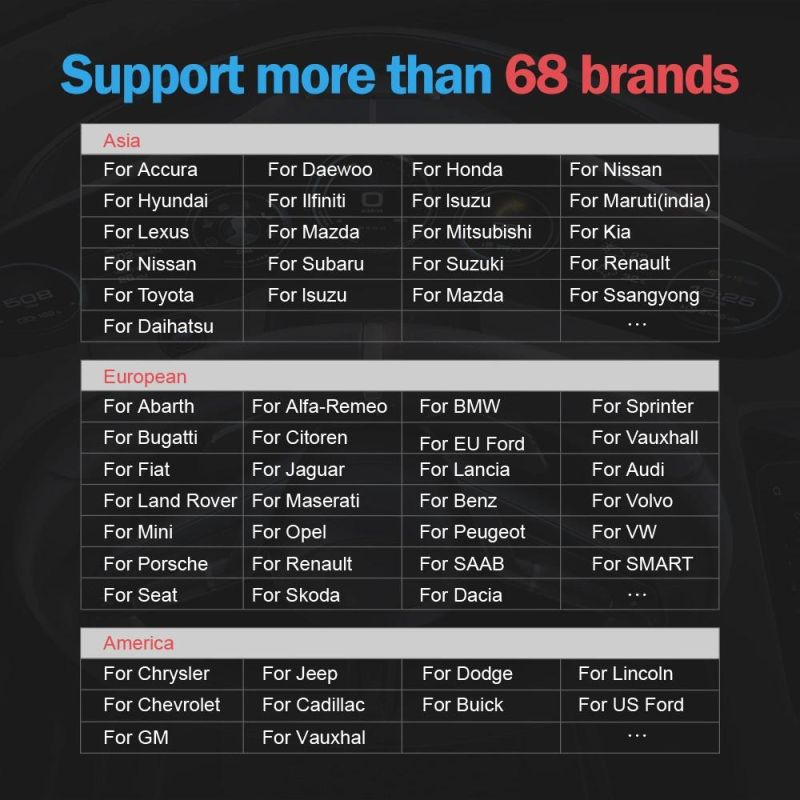

Support More Than 68 Car Brands:




NOTE:

These OBD2 features are not applicable to all car models. If you are confused, please leave a message to our customer service and send me your car brand, model and release year, or send me your car VIN code, and I will help you inquire Does the car support.

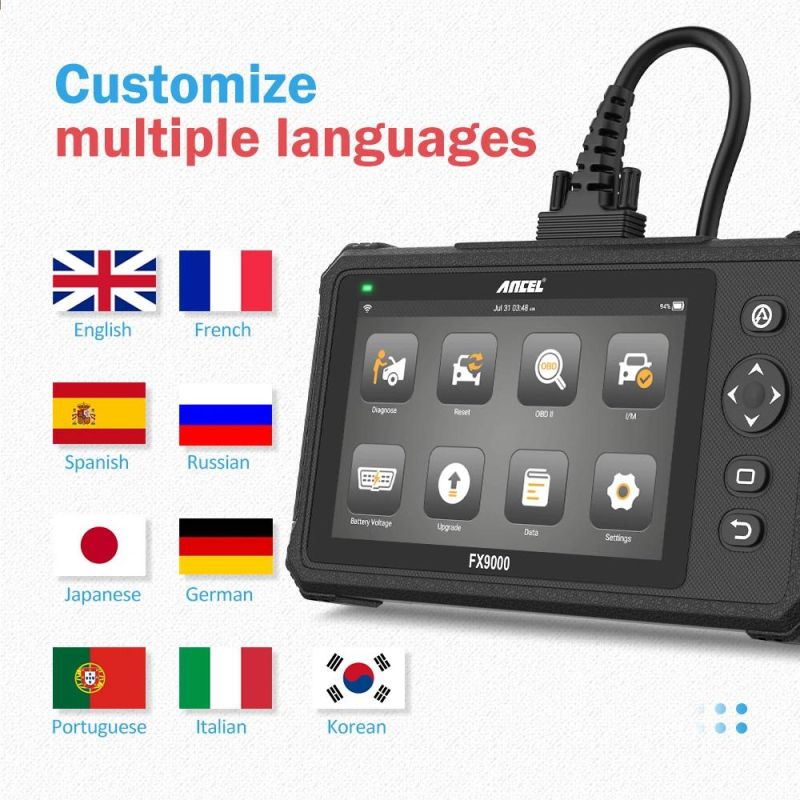

Ancel FX9000 Support Languages

English, French, Spanish, Russian, Japanese, German, Italian, Portuguese, Korean.




Attention:  After switching the language,if there is no downloaded diagnostic software for that language,you need to download it again.


How to use Ancel FX9000

1.Input email address to register your account after WIFI connected.
2. Download the vehicle brands.
3.Connect FX9000 with car OBD2 port and start diagnose

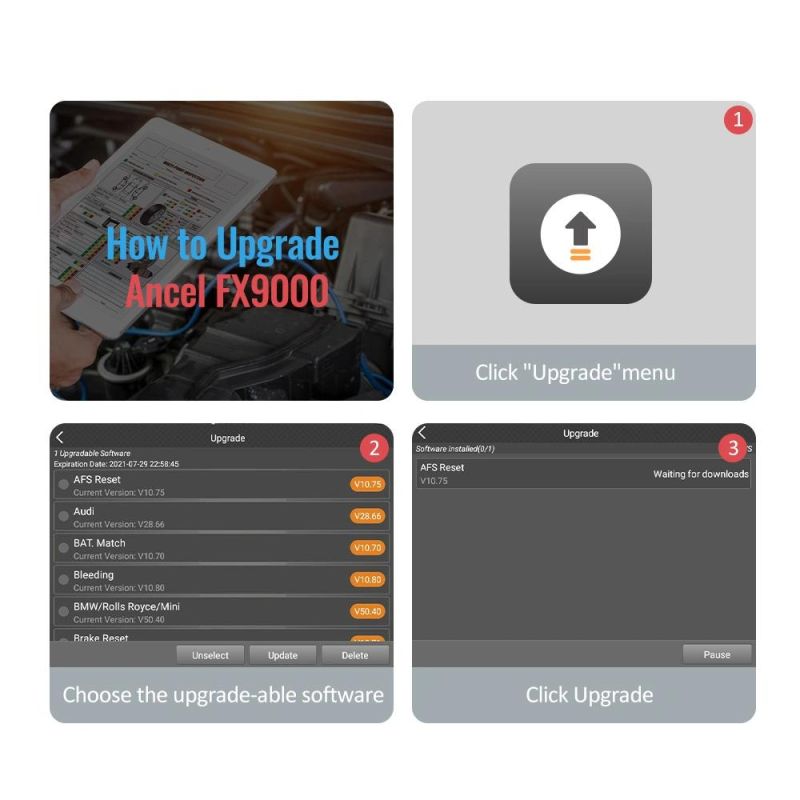

How to Update Ancel FX9000

1.Make sure wifi is connected
2.Choose update menu
3.Select the up-gradable software
4.Once download is finished, the software will be installed automatically.




More features

1.Auto VIN detection
2.Record&Playback data
3.Print diagnose data
4.Live data graphing 4CH
5.Vehicle health report
6.One-key upgrade online

More advantages of Ancel FX9000

1.Smart(Auto-Detect) Diagnosis: Once the tool and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (if bound).

2.Manual All Systems Diagnosis: If Auto-Detect failure occurs, manual diagnosis is also available. Diagnosis functions include: Version Information, Read DTCs, Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph and Merged).

3.Diagnostic History: This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without the necessity of starting from scratch.

4.Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and troubleshooting.

5.DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.

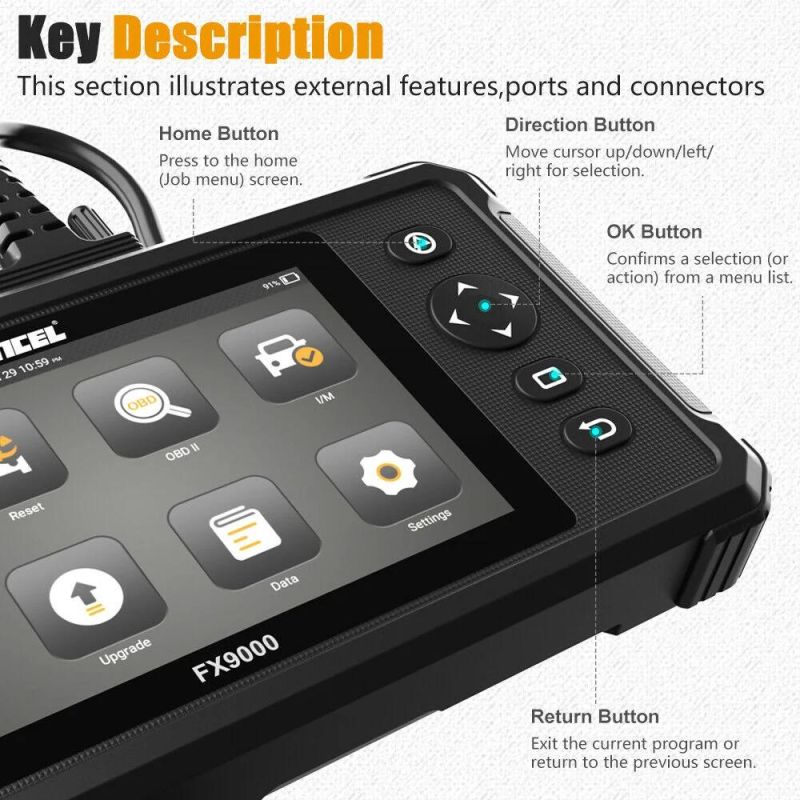

6.Sensitive Touch & Keypad input are supported

7.One-Key I/M Checking:
It support one-key I/M checking for all available emission systems.Help your car pass the emission test simpler.

8.Battery Analysis:
For 12V car, SUV, Van, Light Truck, Pickup.
Detect real-time data from 12V batteries and display BATTERY DATA with fluctuations ranging from 8V to 16V. The discharge voltage of a normal battery is about 12V, the starting voltage is generally 12V, and the charging voltage is about 14V.

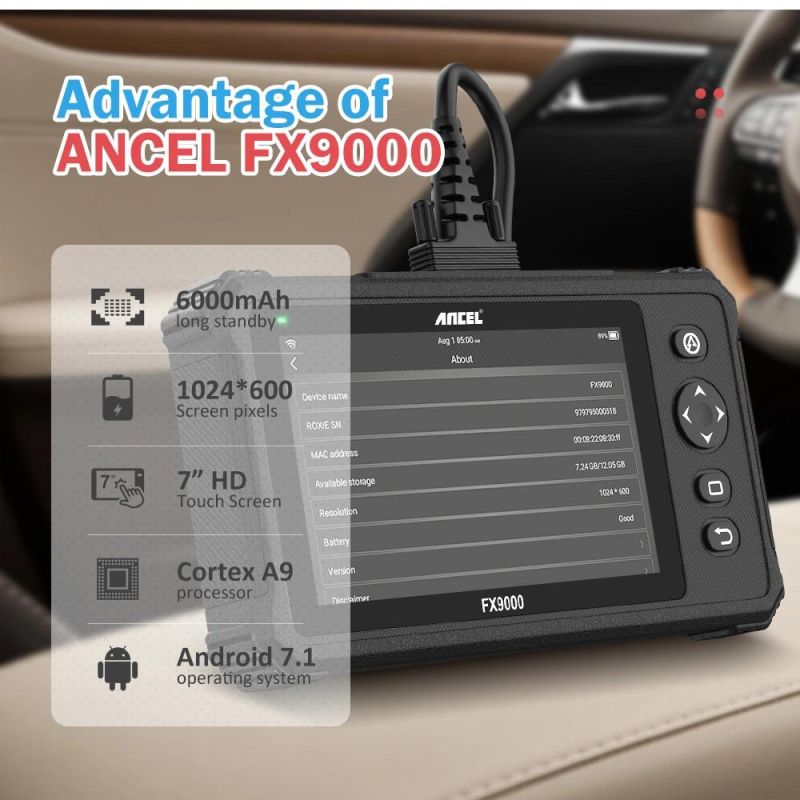

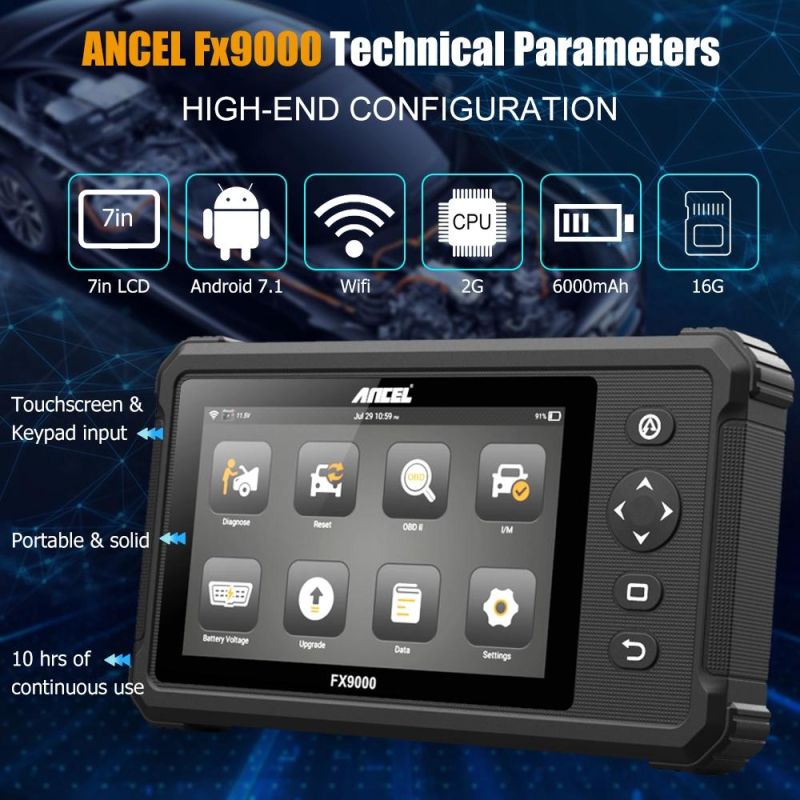

Parameters

1.Operating system:     Android 7.1
2.Screen pixels:            1024*600
3.Screen size:               7 inches
4.Chip:                          Cortex A9 processor

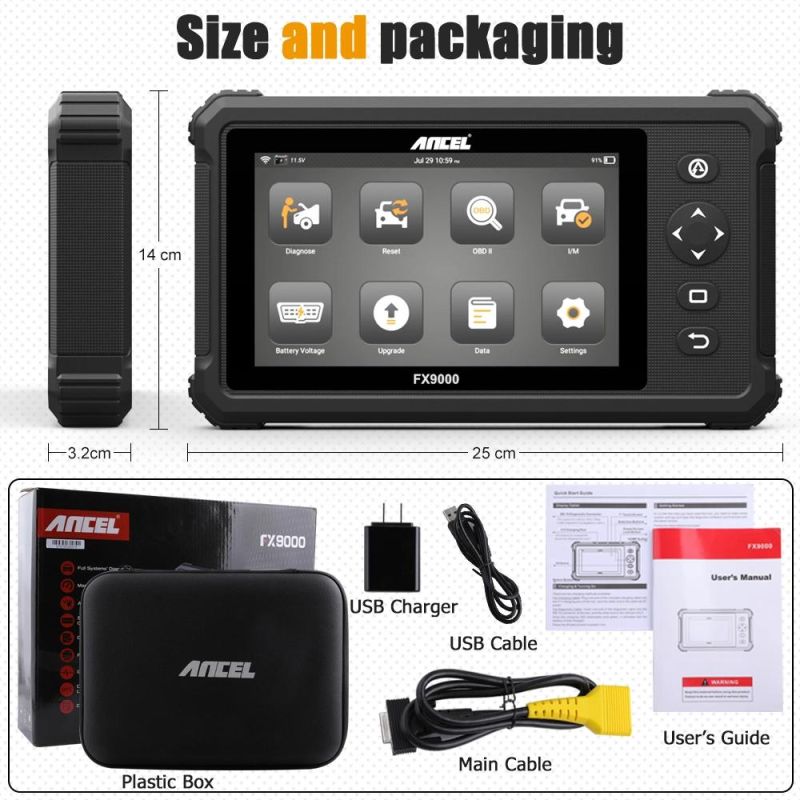

5.Dimension:                246*139.5*34mm
6.DC Input Voltage:     5V
7.Battery:               6000mAh Lithium battery
8.Standby time:         More than 8 hours
9.Resolution:             1024*600
10.Connectivity:         Mini USB 2.0,  Wi-Fi
11.OBD II Interface Input Voltage:  9V~18V
12.Storage Temperature:  -20ºC ~ 70ºC
13.Operating Temperature:  -10 ºC ~  50ºC
