• Model NO.：AA-ACR3014
• Length：2260mm
• Wide：680mm
• Height：280mm
• a.：Tilt-Hydraulic Lifting Platform
• Transport Package：Carton
• Trademark：AA4C
• Origin：China
• HS Code：8425429000
• Production Capacity：100units,Month

Basic Info.

Model NO. AA-ACR3014 Length 2260mm Wide 680mm Height 280mm a. Tilt-Hydraulic Lifting Platform Transport Package Carton Trademark AA4C Origin China HS Code 8425429000 Production Capacity 100units/Month

Product Description

Auto Body Collision Repair System/  Car Bench /vehicle frame straightener/ Underground floor system with Floor Scissor Lift

Floor system is a kind of auto collision repair system with steel frame underground  for fixing and accessories, tools, pulling towers and foot pumps an ground  for repairing operation. As  90%for  small and fast repair, floor system seems   to be the most economic and convenient
equipment in auto collision repair.


Features :
Small investment: Choose economy configuration
Convenient operation: fast fixing, no working blind and dead corner.
Freedom place: frame steel underground, collision repair operation on     ground.
High efficiency: different working place for one or more collision repair.
Various vehicles: most of common vehicles.
Hydraulic system: powerful and durable , convenient for maintenance and repair.
Precise clamps: fixing chassis firmly, durable and easy to change.
Sheet metal tools: flexible and convenient, used for any straightening.
Tools board: easy and convenient  for accessories and tools, free     moving.
Auto data: Global synchronization.(option)

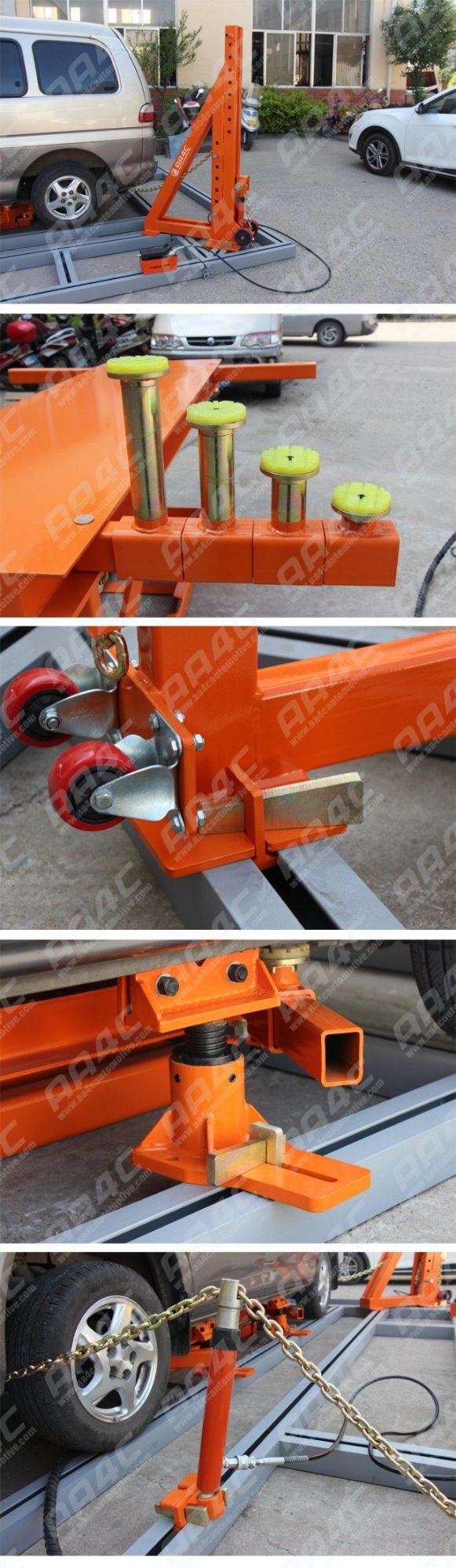

Structure:
There are two parts of floor system: frame steel underground and tools on the ground.
Pulling towers, straightening accessories and main clamps are used on ground .Frame steel is underground for fixing vehicles and moving pulling tower.


Floor scissor lift features
With the continuous development of auto repair market and maintenance requirements of increasingly sophisticated, scissor lift machine is more and more applied to floor system for car body collision repair, and cooperates with testing line of spray booth system.
With the in-ground design, it not only saves floor space but also makes cars easy to drive on and out. Scissor structure is easy for tyre changing and chassis repairing.
Range for 180degree is suitable for most of cars. Mechanical self-locking, pneumatic insurance make it easy to operate.

Specification

Lift Length	2260MM
Lift Width	680MM
Max Lifting height	280-1460MM
Min height	280mm
Lifting weight	3000KG
Power supply	380V/3PH/50HZ
