• Model NO.：CRP123
• Update Method：by Internet
• Type：Code Reader
• Transport Package：Paper Box Packing
• Specification：20*10*8cm
• Trademark：Launch
• Origin：China
• HS Code：8543709990
• Production Capacity：1000

Basic Info.

Model NO. CRP123 Update Method by Internet Type Code Reader Transport Package Paper Box Packing Specification 20*10*8cm Trademark Launch Origin China HS Code 8543709990 Production Capacity 1000

Product Description

Original LAUNCH CRP123 Update Online Engine Code Scanner

Screen	3.5" TFT LCD display
Working voltage	9 ~18V
Working current	<600mA
Working temperature	0 to 50ºC (32 to 122ºF)
Storage temperature	-20 to 70°C (-4 to 158 ºF)
Working humidity	10% ~ 90%
Storage humidity	<80%

Introduction: Featuring the unique and 3.5 inch TFT color display, LAUNCH Creader CRP 123 OBDII/EOBD code reader supports all 10 modes of OBDII test for a complete diagnosis. It is truly the ultimate in power and affordability , allowing users to do their jobs faster. Graph, Record, Replay data and troubleshooter code tips help users to save diagnosis and repair time. LANCH Creader CRP123,the most advanced and multifunctional code reader powered by its exclusive technology, are designed for technicians to troubleshoot four systems for most of the major vehicle on the road today. Featuring the unique multifunctional keys and 3.5" TFT color display. Launch's Creader CRP123 offers the same features and functions as the CRP122, but come with the added benefits of read DataStream for 4 systems and vehicle diagnostic report. Multi-Language: English/ French/ Spanish/ German/ Russian/ Japanese/ Portuguese  Fecture:
1. 3.5 TFT color display, Higher resolution, sharper colors
2. Works on ALL 1996 and newer vehicles (OBDII& CAN)
3. Retrieves generic (P0, P2,P3 and U0), manufacturer specific (P1, P3 and U1) codes, and pending codes
4. Easily determindes the cause of Check Engine Light
5. Turns off MIL, clears codes and resets monitors
6. Displays DTS definitions on the 320*480 TFT corlor screen
7. Views freeze frame data
8. Displays monitor and I/M rediness status
9. Reads live PCM data stream
10. Displays live O2 sensor test data
11. Performs modules present test
12. Enhanced OBD II Mode 6
13. Graphs Display, Data Record& Replay and DTCs tips guide users to the root cause of trouble code faster,
14. saving diagnosing and repari time
15. Retrieves vehicle information (VIN, CIN and CVN )
16. Support large extension memory card
17. Multilingual menus, DTC definitions- English, Chinese, etc
18. Extremely easy to use and highly reliable
19. Internet upgradeable
20. Prints data via PC

Item Parameter:
Screen: 3.5 inch, 320*480 TFT LCD true color display
Input voltage: 9-18V
Connection: standard 16 PIN OBD diagnostic interface
Working temperature: 0-50degC
Storage ambient temperature: -20 to 70degC

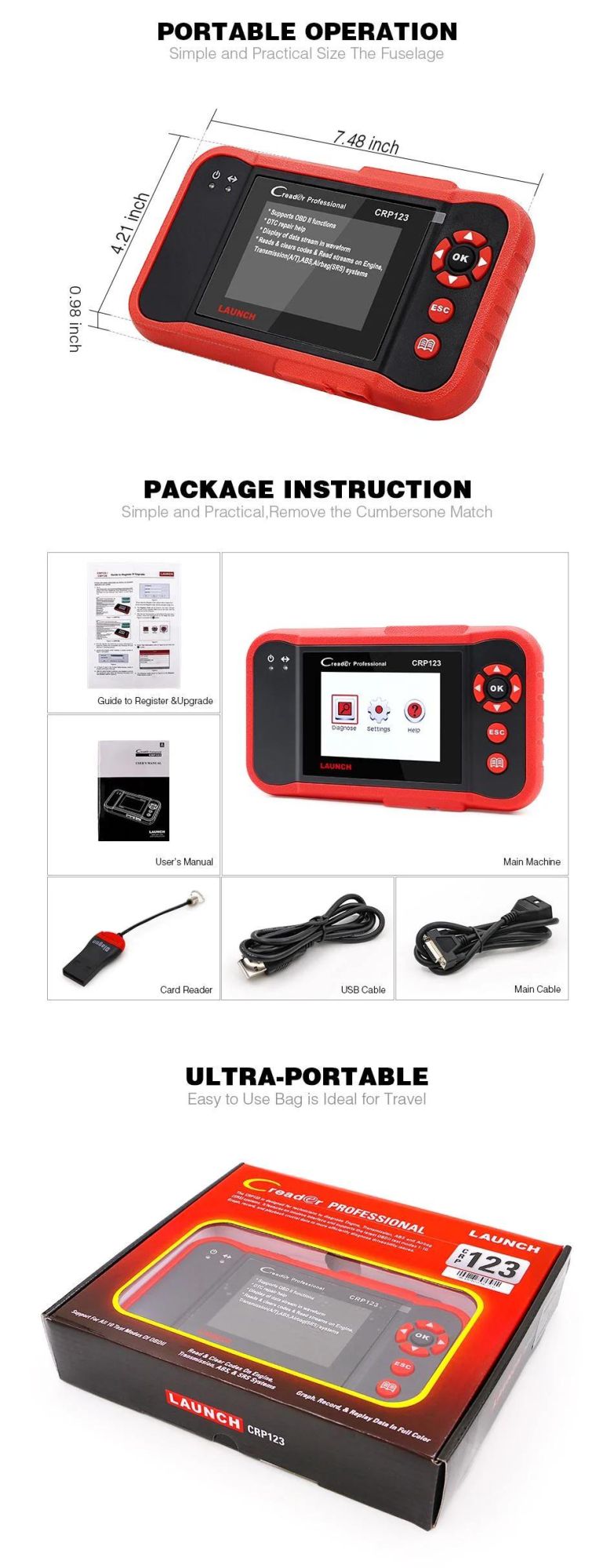

Dimension: 136*73*22(mm)
Weight: <350g

Note:
CRP123 has 2 main functions:

1. OBDII ENG diagnostic:
This function works for cars with OBDII protocol, reads and clears error codes.
How can you check that if your car works with OBDII protoco?
1) OBDII cars includes:
USA cars after 1996; Europe cars after 2002; Aisa cars after 2008, Japan cars after 2005;
2)If you were not sure if you car is included or not, please leave us the information of your car, we will check for you.
Leave as this: car brand, model, year.

2. ENG/AT/ABS/SRS testing

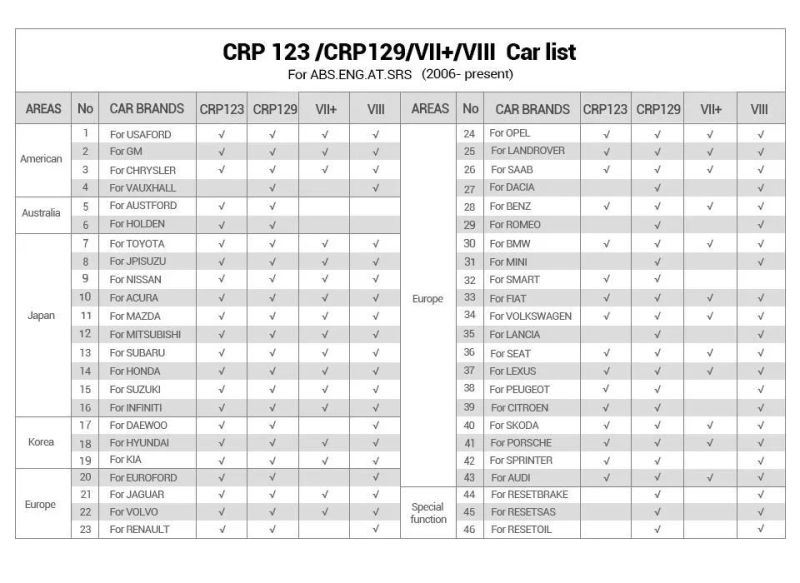

When we say "car supported list", we mean the car testing list for 4 system(ENG/AT/ABS/SRS). You will see the car supported list below, please remember that , that just for ENG/AT/ABS/SRS testing.
And for ENG/AT/ABS/SRS testing, it just supports the cars after 2005.

The newest Function Improvement:
For F-IAT Diagnostic Software for CRP Series V11.31
For F-ORD Diagnostic Software for CRP Series V11.40
For NI-SSAN Diagnostic Software for CRP Series V10.20
For K-IA Diagnostic Software for CRP Series V10.40
For K-ia Diagnostic Software for X-431 Series V10.30
For SU-BARU Diagnostic Software for X-431 Series V10.07
For USAF-ORD Diagnosis software V11.20 for CRP
For CRP123 USAF-ORD Diagnostic Software
