• Model NO.：TC950A
• Condition：New
• Power Supply：1.1kw,0.75kw
• Air Supply：0.8-1.2MPa
• Internal Clamping Range：12 -24 (305-610mm)
• External Clamping Range：14 -26 (355-660mm)
• Max.Wheel Diameter：43′′
• Max.Wheel Width：15"
• Transport Package：Wooden Case
• Specification：SGS
• Trademark：AMCO
• Origin：Shaanxi Xi′an
• Production Capacity：30set,Month

Basic Info.

Model NO. TC950A Condition New Power Supply 1.1kw/0.75kw Air Supply 0.8-1.2MPa Internal Clamping Range 12 -24 (305-610mm) External Clamping Range 14 -26 (355-660mm) Max.Wheel Diameter 43′′ Max.Wheel Width 15" Transport Package Wooden Case Specification SGS Trademark AMCO Origin Shaanxi Xi′an Production Capacity 30set/Month

Product Description

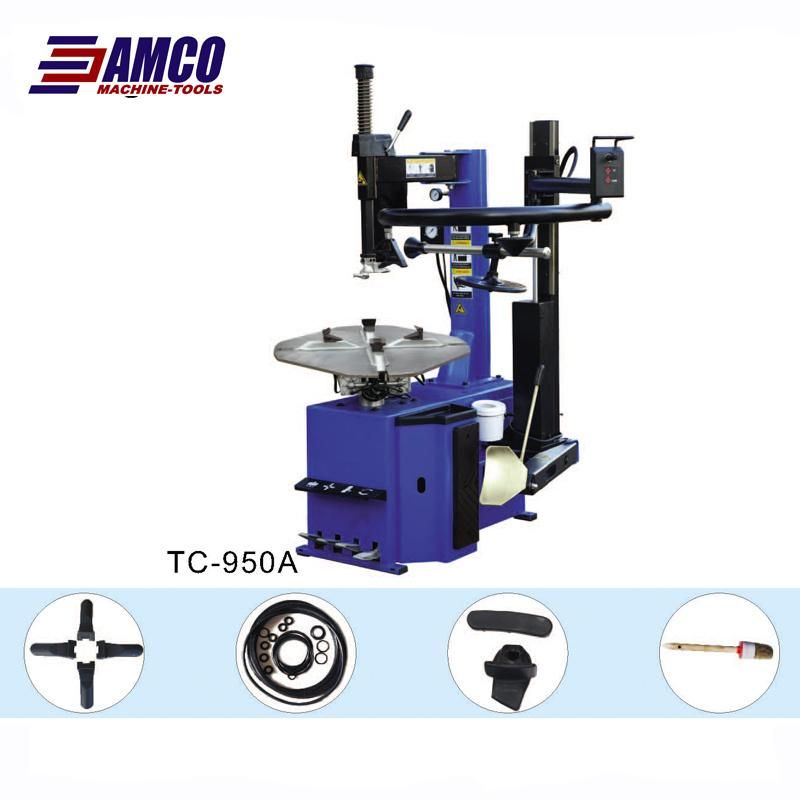

Swing Arm Car & Motorcycle Tyre Changer TC950A

1.With self-centering function;
2.Clamping system with stepping function;
3.Round tower serves as reserve air tank.
4.Mount/demount tool with plastic protector.
5.Angles of mount/demount tool can be adjusted and calibrated;
6.The high quality polymer mounts/dismounts tool prevents the rim from damage
7.Assist arm AL-330( Optional)
8.Wheel lift (Optional)
9.Adapter for motorcycle (Optional)
10.Bead seating inflation jets are integrated in the clamping jaws insuring quick and safe inflation (Optional)
11.Wear -resistant washer (Optional)
12. Optional colors


Power supply/ Motor power	110V/220V/380V (0.75/1.1Kw)
Air supply	8-12bar (0.8-1.2Mpa)
Rim Clamping range (External)	12 -24 (305-610mm)
Rim Clamping range (Internal)	14 -26 (355-660mm)
Bead breaker force	5500Lb (2500Kg)
Max. Wheel diameter	43 (1100mm)
Max. Wheel width	15 (381mm)
Noise	<70dB
N.W/G.W	320Kg/375Kg
