• Model NO.：GL
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：18000,24000,25000,30000
• Control Panel：Straight Driven Motor
• Lighting System：Upper Light+Side Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：panel sandwich style, δ =50mm, rock wool
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL Coating Powder Coating Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 18000/24000/25000/30000 Control Panel Straight Driven Motor Lighting System Upper Light+Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Transport Package Iron Frame Packing and Carton Packing Specification panel sandwich style, δ =50mm, rock wool Trademark GUANGLI Origin Guangzhou, China HS Code 84198990 Production Capacity 10, 000 PCS/Year

Product Description

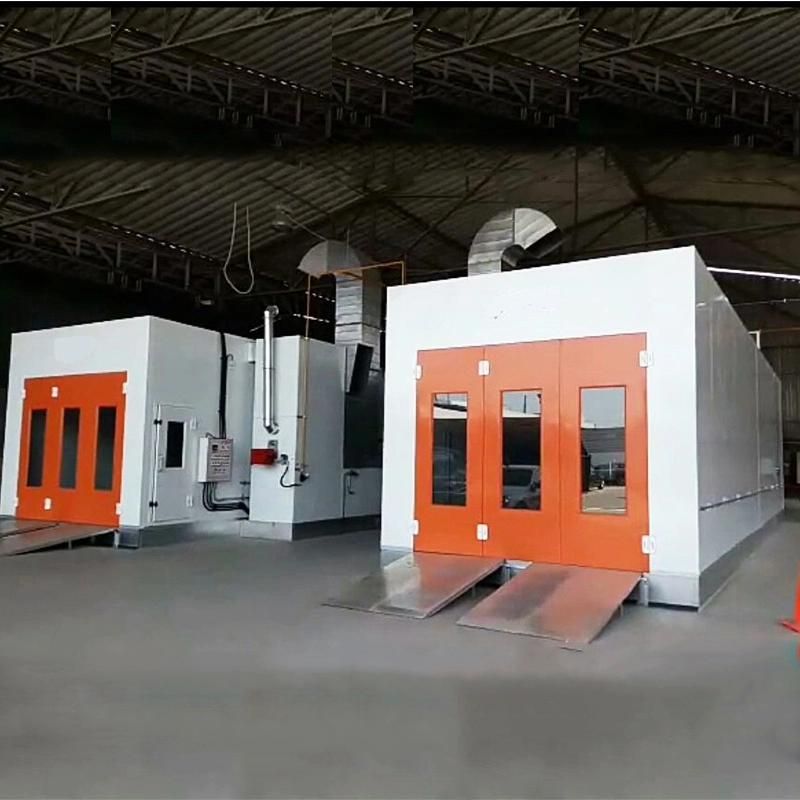

Twin Spray Booth Car Paint Repair Room Auto Body Spray Painting Booth in Peru

Description


Model	GL Series
External size (m)	7.0X5.3X3.5
Internal size (m)	6.9x3.9x2.7
Entrance Width(M)	3.0
Entrance Height(M)	2.66
Fan capacity( m 3 /h )	18000/24000/25000/30000
Air velocity (m/s)	0.25-0.35
Max Drying Temperature	60°-80°
Oil consumption (L/unit)	6-8
Power (kw)	9.5/16/18/25/26
Suitable Automobile Type	Car

--Wall panel :sandwich style,δ=50mm,rock wool or polystyrene.
--Basement :steel strucutre,3 rows od vein board and 2 rows of grids or full grids.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--ramp:2 pcs of vein board.-One 5.5kw,7.5kw or 11kw intake fan and one 5.5kw,7.5kw or 11kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend.5m straight chimney and 2 small bends.
--spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 burner.
--Roof filter:4 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--2 pcs of floor filter and 1 pcs of outlet filter.
--upper light :10sets,4*40W per set.side lights: 8 sets,2*40w.
--Control box:components imported,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.
--constant temperature spraying
--Environmental filter:the equipment can be adopted M style activated carbon or drawer activated carbon as optional.

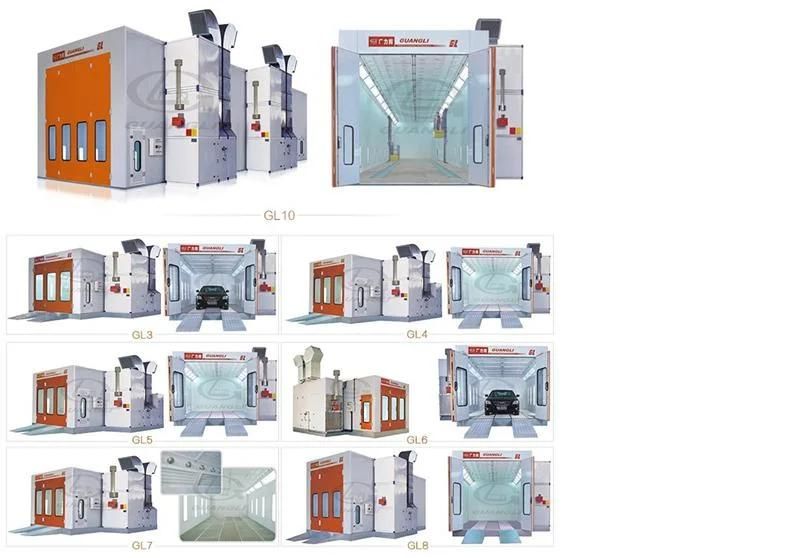

Other product series











Equipment



Exhibition



Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many
options for service and maintenance, and provides a full line of replacement parts and filters to ensure
your products operate at peak efficiency.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.

Factory Show


Equipment

We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

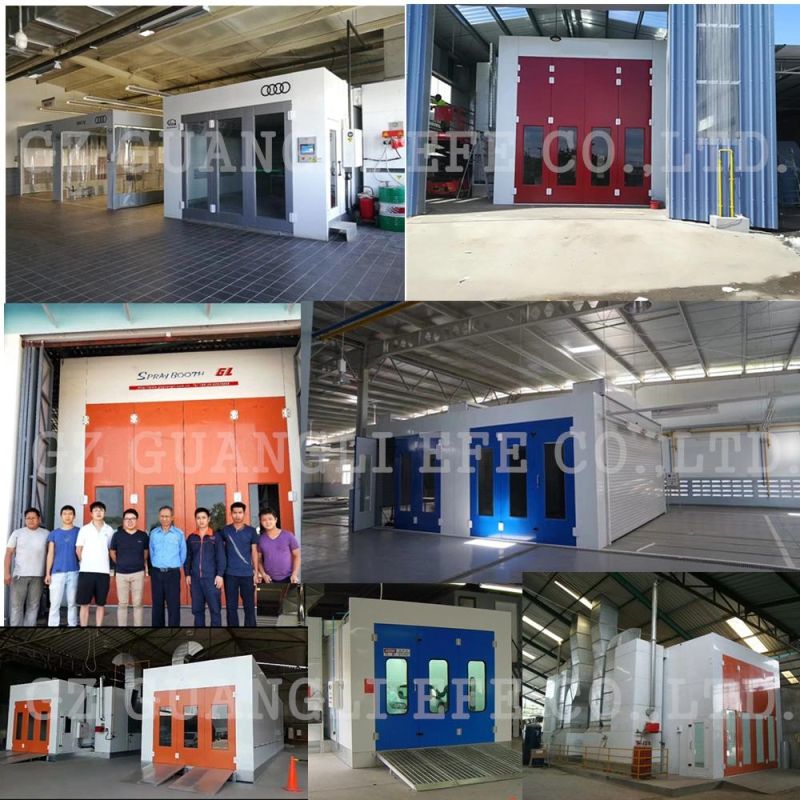

Real Case



Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ

1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
 different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.
