• Transport Package：Carton Box
• Specification：25cm*18.5cm*5cm
• Trademark：Xtool
• Origin：China

Basic Info.

Transport Package Carton Box Specification 25cm*18.5cm*5cm Trademark Xtool Origin China

Product Description

XTOOL SD100 Volle OBD2 Code Reader

XTOOL SD100 OBD2 Code Reader Highlights:

1.Supports 9 test modes of the latest OBD II test specs
2.Support ALL OBD2 compliant (including VWM,PWM,KWP2000 and CAN )

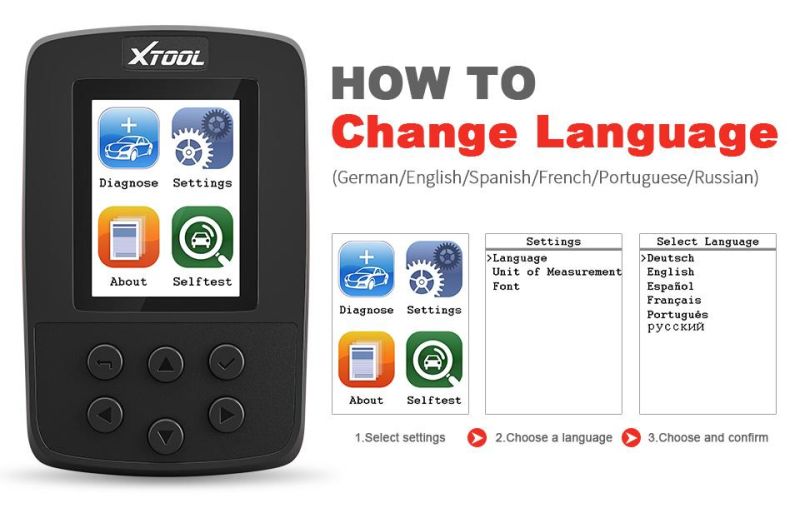

3.Support Multi Languages:German,English,Spanish,France,Portugues,Russian
4.1 Year free update




XTOOL SD100 Volle OBD2 Code Reader Functions:

Read codes
Erase codes
Live data
Freeze frame
Vehicle Information
Component test
On-Board monitor test
O2S monitoring test
I/M Readiness




XTOOL SD100 Reader Support Vehicle List:

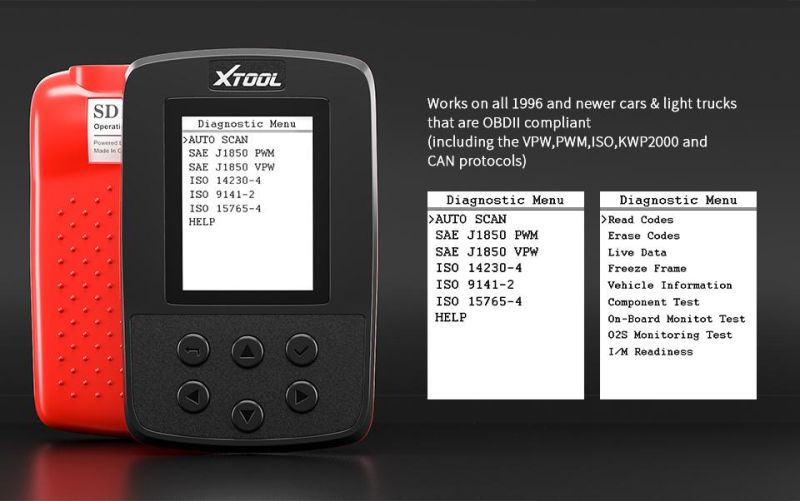

Works on all 1996 and newer cars & light trucks that are OBD2 compliant (including the VWM,PWM,ISO,KWP2000 and CAN protocols)

Vehicle Coverage:
ACURA, AUDI,AUSFORD, BENTLEY, BENZ, BMW, BUGATTI,BUICK, CHRYSLER,CADILLAC,CHRYSLER,CHEVROLET, CITROEN, CVVW,DACIA,DAIHATSU,DODGE,DAEWOO
FORD,FIAT,GM,GMC,HOLDEN,HONDA,HUMMER,HYUNDAI,INFINITI,ISUZU,JAGUAR, JEEP, KIA, LAND ROVER, LEXUS, MAYBACH, MAZDA, MINI, MITSUBISHI
NISSAN,OPEL,PORSCHE,PEUGEOT,PONTIAC,PEUGEOT,RENAULT,SAAB,SCION,SEAT,SKODA,SMART,SPRINTER,SUBARU,SUZUKI,TOYOTA,VAUXHALL,VOLVO
VOLKSWAGEN,VW








How to Connect XTOOL SD100 to Vehicle:

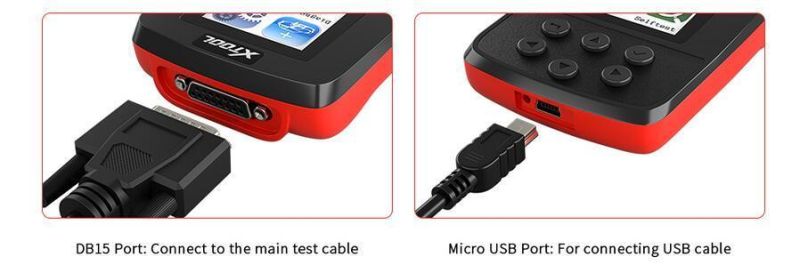

(1) Connect the DB15 Connector of test cable to the XTOOL SD100 main frame,and the OBDII-16 connector to the vehicle DLC port.(show as below)
(2) Switch on the ignition and turn on SD100 to test vehicles.



XTOOL SD100 FAQs:

Question 1: I went to the xtools web site and this model is not even listed. only the sd500 model is. so.. is the sd100 a discontinued model .
Answer 1:XTOOL SD100 is a new product that launched by XTOOL. It is a unique solo model. Just for basic functions of 9 modes on engine. And still can upgrade like other XTOOL products does.

Question 2: What does the USB cable use for ?
Answer 2: The USB cable in the package is use for software update.


XTOOL SD100 Technical Parameters:

CPU:                                          32bit Cortex M3 72MHz
Program Memory:                    512K Flash
Input Voltage:                           DC 11-36V

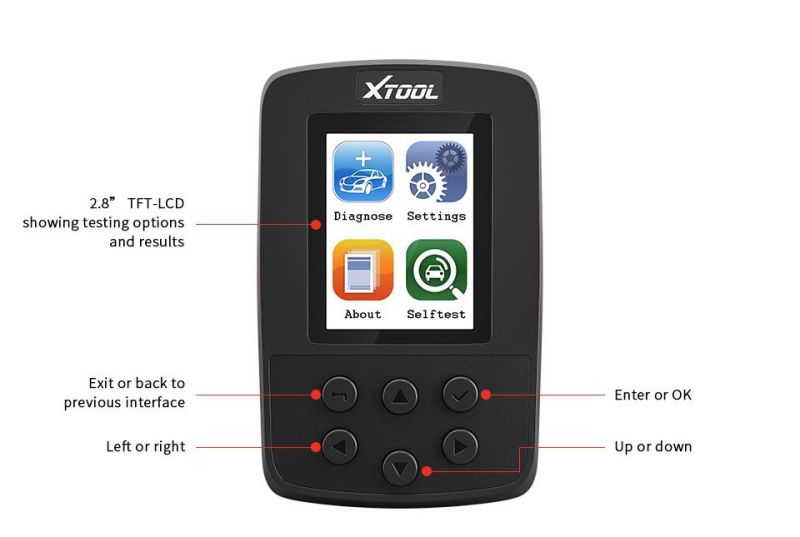

Display:                                     2.8" TFT-LCD Display
Operating Temperature:          -20-50°C
Dimension (LxWxH):                 138(L)x88(W)x31(H)mm
RAM:                                         64 Ram
Internal Memory:                      16MB
External Interface:                     DB15/mini USB

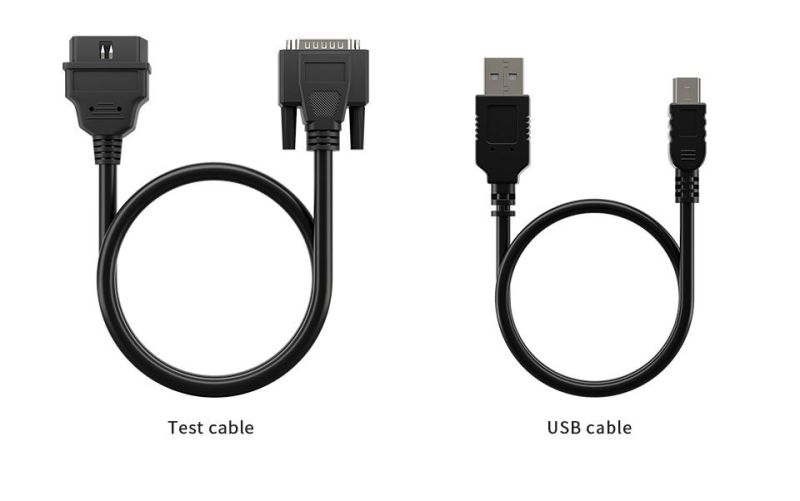

Components:                            Main frame/test cable/USB cable
Humidity:                                  <90%


XTOOL SD100 Package Includes:

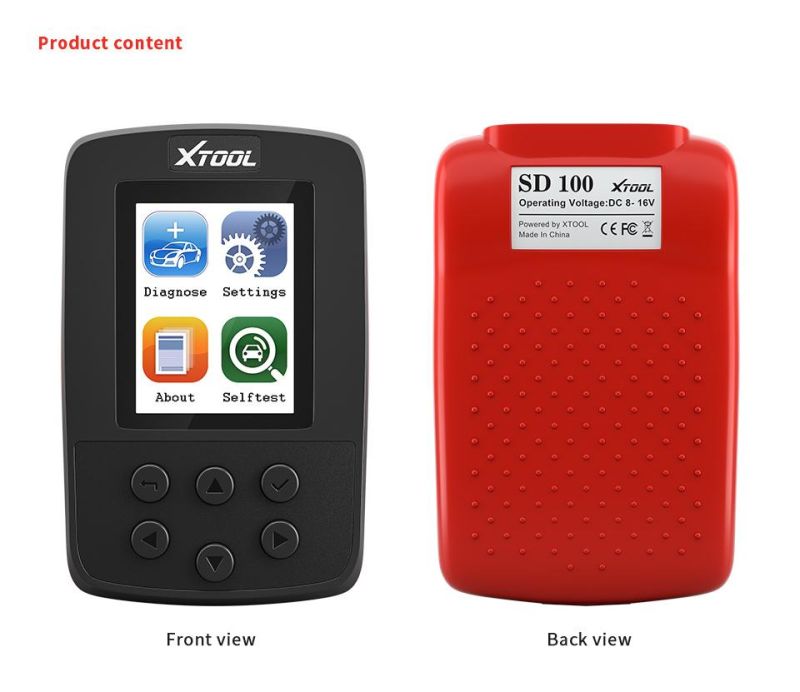

1pc x XTOOL SD100 OBD2 Code Reader Main unit
1pc x OBD2 connector
1pc x USB cable
