• Model NO.：GL10-CE
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：4.0
• Door Height(M)：4.0
• Air Flow (M3/H)：72000
• Vehical Suited：Truck,Bus
• Usage：Car Painting Baking
• Color：Red White Orange Blue
• Heating System：Riello Brand Rg5s Diesel Burner
• Filters：High Efficiency Filter
• Lighting System：Ceiling Light+Side Light
• Special Design：Customization Is Available.
• Transport Package：Iron Frame Packing and Carton Packing.
• Specification：Standard
• Trademark：GL
• Origin：Guangzhou, China
• Production Capacity：800,Month

Basic Info.

Model NO. GL10-CE Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 4.0 Door Height(M) 4.0 Air Flow (M3/H) 72000 Vehical Suited Truck/Bus Usage Car Painting Baking Color Red White Orange Blue Heating System Riello Brand Rg5s Diesel Burner Filters High Efficiency Filter Lighting System Ceiling Light+Side Light Special Design Customization Is Available. Transport Package Iron Frame Packing and Carton Packing. Specification Standard Trademark GL Origin Guangzhou, China Production Capacity 800/Month

Product Description

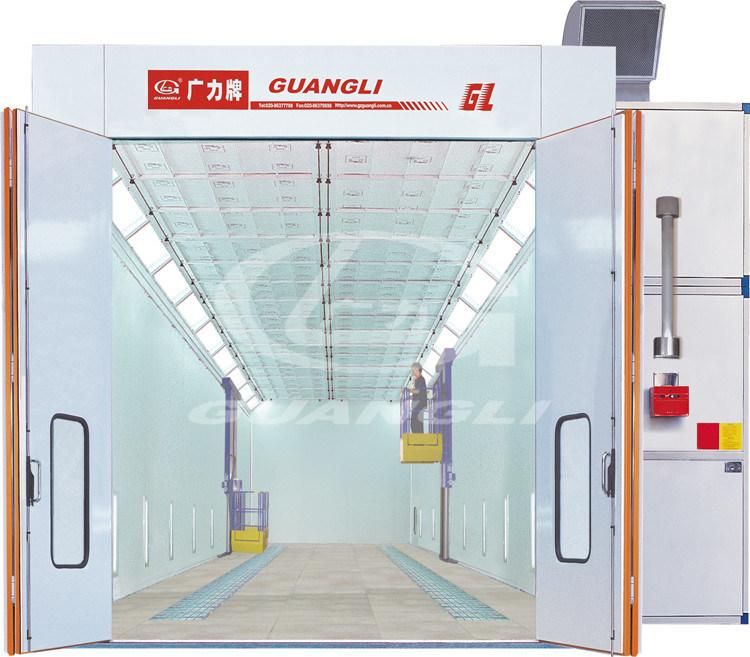

Reinforced Steel Made Auto Downdraft Truck Spray Booth Paint Booth Prices

GuangLi Spray booth Feature

--Wall panel: sandwich style, δ=75mm, rock wool available as required.
--Basement: concrete structure made by customers, 2 rows of grids, 3d lifts as optional.
--Door: 4 pcs of front door without aluminum side cover. 2 pcs of emergency door with pressure lock.
--Two 11kw intake fans and two 11kw exhaust fans.
--2 pcs of floor filter and 2 pcs of air mouth filter.

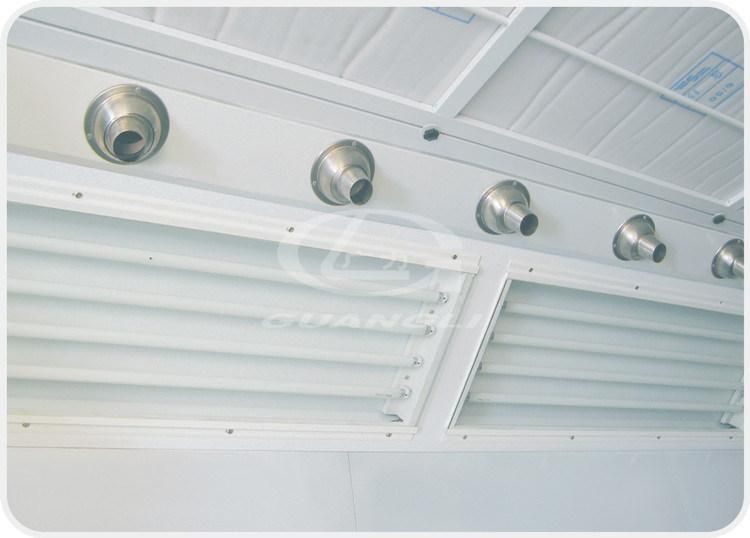

--Upper light: 20 sets, 4*40w per set. side lights: 16sets, 4*40w.
--Two sets of exhaust/intake ducts, 5m straight, one 90° bend, and one 60° bend
each. two sets of chimney, 5m straight and 2 small bends.
--2sets of manual VCD exhaust/intake dampers, electrical VCD as optional.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. 2units of RIELLO RG5S burners.
--Roof filter: 16 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--Control box: imported components, overload, overheat, phase-lacking,
phase-locking protection, engine Y star-delta start.
--Automatically stop when preset time is up.Constant temperature spraying.
--Environmental filter :either M style or drawer style active carbon equipment can be adopted.

Technical Specifications	GL3000-C1
External size(m)	15.2×6.7×5.0
Internal size(m)	15.0×5.0×4.4
Door width(m)	4.0
Door height(m)	4.0
Air flow (m3/h)	72000
Inside no-load air speed(m/s)	0.3-0.5
Power (kw)	50
Vehicle suited	Truck/Bus

GuangLi Spray booth Show

Note:Water-based Device as option
Why Choose Us

1.More than 20-year experience in Spray booth and car lift field.

2.Superb unique technology and Automatic production line.

3.Large order can be placed.

4.Advanced equipment and exquisite workmanship.

5.Durable and reliable.

6.Good pre-sales and after-sales service.

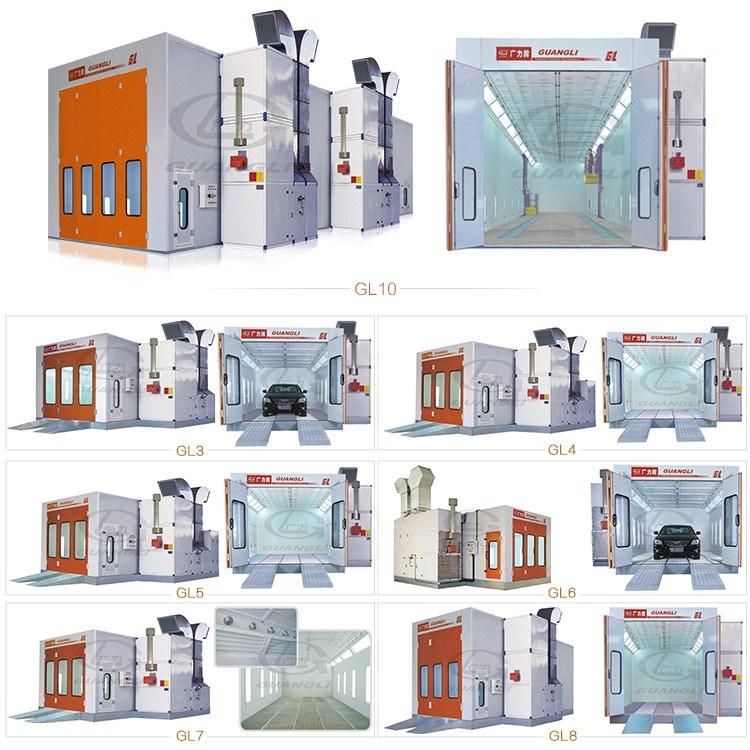

Products Series

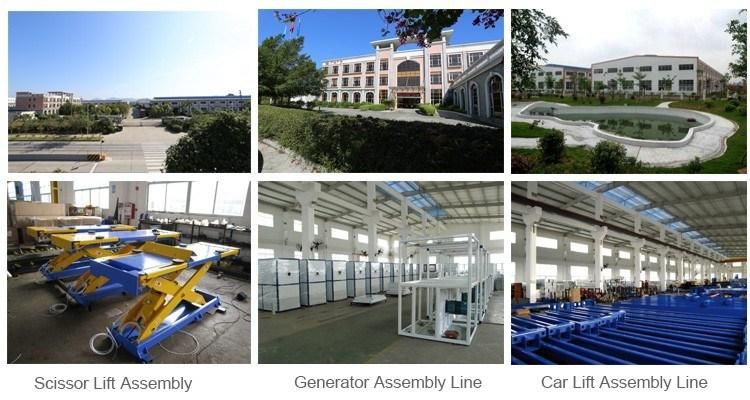

Company Profile

GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer in China for more than 22 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters, which covers 58,000M²of grounding area and 36,000M²of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, havinga good reputation among Chinese auto-maintenance enterprise.The sales volume of spray booth ranks top in this field over years.

Certificate

Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001.

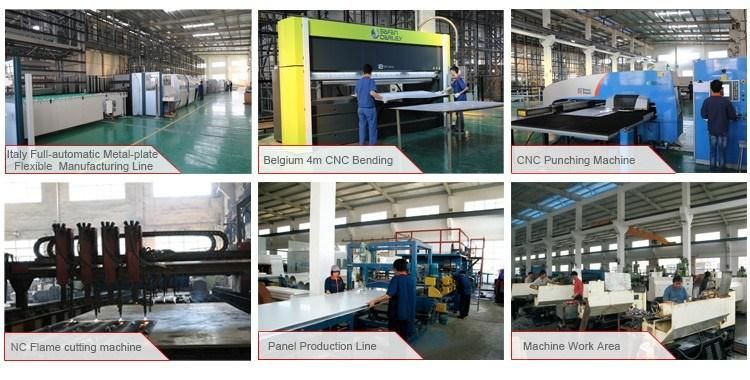

Equipment

We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

FAQ

1.Q:Are you a factory or Trading company?

A:We are a factory with export department.

2.Q:Where is your company located? How can I visit there?

A:Our company is located in Guangzhou all clients, from home and abroad, are warmly welcomed to visit us.

3.Q:How about the quality of the products?

A: With the advanced machines, technology and material sources, our products are quite excellent in performance and craftsmanship.

B:Customized material and standard are acceptable. We can offer different standards according your market and favor.

4.Q:What's the MOQ for each items?

A:We accept one piece/set each time.

5.Q:What's the delivery time?

Bulk Order:15-25 working days
