• Model NO.：Launch X431 Diagun V
• Language：Spanish, Japanese, German, French, English, Italian
• Update Method：by Internet
• Type：Diagnostic Scanner
• Weight：5kg
• Transport Package：Plastic Box Packing
• Trademark：Launch
• Origin：China
• HS Code：8543709990
• Package size per unit product：10.00cm * 10.00cm * 10.00cm
• Gross weight per unit product：5.000kg

Basic Info.

Model NO. Launch X431 Diagun V Language Spanish, Japanese, German, French, English, Italian Update Method by Internet Type Diagnostic Scanner Weight 5kg Transport Package Plastic Box Packing Trademark Launch Origin China HS Code 8543709990

Packaging & Delivery

Package size per unit product 10.00cm * 10.00cm * 10.00cm Gross weight per unit product 5.000kg

Product Description

Top Reasons to choose Launch X431 Diagun V
1.Diagun Latest version:Diagun V.
2.2 years free update online.
3.Multi-language, you can change the language by yourself,dont need to send to seller to activate it.
English,French,Spanish,German,Italian,Portuguese,Turkey,Polish,Dutch,Greek,Hungarian,Danish,Persian,Romanian,Serbian,Finnish,Swedish,Czech,Arabic,Russian,Japanese,Korean,Traditional Chinese and Simplified Chinese.
4.With Android 7.0 system, supports one-click update.
5.Handset, Easy to operate, avoid broken or lost bluetooth adpater.
6.Add Special Function:EPB Reset, Oil Reset, SAS Reset, ABS Bleeding, TPMS Reset, DPF Reset, BMS Reset, IMMO Reset, Injector Coding,Throttle reset,Gear Learning

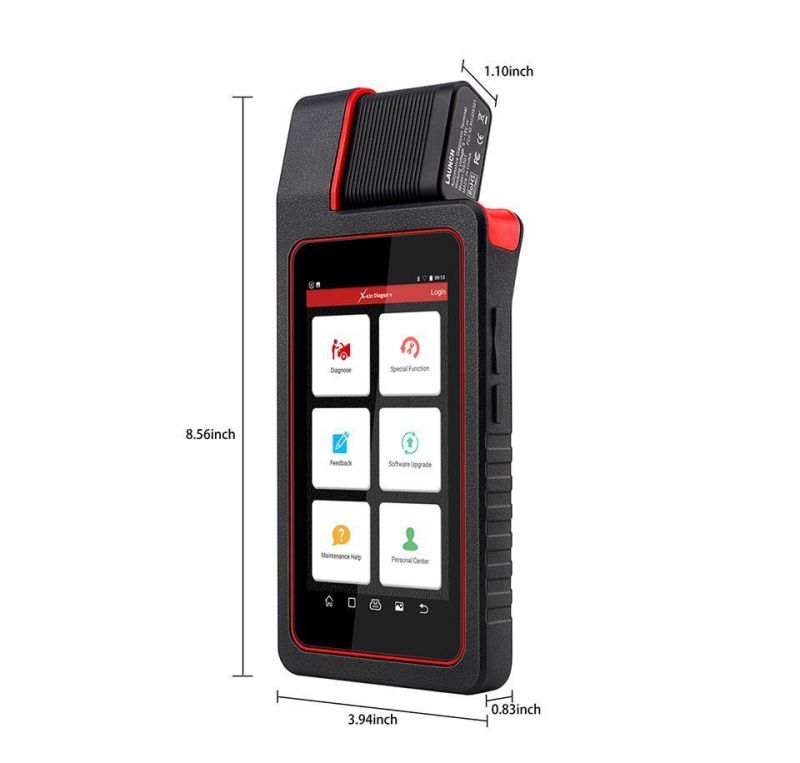

X-431 Diagun V is an slim evolutionary vehicle diagnostic tool. Featuring a quad-core 1.3GHz processor, and a 5.5 inch capacitive screen, X-431 Diagun V delivers diagnostic functionality which helps to diagnose vehicle issues more efficiently.
In addition, X-431 Diagun V supports Wi-Fi connection, one-click update, diagnostic feedback and all kinds of service functions (including oil lamp reset etc).

Features:
1.Diagnostics:
A.Diagnose
*Diagnose the electronic control systems of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs and Read data stream etc.
*Specially designed for Android platform with clear and user-friendly interface.
B.Reset: Includes all kinds of maintenance resets.
C.One-click Update: lets you update diagnostic software and APK more efficiently.

2.Browser: built-in Wi-Fi module makes surfing on the internet freely.
3.Email: allows you to send and receive emails.
4.Settings: to configure your personalized X-431 Diagun V through it.
5.Applications: other android based applications can be customized to install or uninstall.


Vehicle connection:
The method used to connect the VCI connector to a vehicle's DLC depends on the vehicle's configuration as follows:
• A vehicle equipped with an OBD II management system supplies both communication and 12V power through a standardized DLC.
• A vehicle not equipped with an OBD II management system supplies communication through a DLC connection, and in some cases supplies 12V power through the cigarette lighter receptacle or a connection to the vehicle battery.

For OBDII vehicle,proceed as follows:
1. Locate vehicle's DLC socket.
2. Choose one of the two ways to obtain power from:
A. Power adaptor: Connect one end of the included power adaptor to DC IN port of X-431 Diagun V handset, and the other end to AC outlet.
B. Internal battery pack

For non-OBDII vehicle, proceed as follows:
1. Locate vehicle's DLC socket.
2. Select the corresponding non-16pin connector.
3. Plug the non-16pin end of the connector into the DLC socket, then connect the other end to the OBD I adaptor, and then tighten the captive screws.
4. Connect the other end of the adaptor to the included connector.
5. To supply power to OBD I adaptor from:
A. Cigarette Lighter cable(optional): Connect one end of the cigarette lighter cable to vehicle's cigarette lighter receptacle, and the other end to the power jack of OBD I adaptor.
B. Battery Clamps Cable(optional): Connect one end of the battery clamps

Reset function:
The Reset section is specially designed to provide you quick access to the vehicle systems for various scheduled service and maintenance performances. All resetting operations are driven by executive commands. Just by following the on-screen prompts to select appropriate execution options, input correct values or data, and perform necessary actions, the system will guide you through the complete performance.
The most commonly performed service functions contain:
• Oil Reset Service
• Steering Angle Calibration
• Electronic Parking Brake Reset
• Battery Register / Battery Maintenance
• ABS Bleeding
• Electronic Throttle Position Reset / Learn
• Diesel Particulate Filter (DPF) Regeneration
• Tire Pressure Monitor System Reset

Technical Parameters:
X-431 Diagun V:
Operating system:Android 7.0
Processor:Quad core 1.3GHz
Memory:2GB
Storage:32GB (Expandable up to 64GB)
LCD screen:5.5 inch IPS screen with a resolution of 1280 x 720 pixels
Camera:Rear-facing 8MP camera
Battery:4680mh rechargeable polymer lithium battery
Connectivity:
*Wi-Fi: WLAN 802.11b/g/n
*Bluetooth: Bluetooth 4.1
Working temperature:0ºC ~ 45ºC
Storage temperature:-10ºC ~ 50ºC

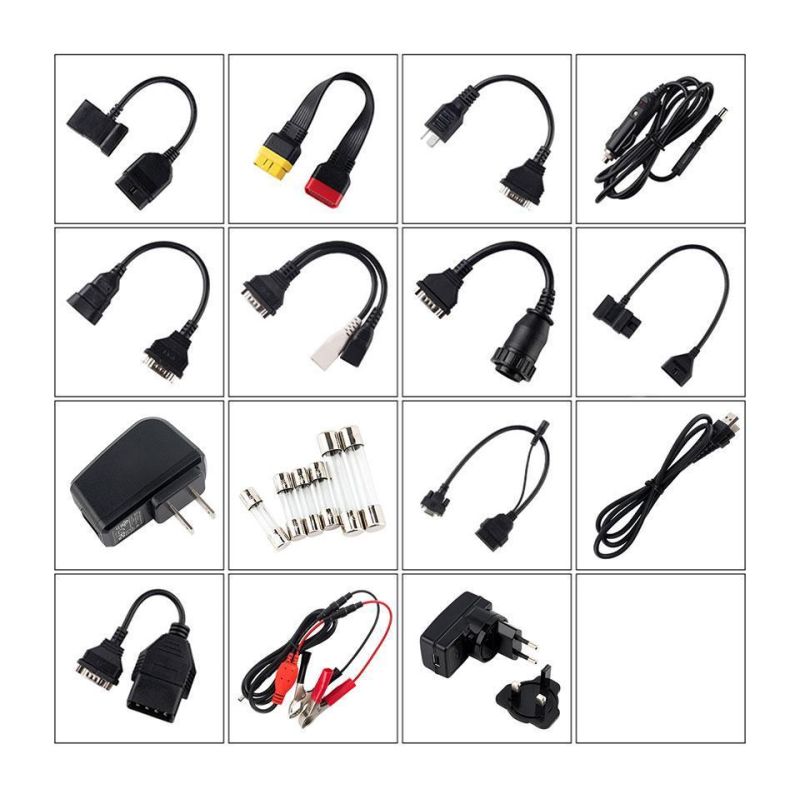

Package List:
X-431 Diagun V handset
Password envelope
OBD II extension cable (these cables are in Diagun V yellow box )
OBD I adaptor (these cables are in Diagun V yellow box )
Power adaptor
Non-16pin connectors (these cables are in Diagun V yellow box)
