• Model NO.：C-100A
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Intake Fan：2X 4kw Centrifugal Fan
• Transport Package：Standard Packing Suitable for Sea transportation
• Specification：7m length
• Trademark：Sunrise
• Origin：China
• HS Code：84178090
• Production Capacity：100 per year

Basic Info.

Model NO. C-100A Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Intake Fan 2X 4kw Centrifugal Fan Transport Package Standard Packing Suitable for Sea transportation Specification 7m length Trademark Sunrise Origin China HS Code 84178090 Production Capacity 100 per year

Product Description

Spray booth C100A


Inside Dimensions: 7000 X 4000 X 2600mm( L X W X H)
Outside Dimensions: 7120 X 4120 ( 5670) X 3350mm( L X W X H)
Entrance Door: Three-fold, 3000 X 2550mm( WX H)
Personnel door: 800x2000mm(W X H), with Pressure lock

Wall Panels: Thickness: 60mmEPS tongue and groove interlock construction, pre-coated steel sheet, double skined with insulations

Basement system: raised metal base(300mm high); 2 rows of gratings and 3 rows of indented plates; 2 pieces of ramps 750x2000mm(WxL)

Lighting: Upper inclined lights, total 8 sets, each set: 4 pieces x36W, Philip bulb

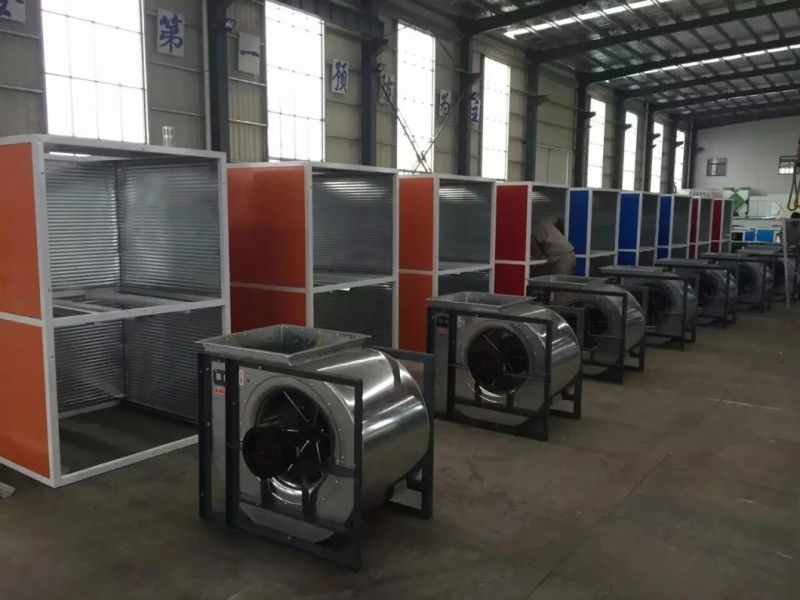

Intake system: 2x 4kw centrifugal fans, air capacity 20000m3/h, motor: 4kw (2pcs) ABB brand

Heating System:
G20 oil burner from Riello, Stainless steel heat exchanger,
80 degree working temperature
Electric damper

Filter System: Prefilter, ceiling filter, floor paint-stop filter

Control System: Reliable components, digital temperature readout, spray and bake temperature settings, bake timer, houer meter, over temperature alarm, indicator lights, emergency stop

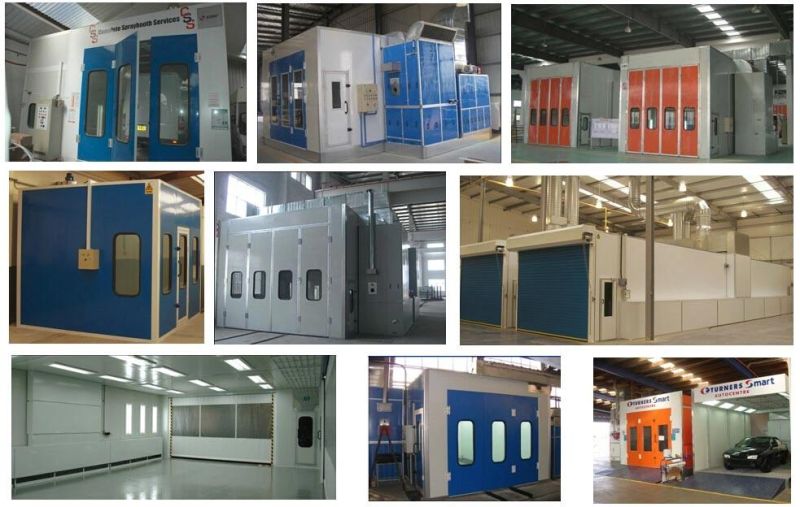

CASES:
