• Model NO.：GL2000-A1
• Heating Mode：Diesel
• Paint Mist Treatment：Wet-type
• Condition：New
• Colour：Bule,Grey,Orange
• Safe Door：1 Piece in The Side Wall, with Pressure Lock
• Panel Color：White
• Keep Warm Material：EPS, Rock Wool as Optional
• Transport Package：20 Gp Can Hold 1 PCS
• Specification：Internal Size 6.9 x 3.9 x 2.7(m)
• Trademark：GuangLi
• Origin：China
• HS Code：8419899090
• Production Capacity：2000

Model NO.GL7 ( CE standard)External Size7.0*5.3*3.5(m)Internal Size6.9*3.9*2.7(m)Wall panel colour Whitewall panel keep warm materialRock Wool, thickness:50mmWall panel colour steelThickness:0.426mm with metal edge cover
Door :Enter size3*2.66(m)Structure3 folded sheet metal process without framecolourorange, or blue or greyFront horizontal panel and front vertical panelsWhiteMaterial Rock woolSafe doorWhite; 2000*800(mm), 1 piece in the side wall, with pressure lock
with one pc of ramp for safe door and with LED exit light
Light system:Top light(2) sides*(5) sets* (4) pcs, LED 18W/piece
-With tempering glass cover
-With aviation connetor
-with full frame for light box for ensruring the sealSide light(2)sides*(4)sets*(4)pcs,LED 18 W/ piece; Vertical
-with tempering glass cover
-with aviation connector
-with full frame for light box for ensuring the seal
Generator:ColorWhiteBurnerItaly Riello diesel burner RG5SIntake Fan1 set of 11 kw with M style pre-filter With explosion-proof impellerExhaust Fan1 set of 11 kw with explosion-proof impellerFan capacity(30000)M³/hDuct&Chimney ductWith 5m exhaust duct and 5m intake duct
5m straight chimney and 2 small bends. with 2 pcs manual VCD adjustable damperMotor Voltage380V/50HZ/3PH(other voltage contact me)Control boxImport components;Motor Y/three start; With 1 pcs pressure meter
All components should be CE standard, and the control box voltage should be as 24 V.
Basement:Floor5 rows of twisted zincified bearing gridsFloor filter5 rows/setRamps2 pcs of grid style ramps
Filter Frame:Top filter 6 pcs/setStructureHinge installed iron welded, powdered

Water based paint compliant system: Water based paint booth With 4 sets of 0.8kw fan, and with 40 pcs of nozzles at the ceiling.

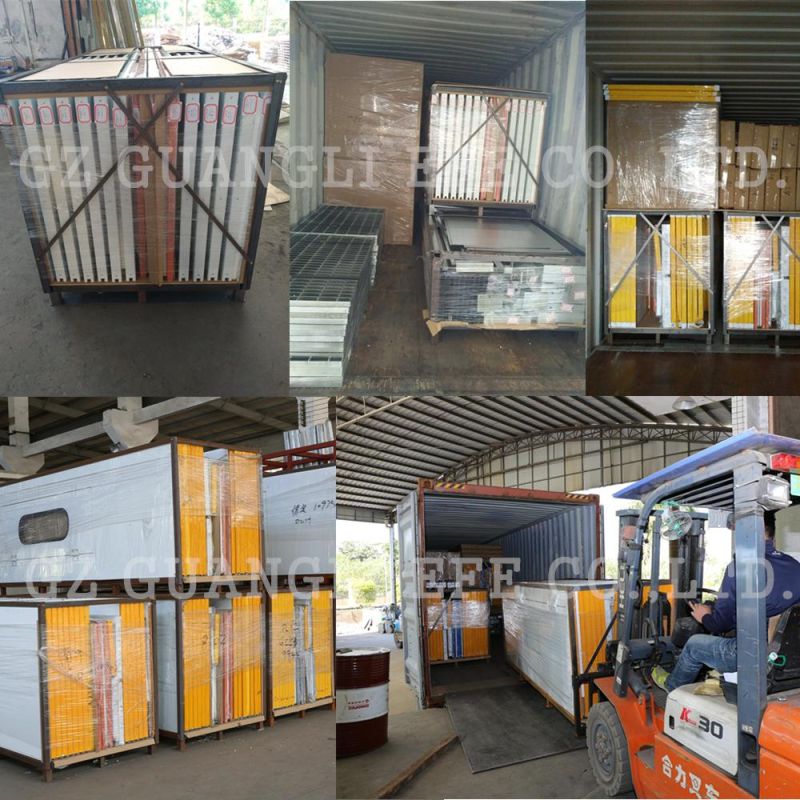

Product packages

To keep the products safe and to remain the good image of the spray booth, Guangli company has standard fixed packages, to avoid getting damaged during international delivery. We use iron frame and carton boxes to package and fix before loading, as you can see in the pictures. This way can perfectly protect our paint booths when shipping.

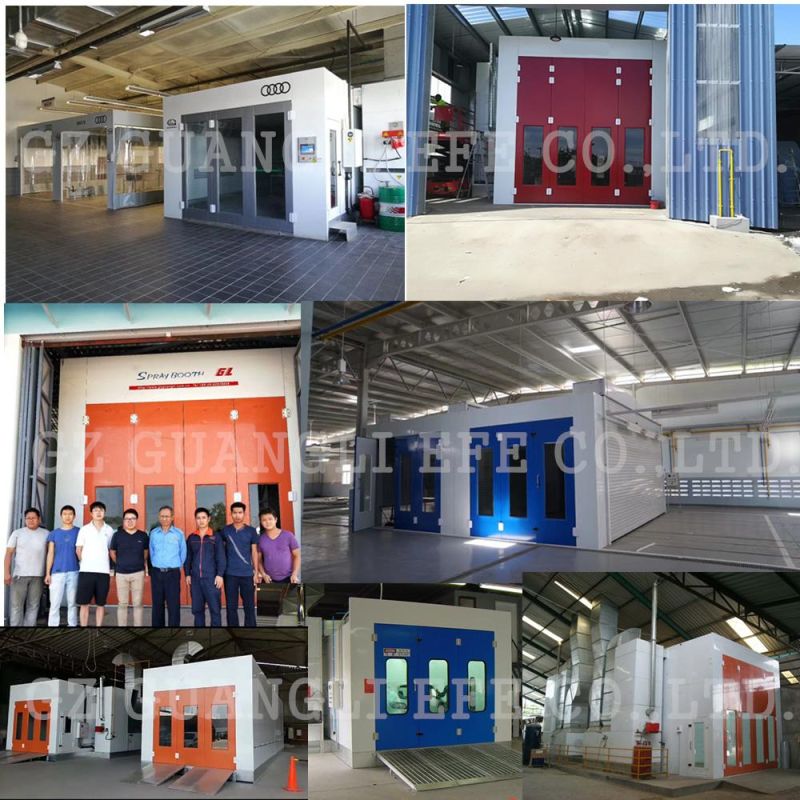

Real Case

Guangzhou Guangli is professional auto maintenance equipment manufacturer since 1994. And with our up-today manufacturing facilities, high-tech industrial, product developing manufacturing sales and perfect after-service. Our product has been shipped to worldwide(Europe, East Europe, North&South Africa, Africa, Australia, Middle East, Asia as well as different province in China).




Company Profile
GZ GUANGLI EFE CO.,LTD is professional spray booths and man lift manufacturer in China for more than 20 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters and new factory in 2005, which covers 58000M²of grounding area and 36000M²of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of paint booths ranks top in this field over years.
Guangli brand spray booth and personnel lift have been approved and authorized by the following car manufacturers in China:Guandzhou Honda, Dongfong Honda, FWA Toyota, Guangzhou Toyota, Dongfon Puigeu , BMW South China, Chery Auto, Dongnan Auto, Foton Motor, Hafei Auto.

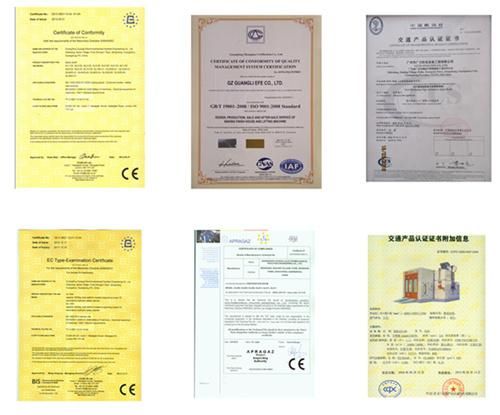

Product Certificates

Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001.

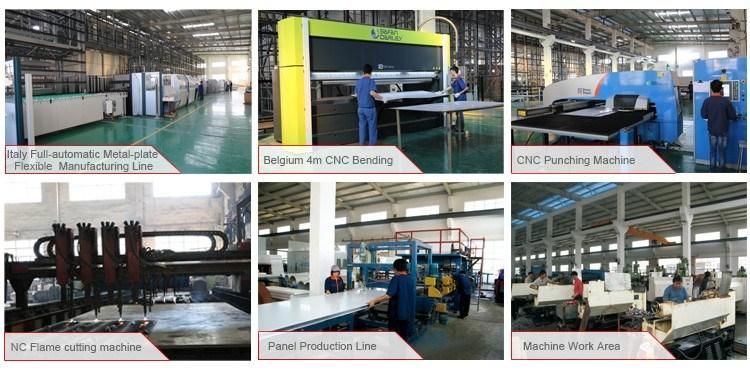

Equipment

We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

Exhibitions






FAQ
 1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department. So you can get best price from us.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad,  are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material sources,our products are excellent in performance and
 craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can
provide different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.


Why Choose Us

1.More than 20-year experience in Spray booth and car lift field.

2.Superb unique technology and Automatic production line.

3.Large order can be placed.

4.Advanced equipment and exquisite workmanship.

5.Durable and reliable.h

6.Good pre-sales and after-sales service.
