• Model NO.：KC350
• Transport Package：Flywood
• Specification：1010*920*1220mm
• Trademark：AMCO
• Origin：China
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. KC350 Transport Package Flywood Specification 1010*920*1220mm Trademark AMCO Origin China Production Capacity 50 Sets/Month

Product Description

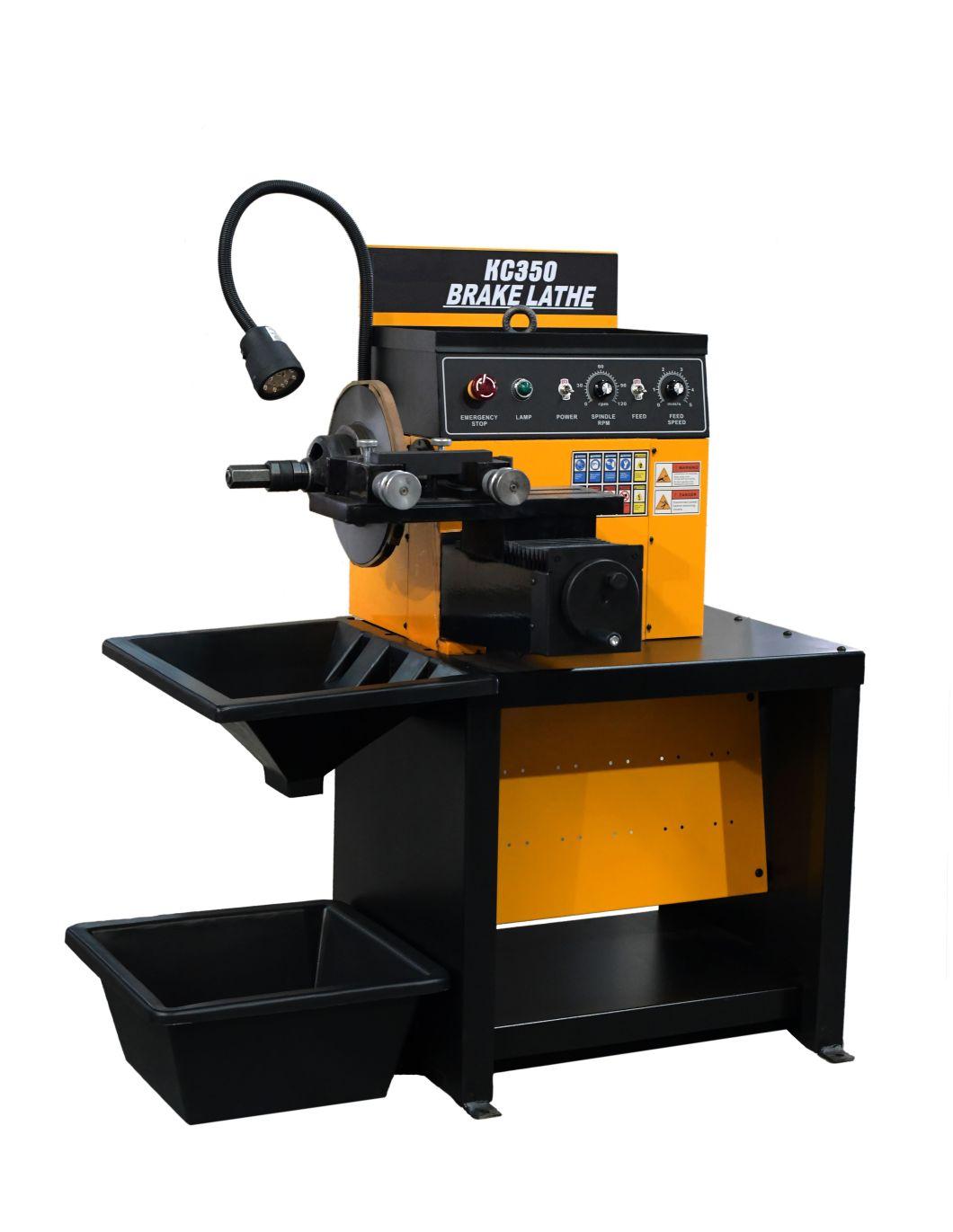

KC350 DISC BRAKE LATHE
Main specifications


Model	KC350	Motor	220V/380V, 50-60Hz
Spindle Speed	0-120RPM	Feed Speed	0-1.84″(0-46.8mm)/min
Disc Travel	4.33″(110mm)	Max Cutting Depth	0.008″(0.2mm)
Disc Diameter	6″-14″(150-356mm)	Disc Thickness	1.57″(40mm)
Gross Weight	247KG	Dimension	1010×920×1220mm

Feature:
1. With its rational construction, excellent performance and handiness, KC350 is the brake lathe especially designed to cut discs.
2. The spindle and feeding are both driven by the independent motors, in order to achieve their infinitely variable speed.
3. The 6-edge blades are more efficient so as to increase the service life.
4. The customer can get the frequently-used accessories and tools easily from the hanging board and the tool box.
5. The big transparent safety shield can prevent the operator from the hazards.
6. KC 350 is equipped with a complete set of accessories to meet the needs of a variety of vehicles.
7. Accessories of special vehicles can be customized.
8. In all, KC 350 is the desirable maintenance equipment in 4S stores and the meduim-small repairing factories.

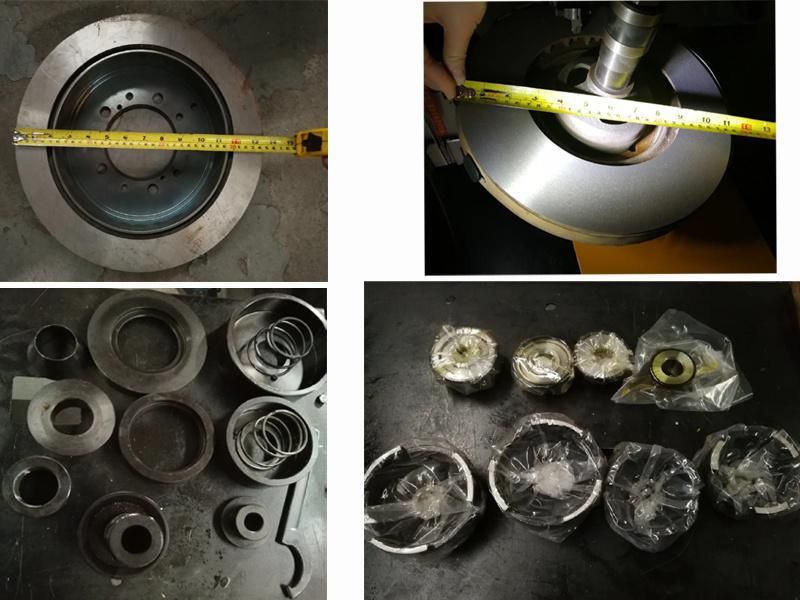

Standard Adapter


No.	Standard Accessories	Qty
1	Taper Cone 1.22″×2.24″ (31X57mm)	1
2	Taper Cone 1.77″×7.75″ (45X70mm)	1
3	Taper Cone 2.32″×2.95″(59X75mm)	1
4	Taper Cone 2.598″×3.22″ (66X82mm)	1
5	Arbor 1″(25.4mm)	1
6	Spacer (5/10/20mm)	3
7	Clamp 3.7″(94mm)	2
8	Clamp 4.57″(116mm)	2
9	Open End Wrench (21mm)	1
10	Open End Wrench (27-30mm)	1
11	Arbor Spring	1
12	Silencing Belt	2
