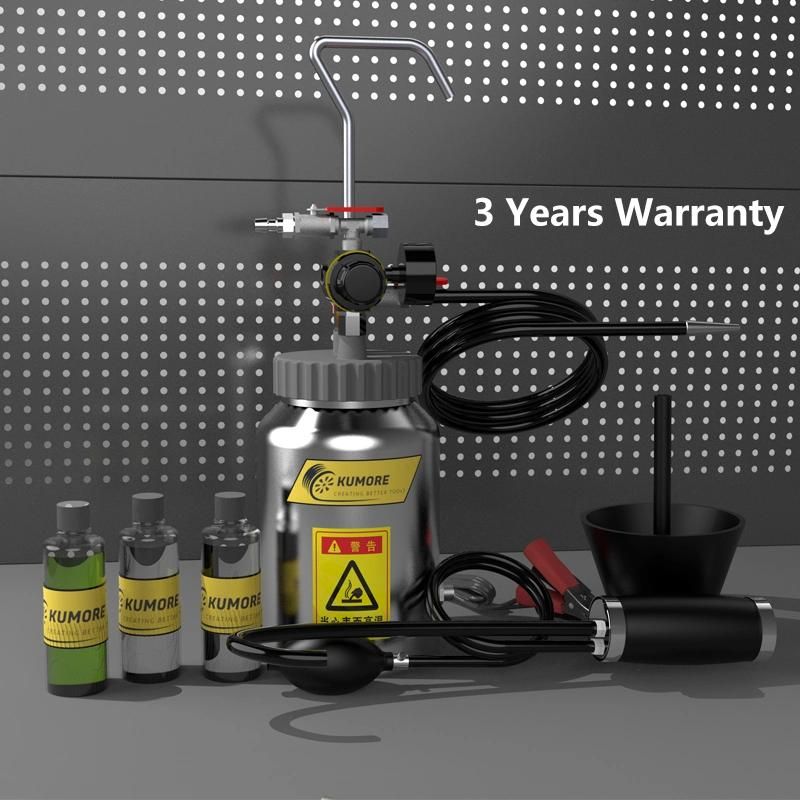

Economy Series Smoke Leak Detector Automotive for Evap Vacuum Intake System
Shenzhen Yunxudong Import & Export Co., Ltd.- Warranty：3 Years
- Testing Equipment Type：Automotive Smoke Leak Tester
Base Info
- Model NO.：SLT002
- Certification：CE, RoHS
- Update Method：Smoke Leak Detector
- Condition：New
- Standard：Standard
- Product Name：Smoke Leak Detector Tester
- Application：Car Motorcycle SUV Truck Pipe Systems
- Customized：Yes
- OEM/ODM：Accept
- Size：30*28*20cm
- Weight：4.5kg
- Power：8W
- Voltage：12V
- Smoke Flow：1~6L,Min
- Air Pressure：12-18 Psi
- Transport Package：30*23*30cm
- Specification：52cm*38cm*85cm
- Trademark：kumore
- Origin：China
- Production Capacity：50000pices,Years
- Package size per unit product：30.00cm * 28.00cm * 20.00cm
- Gross weight per unit product：4.500kg
Description

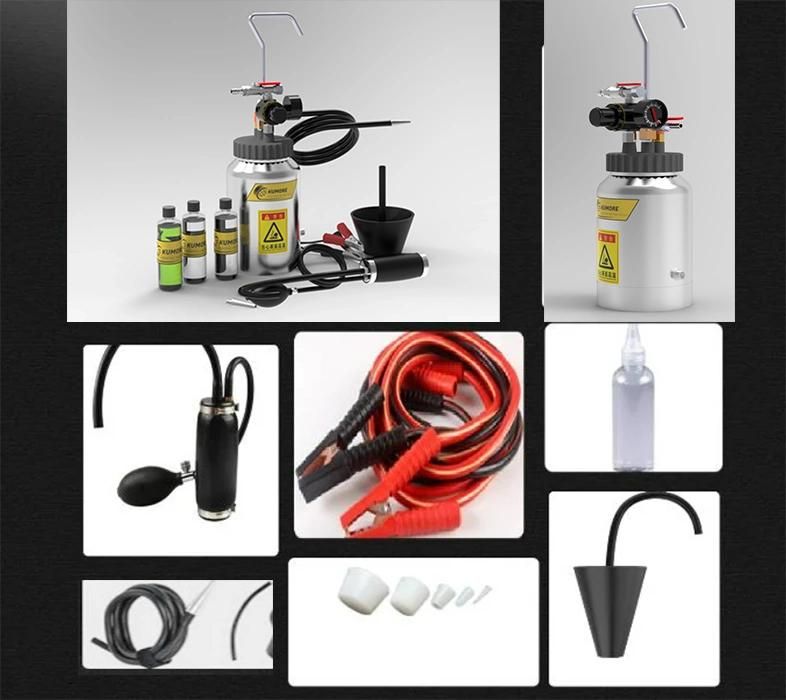

Packing List :1pc * KUMORE SLT002 Car Smoke Leak Detector 1pc * Hook (with hand-tighten nuts)1pc * Rubber Connect Parts1sets * Hard Rubber Hose Plug (with serial specification)1pc * Standard Cone Adapter1pc * Power Cord Clamp1pc * Valve Core Wrench3pc * Test Oil Refill Bottle(oil not included)1pc * EVAP Special Connector1pc * Smoke Hose1pc * User ManualIncluding these kits

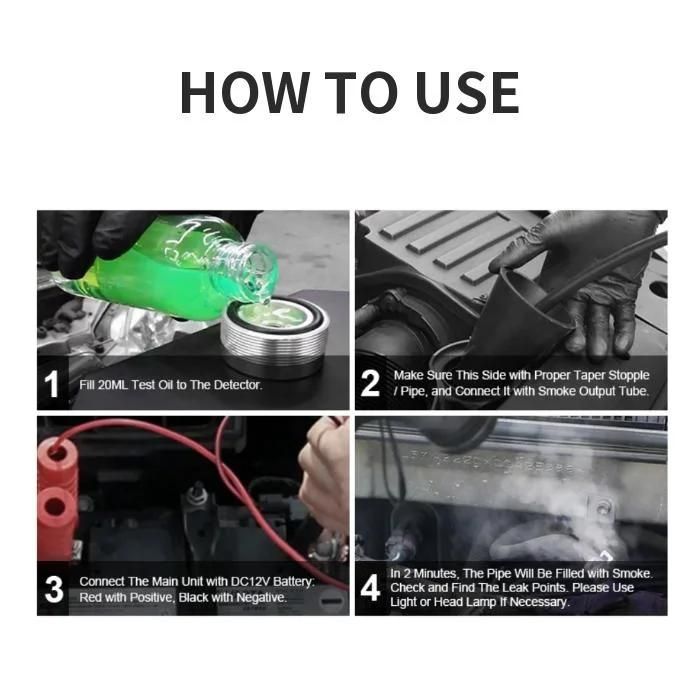

How to Use:1.Fill Up the Smoke Fluid.
2.Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle. Please secure the other side with a rubber stopple.
3.Secure this side with proper taper stopple/pipe, and connect it with smoke output tube.
4.Connect your Air Supply. ANY SIZE and ANY TYPE OF AIR COMPRESSOR WILL WORK.
5.After 1-2 minutes, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
7.After leak detection, please connect well the wires and pipe.
8.Notes: * Please do leak detection away from smoke-sensitive parts. * Do not run the detector over 8 minutes. It needs interval rest. * The round parts of this detector is with temperature, be careful to avoid scalding injury.
