• Model NO.：AWR28H
• Origin：Shandong, China
• HS Code：8458110090
• Production Capacity：30sets,Month

Wheel Repair Lathe Advantages

1. Cuts wheel up to 28''.

2. With CE, SGS, ISO, BV certificates.

3. Automatic ruby probe system.

4. Easy Operation.

5. Self-developed optimization software.

6. Free Training video and manual instructions.

7. 7x24 hours technology support.

8. 2 USB interface.

9. High efficiency and economic.

10. Two-year warranty.

11. Free factory hand-to-hand training.

12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.

ITEMS

AWR28H

Max. swig over bed (mm) (inch)

Φ770 (30')

Max. Size of alloy wheel (mm) (inch)

                 Φ720 (28')

Adjustable stroke of carrier in X direction (mm)

100

Cross slide travel (mm)

390

Width of the rail (mm)

300

Length of the rail (mm)

1300

Size of the three-jaw chuck (inch)

12'

Range of spindle speed (rpm)

50~2000

Spindle speed control

Automatic

Spindle bore  (mm)

Φ82

Taper of spindle bore

1:20(Φ90)

Max. size of tool post

25×25mm

Stations of tool carrier

4 position

Min. setting unit of motor

(Z) long 0.001mm,

(X) cross 0.001mm

Moving speed of post

(Z) long   8m/min,

(X) cross  6m/min

Motor power

7.5KW

Machine base (cast iron base)

Whole

Machine size (L×W×H) (mm³)

2140 ×1600×1860

Net weight

2600kgs

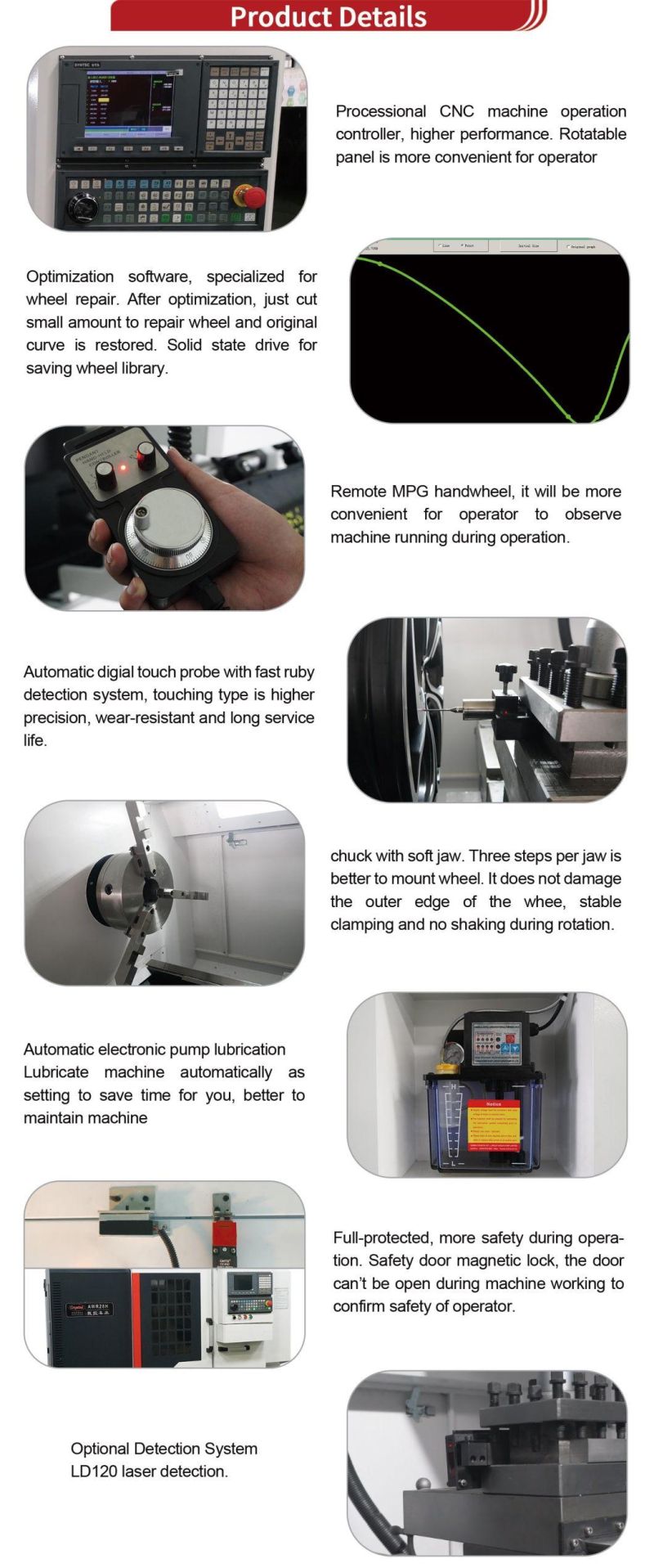

Standard configuration

Diamond Cutter 1 set

 3-Jaws Chuck(With Special Soft Jaws)

high precision prob system 1 set

SYNTEC CNC Controller

Manual Quick Change Toolpost,Four-station

Work Lighting System

Automatic Lubrication System

Cooling System

Full Enclose(Security Guard Door)

Tools&Tool Box

Self developed professional wheel repair software

Training Video CD
