• Model NO.：iec60695-2-10
• Advantage：Advantage
• Apply to：Plastic Flametester Glow Wire Test Equipment
• Certificate：CE, RoHS, CNAS
• Chamber：>=0.5m3
• Power Supply：800V 220V 48-60Hz
• Test Background：Black Background
• Delivery Time：3-7days
• MOQ：1PCS
• Transport Package：Safety Wooden Box
• Specification：iec60695-2-10
• Trademark：bnd
• Origin：China
• Production Capacity：100PCS Per Month

Basic Info.

Model NO. iec60695-2-10 Advantage Advantage Apply to Plastic Flametester Glow Wire Test Equipment Certificate CE, RoHS, CNAS Chamber >=0.5m3 Power Supply 800V 220V 48-60Hz Test Background Black Background Delivery Time 3-7days MOQ 1PCS Transport Package Safety Wooden Box Specification iec60695-2-10 Trademark bnd Origin China Production Capacity 100PCS Per Month

Product Description

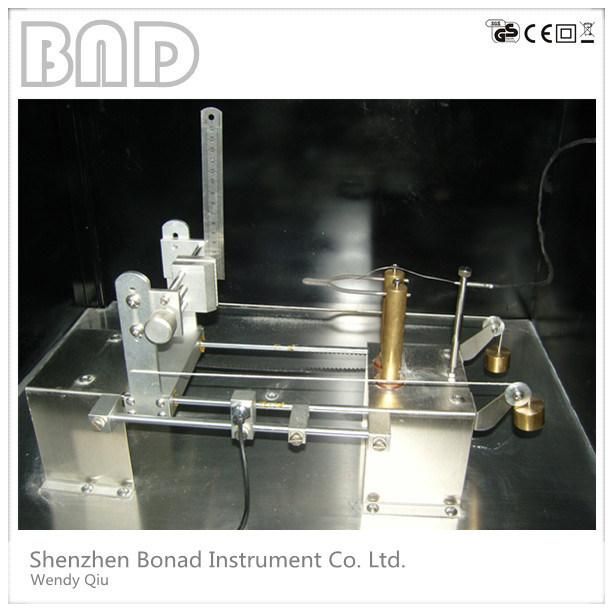

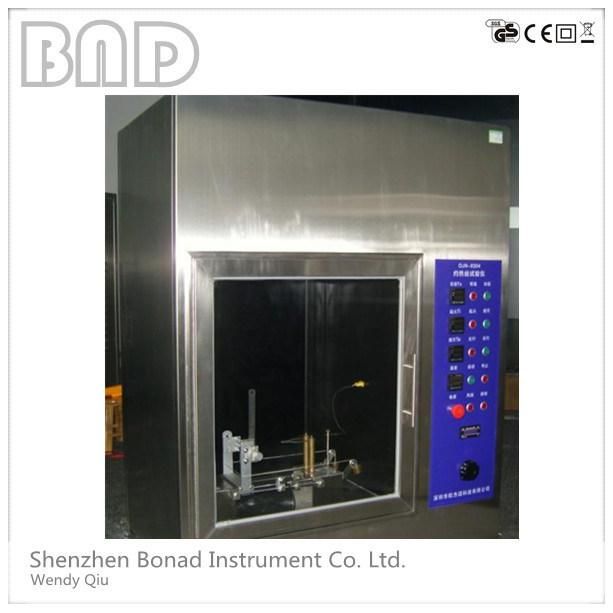

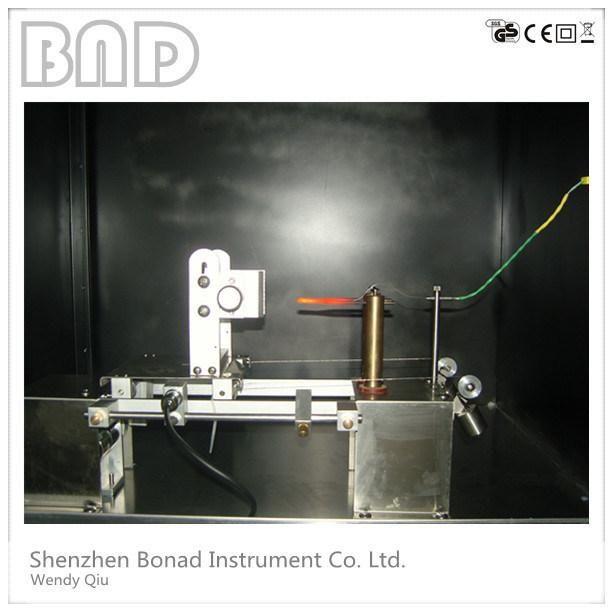

0.5mm K Type Thermocouple Automatic Glow Wire Test Apparatus


1,The test apparatus comforms to IEC6069
5-2-10, UL 746A, GB/T5169.10, GB4706.1


2, The glow wire test apparatus heat the stipulated material, Ni80/Cr20, and heating wire, nichrome wire with diameter of 4 mm with high current up to test temperature  550 ºC ~ 960 ºC. After 1 minute, it burn the specimen verticality for 30s with specified pressure 1.0N. The ignitability of electric and electronic equipments is tested by judging whether the specimen and bedding materials are ignited or deciding the length of burning time; also, the ignitability, ignition temperature(GWIT) , flammability and flammability index of the solid insulating material and some other solid combustible materials are tested in this way.


3,The glow wire test apparatus is usually applied to the research, production and quality testing departments for electric and electronic products as well as their parts and components, such as lighting equipment, low-voltage apparatus, electric instrument.



 Technical parameters :

Glow wire temperature	500 ~ 1000 °C± 2 °C continuous adjustable
Searing time	0-999.9 s ± 0.1 s adjustable (usually selected for 30s)
Light-off time	0-999.9 s ± 0.1 s, automatic recording, manual timeout
Fire out time	Fire out time
Thermocouple	Φ 0.5 mm K type imported sheathed thermocouple.
Glow wire	Glow wire
Ironing depth	7mm ± 0.5 mm
Sample pressure	1N ± 0.2 N
Test speed	10mm/s-25mm/s
Test background	black background
Test process	automatic control, independent convulsions
Consult standard	GB/T5169.10-2006 , IEC60695-2-10:2000,UL746A
Studio volume	0.5 cubic, stainless steel box (according to customer requirements 0.75 cubic or 1 cubic)

Company  Profile :Our  Advantages :

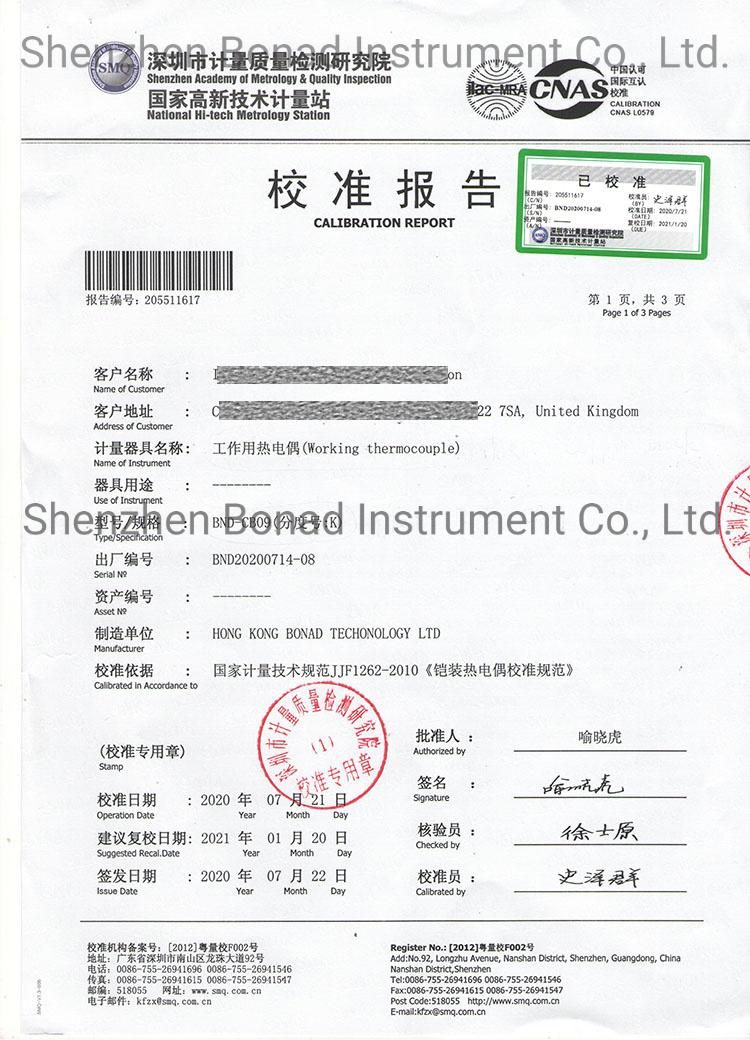

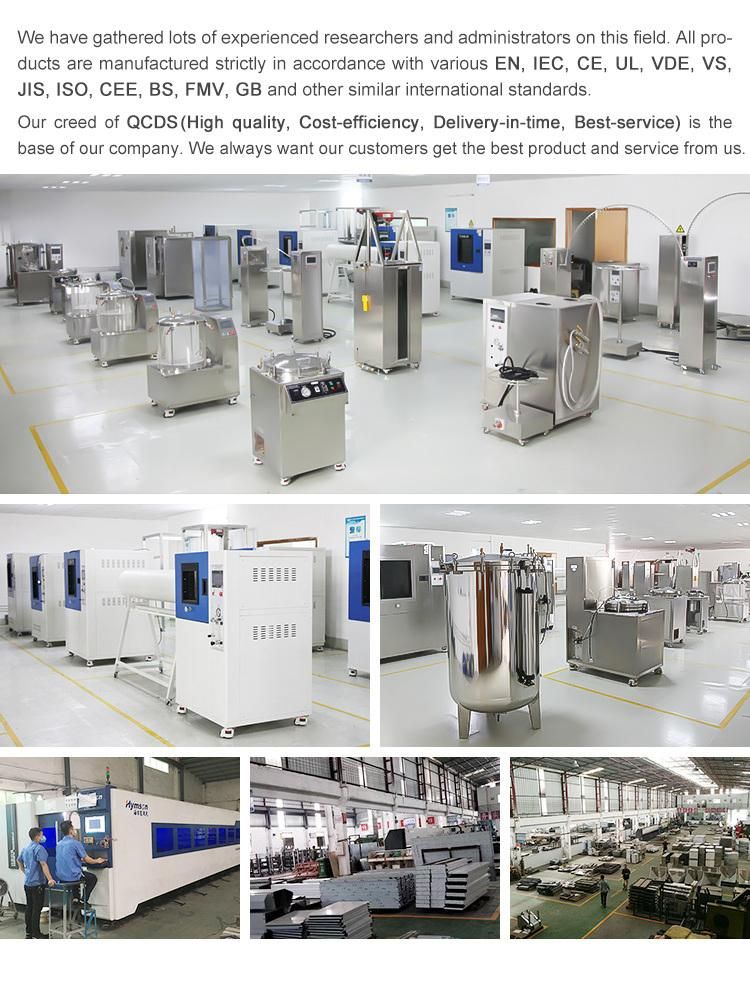

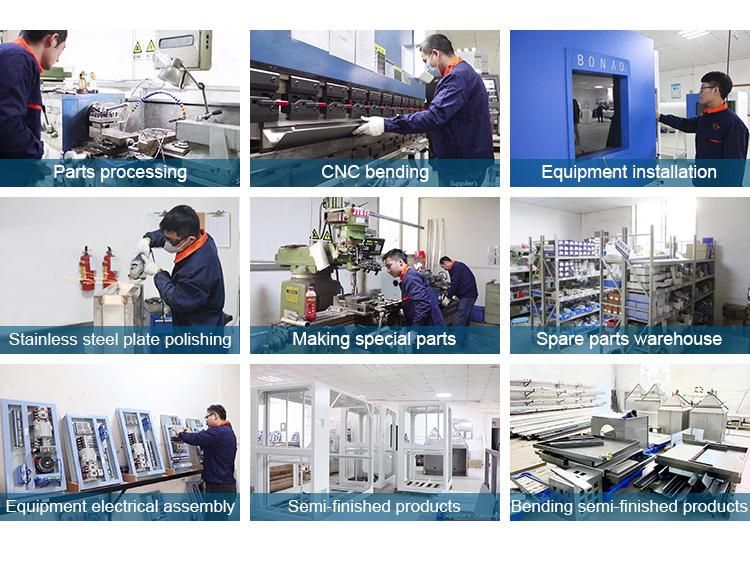

Certifications :Factory  Introduction :Plant Warehouse :Cooperative Customers & Brands:
