• Model NO.：U-PK403 Parking lift
• Double Cylinder Lift Type：Planer-type
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Unite
• Design：Four Post
• Product Code：U- Pk403 Four Post Parking Lift
• Four Post Lift Application：Tire Shop,Body Shop, 4s Workshop
• Our Post Parking Lift Lifting Height：1900mm ( 74.8")
• Our Post Parking Lift Platform Height：4200 mm (165.4")
• Our Post Parking Lift Power Supply：220V 1pH 50,60Hz 3kw 220,380V 3pH 50,60Hz 3kw
• Transport Package：Export Standard Packing Four Post Parking Lift
• Specification：Four Post Parking Lift
• Trademark：UNITE
• Origin：Shanghai
• HS Code：8425429000
• Production Capacity：150 Pieces,Month

Basic Info.

Model NO. U-PK403 Parking lift Double Cylinder Lift Type Planer-type Shearing Lift Type Big Shear Type Condition New Brand Unite Design Four Post Product Code U- Pk403 Four Post Parking Lift Four Post Lift Application Tire Shop/Body Shop/ 4s Workshop Our Post Parking Lift Lifting Height 1900mm ( 74.8") Our Post Parking Lift Platform Height 4200 mm (165.4") Our Post Parking Lift Power Supply 220V 1pH 50/60Hz 3kw 220/380V 3pH 50/60Hz 3kw Transport Package Export Standard Packing Four Post Parking Lift Specification Four Post Parking Lift Trademark UNITE Origin Shanghai HS Code 8425429000 Production Capacity 150 Pieces/Month

Product Description

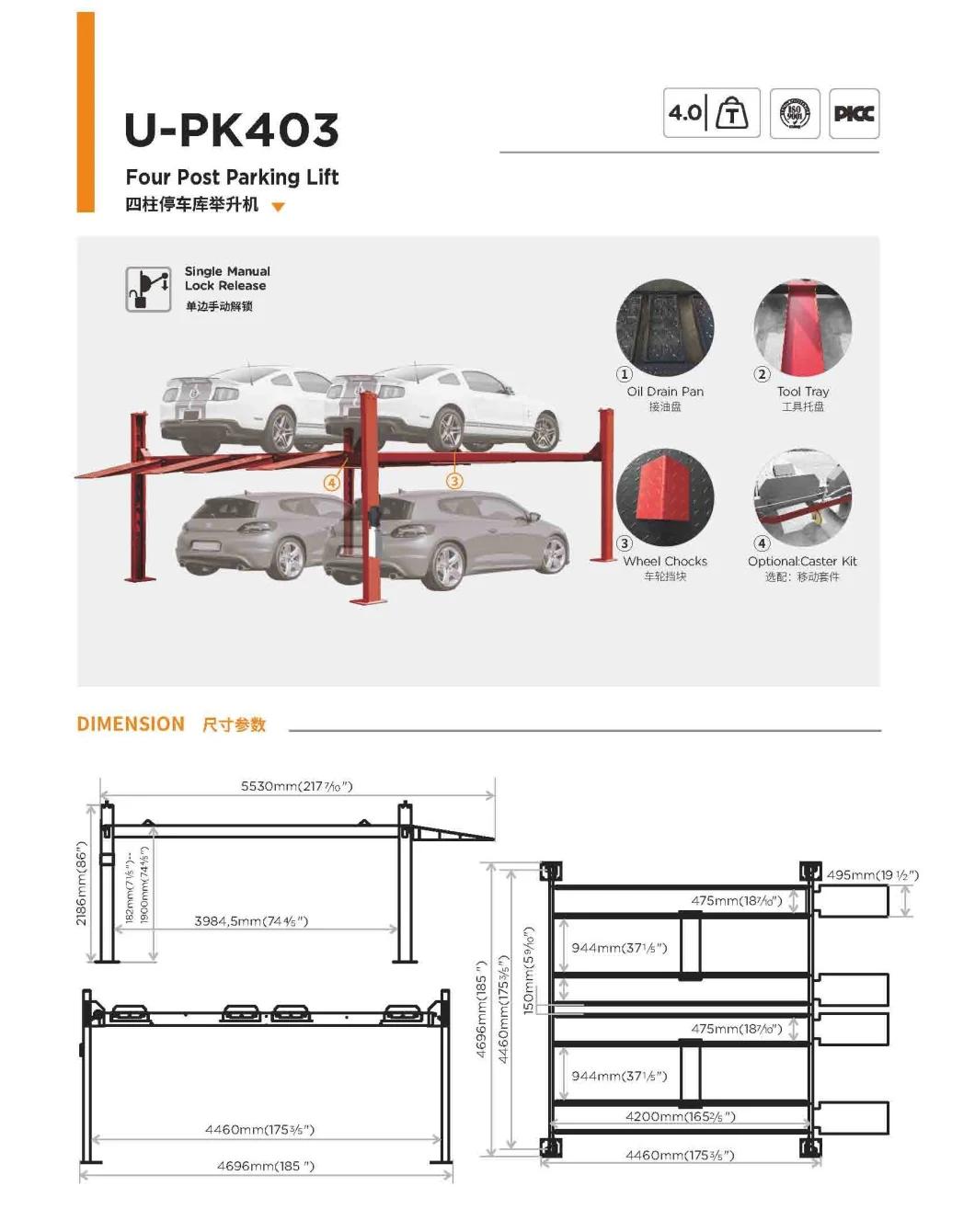

CE Approved 2 Level Four Columns Parking Lift 4 Car Stacker Parking System U-PK403

• Product Code: U- PK403 4Ton Four Post Lift for 4 Cars

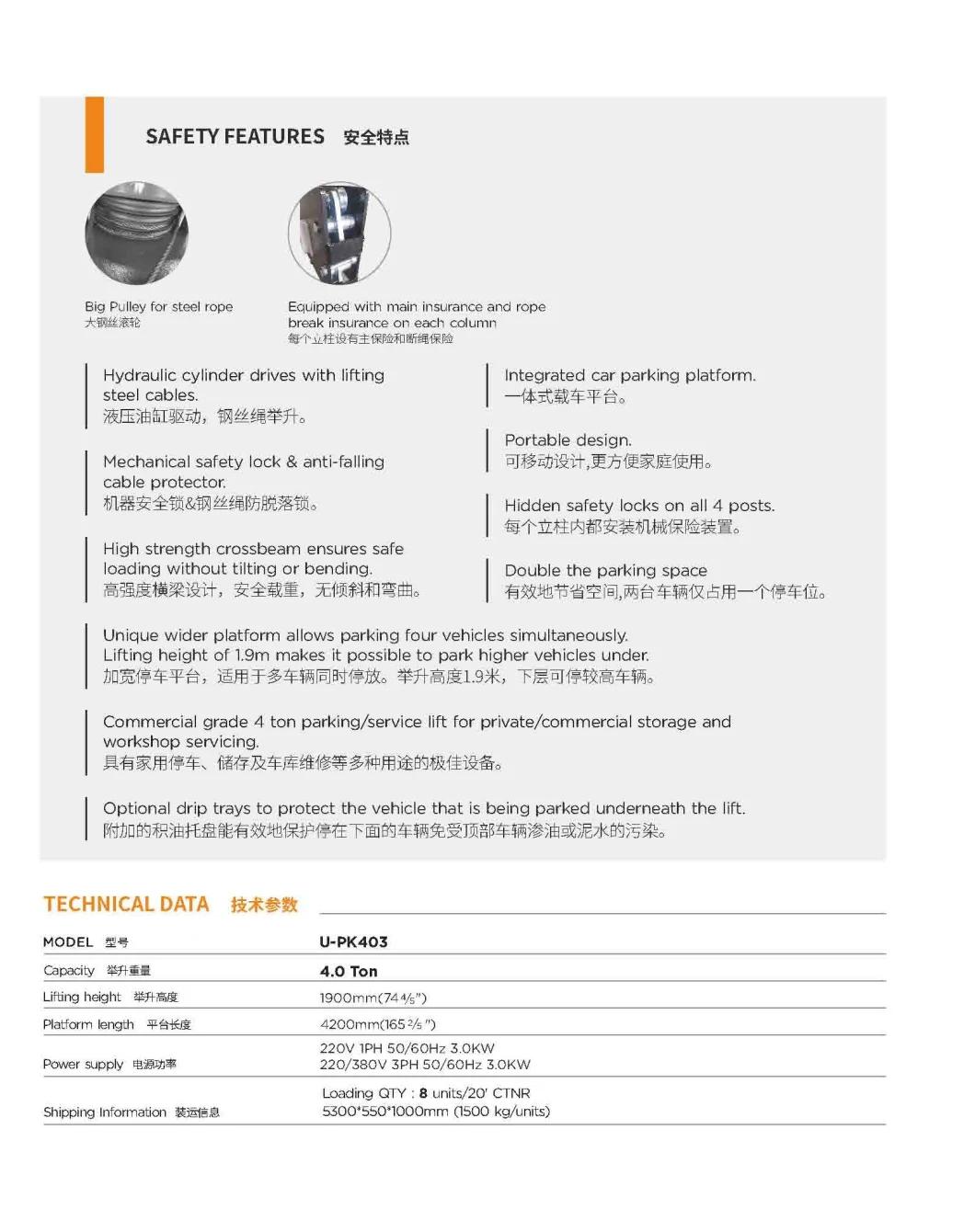

Safety Feature:
*Hydraulic cylinder drives with lifting steel cables.
*lintegrated car parking platform.
*Portable design.
*Mechanical safety lock & anti-falling cable protector.
*Hidden safety locks on all 4 posts.
*High strength crossbeam ensures safe loading without tilting or bending.
*Double the parking space
*Unique wider platform allows parking two vehicles simultaneously.
*Lifting height of 1.9m makes it possible to park higher vehicles under
*Commercial grade 4 ton parking/service lift for private/commercial storage andworkshop servicing.
*Optional drip trays to protect the vehicle that is being parked underneath the lift.



Product Code	U- PK403
Capacity	4.0T
Lifting height	1900mm ( 74.8")
Platform length	4200 mm (165.4")
Power supply	220V 1PH 50/60Hz 3KW 220/380V 3PH 50/60Hz 3KW

1.The existing tyre changer motor is 220V, how to operate if we want to replace it with 380V motor?

ANSWER:We need to replace the 220V motor with 380V motor, also the power cord(line) needs to be replaced. The connection of the switch needs to be adjusted, then the connection can be made according to the correct connection method.

2.Why appears the phenomenon that the bead breaker blade presses tyre weakly?

ANSWER: Firstly, check whether the working pressure of the machine reaches 8-10bar. If it doesn't reach enough pressure numerical value, the bead breaker blade will press tyre weakly. If the pressure is sufficient, check if there is air leakage in the bead breaker cylinder.

3.What about the noise when the machine is running?

ANSWER: Firstly, we need to find out where the noise comes from. Generally, there will be motor noise and gear box noise. Then, check it if there is still noise when running the motor without belt, it is the noise of the motor itself. Otherwise, it is the gear box noise.

4.How to adjust it when appear the phenomenon that the demounting head scratches the rim during we are removing the tyre.

ANSWER: Firstly, we should adjust the angle of the demounting head to align the middle line of the demounting tail with the rim edge. If the angle of the demounting head is appropriate, observe whether there is a large shape variable on the column or hex bar when the tyre is under pressure. If there is, we should replace the corresponding parts.

5.What's kind of oil in the oil cup of water distributor?

ANSWER: They are # 20 machine oil, air gun oil, sewing machine oil, transformer oil, etc.

6.How to adjust the working pressure of the machine?

ANSWER: Lift the button of the pressure regulating valve on the air regulator assembly up, then turn clockwise to increase the pressure or turn counterclockwise to decrease the pressure, and press the knob down to lock after adjusting to the standard operating pressure.

7.If the pedal cannot return to its position after stepping the pedal, why(what's the reason)?

ANSWER: Generally, there will be something wrong in the return spring or spring plate on the pedal assembly. We can disassemble the pedal front face to see if there is any damage in the accessory and replace it to solve the problem.

8.Is it feasible if we want to operate 24 inch tires with the existing 885A series machine?

ANSWER: It is recommended to upgrade to a 22-inch inner adjustable round turntable with three position adjustable and a clamping range of 9-26 inches.

9.Are there measures to protect the rim from being scratched by clamping claws?

ANSWER: The jaw protector cover can be installed on the jaw to protect the rim.

10.The bead breaker blade pressing tyres will scratch the rim, is there a good protection method?

ANSWER: We can install the protective cover on the bead breaker blade to effectively protect the rim from scratches when pressing tyres.

11.Is there any change in the size of the tyre remover after the tyre changer is equipped with motorcycle adapter?

ANSWER: If the tyre changer is equipped with motorcycle adapter, it can reduce 2 inches or increase 3 inches on the basis of the normal external clamping range. For example, the normal external clamping range is 10-20 inches, if the tyre changer is equipped with motorcycle adapter, the clamping range is 8-23 inches.

12.How to connect the motor when replacing the 220V motor?

ANSWER: Power lines connect with1,3; Motor lines: Z1 connects with 7, Z2 connects with 11, U1connects with 8, U2connects with2

13.How to connect the motor when replacing the 380V motor?

ANSWER: Power lines connect with 1,5,9;Motor lines connect with 2,6,8.

14.If we want to improve the operating speed, is it feasible to replace the motor with a double-speed motor?

ANSWER: The plan is feasible. However, some models are limited by the size of the box and cannot replace the double-speed motor.

15.The tyre is not clamped tightly on the turntable and skidded when it is demounting and loaded.

ANSWER: Firstly, check the appearance of the clamping claw. If the tip on the back of the clamping claw is badly worn, the tyre will not be hold up tightly. In addition, small cylinder channeling or air leakage will also cause support clamping.
