• Model NO.：JS420
• Driving Motor Number of Mechanical Lift：2
• Double Cylinder Lift Type：Planer-type
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Amco
• Design：Single Post
• Lifting Height：1700mm
• Secondary Lifting Height：450mm
• Lift Time：up 60s Down 50s
• Length of The Platform：600mm
• Transport Package：Wooden Case
• Specification：metal
• Trademark：AMCO
• Origin：Shaanxi
• Production Capacity：20-30 Set , Month

Basic Info.

Model NO. JS420 Driving Motor Number of Mechanical Lift 2 Double Cylinder Lift Type Planer-type Shearing Lift Type Big Shear Type Condition New Brand Amco Design Single Post Lifting Height 1700mm Secondary Lifting Height 450mm Lift Time up 60s Down 50s Length of The Platform 600mm Transport Package Wooden Case Specification metal Trademark AMCO Origin Shaanxi Production Capacity 20-30 Set / Month

Product Description

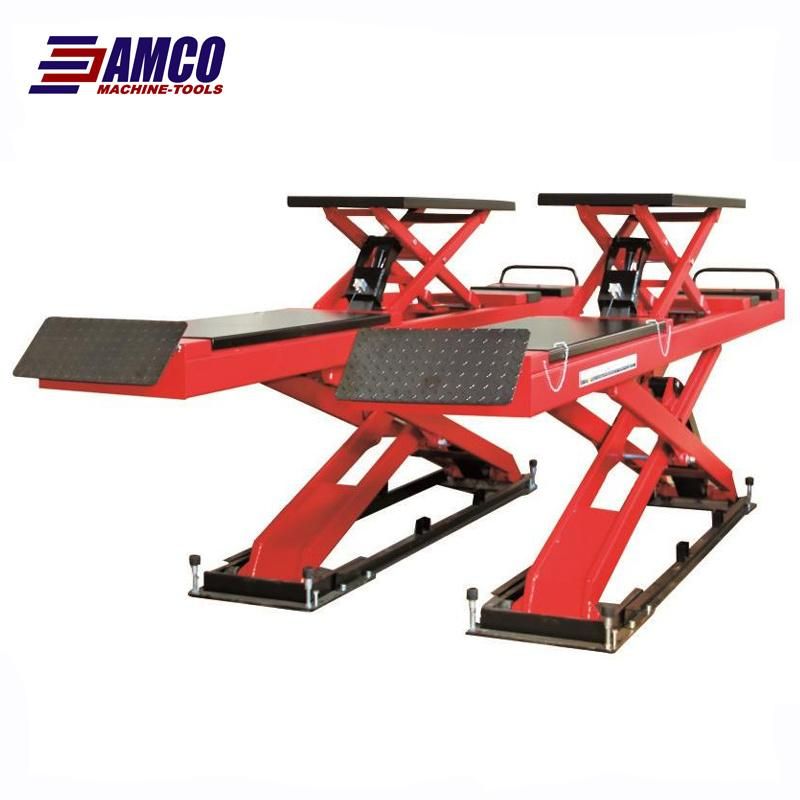

Alignment Scissor car Lift auto lift vehicle lift JS420

1.On-ground mounting,with rolling jack
2.Adjustable worktables and platforms with front recesses can accommodate different kinds of
3.wheelbases and wheel tracks.
4.24V safety operating voltage.
5.Pneumatic lock release
6.Steel plate scissors which has good resistance to deformation
7.There is no-oil bearing inside rolling axis parts makes small noise.
8.Relief valve built in power pump to prevent overloading.


Lifting capacity	4000kg
Lifting height	1700mm
Secondary lifting height	450mm
Lift time	Up 60s   down 50s
Length of the platform	600mm
Motor power	220V/380V  2.2kw
Hydraulic oil	220kg/cm
Air pressure	6-8kg/cm
Weight	1780kg
