Customized Diesel Heating Auto Maintenance Car Spray Paint Painting Booth for Auto Repair Garage Equipment
Qingdao Hua Yushun Commercial Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Sandwich Panel
- Brand：Captain
- Coating：Painting
- Airflow Direction：Cross-flow Type
Base Info
- Model NO.：EZW-YB 100d
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Outside Dimension：7000 * 5500 * 3500(L*W*H)
- Inside Dimension：6900 * 4000 * 2800mm
- Front Door(mm)：2800*2600(W*H), 3 Folded
- Service Door (mm)：1800*650(W*H)
- Wall Panel：50mm Rock-Wool Panel, 0.5 Steel
- Basement：300 mm High, Full Grilles
- Inlet Fan(Belt)：2X4kw Centrifugal Fan
- Outlet Fan(Belt)：1X5.5kw Centrifugal Fan
- Heating System：Italy Riello G20 Diesel Burner
- Lightening System：4X8units Ceiling, 2X8units Side
- Transport Package：Export Container ,Pallet ,Disassembly with Carton
- Specification：CE, SGS, ISO
- Trademark：Captain,OEM
- Origin：Shandong, China.
- HS Code：8424899990
- Production Capacity：96sets,Month
Description
Heating systemItalian RielloG20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 4~6 min.(Gas burner as optional) SUS304 Stainless steel heat exchanger, anti-explosion hole for protection,
highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle.
Reasonable structure, safe and reliable, big heat exchanging area, high heat
utilization, more than 90% heat exchanging rate Filter system Prefilter, high efficiency filter EU5 Fine Filters, 6pieces (ceiling filter),

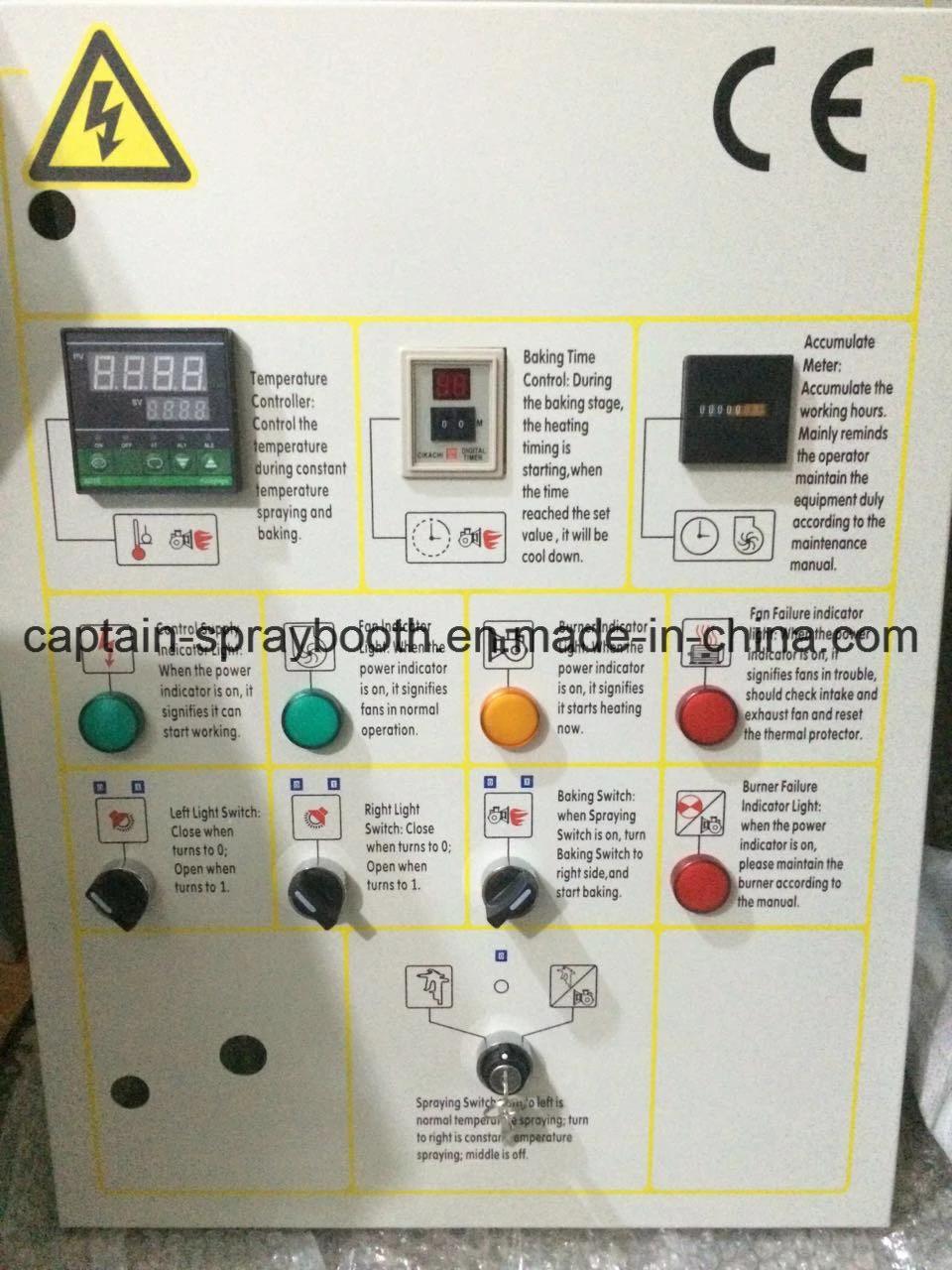

floor filter, exhaust active carbon filter Control system Spraying, risen-temperature spraying, baking temperature, time setting,
lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm,
limited-temperature device, most of electrical spare part is import, C.E standard Total power 12KW
Design drawing:
Inside view:
Spray booth part:

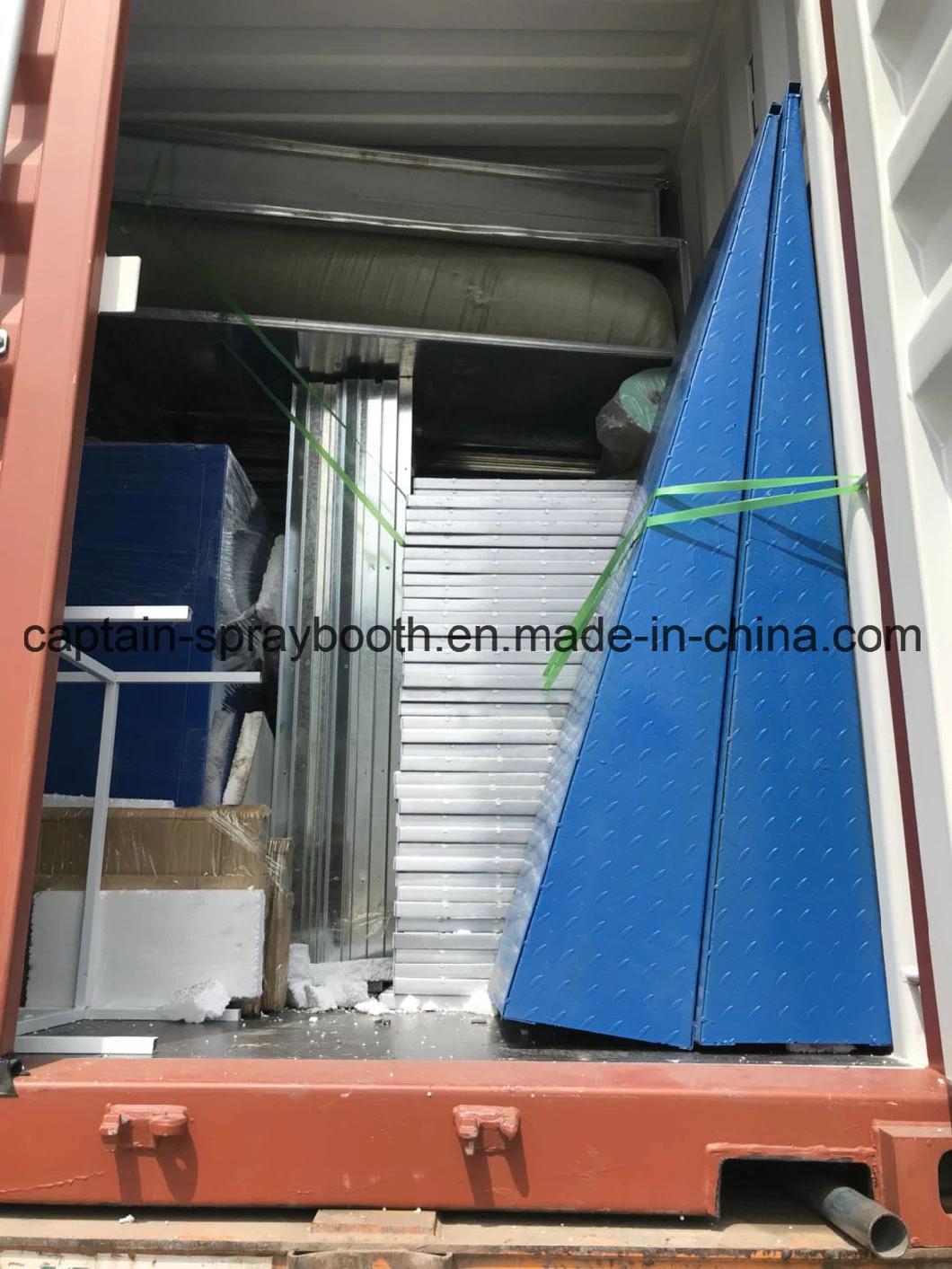

Package:

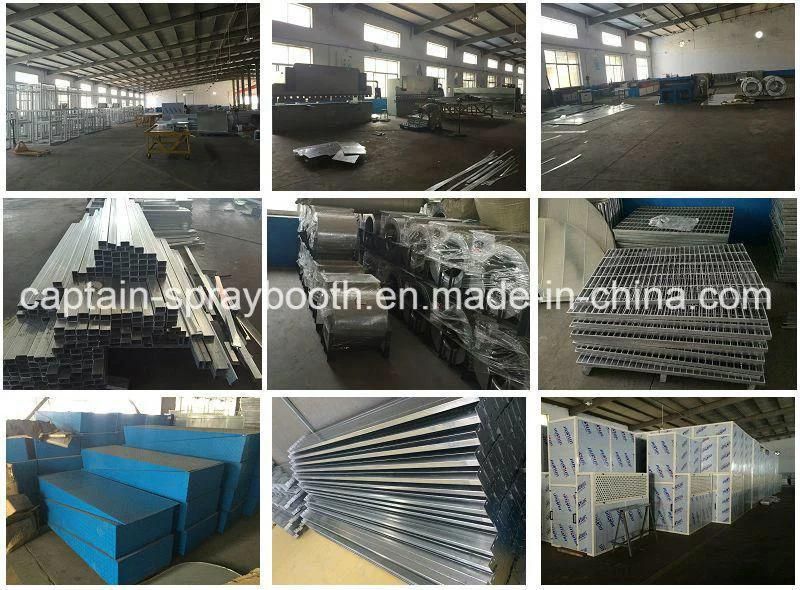

Workshop:
highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle.
Reasonable structure, safe and reliable, big heat exchanging area, high heat
utilization, more than 90% heat exchanging rate
floor filter, exhaust active carbon filter
lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm,
limited-temperature device, most of electrical spare part is import, C.E standard
