• Model NO.：GL2-CE-4
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：24000
• Lighting System：Upper Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Warranty：Yes
• Heating System：Riello Brand Diesel Burner,Gas Burner
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL2-CE-4 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 24000 Lighting System Upper Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Heating System Riello Brand Diesel Burner/Gas Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

CE approved automotive paints spray booth with floded metal sheet doors

GL2-CE Spray Booth Description
--Wall panel :sandwich style,δ=50mm,rock wool.(Polystyrene is optional)
--Basement :steel strucutre,3 rows od vein board and 2 rows of grids,full grids as optional.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--Ramp:2 pcs of vein board.
--One 7.5kw intake fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,4m straight chimney and 2 small bends.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 burner.
--Roof filter:4 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--2 pcs of floor filter and 1 pcs of outlet filter.
--Upper light :10sets,4*40W per set.
--Control box:components made in china,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.
--Constant temperature spraying

Model	GL2-CE
External size (m)(LxWxH)	7.0X5.3X3.5
Internal size (m)(LxWxH)	6.9x3.9x2.7
Entrance width(m)	3.0
Entrance height(m)	2.66
Fan capacity( m 3 /h )	24000
Air velocity (m/s)	0.25-0.35
Drying Temperature(ºC)	20-80
Oil consumption (L/unit)	6-8
Water-based paint device	As option
Power (kw)	9.5
Suitable Automobile Type	Car

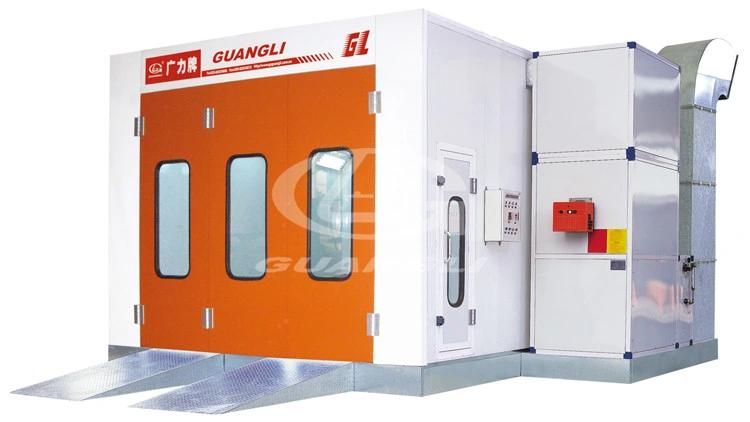

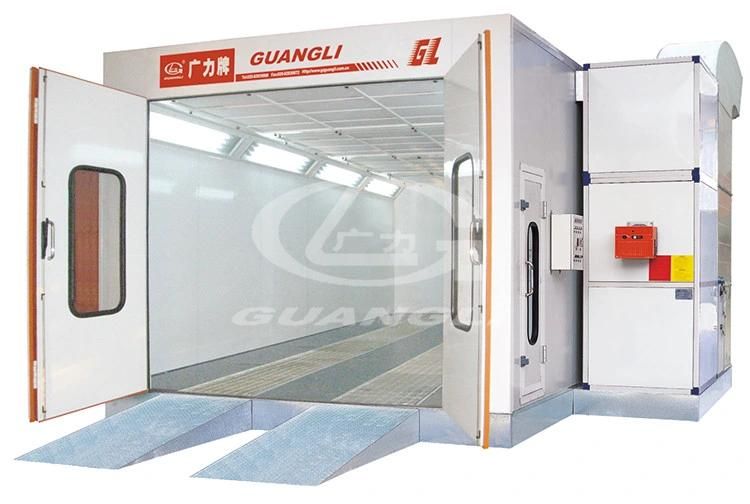

Guangli Spray Booth Show

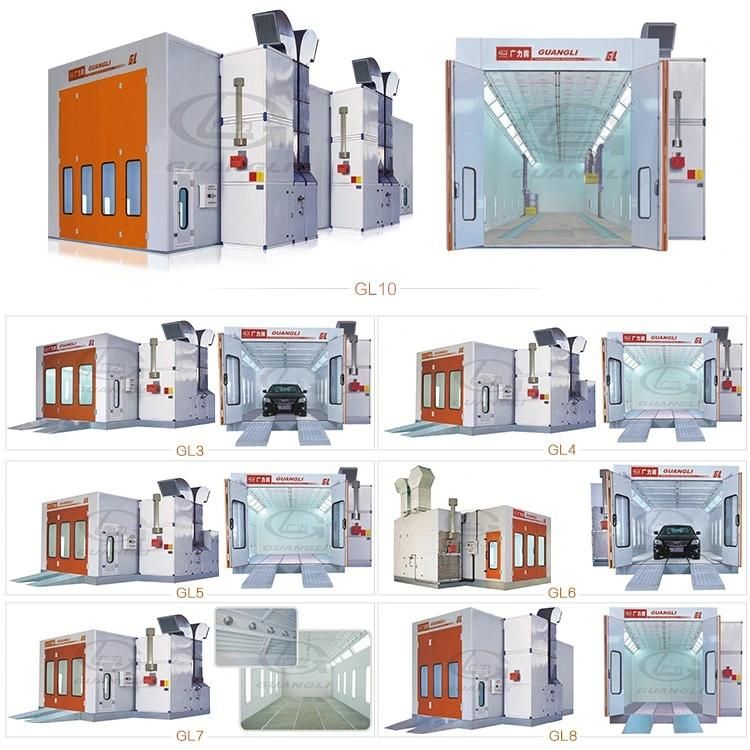

Guangli Spray Booth Series

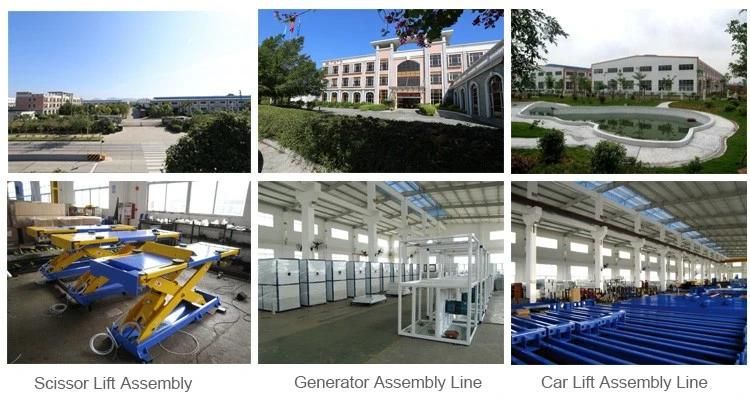

Factory Show
Established in 1994,GZ GUANGLI EFE CO.,LTD is located in Zengcheng,Guangzhou, combining
technology,industry and trade together and a diversified industrial enterprise mainly engaged in the
development, production and marketing of automobile maintenance equipment. It is a director unit of
China Automobile Maintenance Equipment Association Maintenance Equipment Association.


Equipment
We have imported the most advanced facilities from Europe:  German Up&Down
Bending Machine,German Welding Robot, Finland CNC Punching Machine, Italy Full-automatic
Metal-plate Flexible Manufacturing Line. All our paint spray booth are molded production
through these advanced machine . Good-looking and high quality compare with manual work.


Exhibitions


Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers manyoptions for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
