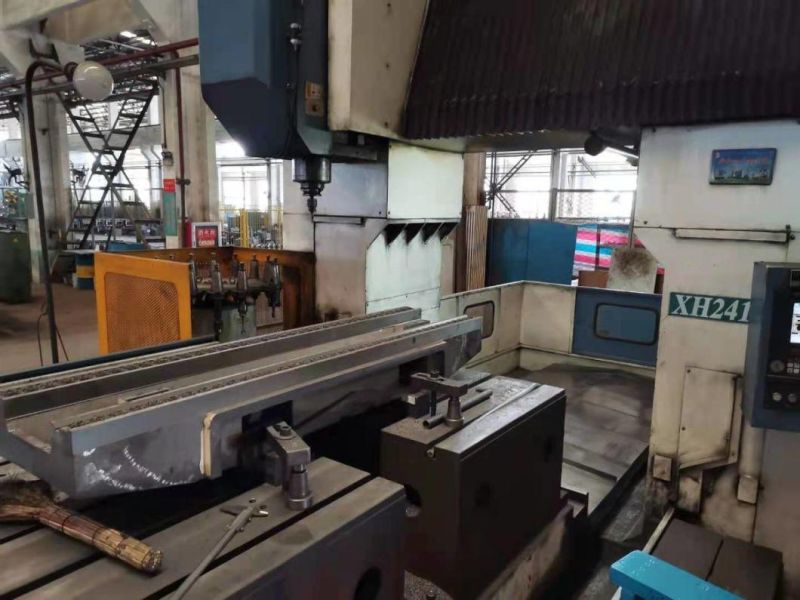

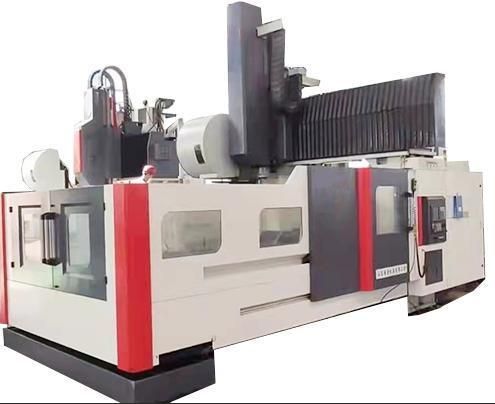

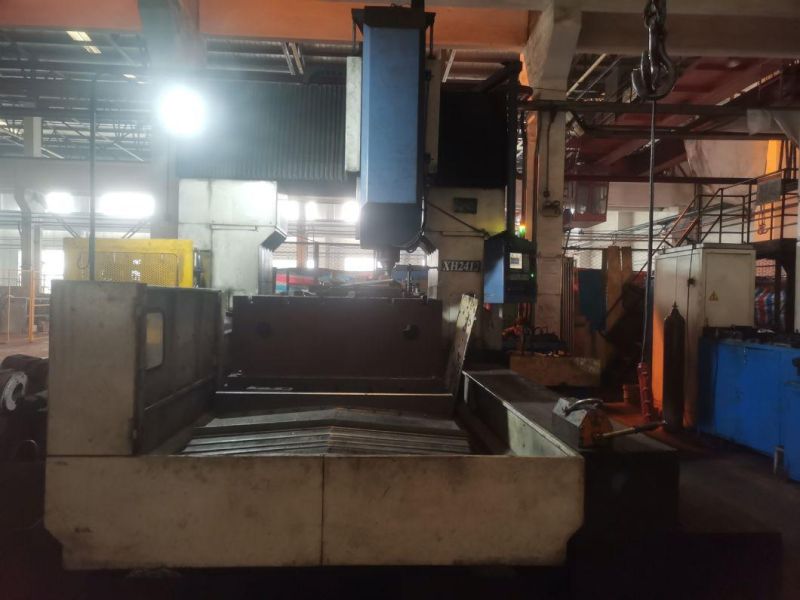

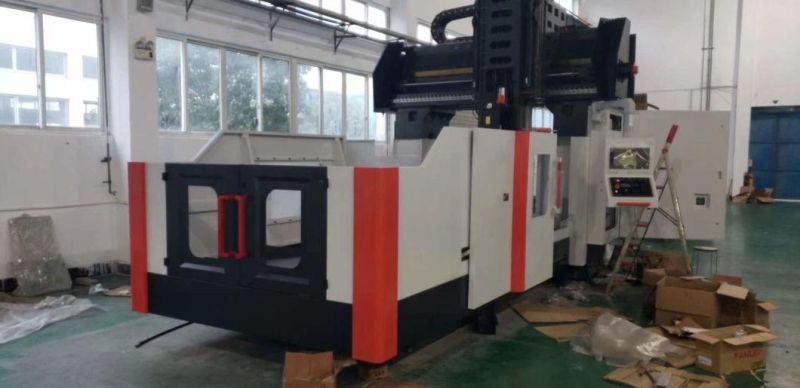

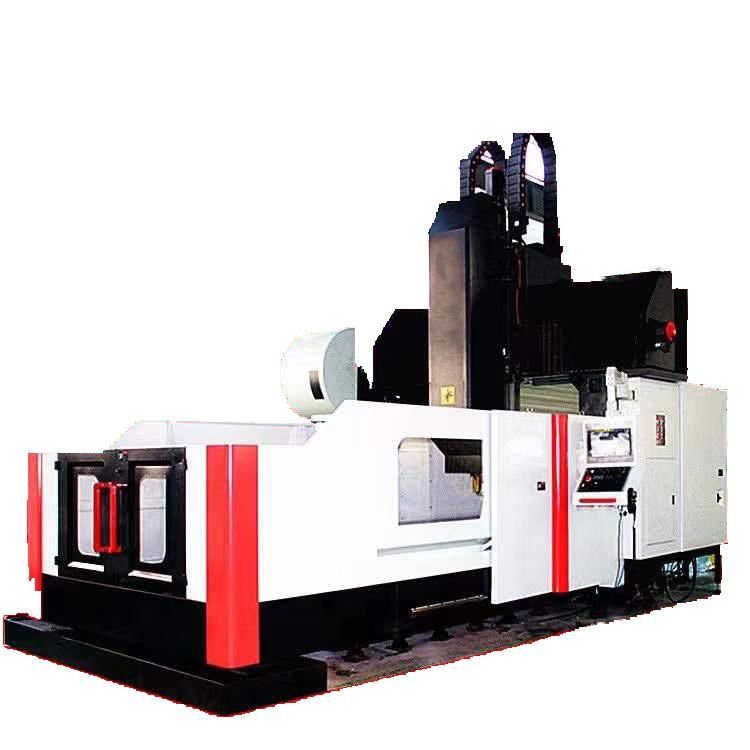

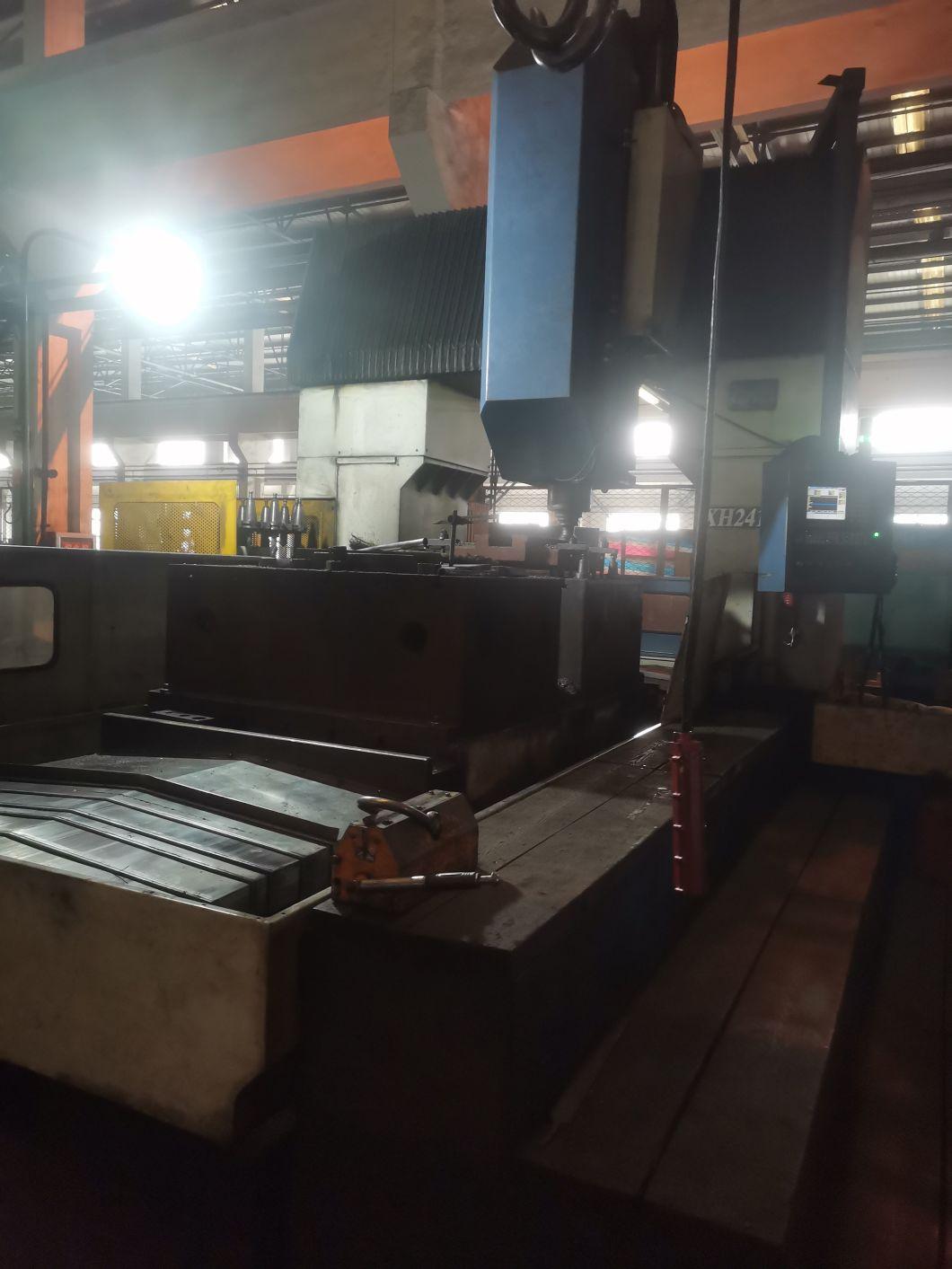

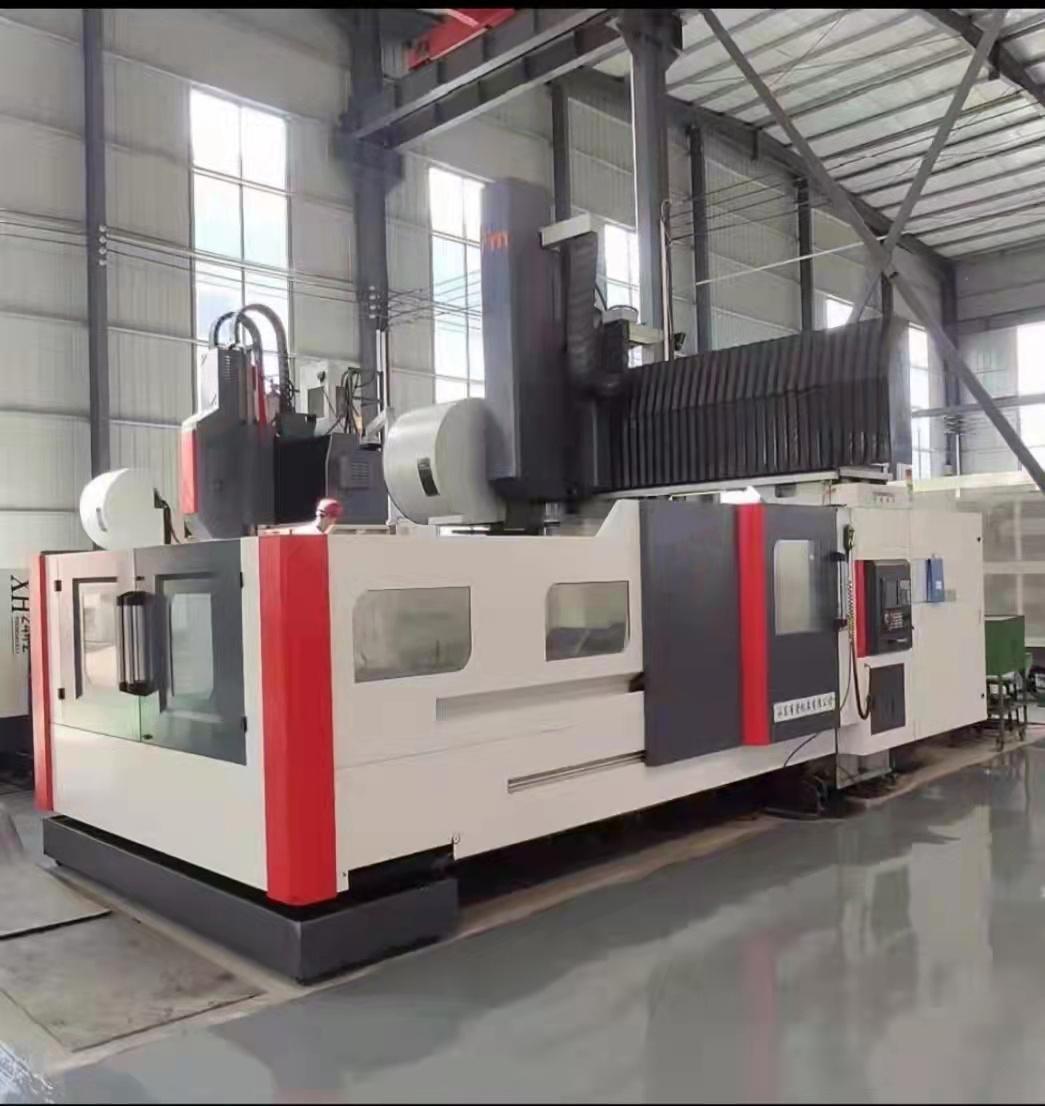

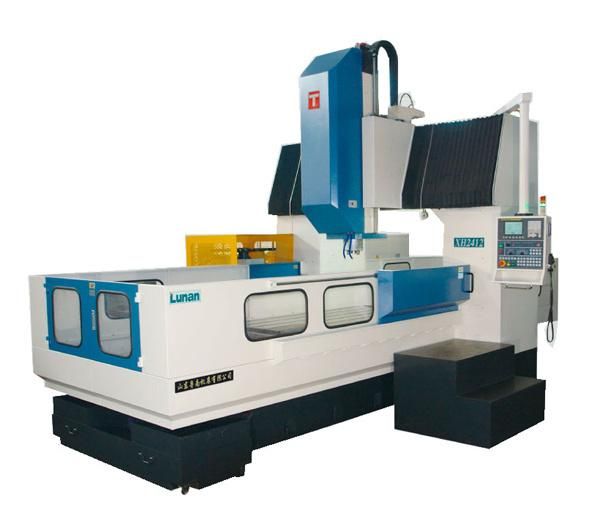

Good Sale Popular Model Xh2412 Gantry Milling Machining Center Type
SHANDONG LUNAN MACHINE TOOL EQUIPMENT CO., LTD.- After-sales Service：Quickly Feed Back on Time
- Warranty：One Year Warranty
- Transport Package：Steel Pallet with Ply Wood Cover
- Specification：1250x2000
- Trademark：SDLN
- Origin：Tengzhou
Base Info
- Model NO.：XH2412
- HS Code：8457101000
- Production Capacity：1000 Sets
Description
ITEMSUNIT XH2412 Work table Table size MM 1250×2000 T-slot MM 7-22-180 Max.loading capacity KG 5000 Work range X axis travel MM 2200 Y axis travel MM 1600 Z axis travel MM 700 Spindle nose to table MM 200-900 Gantry width MM 1550 spindle Speed R/MIN 50-3000/100-6000 Spindle nose taper BT50 Main motor KW 15/18.5 Feeding Rapid feeding of X,Y M/MIN 15 Rapid feeding of Z M/MIN 12 Processing feeding MM/MIN 1-4000 Accuracy Positioning precision X/Y/Z MM 0.030/0.025/0.025 Re-positioning precision X/Y/Z MM 0.015/0.012/0.012 Magazine tool Tools number Pcs 16 Max.diameter and length MM φ130/350 Max.weight KG 15 Others Weight KG 20000 Overall dimensions MM 5800×4000×4000
