• Model NO.：CT004-OBD36
• Update Method：by Internet
• Condition：New
• Standard：Standard
• Customized：Customized
• Flame Retardant：Normal
• Material：Copper
• Material of Overmolded Part：PVC
• OBD2 Male Plug：Standard, 12V , 24V
• Transport Package：PE Bag
• Specification：CE
• Trademark：COMTECH
• Origin：China Shenzhen
• HS Code：8544492900
• Production Capacity：500000PCS,Year
• Package size per unit product：46.00cm * 30.00cm * 26.00cm
• Gross weight per unit product：14.000kg

Basic Info.

Model NO. CT004-OBD36 Update Method by Internet Condition New Standard Standard Customized Customized Flame Retardant Normal Material Copper Material of Overmolded Part PVC OBD2 Male Plug Standard, 12V / 24V Transport Package PE Bag Specification CE Trademark COMTECH Origin China Shenzhen HS Code 8544492900 Production Capacity 500000PCS/Year

Packaging & Delivery

Package size per unit product 46.00cm * 30.00cm * 26.00cm Gross weight per unit product 14.000kg

Product Description

Pin Number	Description
1	Manufacturer Discretionary
2	SAE J1850 Bus + (VPW / PWM)
3	Manufacturer Discretionary
4	Chassis Ground
5	Signal Ground
6	CAN High (ISO 15765-4 and SAE J2284)
7	ISO 9141-2 / ISO 14230-4 K Line
8	Manufacturer Discretionary
9	Manufacturer Discretionary
10	SAE J1850 Bus - (PWM-only)
11	Manufacturer Discretionary
12	Manufacturer Discretionary
13	Manufacturer Discretionary
14	CAN Low (ISO 15765-4 and SAE J2284)
15	ISO 9141-2 / ISO 14230-4 L Line (Optional)
16	Vehicle Battery Power: Type "A" 12V/4A Type "B" 24V/2A

Application

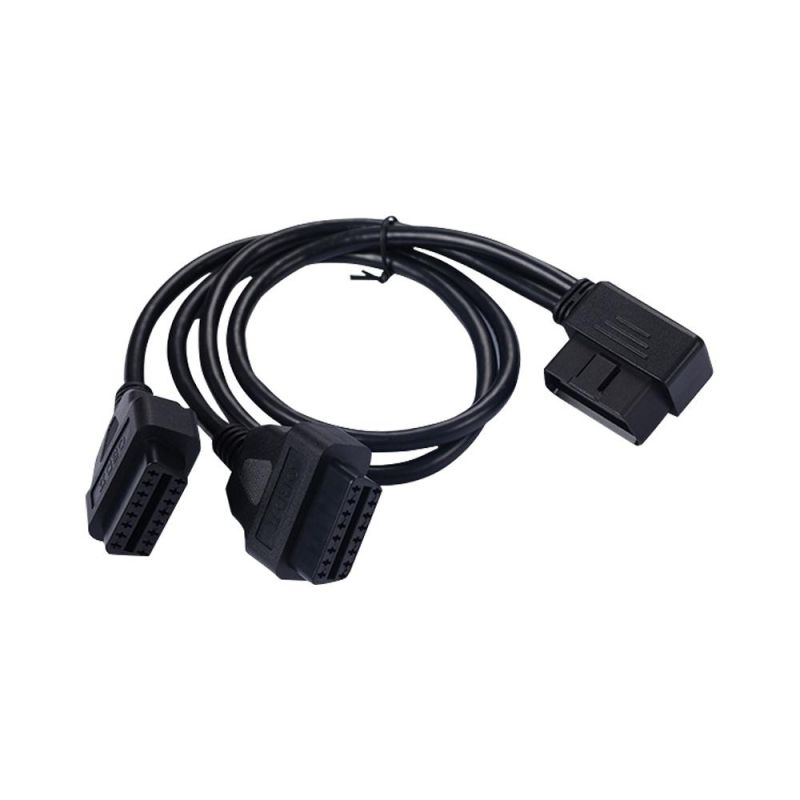

This Y cable is used to connect telematics, M2M devices, IoV (Internet of Vehicles) devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools or car performance tuning tools to vehicles' 16-Pin OBD2 female diagnostic ports.



This OBD2 OBDII Y Cable allows port relocation or connection of multiple telematics or IoV devices. Take the original Hyundai and Kia OBD2 female diagnostic port off its original location with tools if necessary and then insert the OBD2 male plug at the end of this OBD2 Y cable into the original Hyundai and Kia OBD2 female diagnostic port. Install the replacement Hyundai and Kia OBD2 female connector at one end of the Y ends back to the original location of the OBD2 female diagnostic port in the car. Then you can connect a telematics or IoV device to the common OBD2 female connector at the other end of the Y ends. You can also connect another telematics or tuning device to the OBD2 female connector which was installed at the original location or leave this OBD2 female connector available for diagnostic use in the future. If you leave replacement Hyundai and Kia OBD2 female connector available and then hide the telematics or IoV device connected to the common OBD2 female connector, then nobody would know that you have installed these devices without opening the panel.

This cable can also be used to connect OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software).


Sending an inquiry

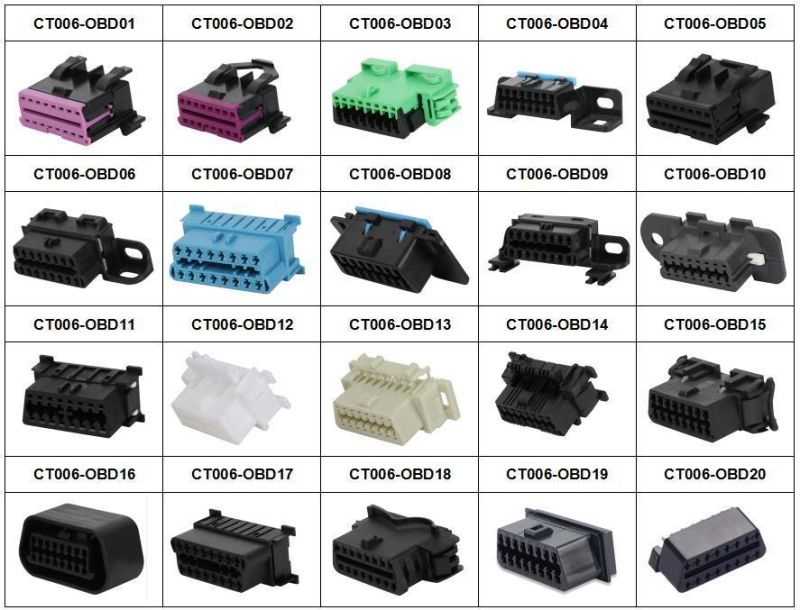

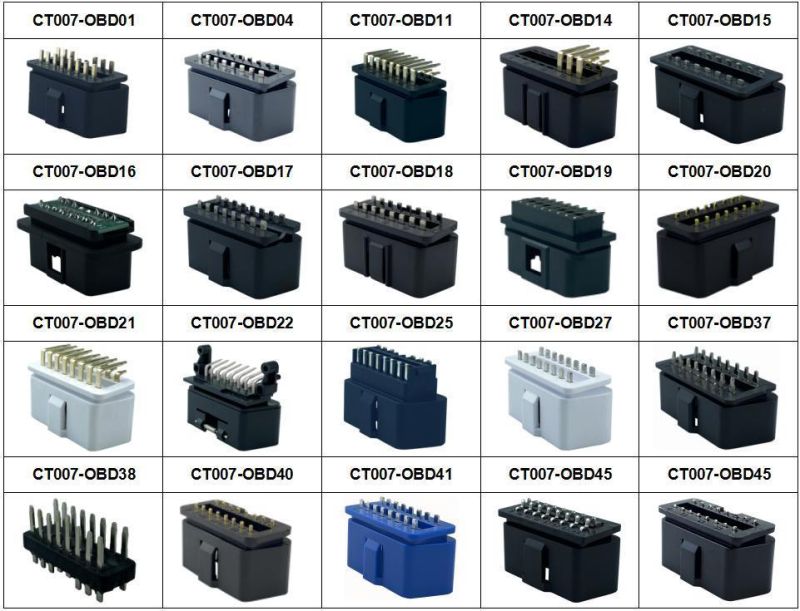

If you haven't found or don't have time to look for the OBD2 OBDII, J1939 or J1708 cables, adapters or connectors in our website, feel free to let us know what OBD2 OBDII, J1939 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any OBD2 OBDII, J1939 or J1708 cables, adapters or connectors for you.

Material: PA66, tined plated compliant ROHS,
Working temperature: -20~80°C
Over-molding: customized
Pitch: 4mm
Voltage: 12V for car and 24V for heavy vehicle
Automotive wiring harness is an assembly of cables used in the integration of various electronic components. Also known as cable assembly, it helps in transmitting power to different modules in an automotive. It is one of the main components as it handles the complete current flow across all the components of a vehicle including its lights, wipers, electrical devices and other electronic components. Technical developments in the automotive segment have augmented the fitting trend of many high end microelectronics and security features into the automobile. The automotive wiring harness facilitates safe, compact and simple functioning of the electronic devices installed in the automobile.
Comtech provides many various wire harnesses for automobiles, such as Ford Valve cover gasket kit, ignition cables, diagnosis OBD II or J1939 series cables, lamp wires, rear-view mirror, GPS wire harness,  ADAS wire harness, Auto seat wire harness  etc.

• Engine cylinder system wire harness
• Diagnosis OBD II J1962 / J1939 cables
• Dashboard/Cabin Harness
• Body & Lighting Harness
• Chassis Harness
• HVAC Harness
• Battery Harness
• Airbag Harness
• GPS wire harness
• ADAS wire harness
• Rear-view mirror detector cable
• Auto seat wire harness
• Door Harness
• Sunroof Harness

Q&A
 1. Q: Can you help to design?
A: Yes, we are an ODM / OEM company, beyond we have been specializing in wire harness & Cable assembly since 2006.
2. Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
3. Q: What if quality issues occur when customer discover?
A: Our quality and engineer team will positively respond for the quality issues with 72 hours, as we are intend to make long-stand strategy with customer and the value is to provide better service.
4. Q: Do you have any standard products to cut down customers lead time for prototype and tooling cost?
A: Yes, there are over 1000 sets of molds and some of them can be used for customer directly. Moreover, Comtech is specialized in wire harness over 20
years with  10000+  products
