China Manufacturer Smoke Diagnostic Leak Detector for Car Beauty Shop
Shenzhen Yunxudong Import & Export Co., Ltd.- Warranty：3 Years
- Certification：RoHS, CE
Base Info
- Model NO.：SLT001
- Condition：New
- Standard：Standard
- Update Method：by Internet
- Type：Automobile Sensor
- Product Name：Smoke Leak Detector Tester
- Application：Car Motorcycle SUV Truck Pipe Systems
- Customized：Yes
- OEM/ODM：Accept
- Size：30*28*20cm
- Weight：5.5kg
- Power：8W
- Voltage：12V
- Transport Package：30*28*20cm
- Specification：30*28*20CM
- Trademark：kumore
- Origin：China
- HS Code：9027100090
- Production Capacity：50000piece,Years
- Package size per unit product：30.00cm * 28.00cm * 20.00cm
- Gross weight per unit product：5.500kg
Description

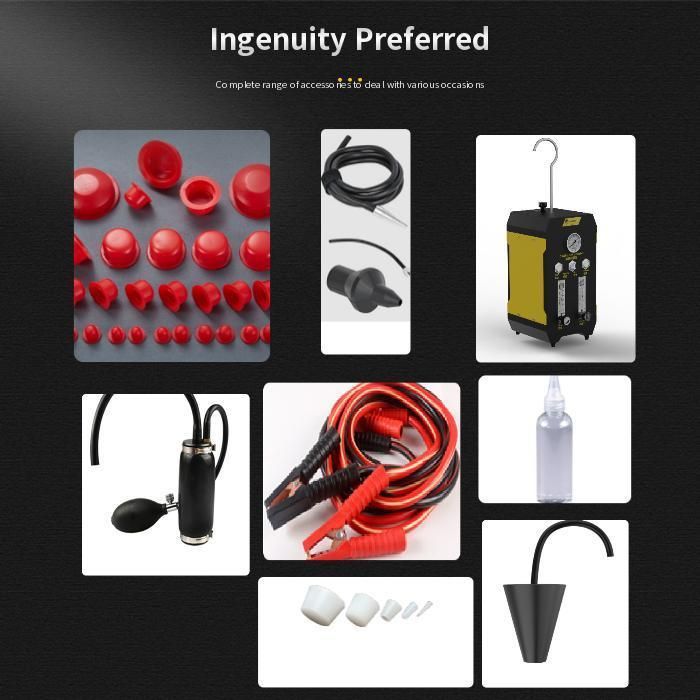

Packing List :1pc * KUMORE SLT001 Car Smoke Leak Detector 1pc * Hook (with hand-tighten nuts)1pc * Rubber Connect Parts1sets * Hard Rubber Hose Plug (with serial specification)1pc * Standard Cone Adapter1pc * Power Cord Clamp1pc * Valve Core Wrench1pc * Test Oil Refill Bottle(oil not included)1pc * EVAP Special Connector1pc * Smoke Hose1pc * User Manual
Product DescriptionCautions:
1.When you use this detector the first time, please fill 20-30ml oil, not beyond this range.
2.New oil can be filled with only when the smoke is light,and it can't be filled over 15ml every time.
3.Before filling new oil, please pour out the remaining oil in the detector. 4.Please replace the detector oil regularly.

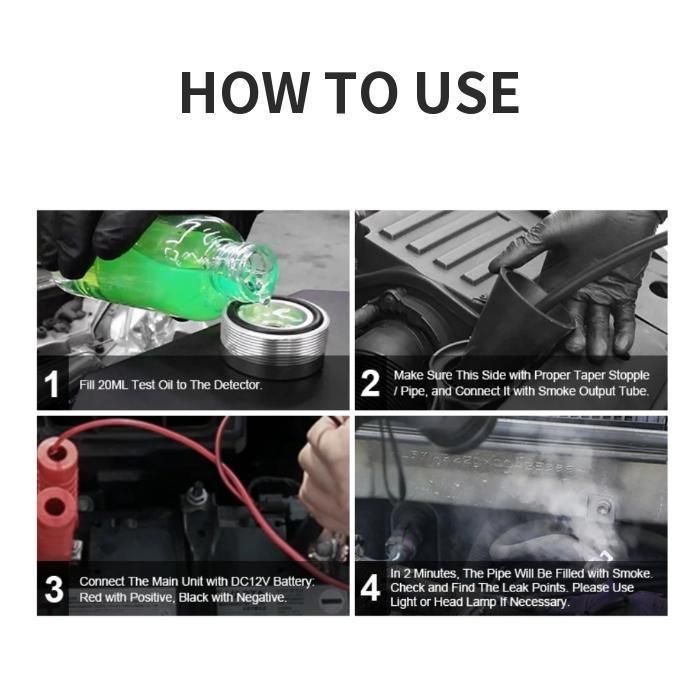

How to Use:
1.Open the engine cover, and hang the detector in the cover.
2.Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle. Please secure the other side with a rubber stopple.
3.Secure this side with proper taper stopple/pipe, and connect it with smoke output tube.

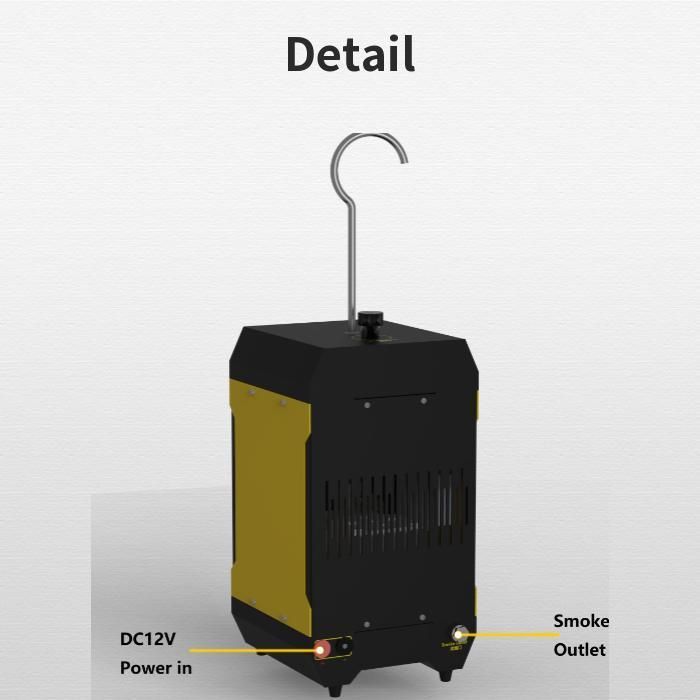

4.Connect detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way.
5.Turn on the power switch, and detector starts to work.
6.In about 3 minutes, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
7.After leak detection, please connect well the wires and pipe.
8.Notes: * Please do leak detection away from smoke-sensitive parts. * Do not run the detector over 8 minutes. It needs interval rest. * The detector has protector. If it exceeds working limit, it will power off automatically. In this condition, please operate it later. * The round parts of this detector is with temperature, be careful to avoid scalding injury.
