• Model NO.：GL3
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：18000,24000,25000,30000 as Option
• Control Panel：Straight Driven Motor
• Lighting System：Upper Light+Side Light
• Filters：High Efficiency Imported Filter
• Color：Red Blue Orange White as Option
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Warranty：One Year
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：panel sandwich style, δ =50mm, EPS
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL3 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 18000/24000/25000/30000 as Option Control Panel Straight Driven Motor Lighting System Upper Light+Side Light Filters High Efficiency Imported Filter Color Red Blue Orange White as Option Usage Car Painting Baking Vehical Suited Saloon Car Warranty One Year Transport Package Iron Frame Packing and Carton Packing Specification panel sandwich style, δ =50mm, EPS Trademark GUANGLI Origin Guangzhou, China HS Code 84198990 Production Capacity 10, 000 PCS/Year

Product Description

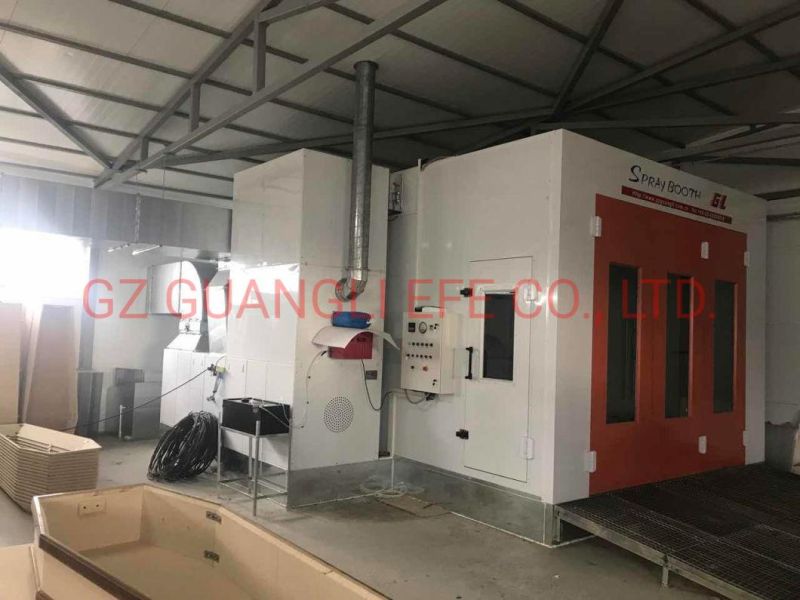

GL3 Spray Booth manufacturer

Features:
*Outside dimension: 7000*5300*3500mm
*Inside dimension: 6900*3900*2700mm
*Front door dimension: 3000*2600mm
*Service door dimension: 2000*800mm
Cabin system:
1) Wall panel: 50mm thickness flame-resistant and heat-preserving EPS panel; 0.426mm thick color steel. Roof panel: galvanized sheet;
2) Basement: 3rows of vein boards, 2rows of grids
Air circulation system:
Model: GL3
Blower capacity: 24000m3/h
Exhaust fan: one 7.5kw intake fan, one 5.5kw exhaust fan.
Spraying/baking transition damper, automatically air controlled
Air purification system: pre-filter, high efficiency filter(ceiling filter), floor filter, active carbon.
Heat system: RIELLO G20 disel burner(one stage)
Lighting system:
--Ceiling lights: 10groups*4pcs=40pcs*18W
--Side lights: 8groups*2pcs=16pcs*18W
--Glass: all glass is clear tempered glass.
Control box: lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting,emgency stop etc...

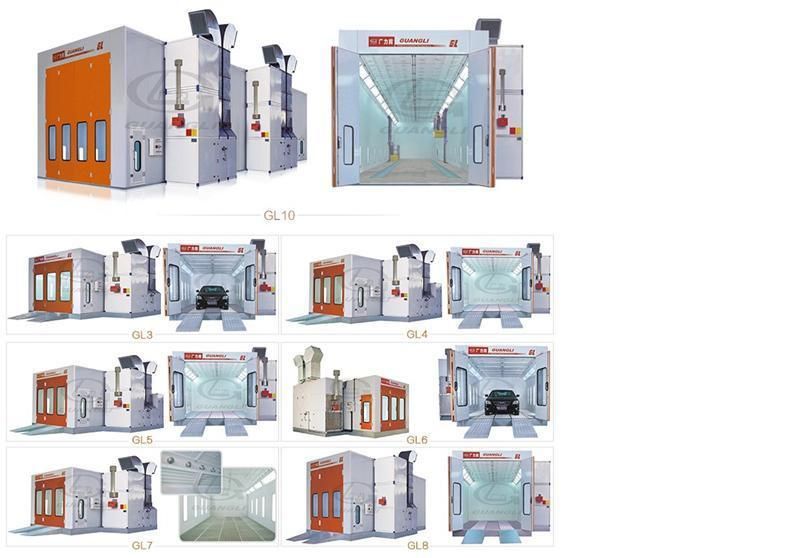

Other product series





Equipment






Exhibition



Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many
options for service and maintenance, and provides a full line of replacement parts and filters to ensure
your products operate at peak efficiency.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.

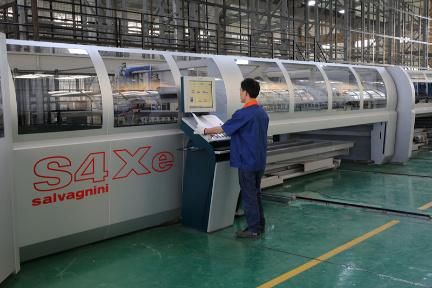

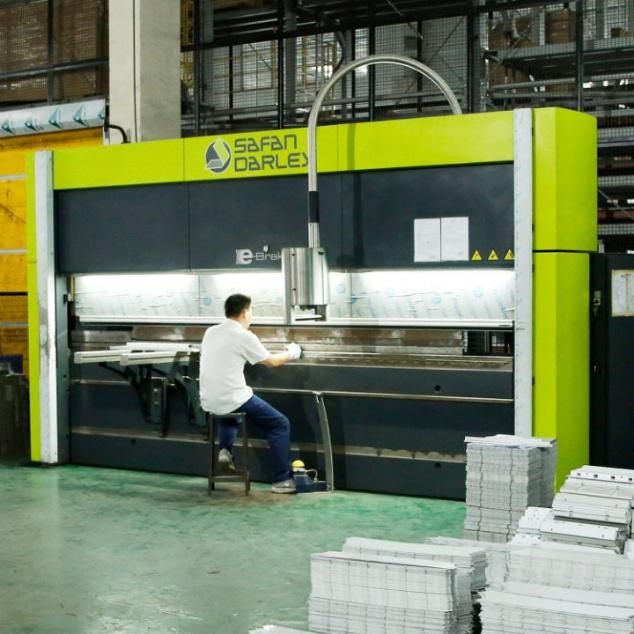

Factory Show
