Gcan Can Bus Module 8 Channels Baud Rate 5kbps-1Mbps Analyzer
Sinoped (Liaoning) Optronic Technology Co., Ltd.- After-sales Service：Supplier Warranty
- Warranty：12 Months
- Testing Equipment Type：Car Computer Detector
- Certification：CE
- Update Method：by Internet
- Condition：New
Base Info
- Model NO.：modul 8,16
- Standard：Standard
- Operating Voltage：24V
- Isolation Voltage：1500V Magnetic Coupling Isolation
- Interface Form：dB9
- Can Baud Rate：5K~1Mbps
- electronic Isolate：1500V
- Can Channels：8
- Transport Package：Carton
- Specification：234x121x44mm
- Trademark：GCAN
- Origin：China
- HS Code：8543709990
- Production Capacity：10000
Description
Basic Info.
Model NO. modul 8/16 Standard Standard Operating Voltage 24V Isolation Voltage 1500V Magnetic Coupling Isolation Interface Form dB9 Can Baud Rate 5K~1Mbps electronic Isolate 1500V Can Channels 8 Transport Package Carton Specification 234x121x44mm Trademark GCAN Origin China HS Code 8543709990 Production Capacity 10000Product Description
Product Description
USBCAN-Modul 8 is a high-performance CAN-Bus communication interface card integrated with 8-channel CAN interface.This model CAN card is compatible with the full speed specification of USB2.0 Bus, using the USBCAN-Modul8 high-performance CAN interface card, PC CAN be quickly connected to the CAN-Bus network through USB interface. USBCAN-Modul 8 high performance CAN interface card supportWindows XP/Win7/Win10 Linux and other operating systems,we provide a complete application demonstration code (VC VB Net Delphi Labview C++Builder), for the convenience of users for application development.Software Functions1. Transmit/Receive data

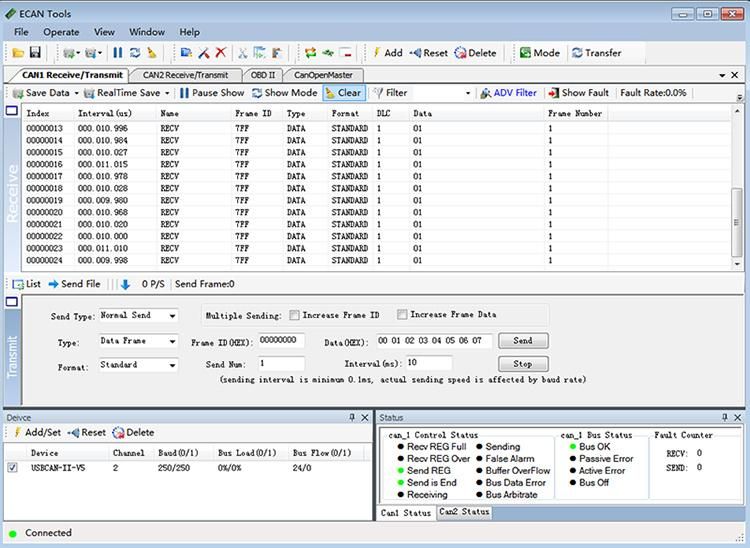

Transmitting and receiving is the basic function of ECAN Tools, in this interface, users can directly see the received CAN data, and send the data to CAN bus.

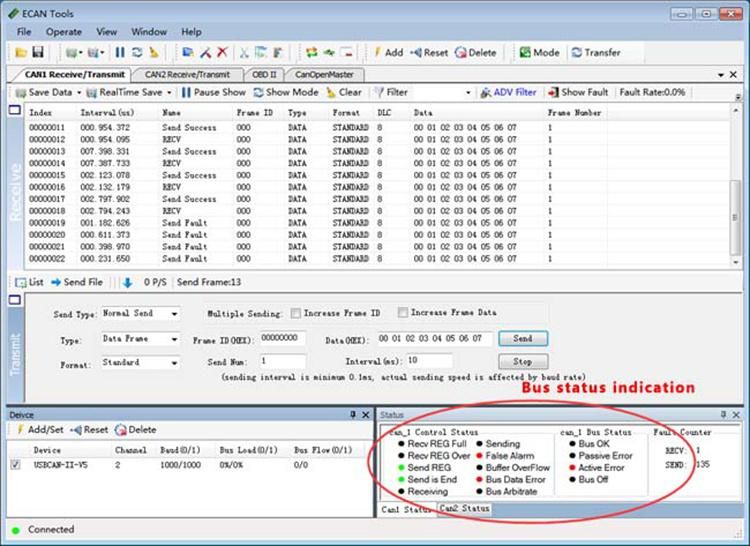

2.CAN-Bus diagnosis function
CAN-Bus diagnosis function can detect the bus error frames and bus arbitration lost.
3.Statistics mode
When receiving data,software can classify these data in ID,data name, format or type and counting the number of each data.
4.Other functions

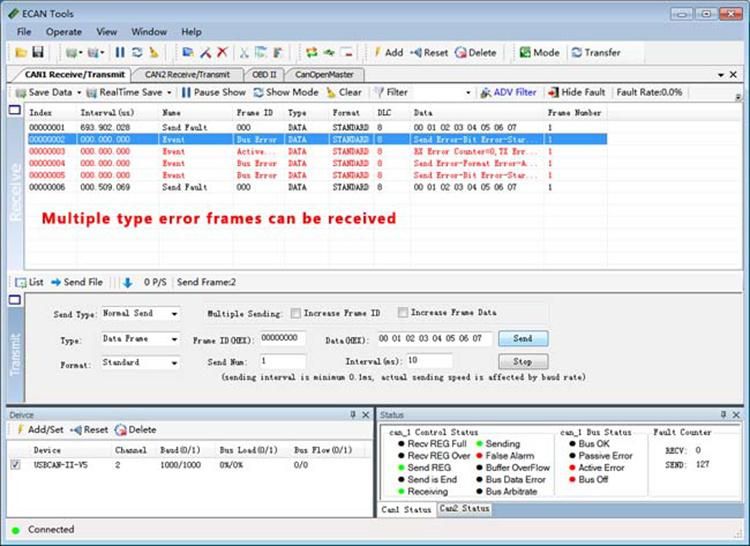

Save data:save the receiving list Display mode:scroll mode and list mode, list mode can classified data togetheraccording to the rules Filter settings :user can set multi-stage filtering by editing the filter ID. Data mask:masked ID is not displayed Error frames : error frames on the bus can be displayed/hidden5.Secondary development

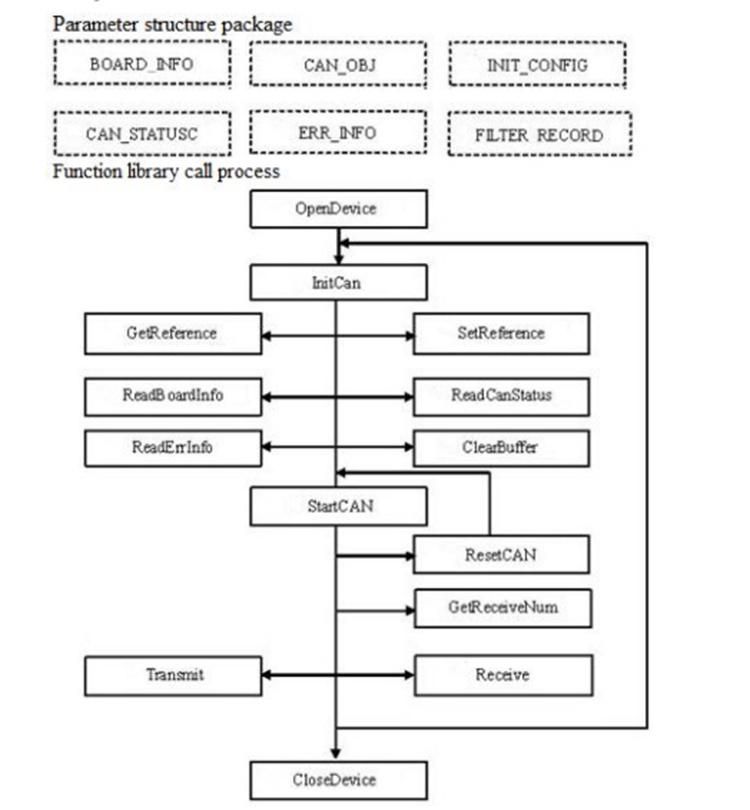

Secondary development fuction routine
