• Model NO.：ON-7803
• Double Cylinder Lift Type：in Ground Mounting
• Shearing Lift Type：Small Shear Type
• Condition：New
• Brand：Eounice
• Design：Scissor
• Transport Package：Contains
• Specification：1710*610*870MM
• Trademark：Eounice
• Origin：China
• HS Code：8425429000
• Production Capacity：1000

Basic Info.

Model NO. ON-7803 Double Cylinder Lift Type in Ground Mounting Shearing Lift Type Small Shear Type Condition New Brand Eounice Design Scissor Transport Package Contains Specification 1710*610*870MM Trademark Eounice Origin China HS Code 8425429000 Production Capacity 1000

Product Description

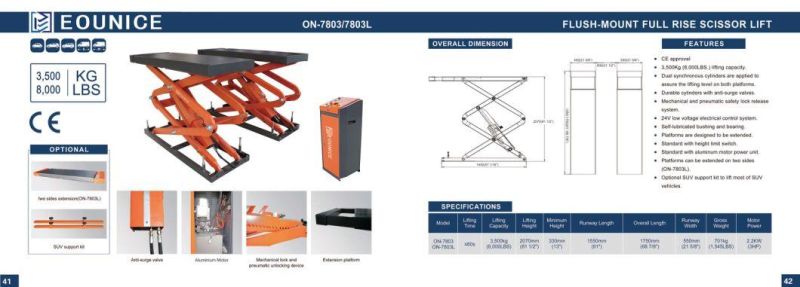

TECHNICAL DATA

Model	Lifting Capacity	Lifting Time	Lifting Height	Minimum Height	Runway Length	Overall Length	Runway Width	Gross Weight	Motor Power
ON-7803	3,500kgs (8,000LBS)	≤60S	2070mm (81 1/2")	330mm    (13")	1550mm (61")	1750mm (68 7/8")	550mm (21 11/16")	701kgs (1,545LBS)	2.2KW (3HP)

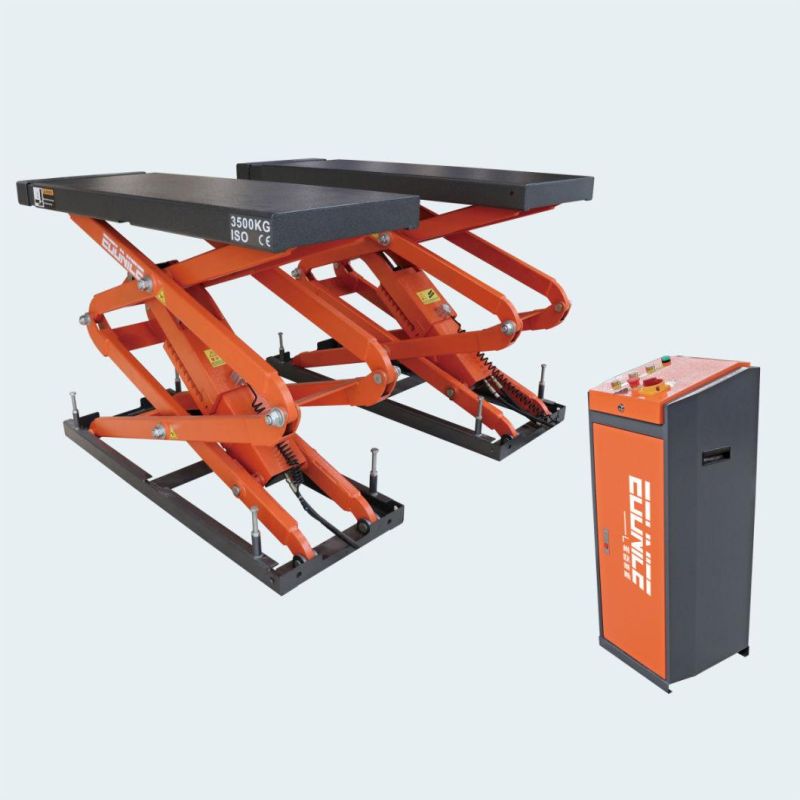

PRODUCT INTRODUCTION:

1. CE approval by TUV.
2. 3,500Kg (8,000LBS.) lifting capacity.
3. Dual synchronous cylinders are applied to assure the lifting level on both platforms.
4. Durable cylinders with anti-surge valves.
5. Mechanical and pneumatic safety lock release system.
6. 24V low voltage electrical control system.
7. Self-lubricated bushing and bearing.
8. Platforms are designed to be extended.
9. Standard with height limit switch.
10. Standard with aluminum motor power unit.
11. Optional Platforms can be extended on two sides.
12. Optional SUV support kit to lift most of SUV vehicles.

FEATURES:

1. The maximum height is up to 2070mm(81 1/2"), the effective ground height is up to 1750mm(68 7/8"), the effective operating space is higher;
2. The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment.
3. Large diameter synchronous cylinder (master cylinder 110mm), easier to start, can effectively increase the service life of the hydraulic part; The joint of hydraulic cylinder is equipped with anti-pipe burst throttle valve, which can prevent accidents caused by pipe burst.

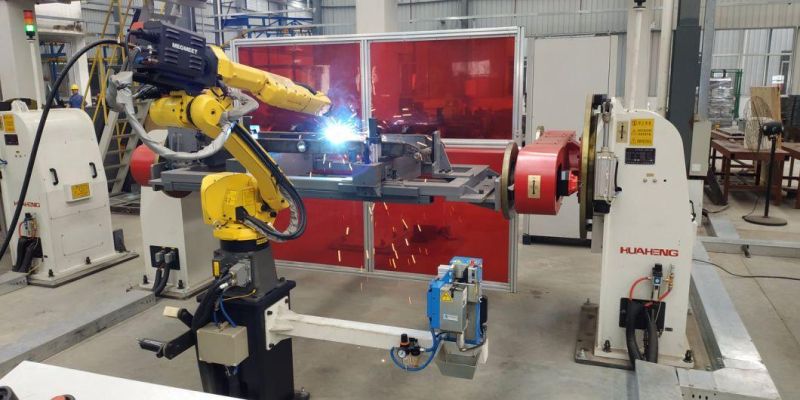

4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

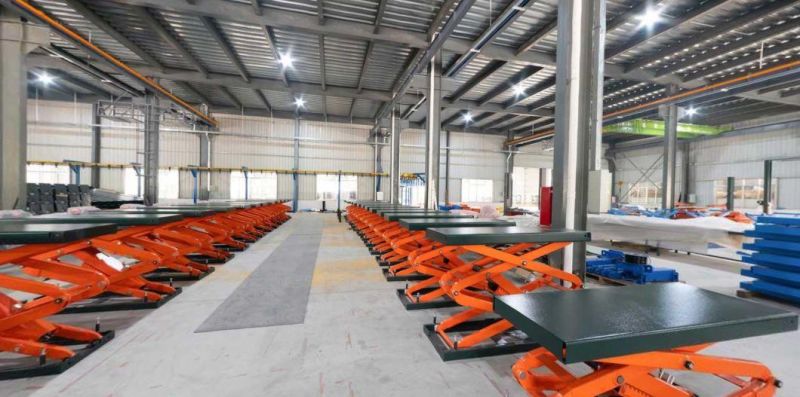

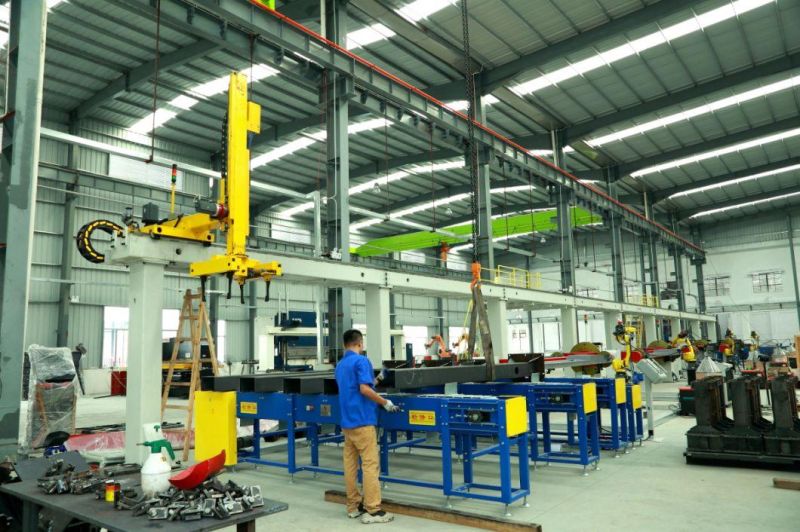

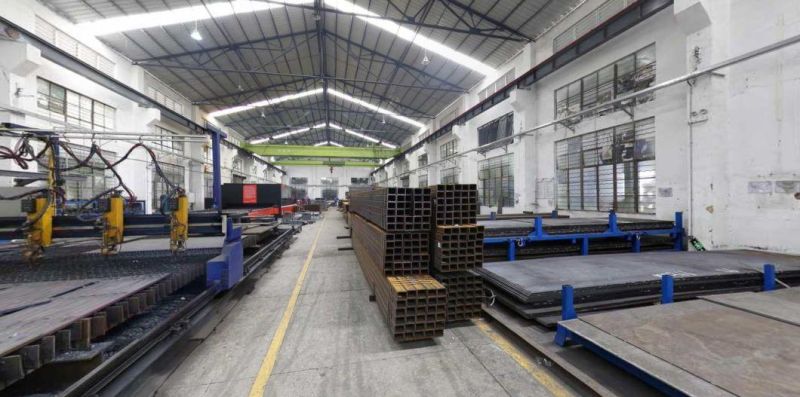

OUR FACTORY:


Warranty term:

Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.



  Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,



 Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.

Our Services

Our Company will be Provide to you some Service.



1. OEM ODM service.

2. Customized service.

3. One Year Quality warrant service, during the period spare part supplied free

    if you pay for shipping.

4. Professional team supply service for life long time.

FAQ

 The Some buyer  maybe ask ?



A:You Are Trade Company or Factory?

A: We are manufacturer and we have our own trade company.So pls don`t worry.



B: How long the production can be delivered?

A:  Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,

subject to prior sales.This ways based on 1 20FT Containers or 40HQ Container.



C: What is the regular color? Can I order special color which I like?

A: The regular color is Blue, Red, Yellow.

    Yes, we can also produce machines with special color according to client's request.



D: Can I order  in any special size?

A:  Yes,you can.

    The size is customized, but should be suitable for the inner size of containers.pls understand.
